Home >> Mitsubishi >> 1987 >> Tredia L4-2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> A/T Torque Data

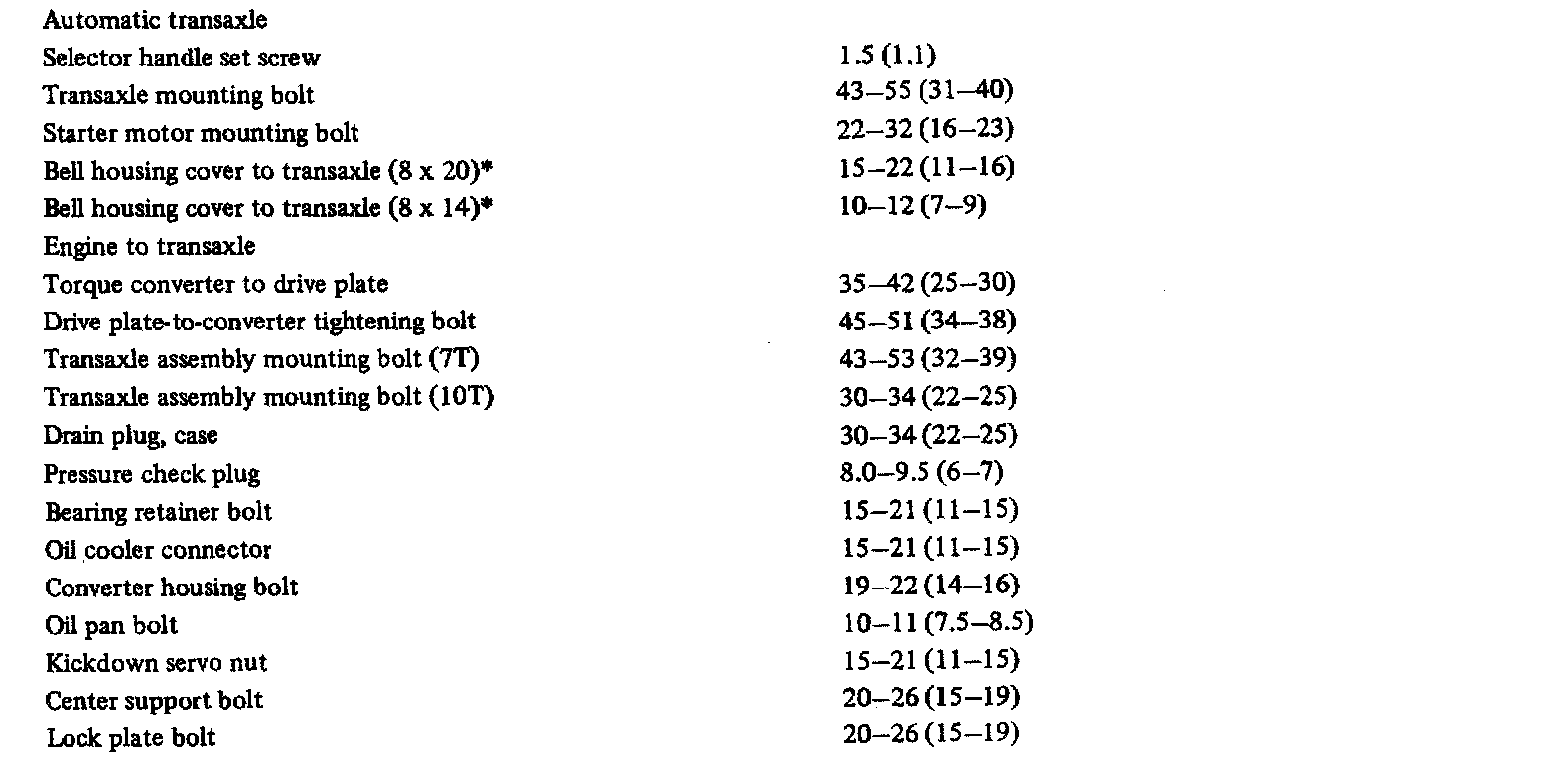

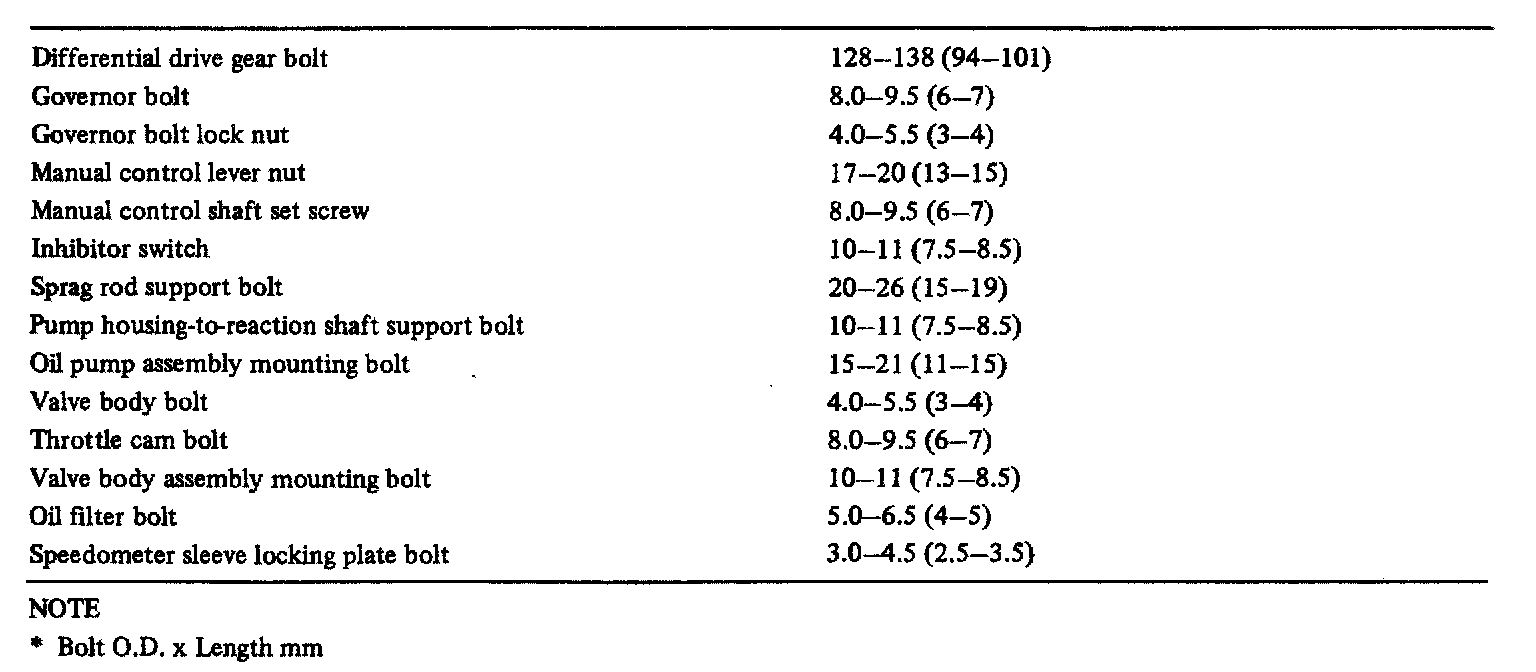

A/T Torque Data

KM172 3-spd A/T, Transaxle Assembly:




KM1172 3-spd A/T, Transaxle:
