Home >> Mitsubishi Truck >> 2007 >> Raider 2WD V6-3.7L SOHC >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Module >> Locations

Memory Positioning Module: Locations

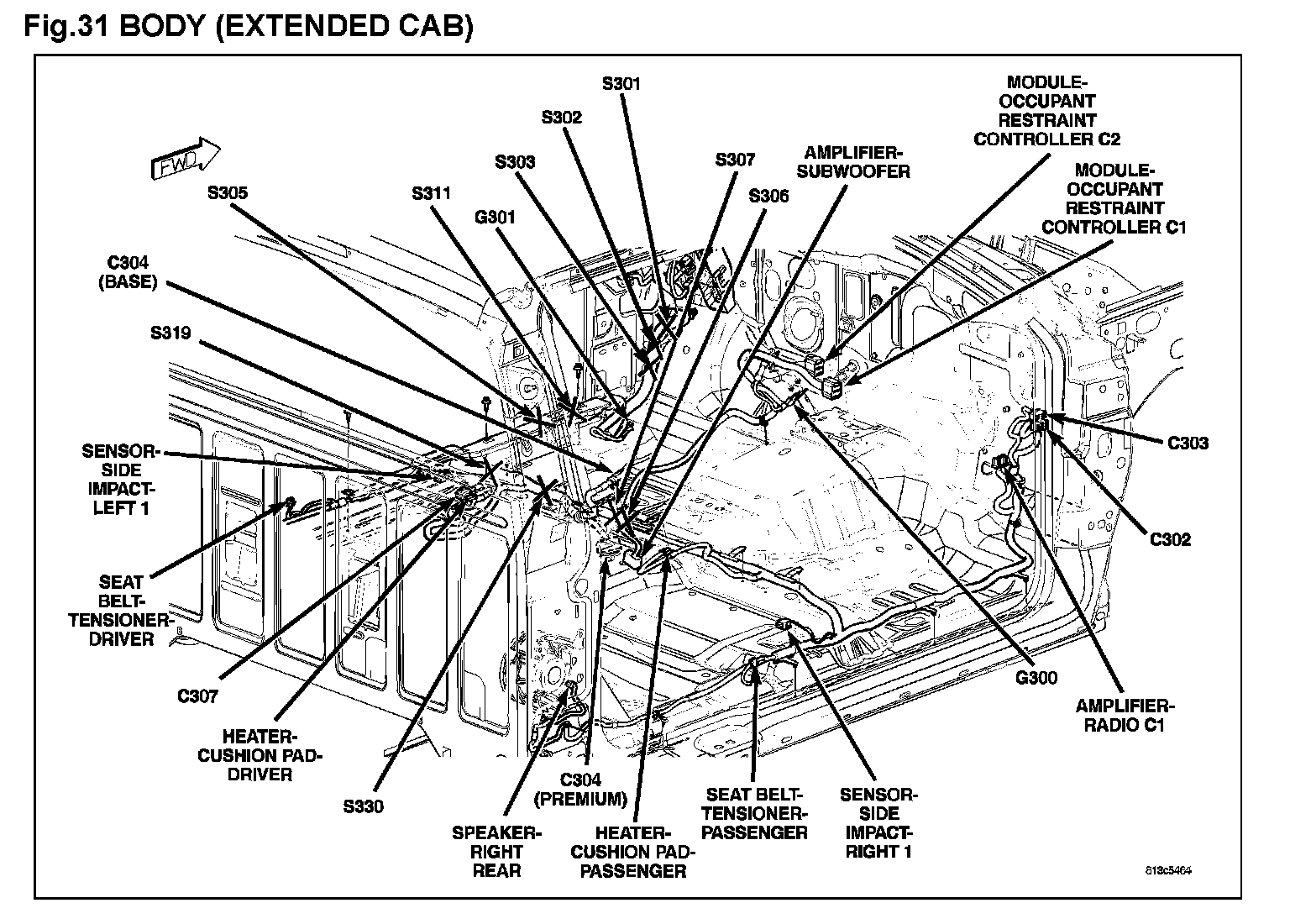

Fig. 31 Body (Extended CAB):

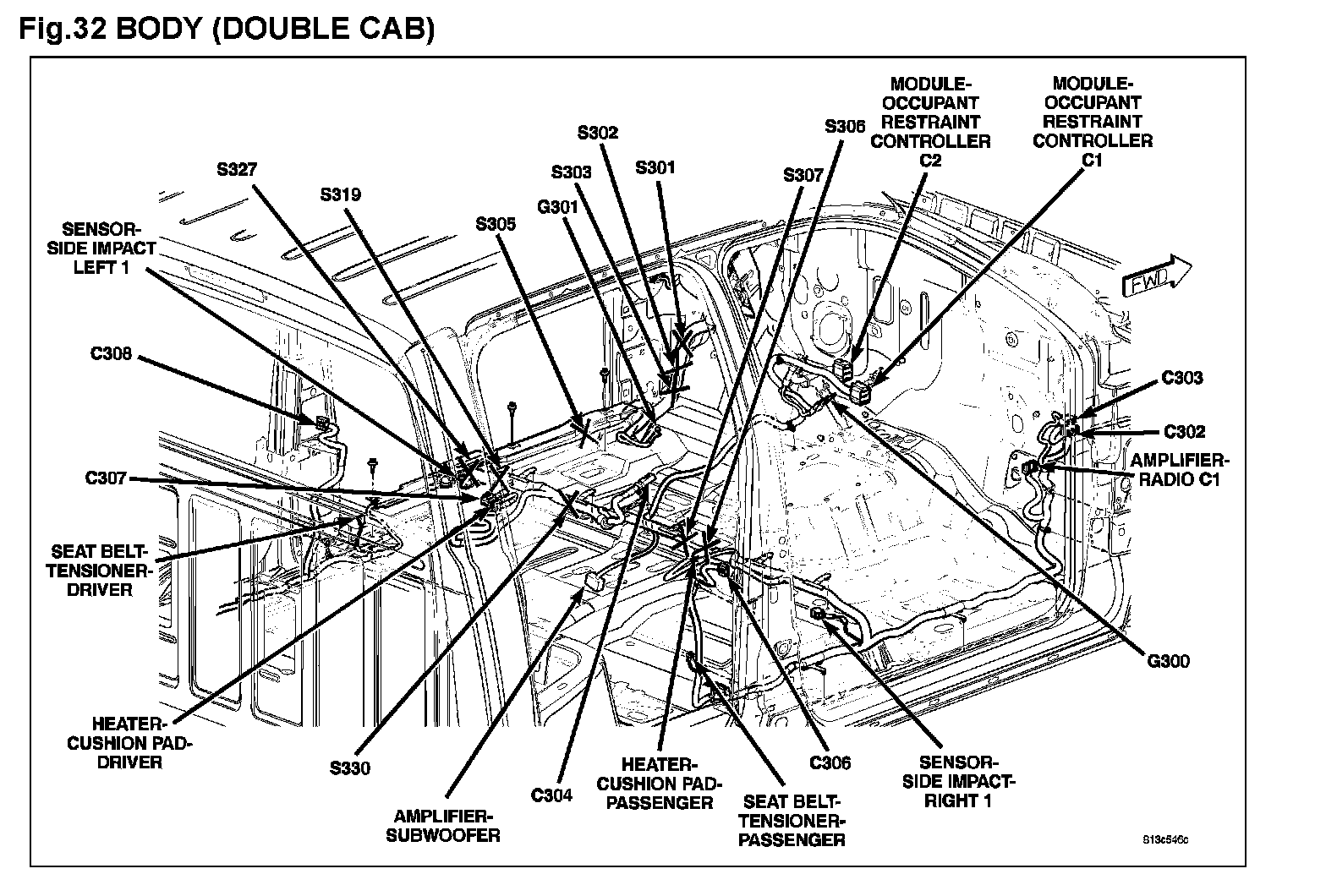

Fig. 32 Body (Double CAB):
