Home >> Mitsubishi Truck >> 2005 >> Endeavor V6-3.8L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine-Overhaul Specifications >> Service Specifications

Service Specifications

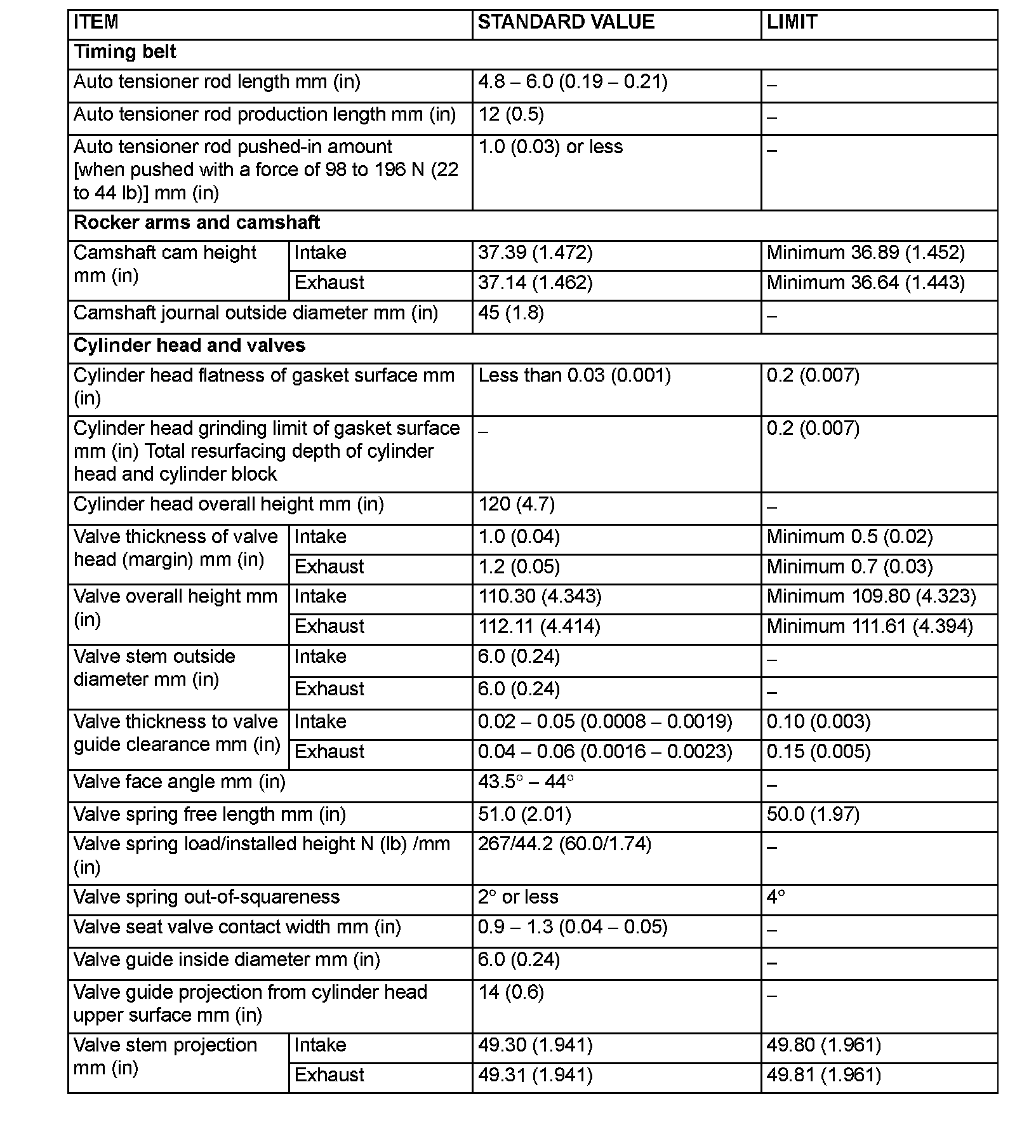

Part 1 Of 3 (Updated Per TSB# 06-11-006):

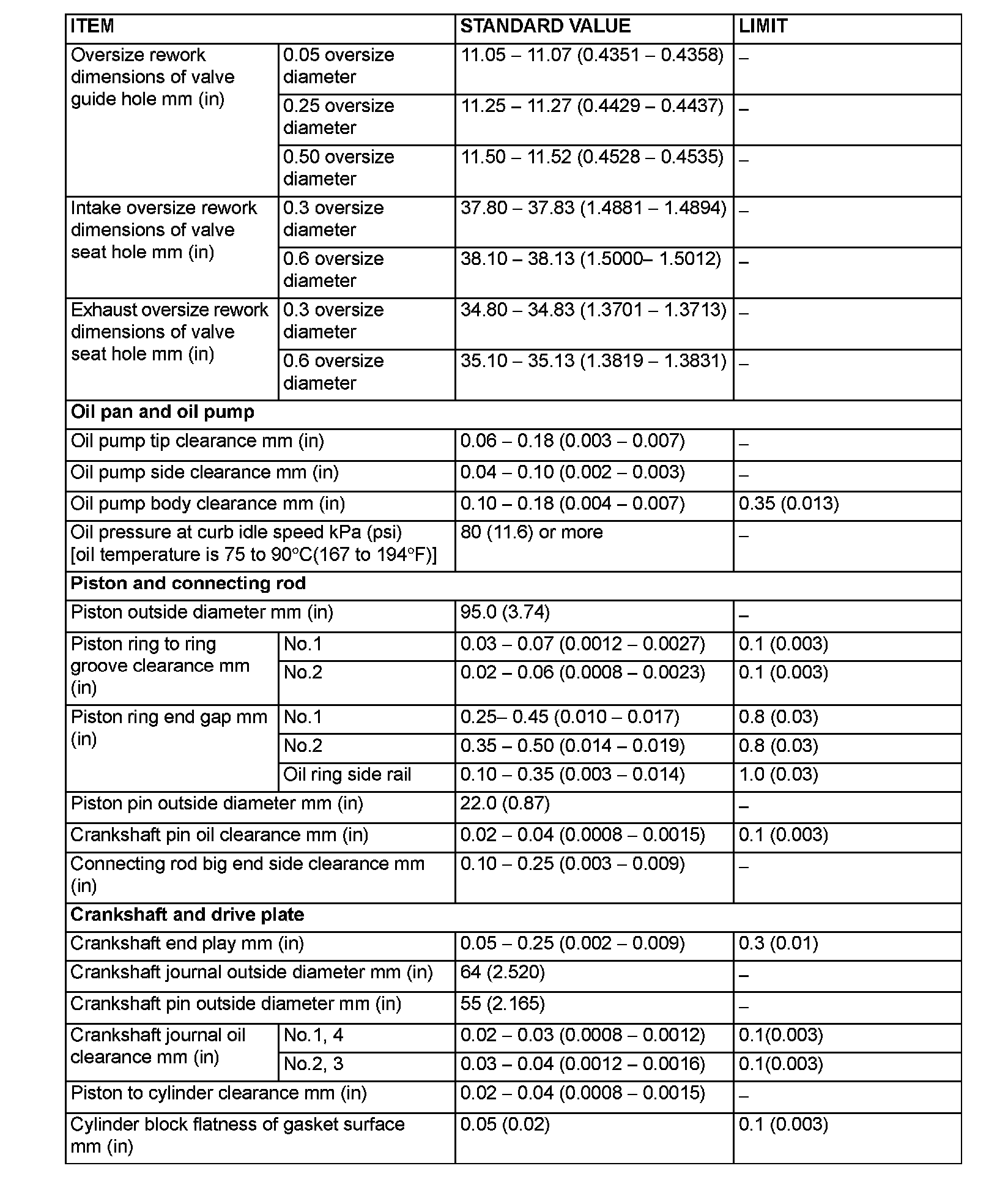

Part 2 Of 3:



Part 3 Of 3:
