Home >> Mitsubishi Truck >> 2005 >> Endeavor V6-3.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Service and Repair >> Removal and Installation

Removal and Installation

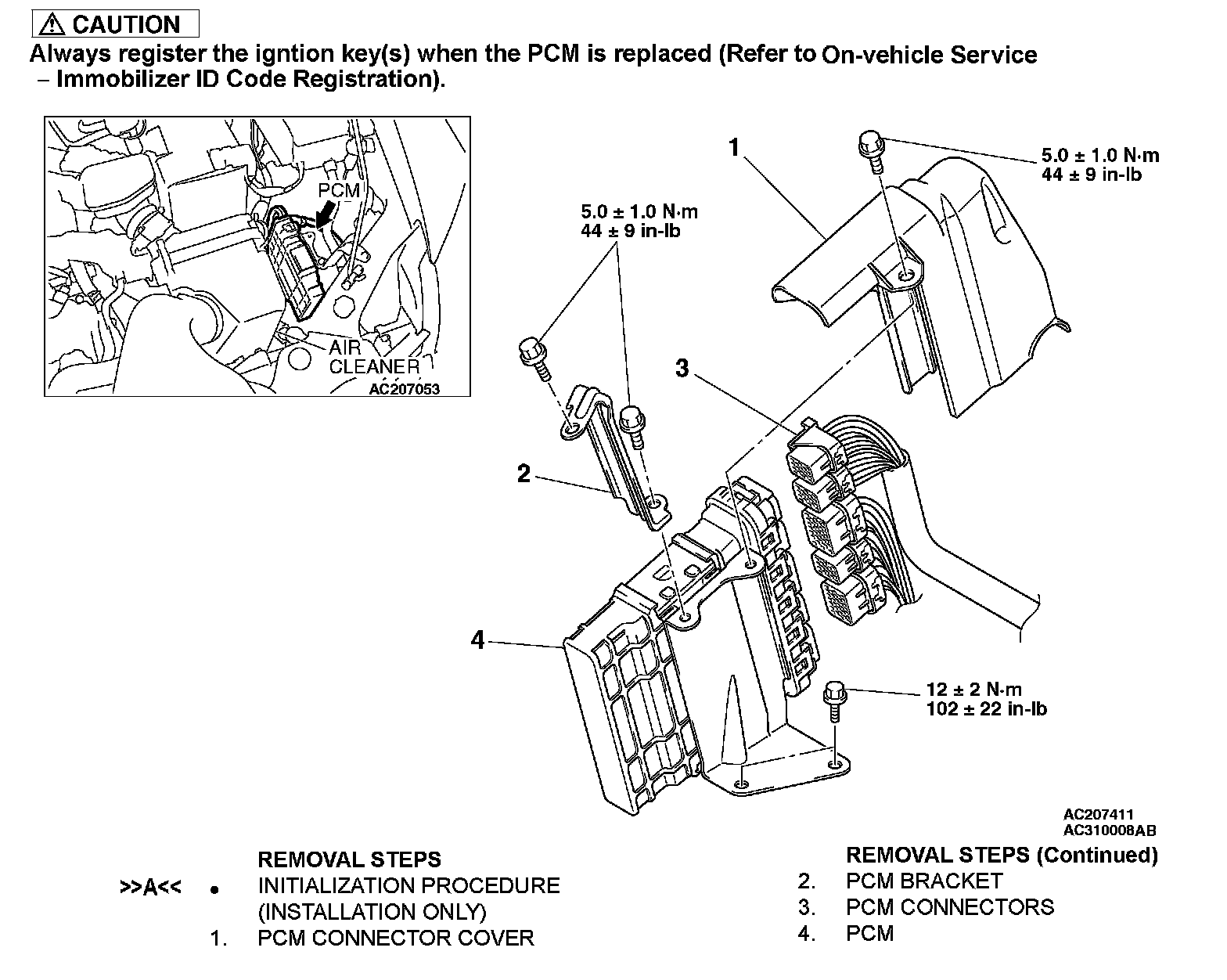

POWERTRAIN CONTROL MODULE (PCM)




REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>>A<< INITIALIZATION PROCEDURE
Turn the ignition switch on then off, and keep it off for at least 10 seconds.
