Cruise Control Module: Testing and Inspection

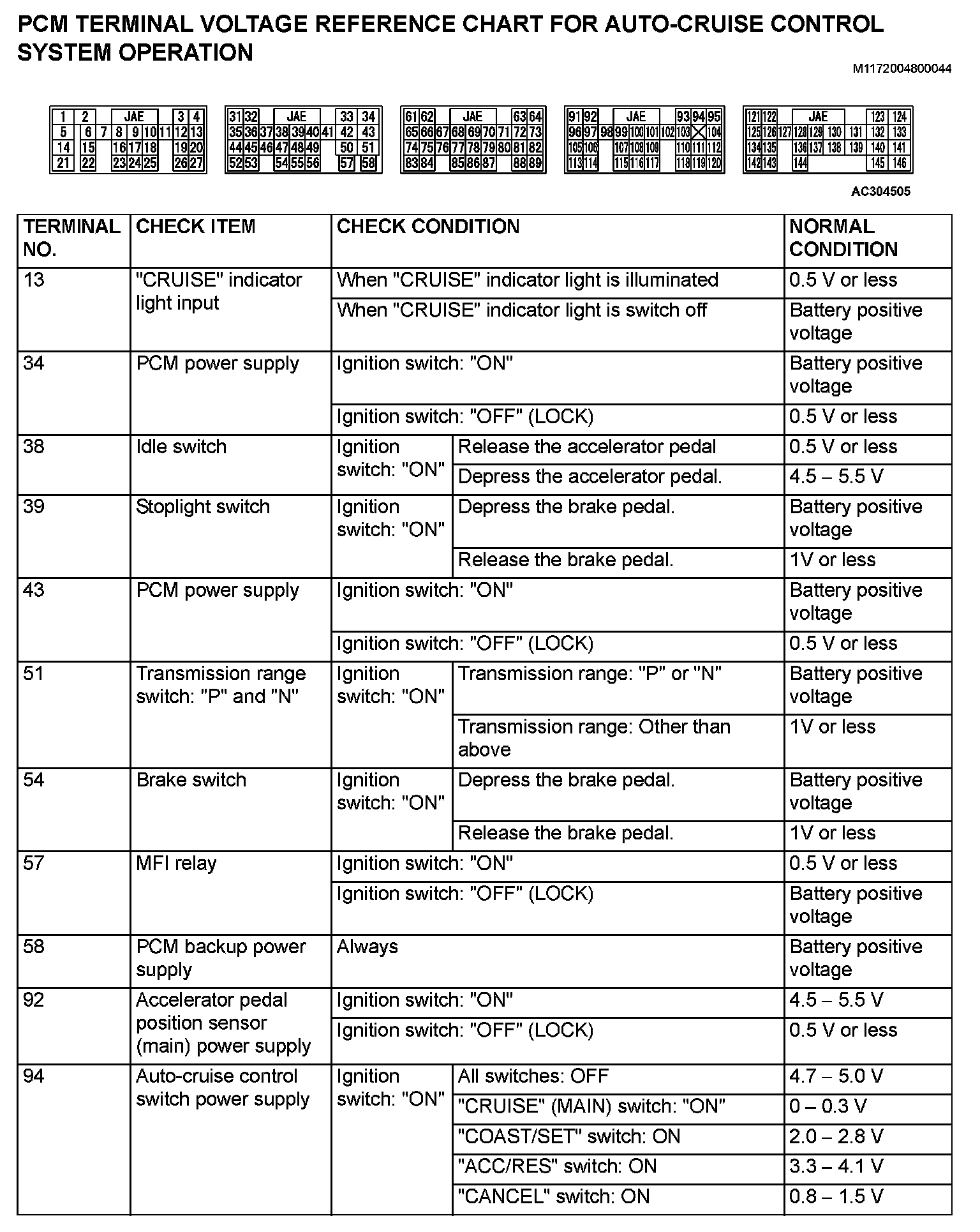

PCM Terminal Voltage Reference Chart For Auto-Cruise Control System Operation Part 1:

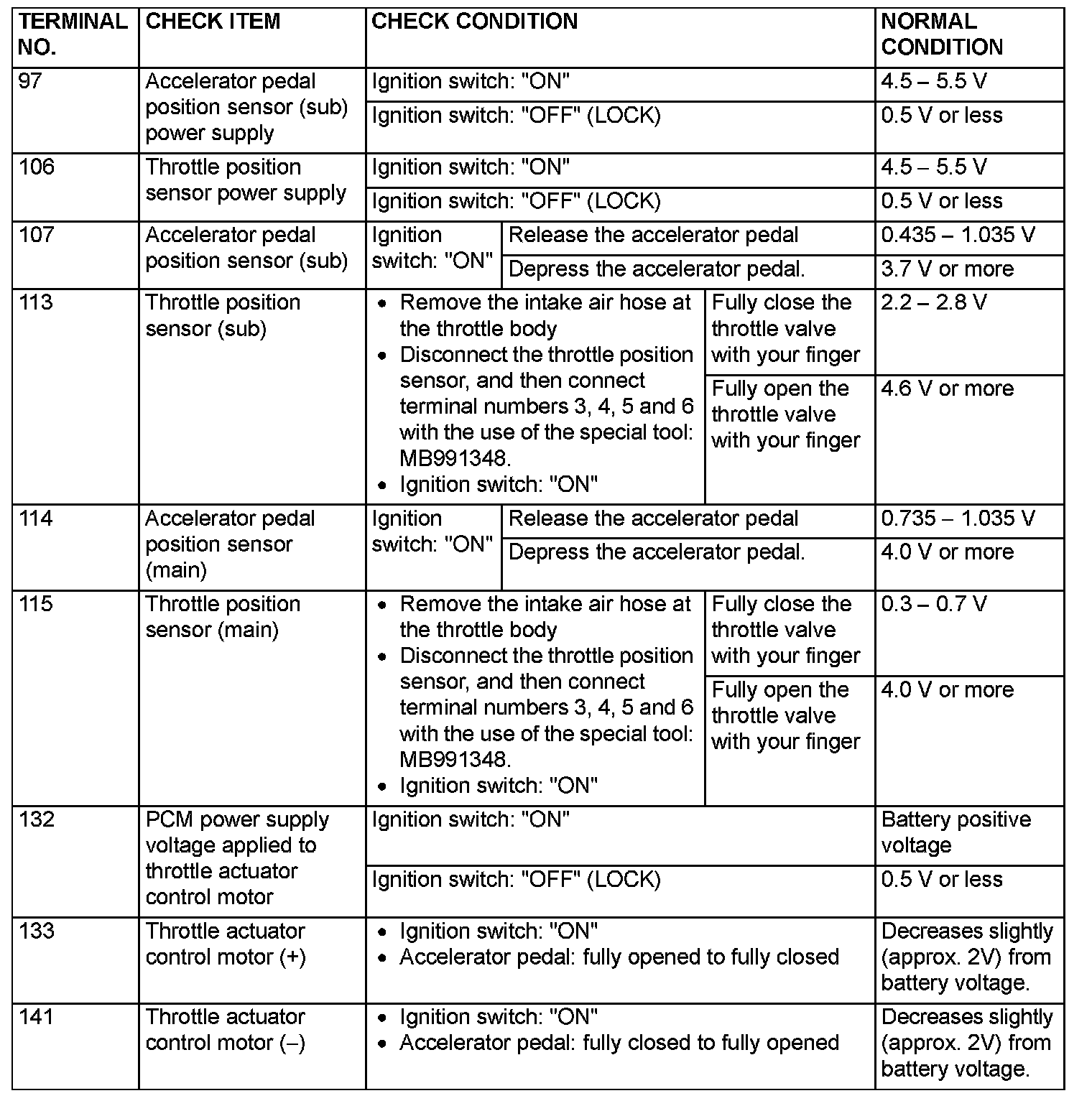

PCM Terminal Voltage Reference Chart For Auto-Cruise Control System Operation Part 2:
