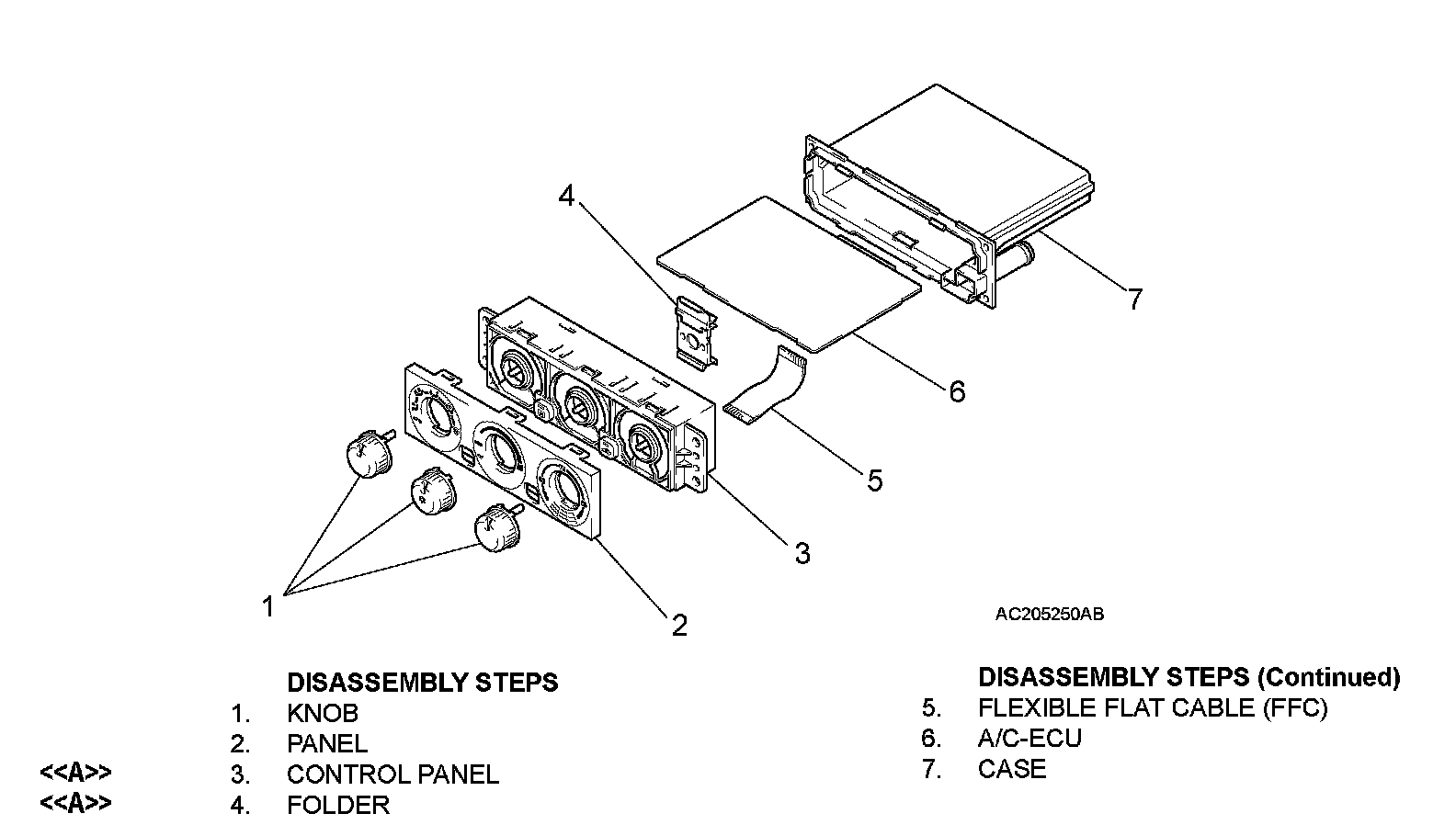

Disassembly and Assembly

A/C Control Panel And A/C Control Unit:






DISASSEMBLY SERVICE POINT




<> FCC REMOVAL
When disconnecting the FCC, always pull the cable by gripping the connector, not the cable.
