Engine Control Module: Testing and Inspection

ENGINE CONTROL MODULE (ECM) TERMINAL VOLTAGE CHECK




Connector Terminal Arrangement

TERMINAL VOLTAGE CHARTS

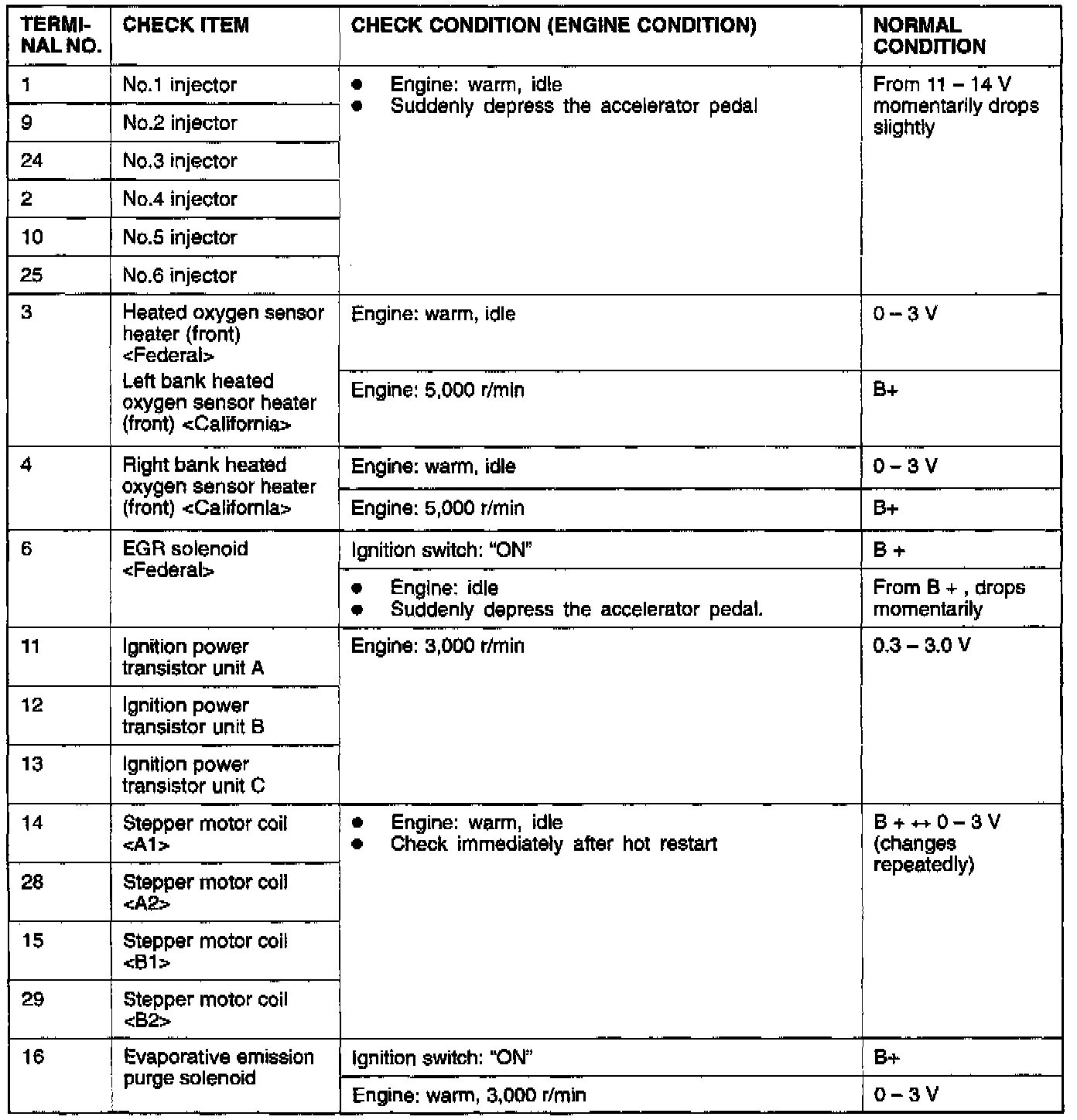

PART 1 OF 4

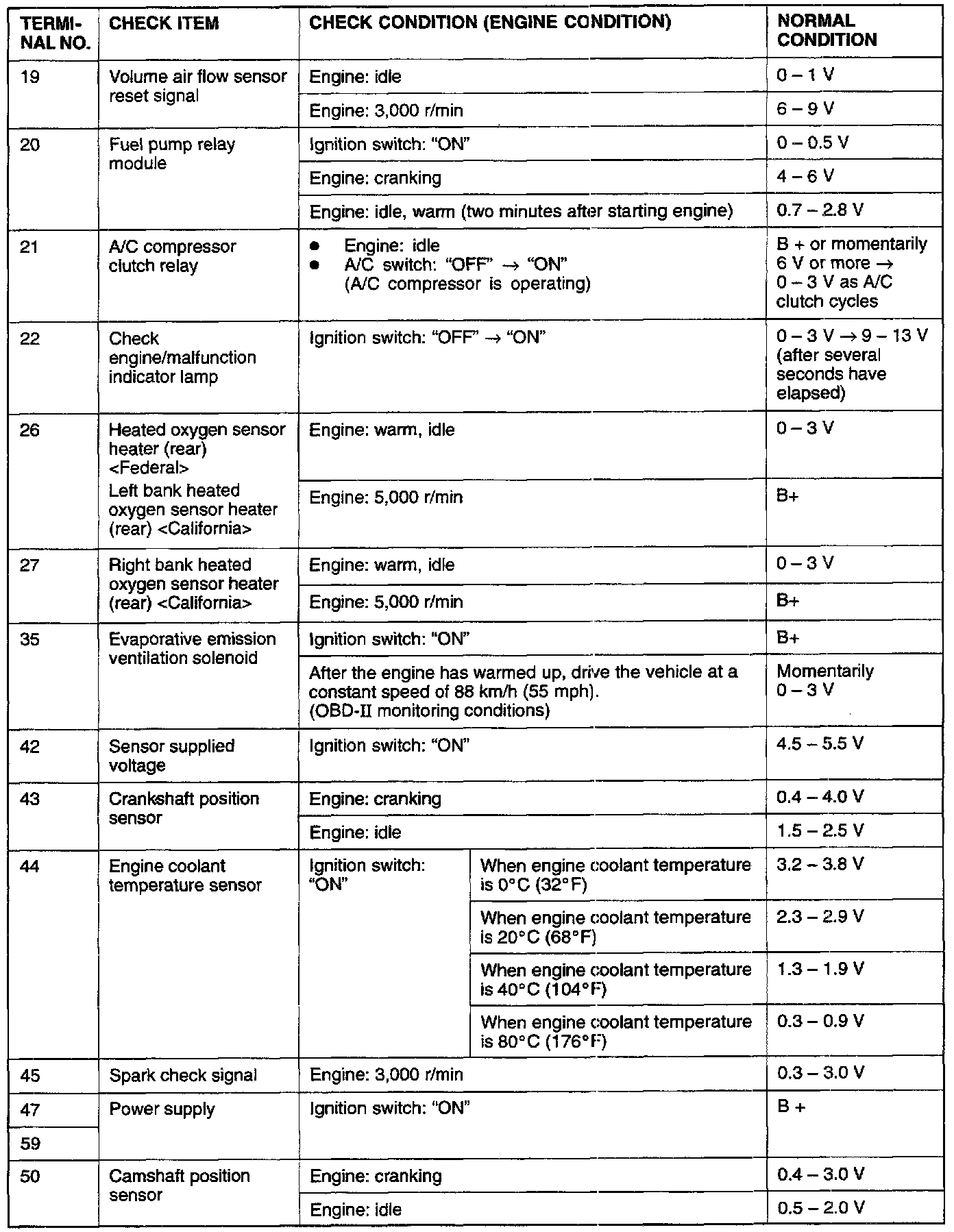

PART 2 OF 4

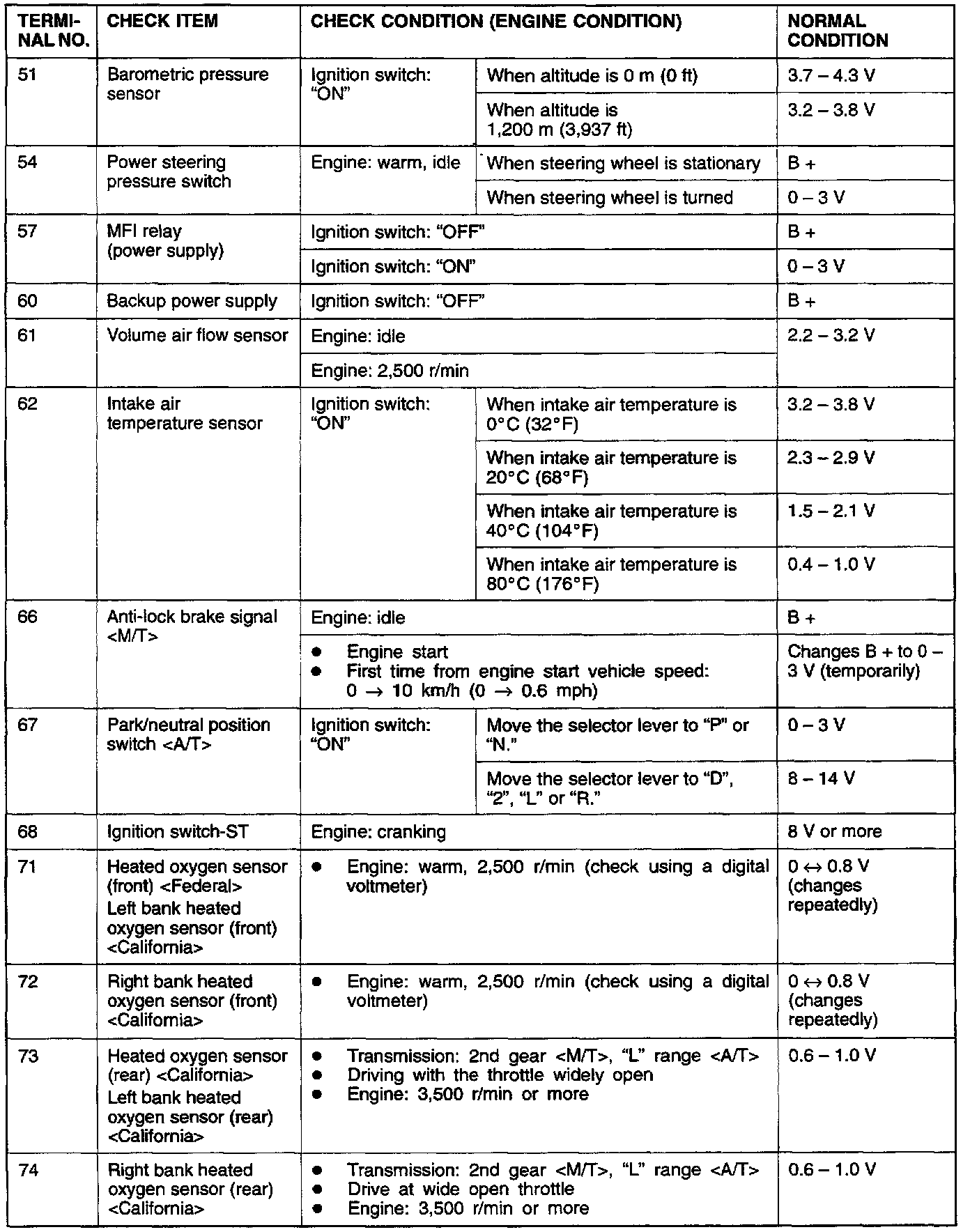

PART 3 OF 4

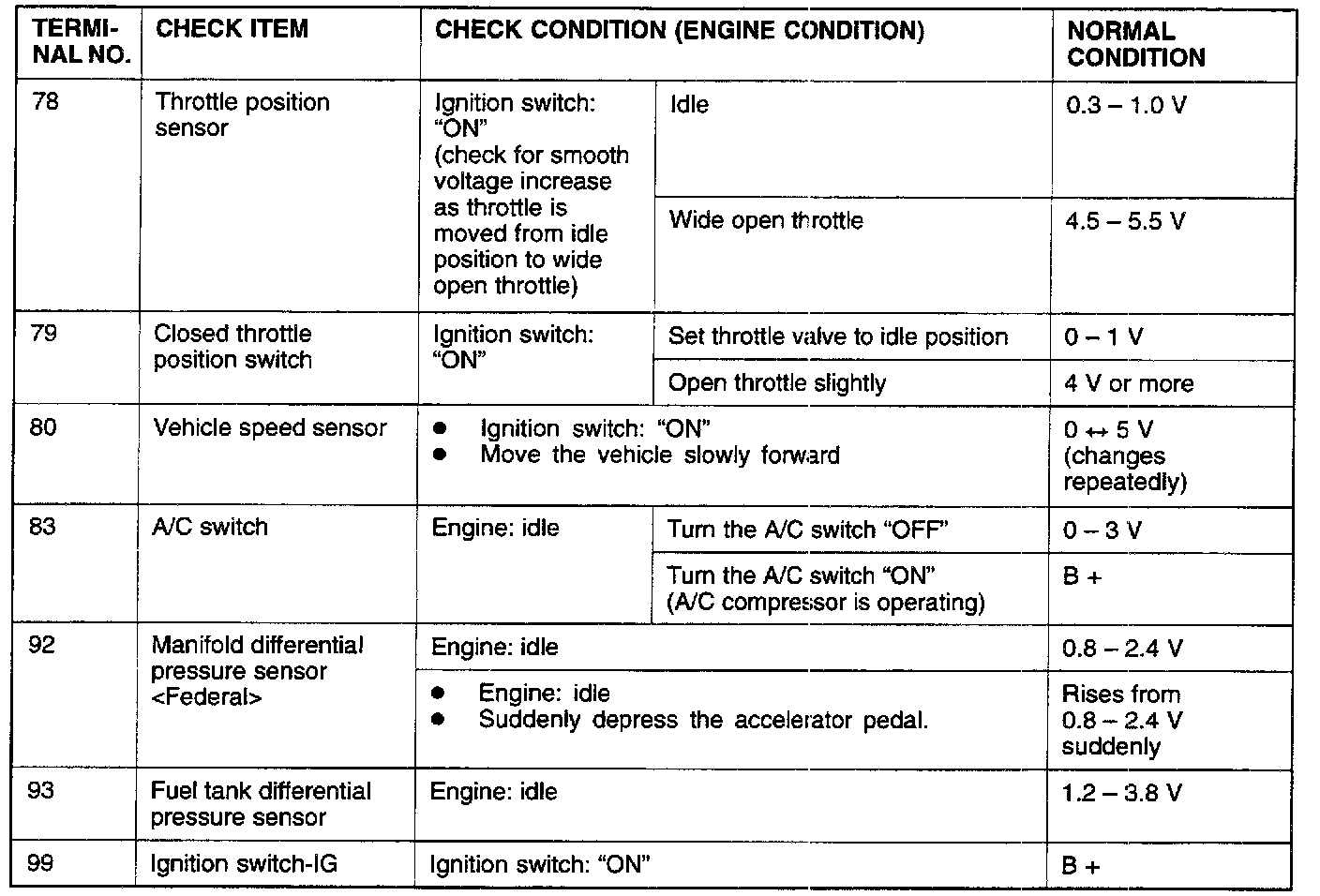

PART 4 OF 4



RESISTANCE AND CONTINUITY CHARTS

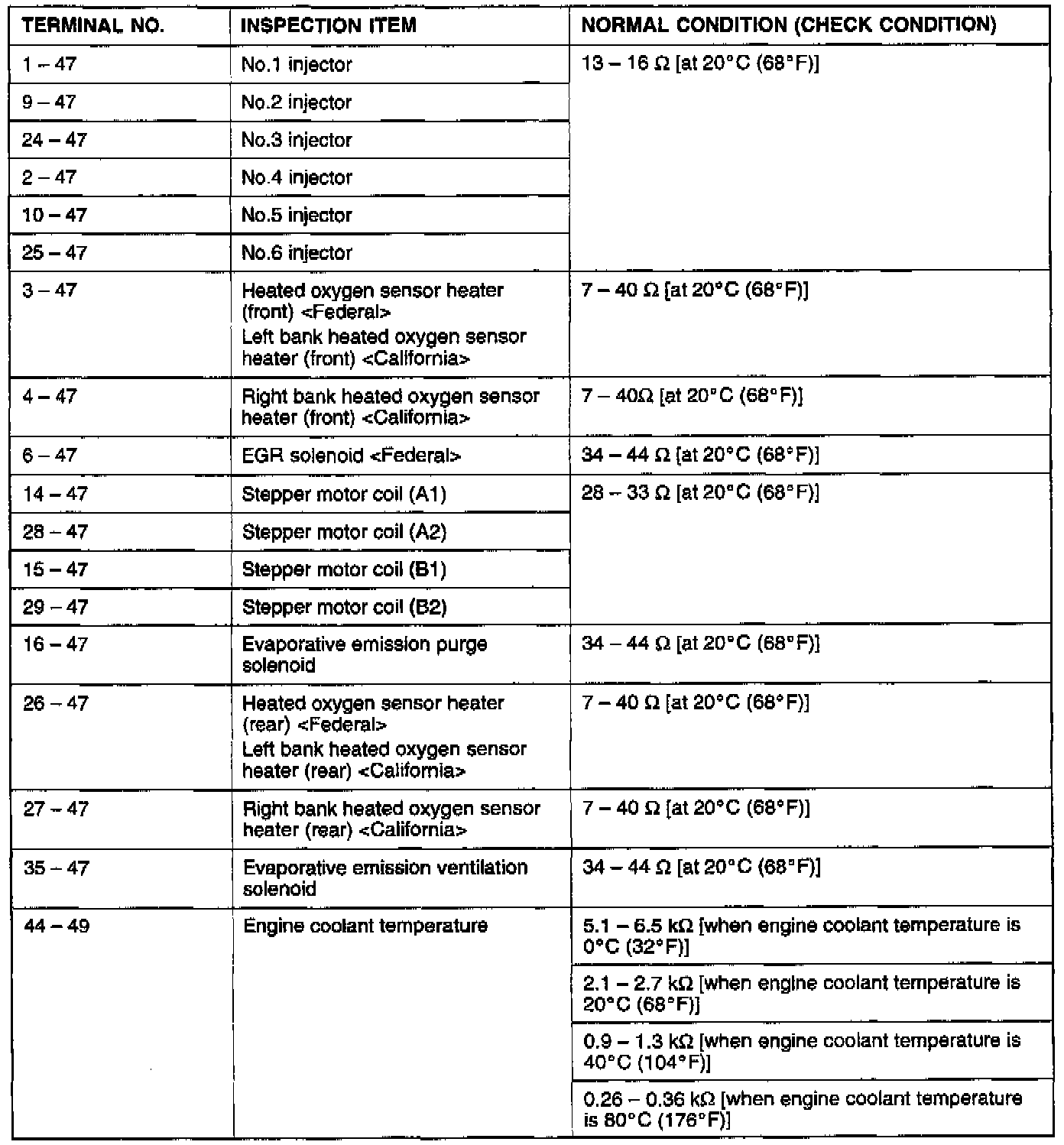

PART 1 OF 2

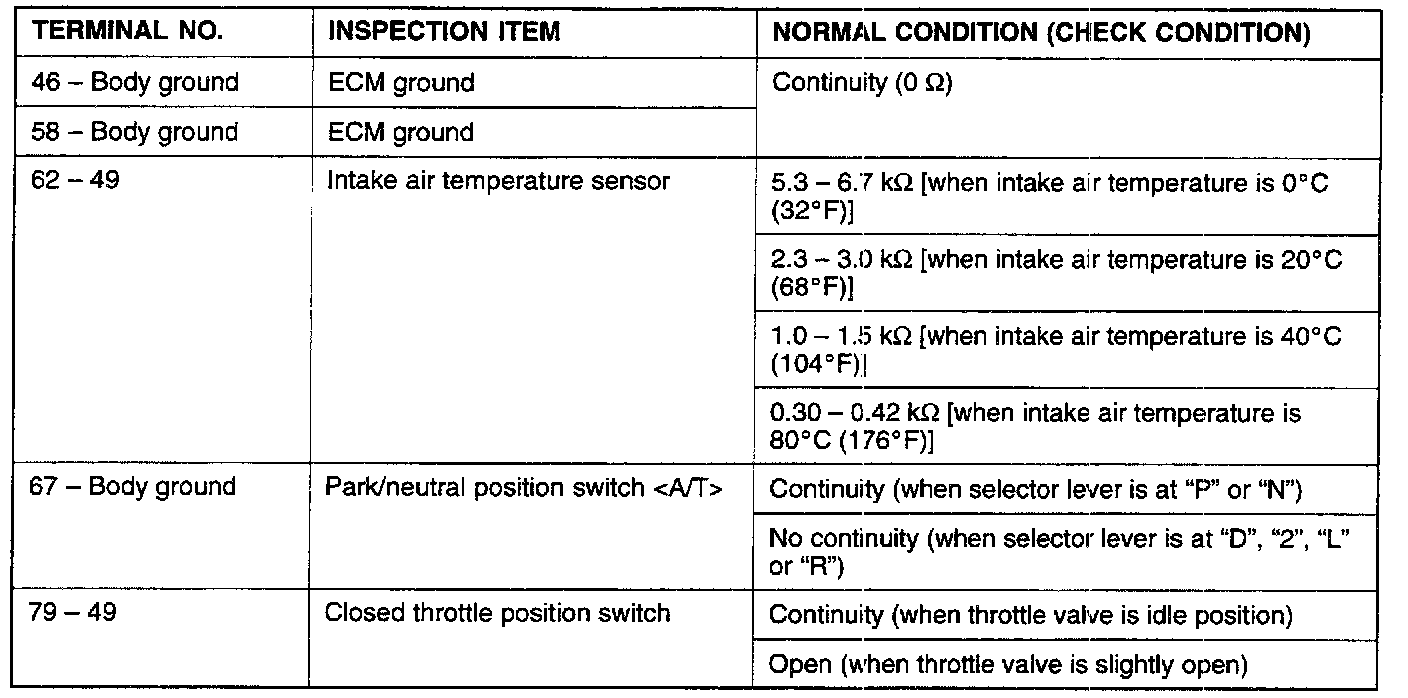

PART 2 OF 2
