Mitsubishi Fuso
>>
2005
>>
FE120 L4-4.9L DSL Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>

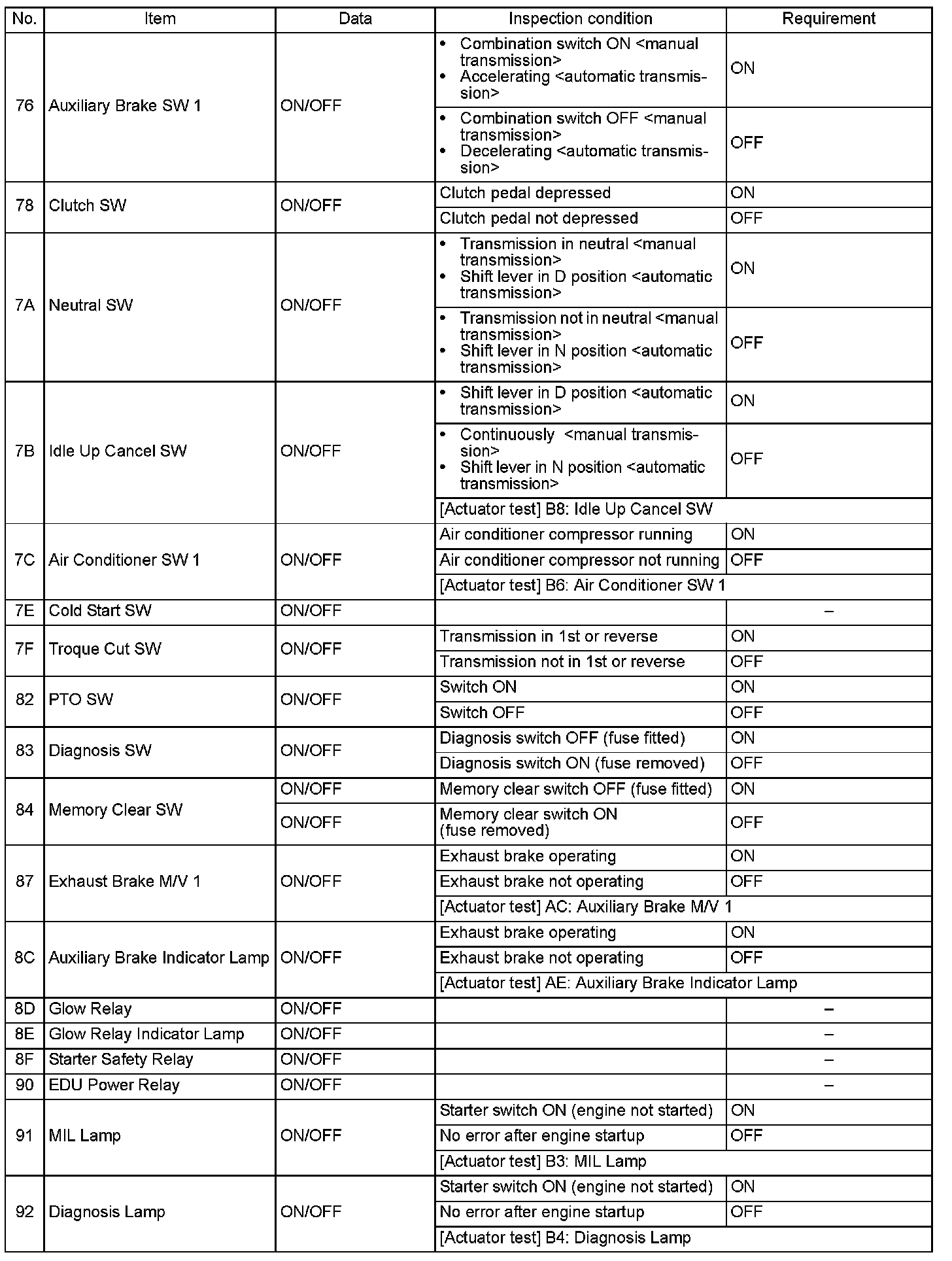

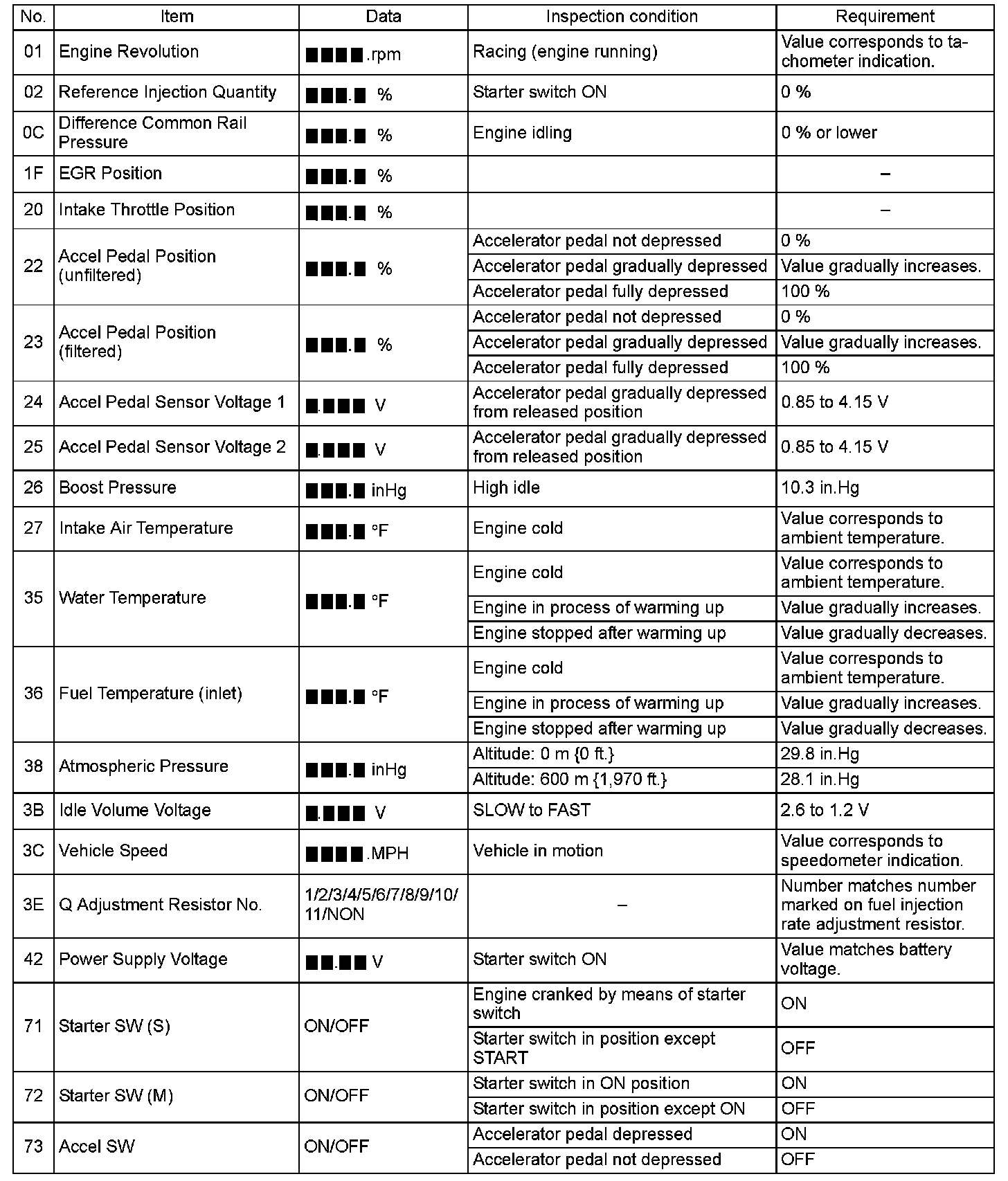

Multi-Use Tester Service Data
Multi-Use Tester Service Data
Multi-Use Tester Service Data
NOTE:
It is possible to see service data and actuator tests simultaneously.
