61 62 115 Replacing Spray Nozzle For Rear Window Washer Unit

61 62 115 - Replacing spray nozzle for rear window washer unit





Necessary preliminary tasks:
- Remove rear roof strip

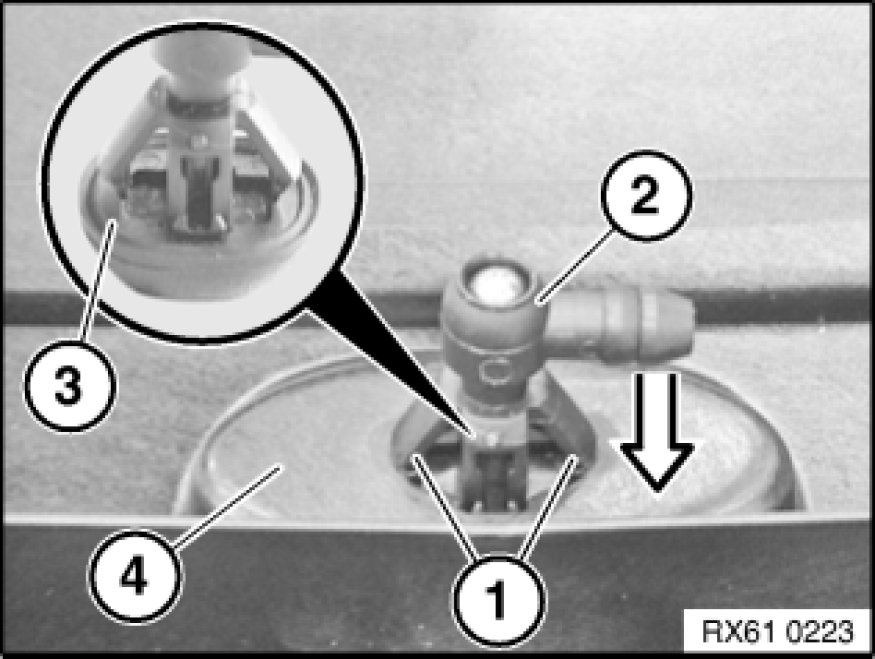

Unlock catches (1).
Remove spray nozzle (2) in direction of arrow from roof strip (4).

Installation:
- Make sure seal (3) is correctly seated on spray nozzle (2)
- Catches (1) must not be damaged
- Adjust spray nozzle Adjusting Spray Nozzle for Rear Window Washer Unit
