Air Bag Systems: Locations

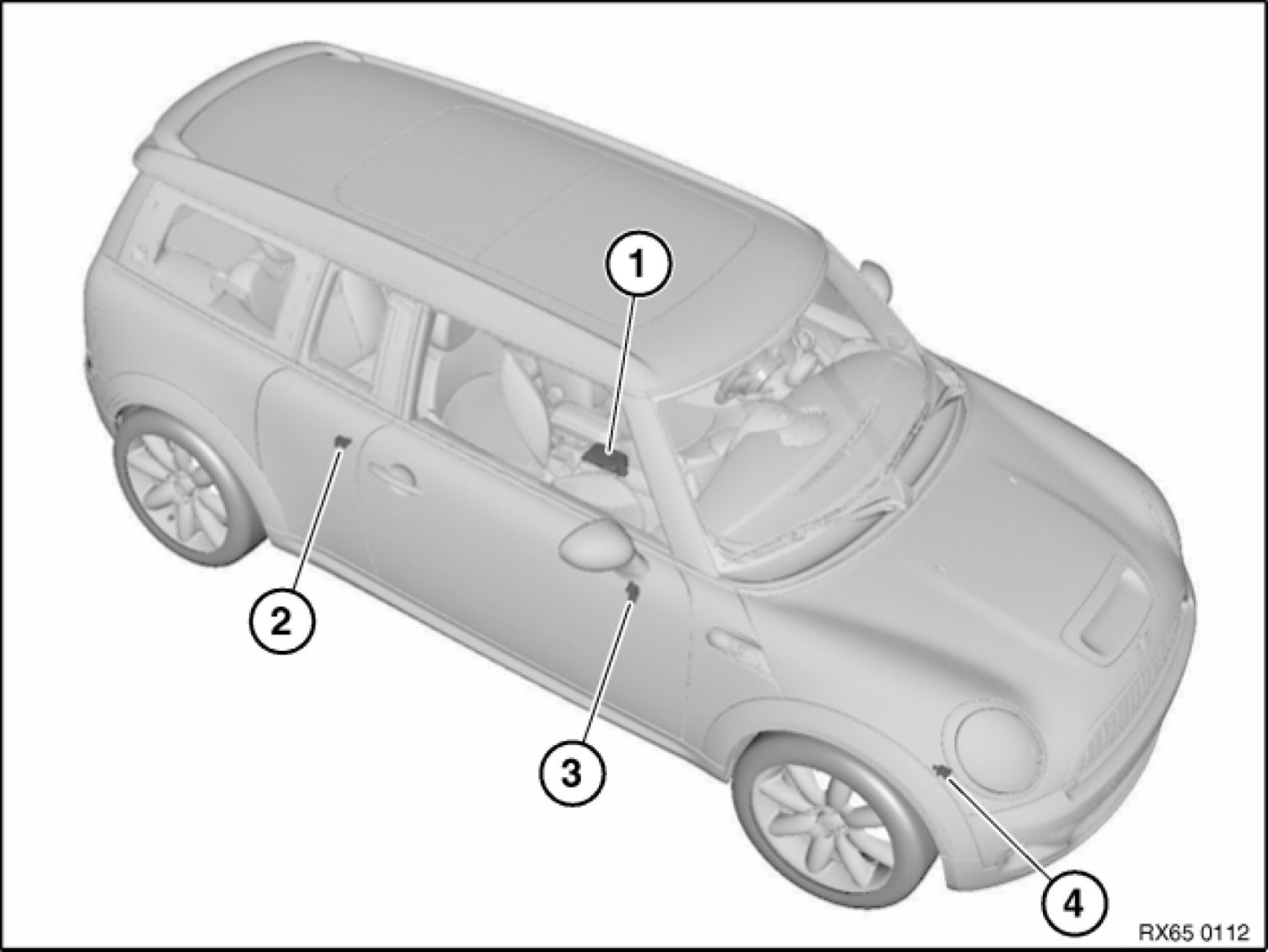

65 77 ... Overview of Sensors for Airbag System






1. Airbag control unit Service and Repair (under center console)

2. Sensor, B-pillar (left/right)
65 77 720 Removing and Installing/Replacing Left B-pillar Sensor
65 77 725 Removing and Installing/Replacing Right B-Pillar Sensor

3. Sensor, front door (left/right)
65 77 740 Removing and Installing (Replacing) Left Front Door Sensor
[1][2]65 77 740 Removing and Installing/Replacing Right Front Door Sensor

4. Acceleration sensors, front (left/right, US version only)
Description and Operation
