Replacing Mounting Bracket for Vibration Absorber on Exhaust System

18 10 ... - Replacing mounting bracket for vibration absorber on exhaust system





Note:
Only MINI ONE and MINI COOPER up to 10/01.

Necessary preliminary tasks:
- Remove reinforcement plate Service and Repair for exhaust system
- Remove vibration absorber Replacing Vibration Absorber on Exhaust System at Rear (W10) on exhaust system

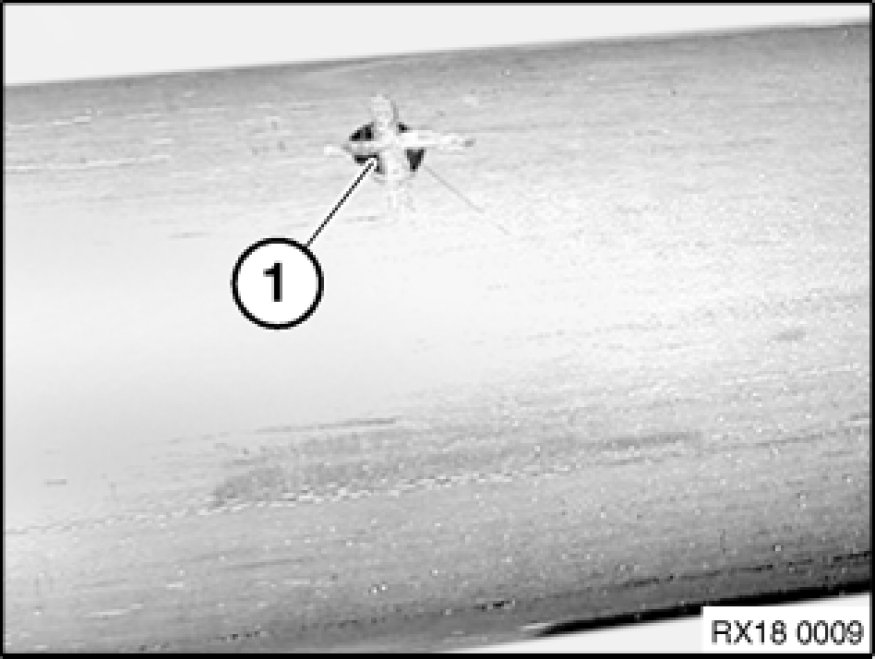

Make a mark (1) on the exhaust system before removing the mounting bracket.
Mount upper bracket.

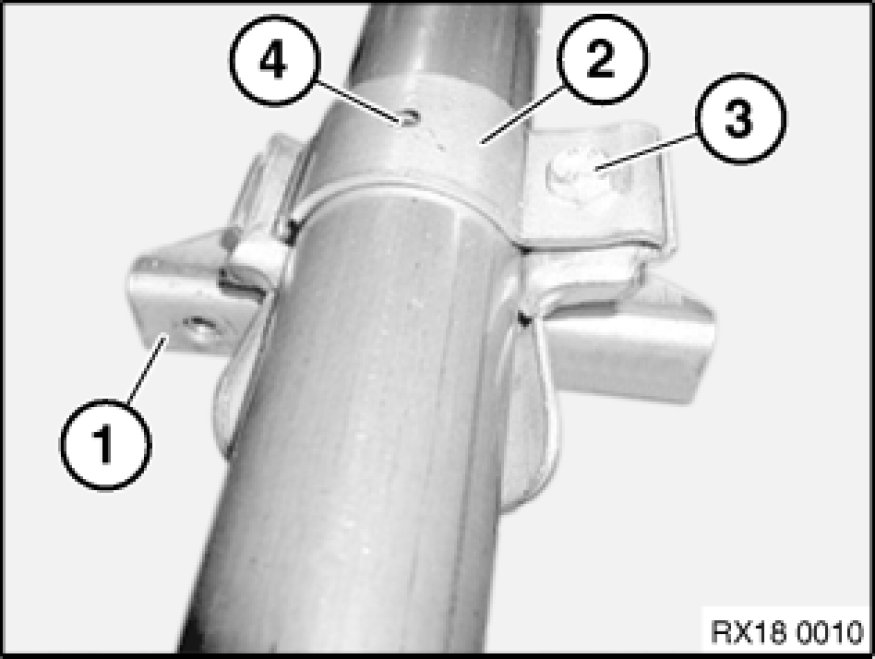

Mount lower bracket (1) on upper bracket (2) and fit screw (3).
Align weld hole (4) in upper bracket with mark on exhaust pipe.
Tightening torque 18 00 6AZ [1][2]18 00 Exhaust Assembly.

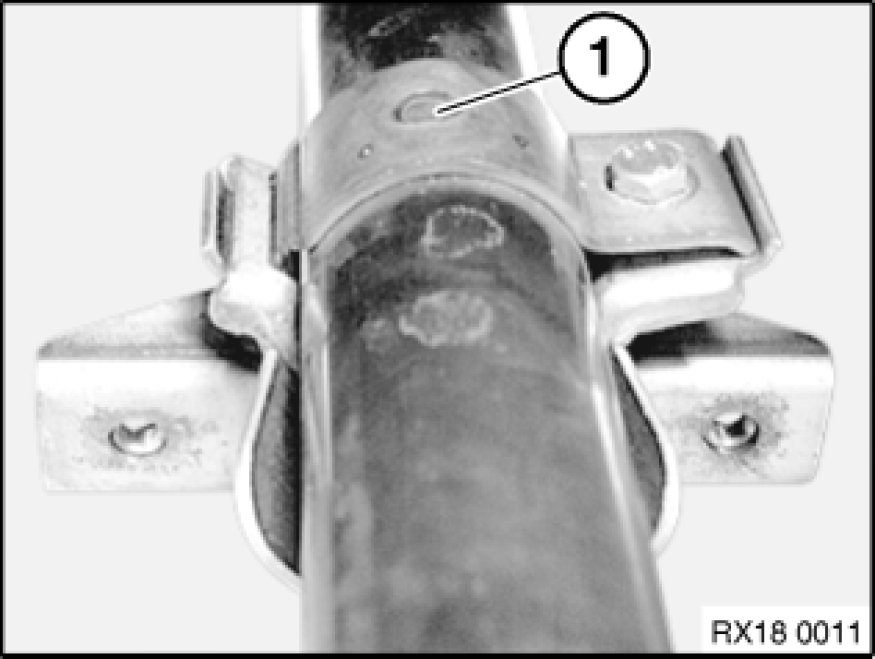

Weld top bracket at point (1).
