Test QE: Hybrid-Electric System
Test QE: Hybrid-Electric System
PINPOINT TEST QE: HYBRID-ELECTRIC SYSTEM

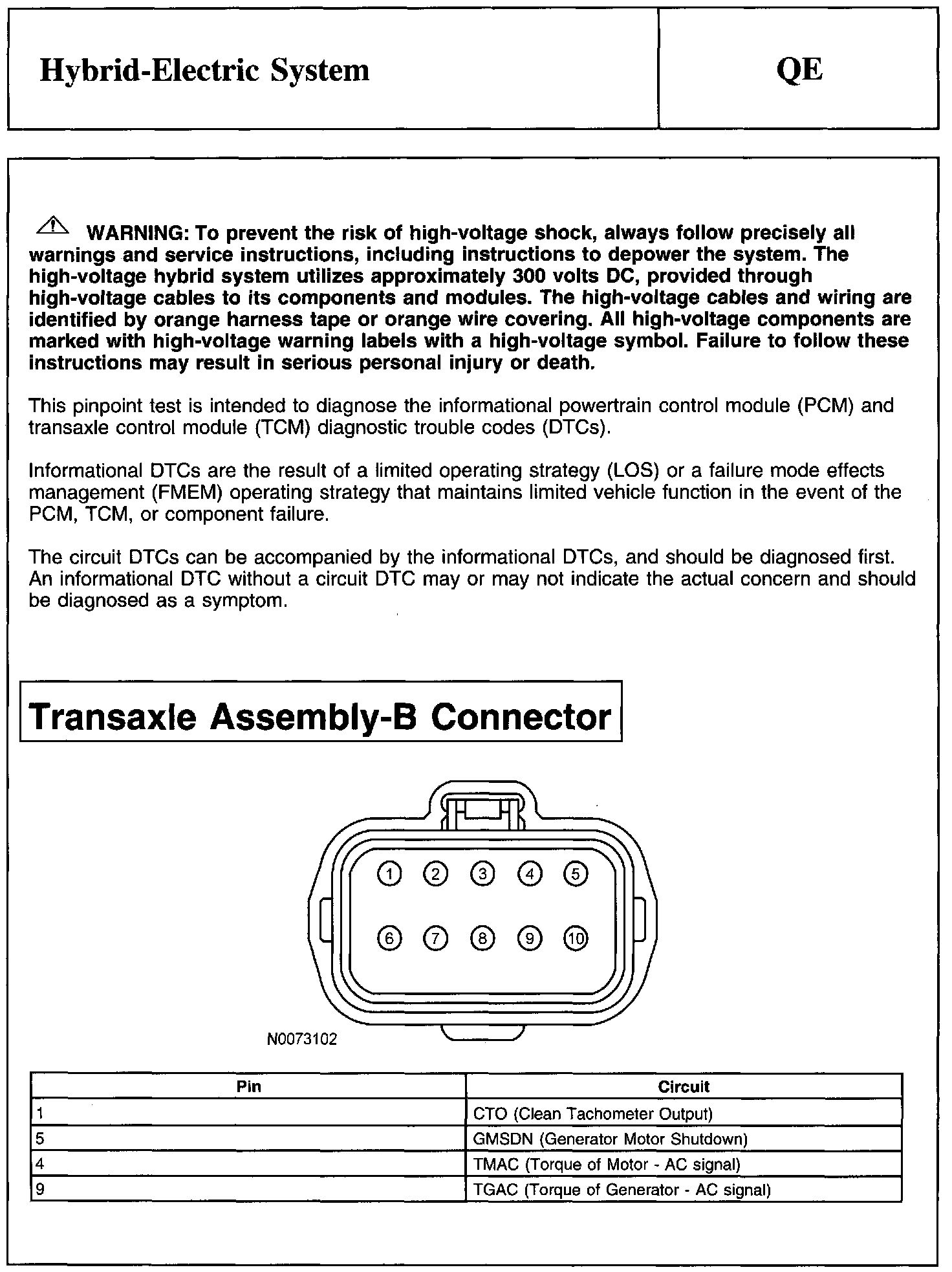

Warning And Transaxle Assembly-B Connector:

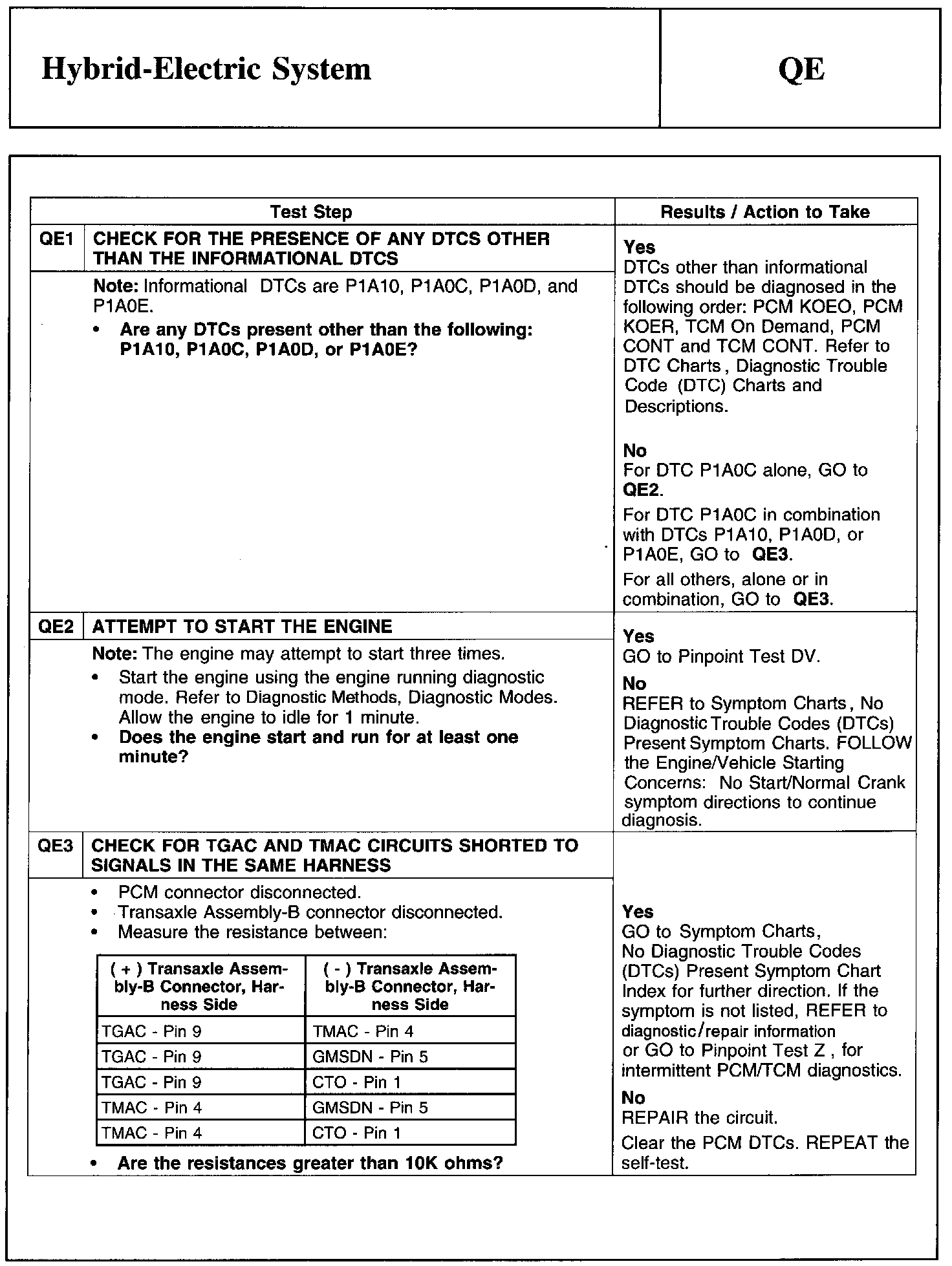

QE1-QE3:
