Test HX: Evaporative Emission (EVAP) Monitor and System

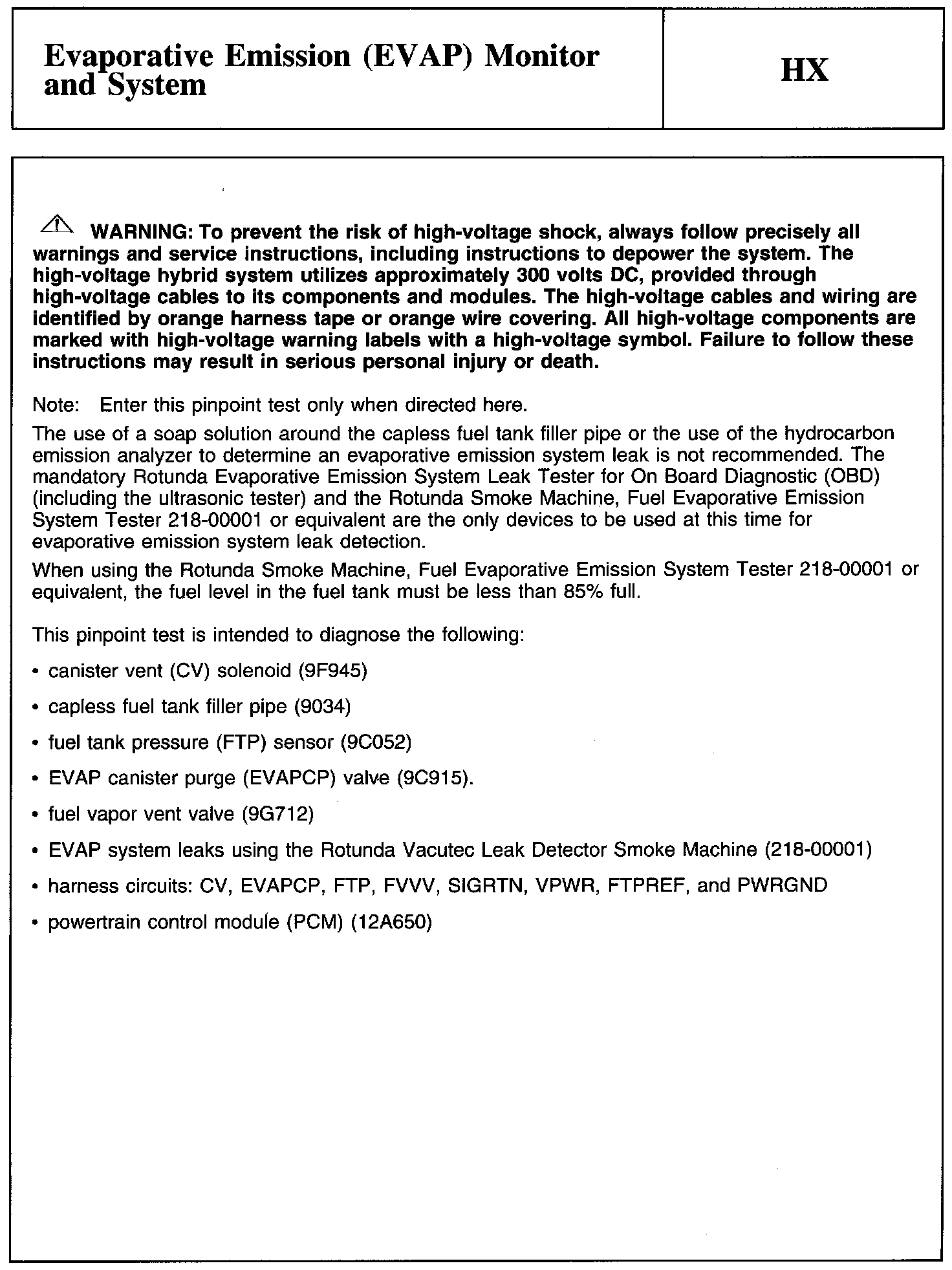

Warning And Note:

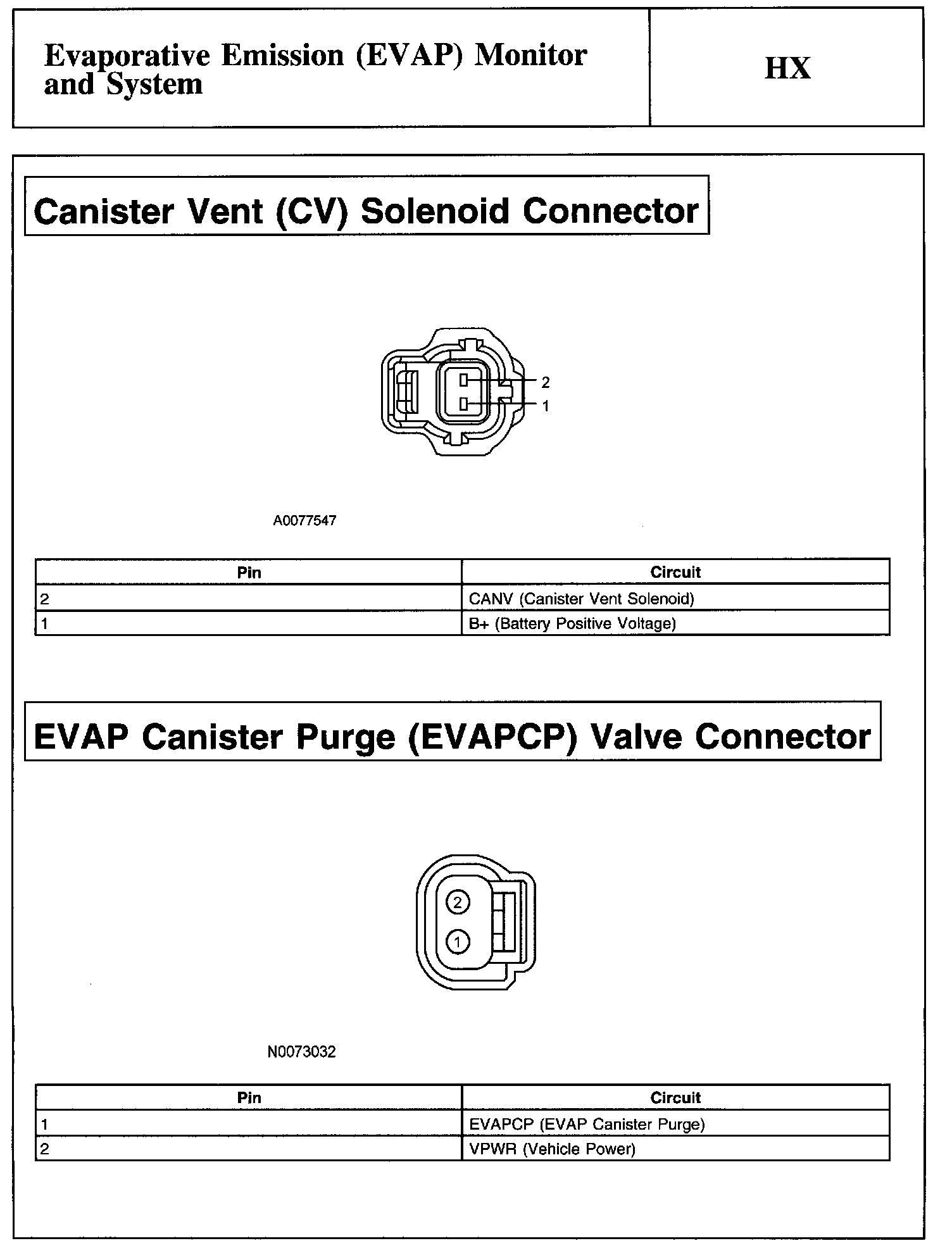

Canister Vent (CV) Solenoid Connector And EVAP Canister Purge (EVAPCP) Valve Connector:

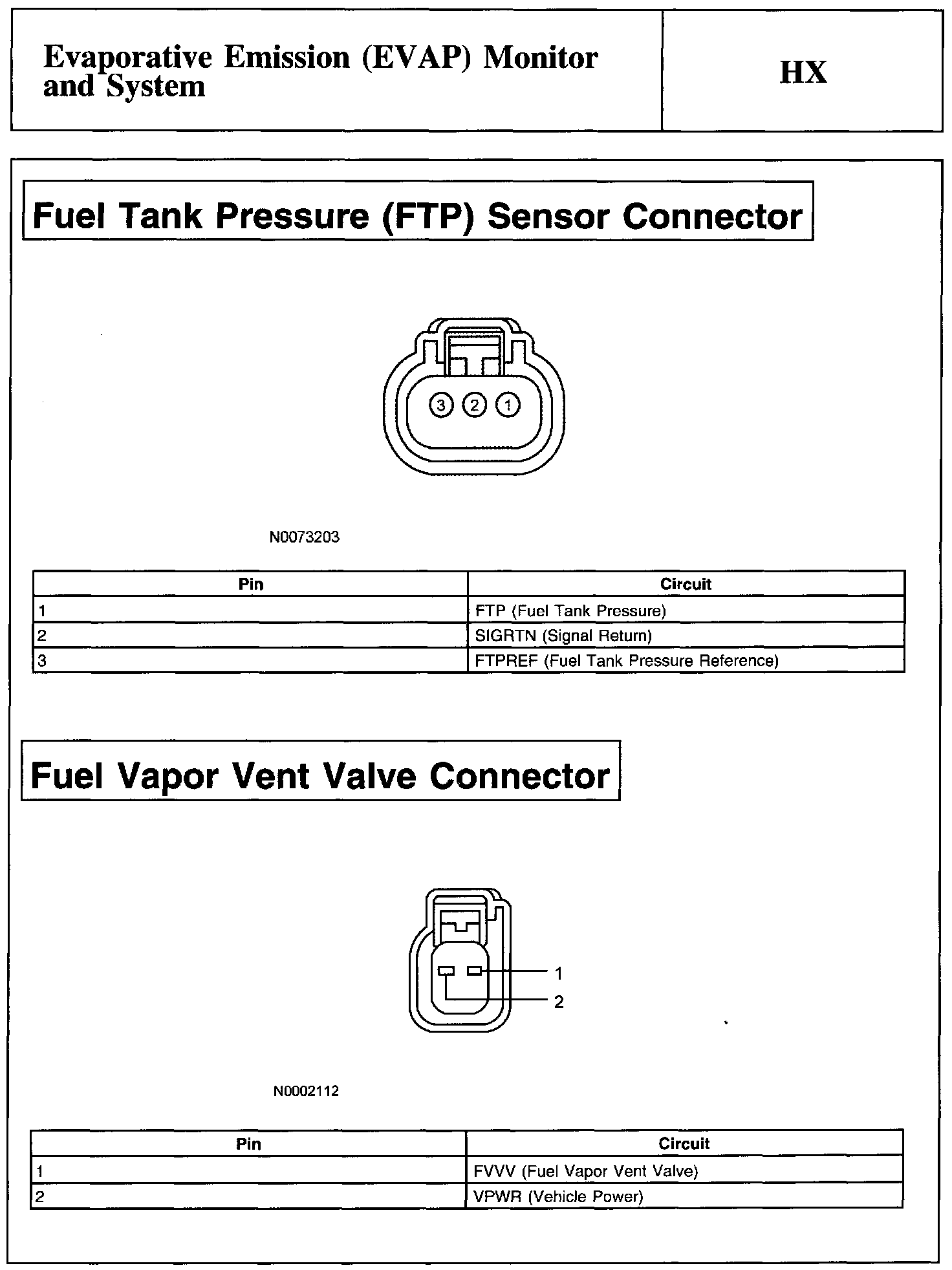

Fuel Tank Pressure (FTP) Sensor Connector And Fuel Vapor Vent Valve Connector:

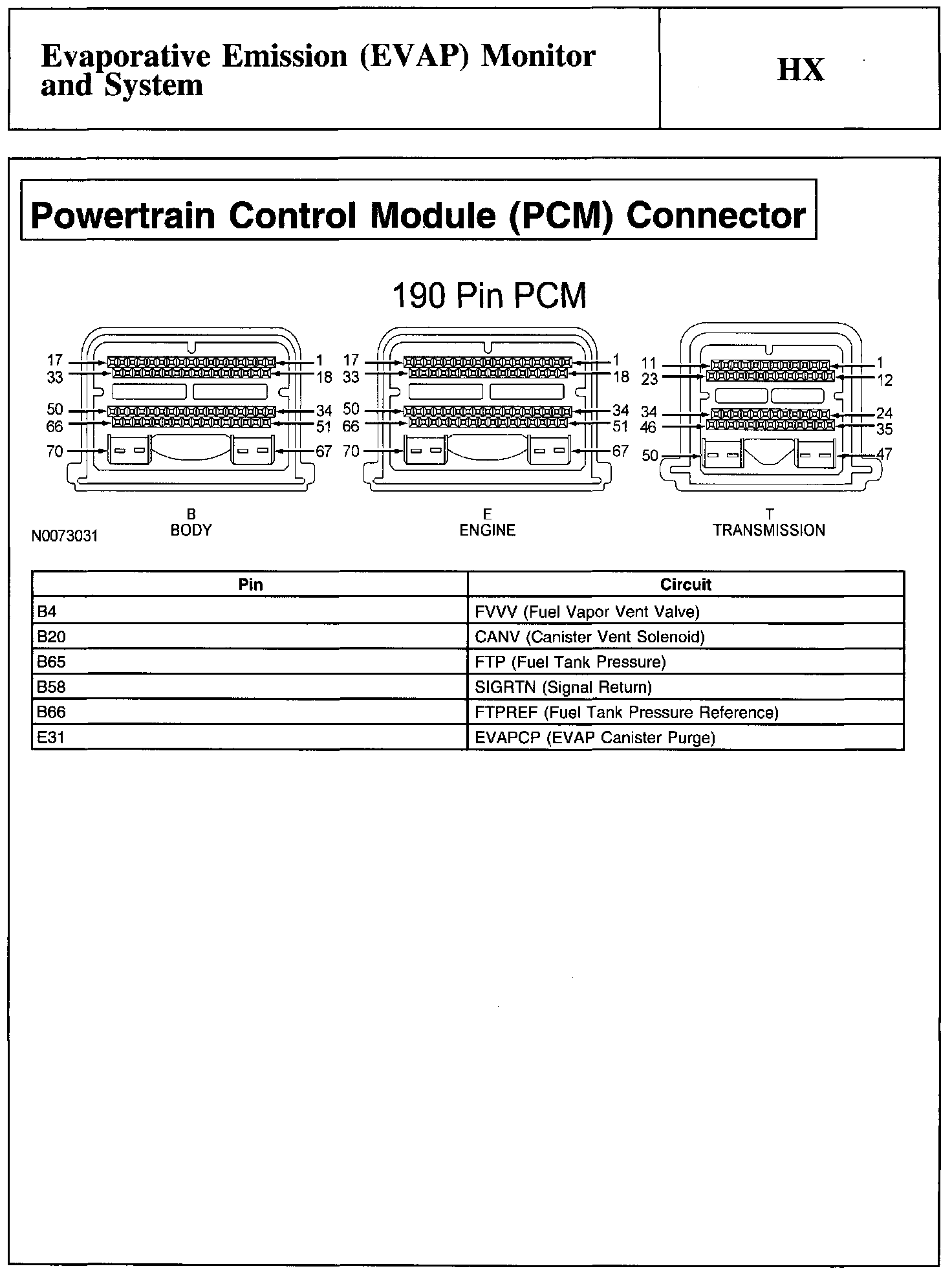

Powertrain Control Module (PCM) Connector:

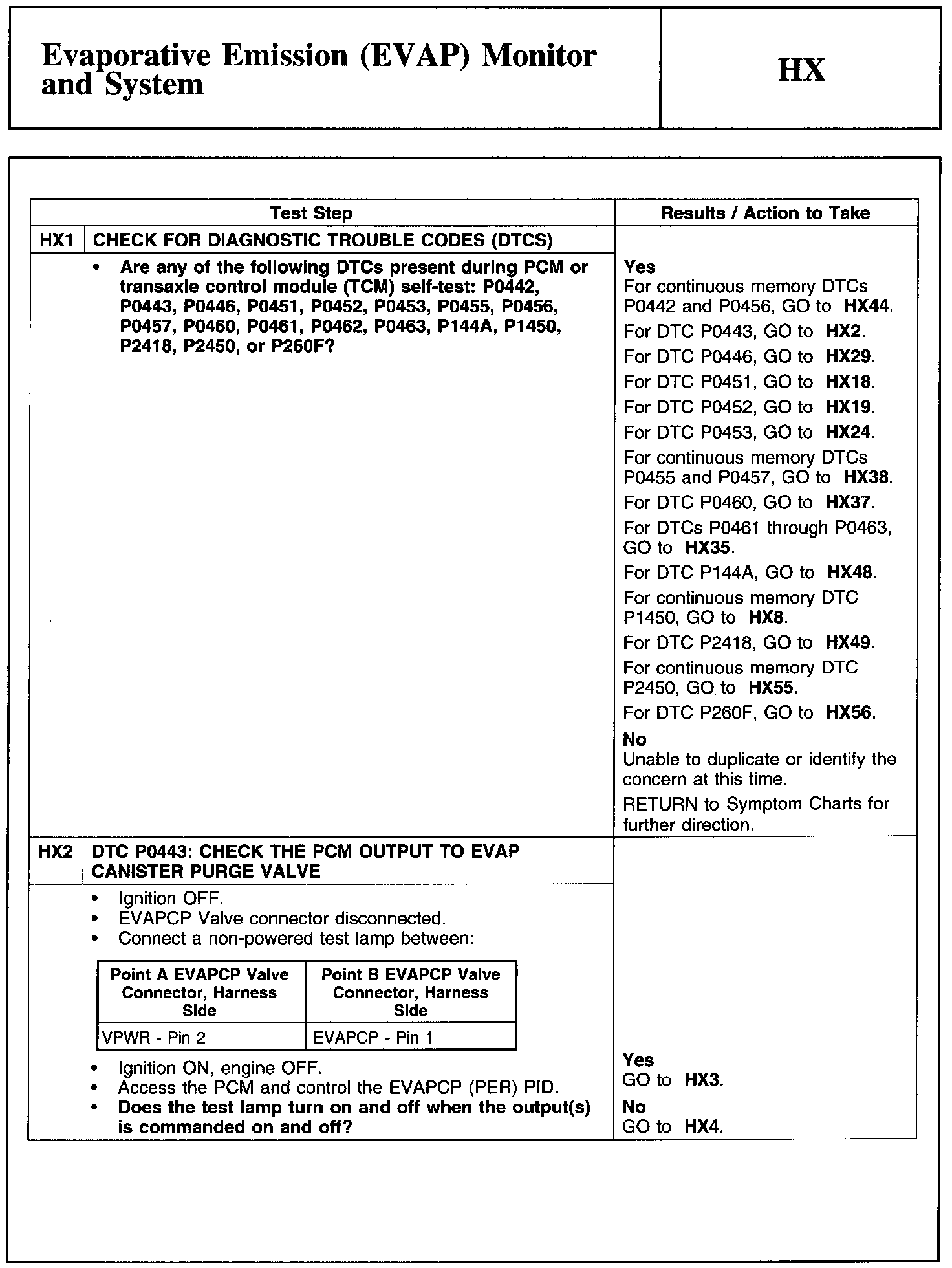

HX1-HX2:

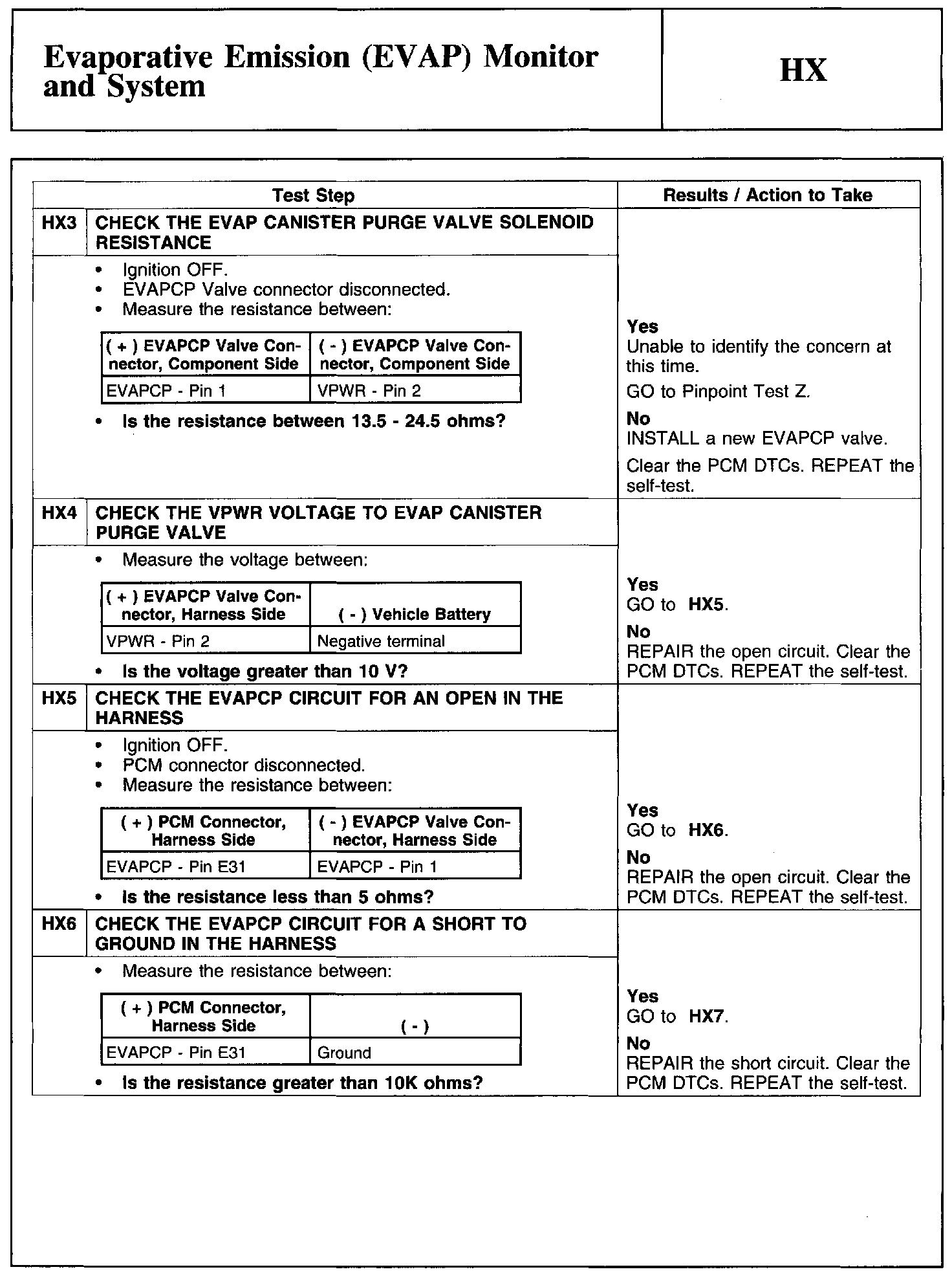

HX3-HX6:

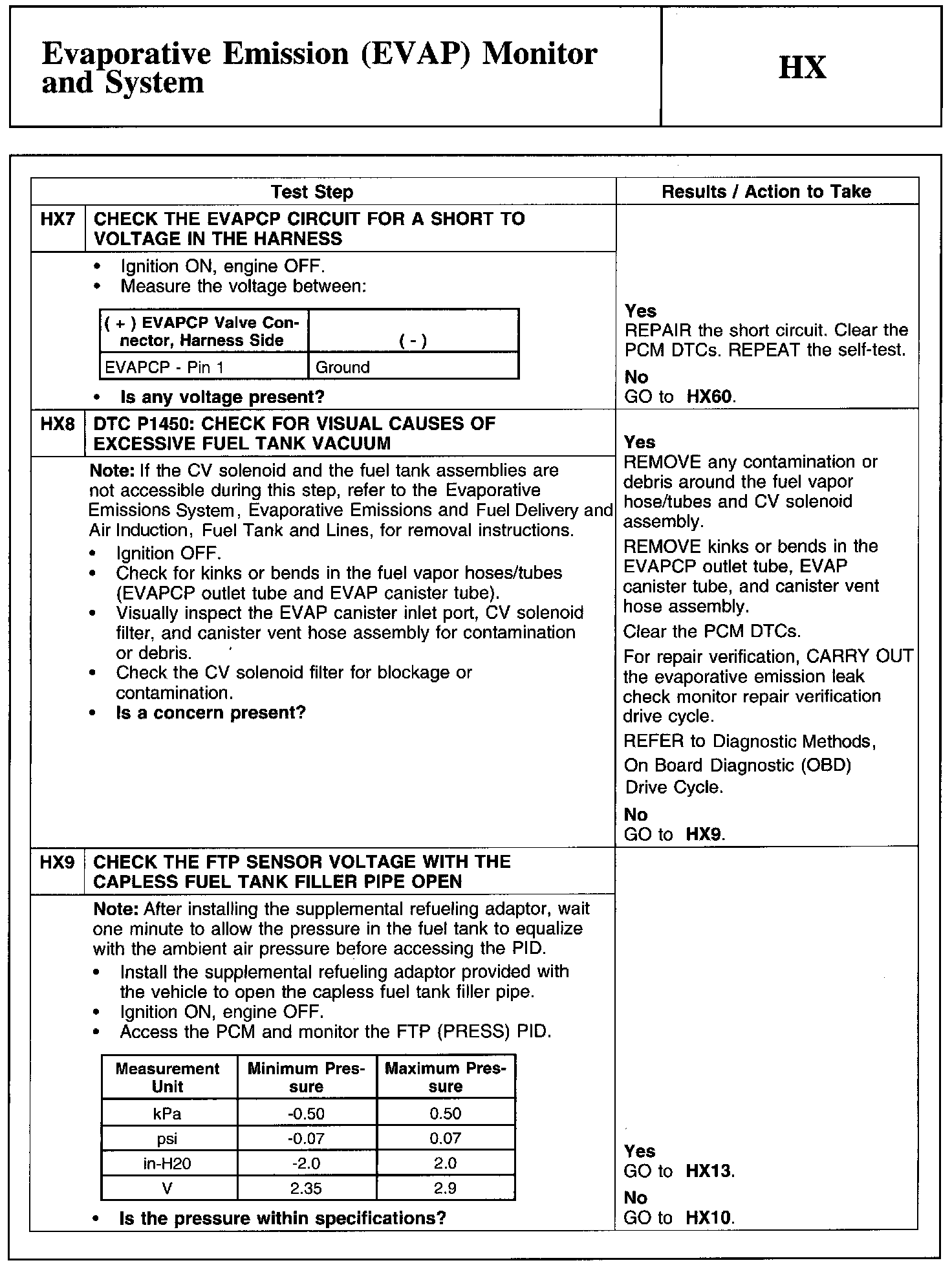

HX7-HX9:

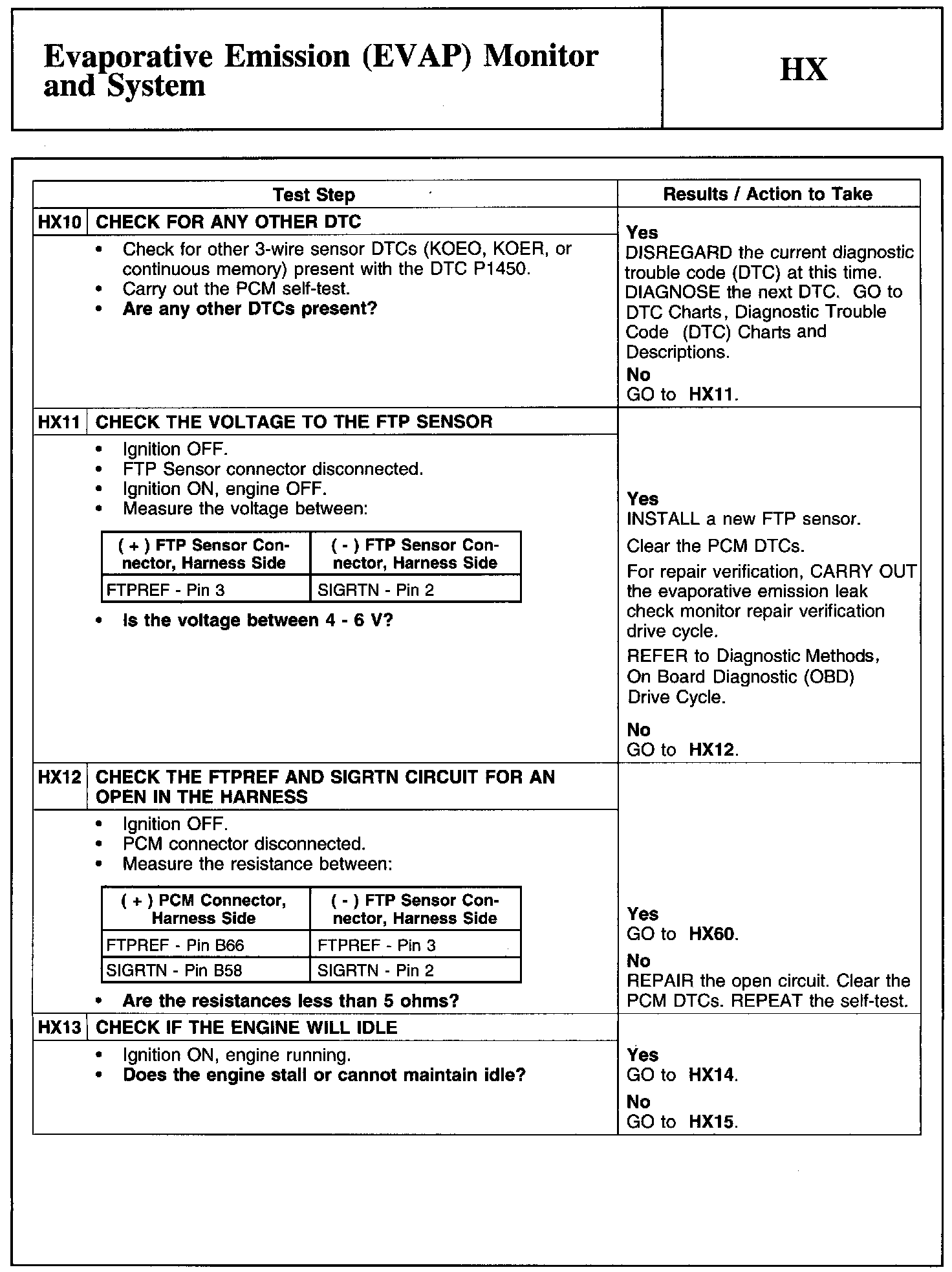

HX10-HX13:

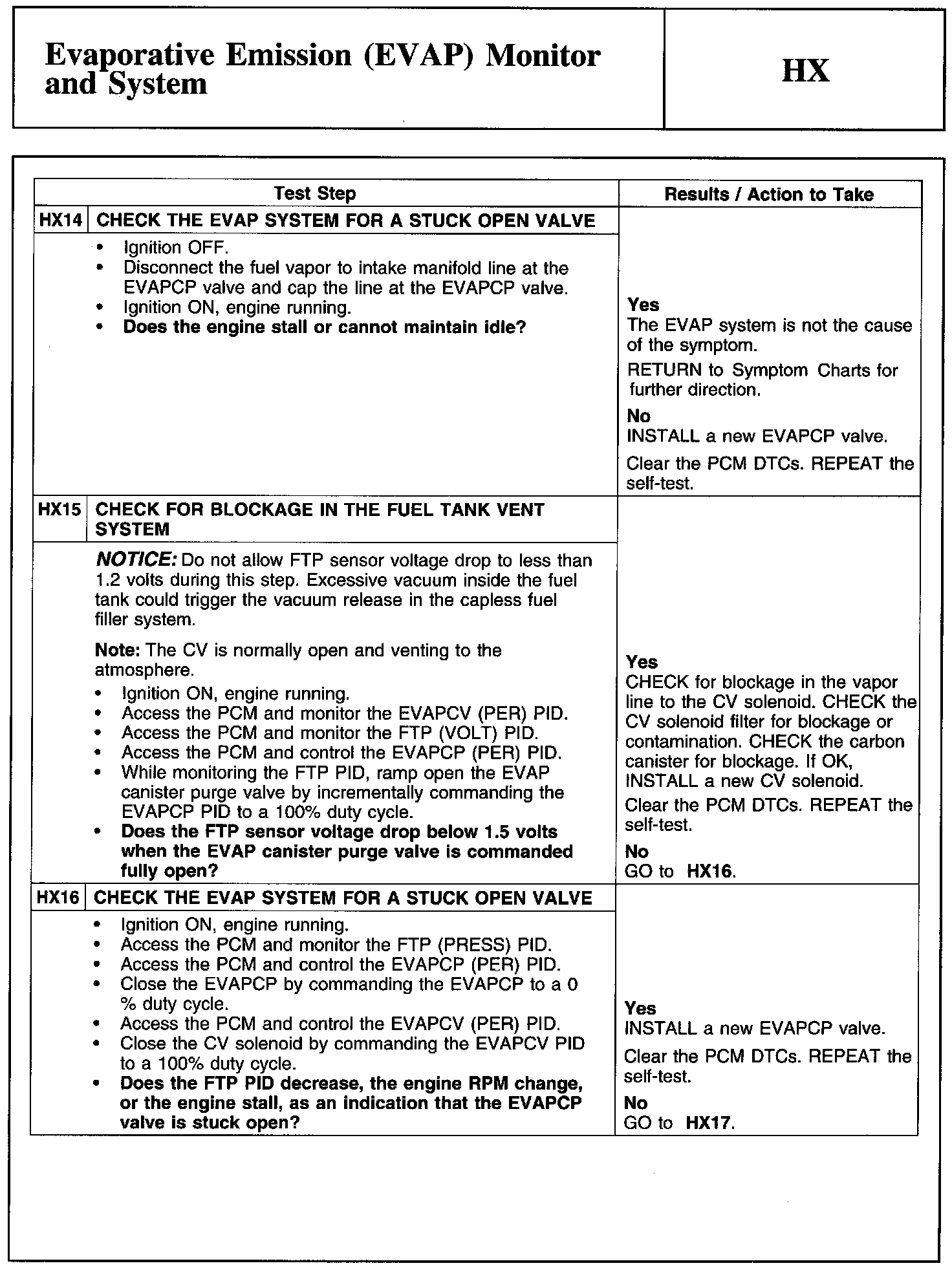

HX14-HX16:

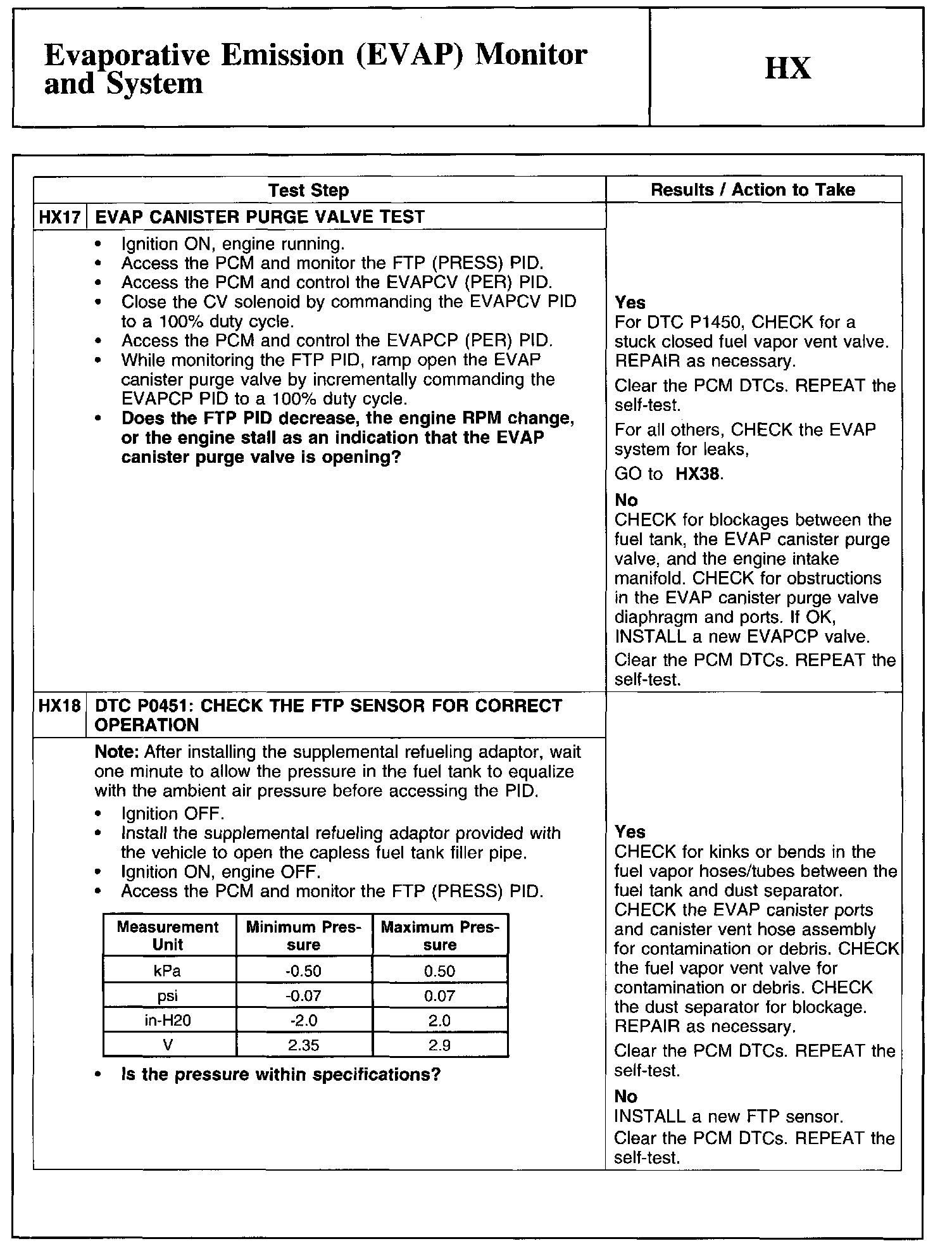

HX17-HX18:

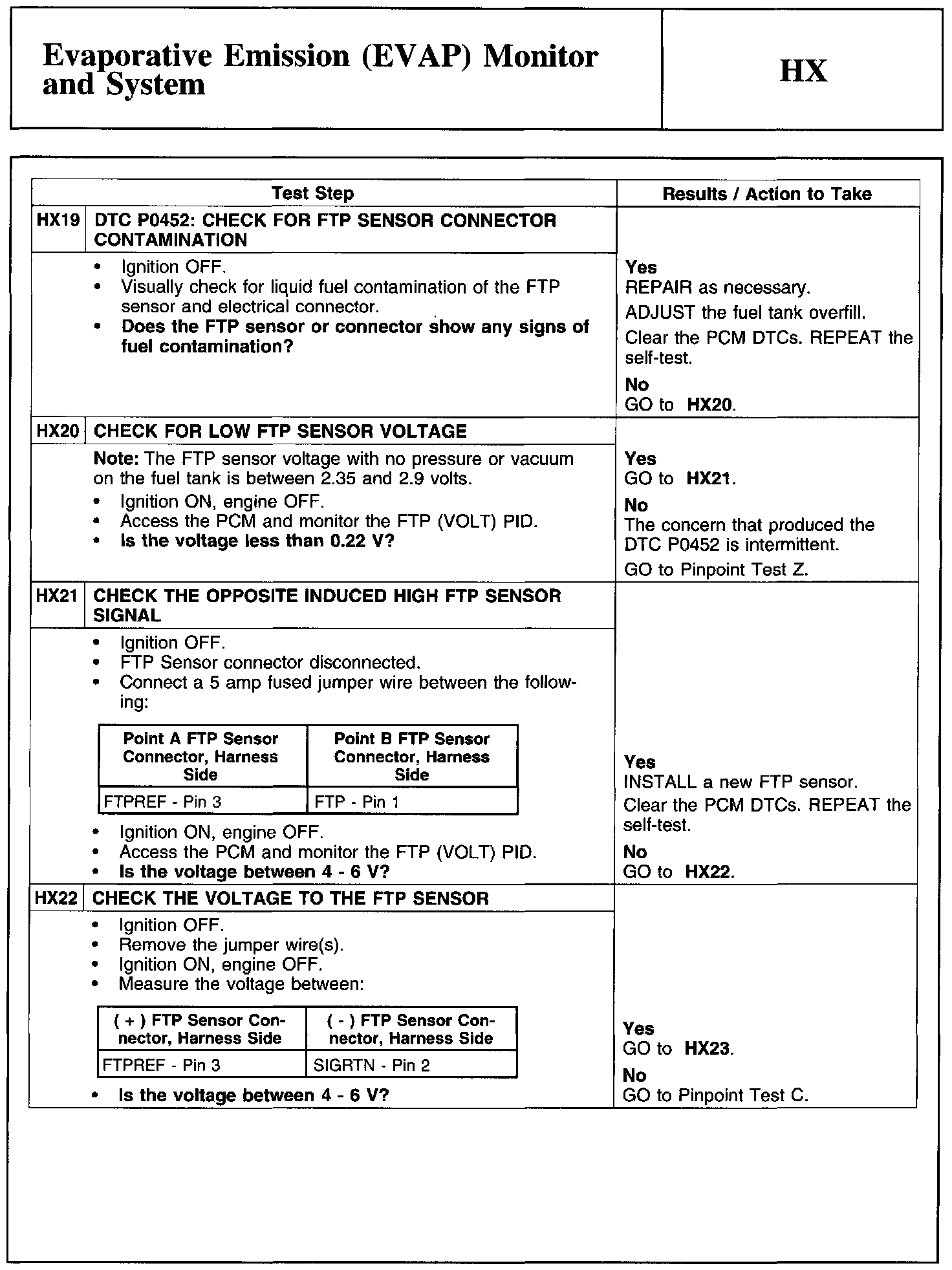

HX19-HX22:

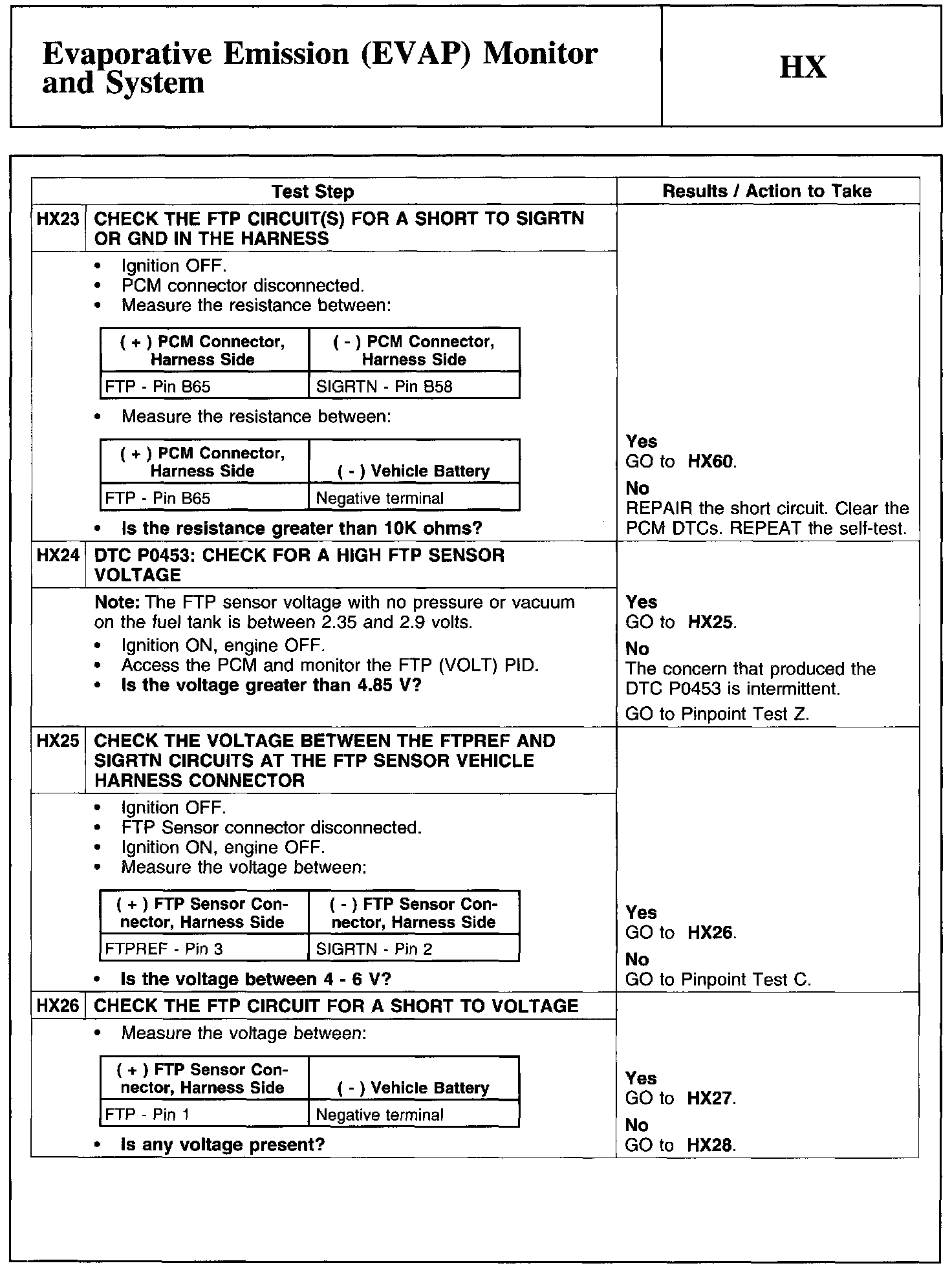

HX23-HX26:

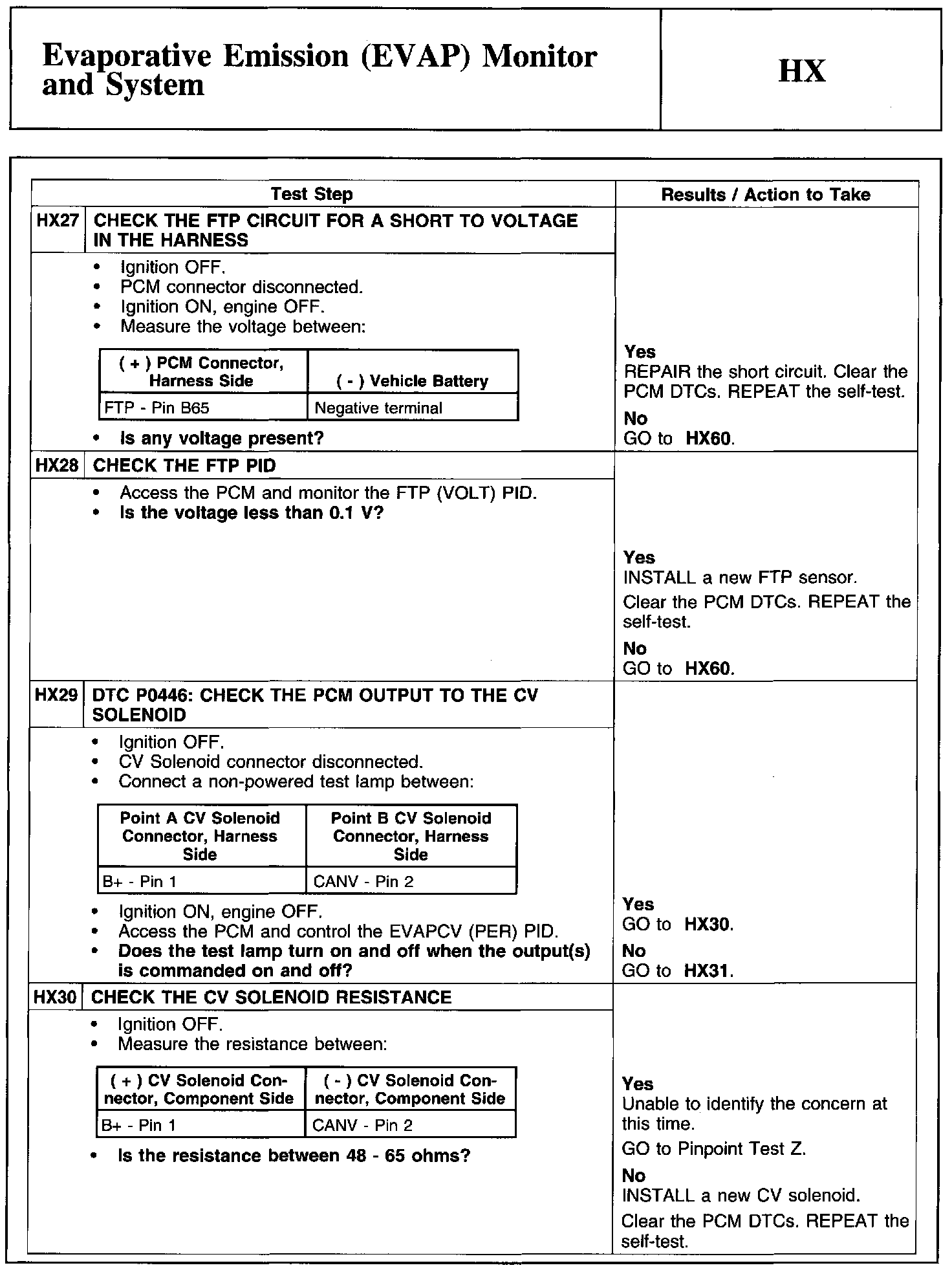

HX27-HX30:

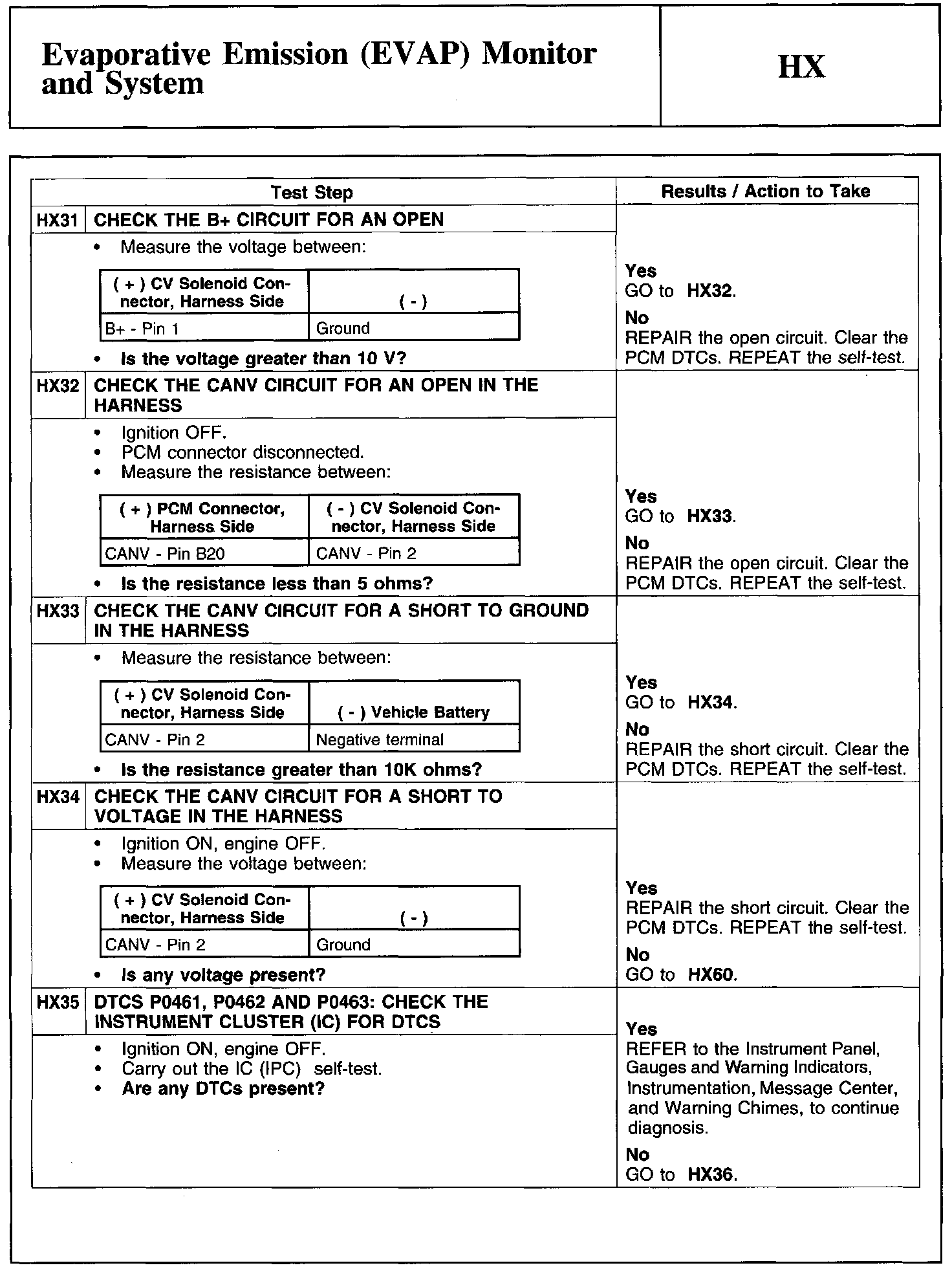

HX31-HX35:

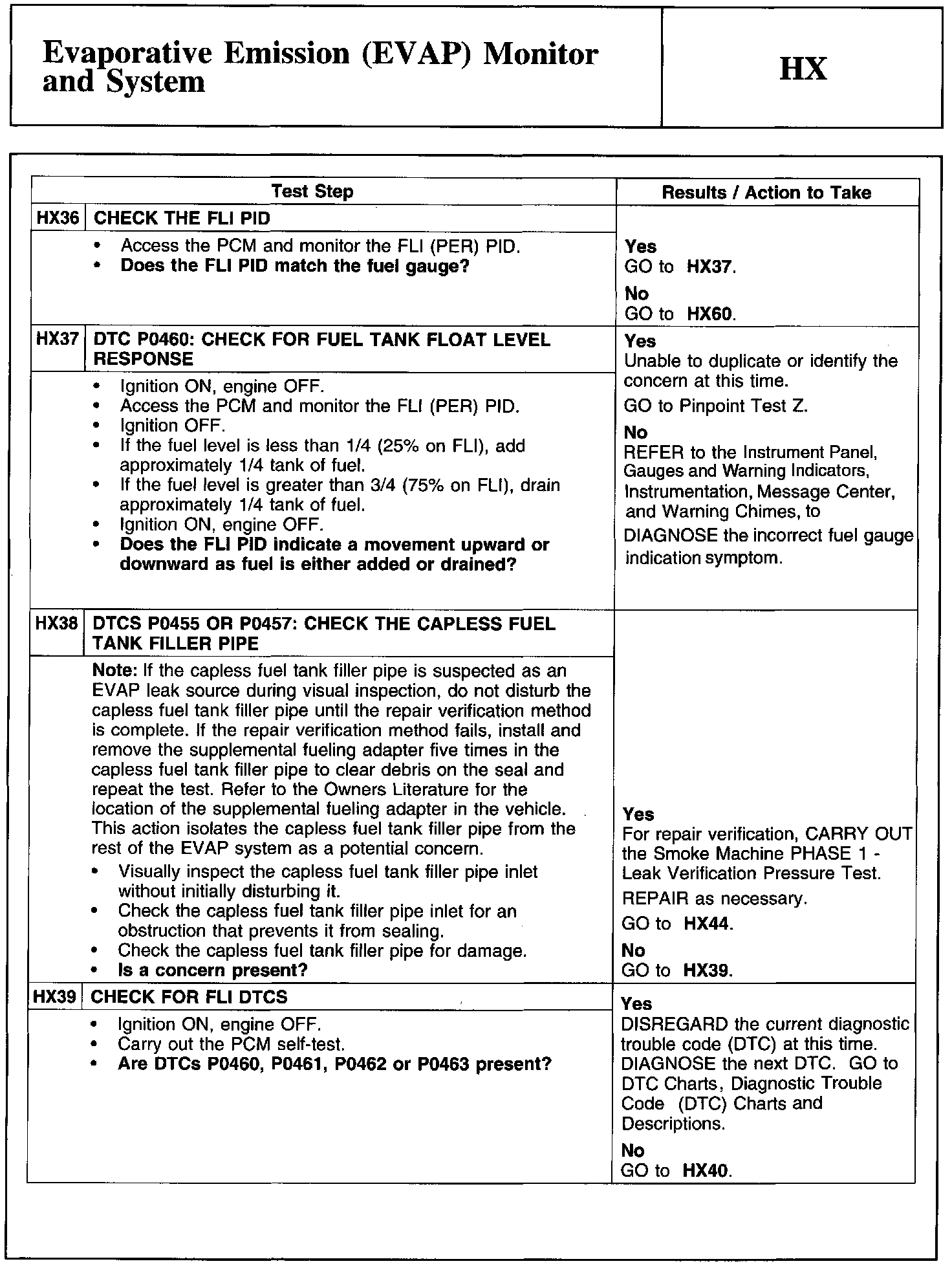

HX36-HX39:

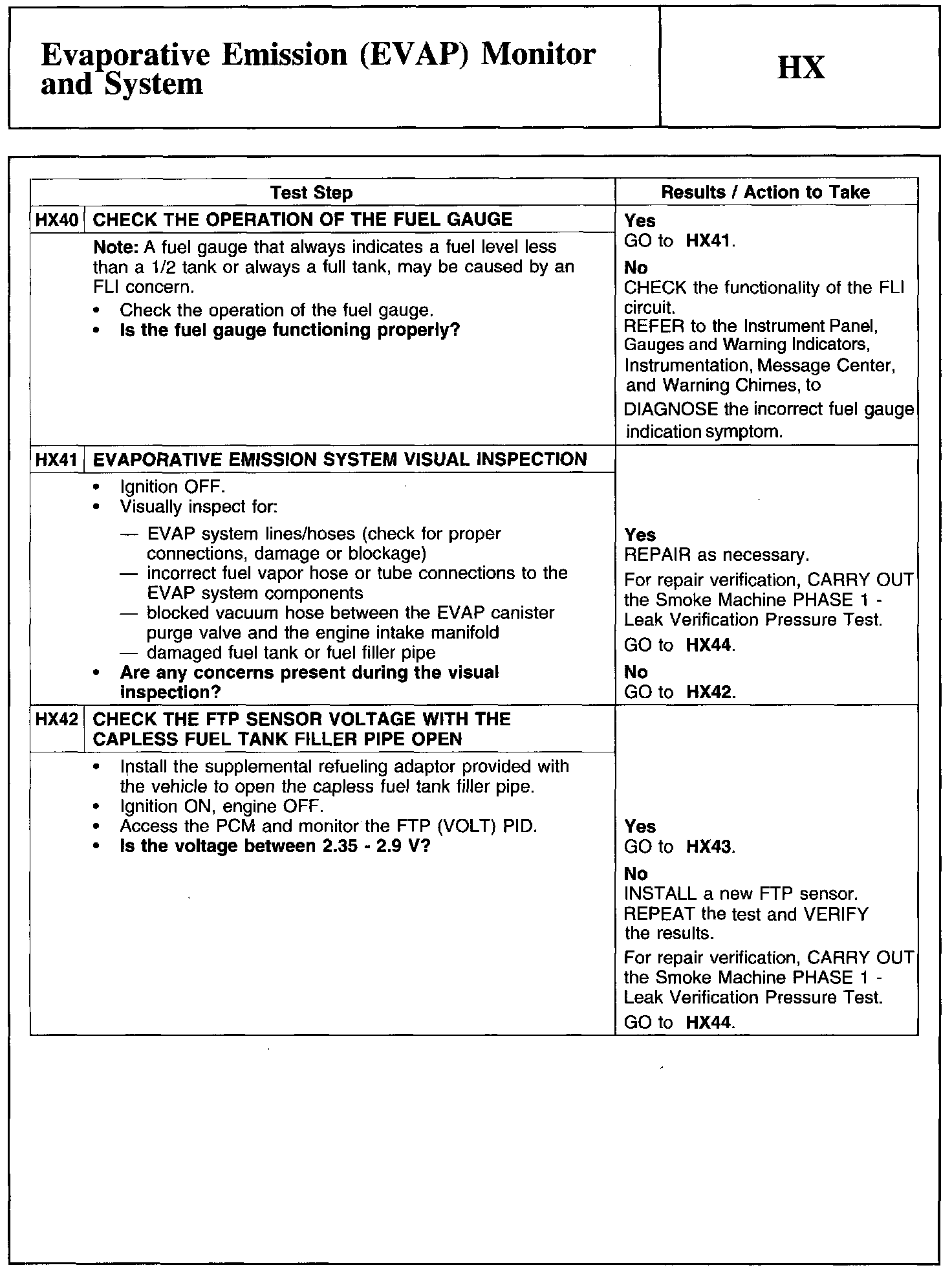

HX40-HX42:

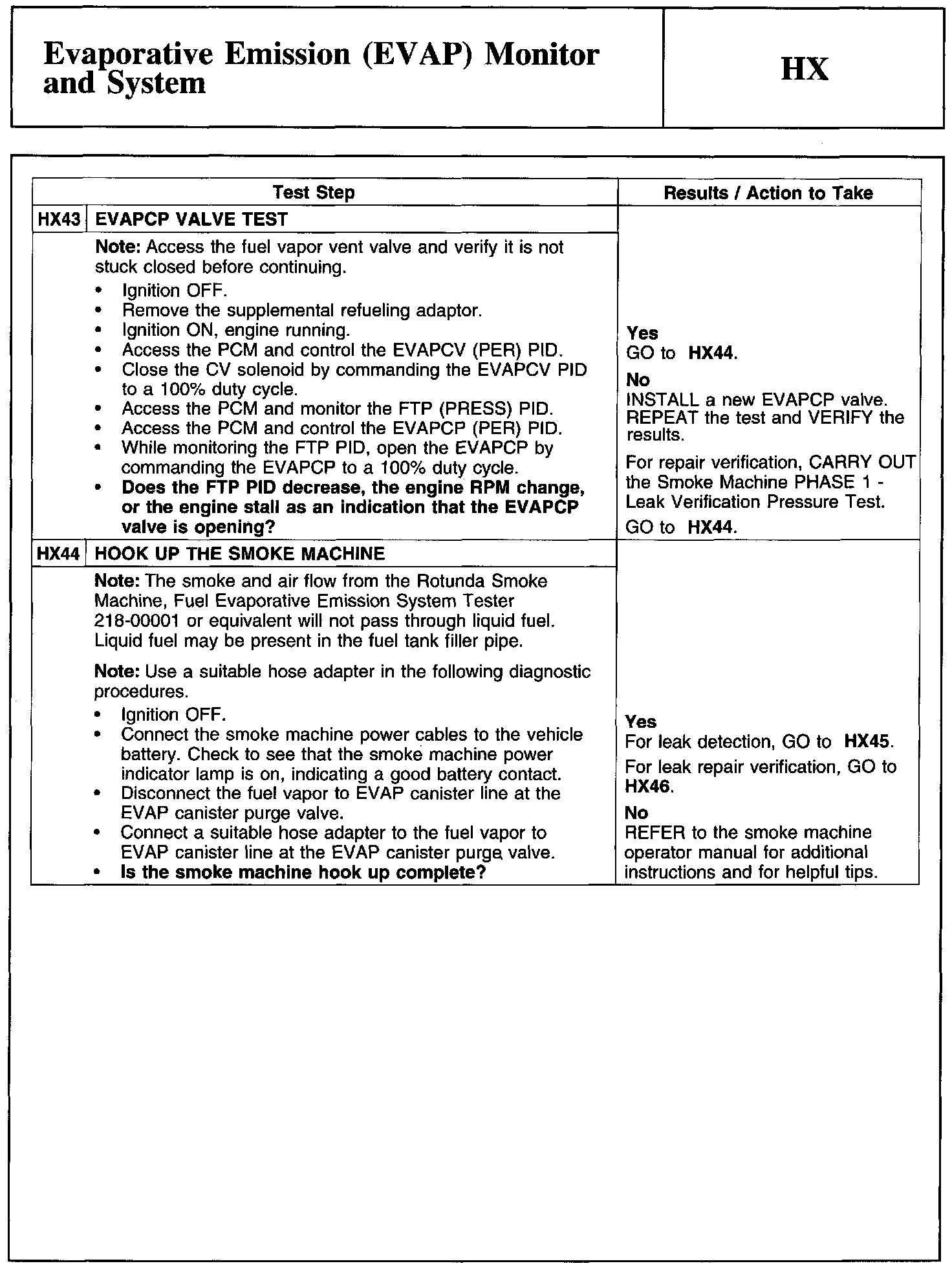

HX43-HX44:

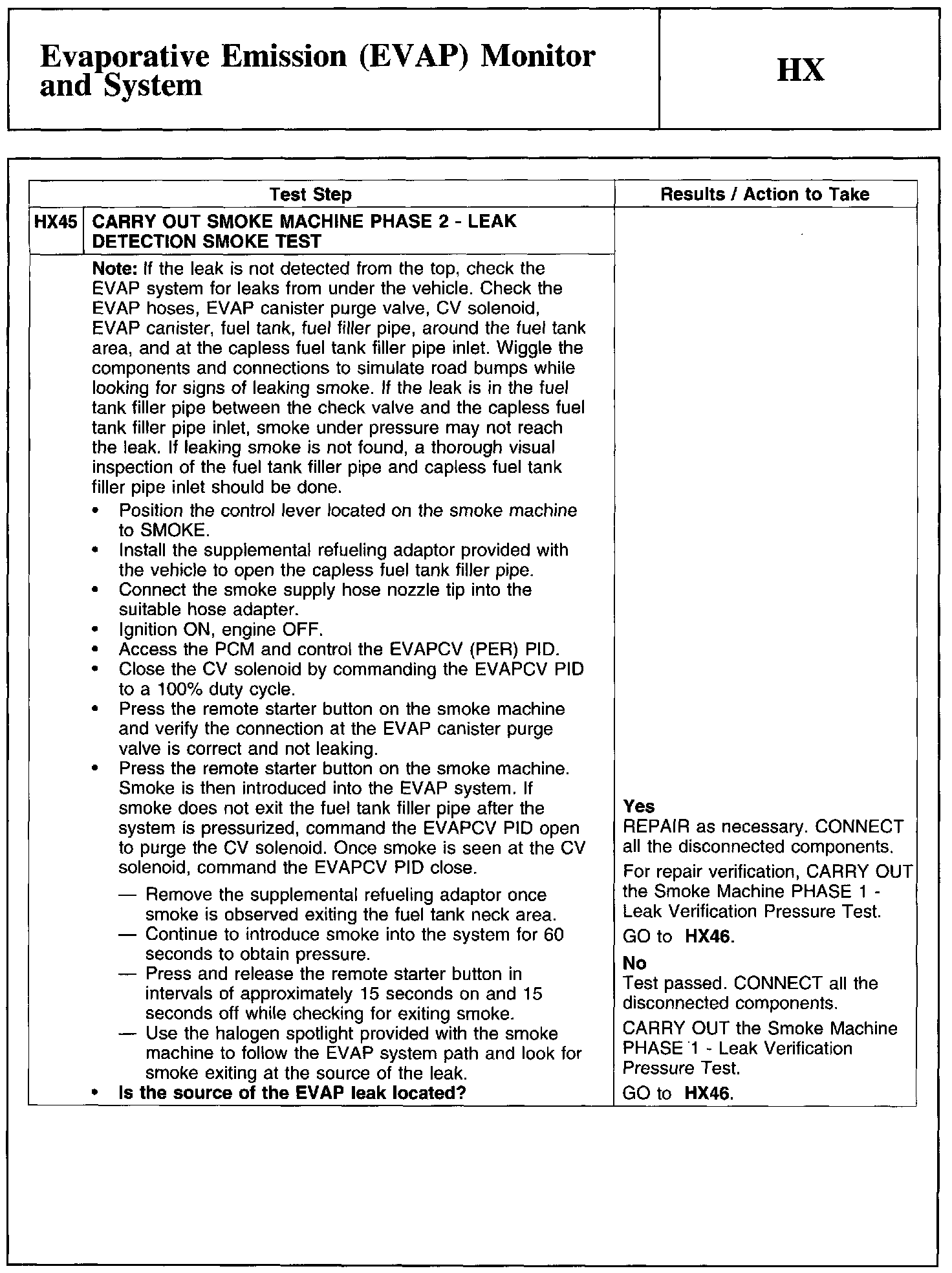

HX45:

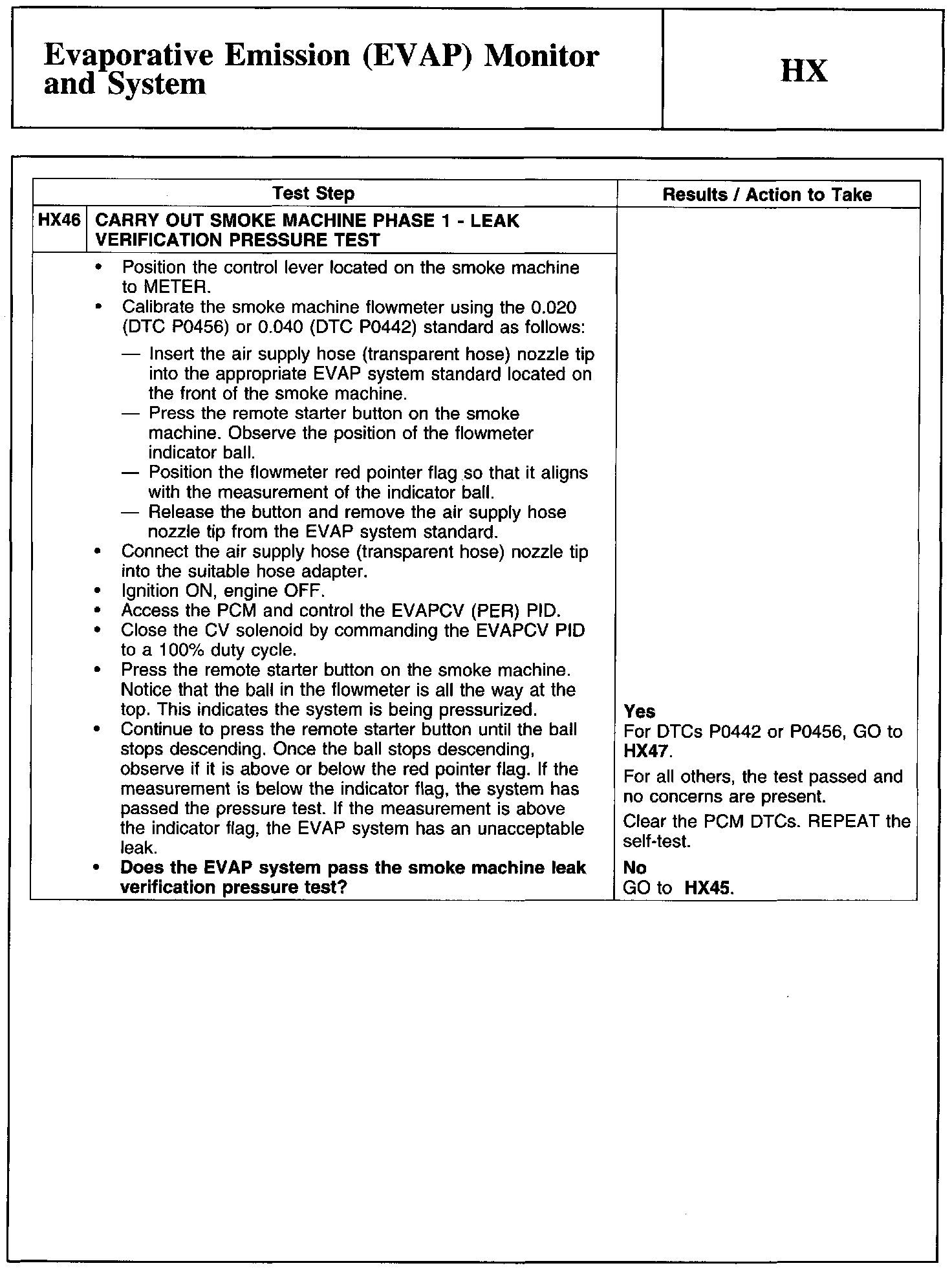

HX46:

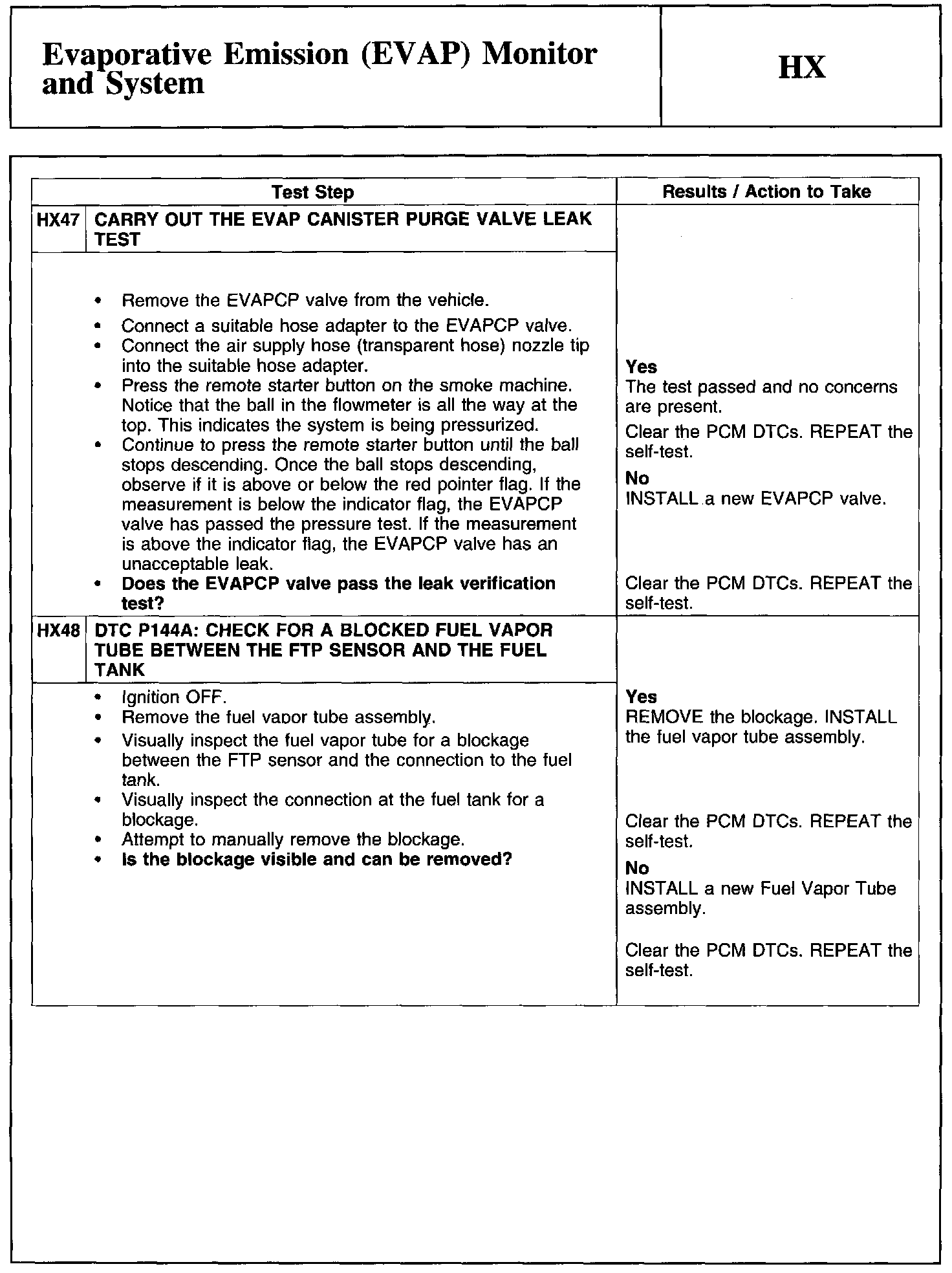

HX47-HX48:

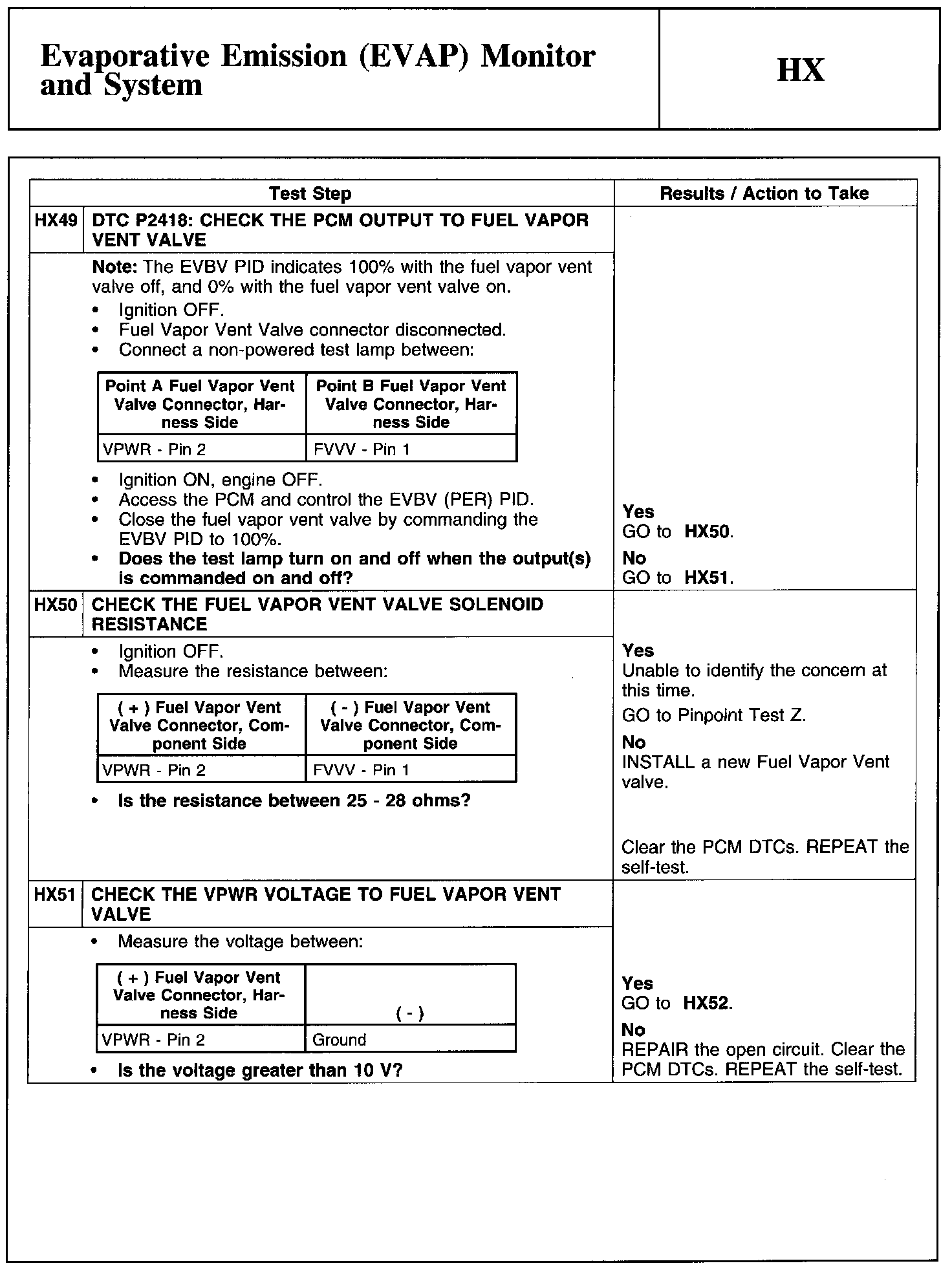

HX49-HX51:

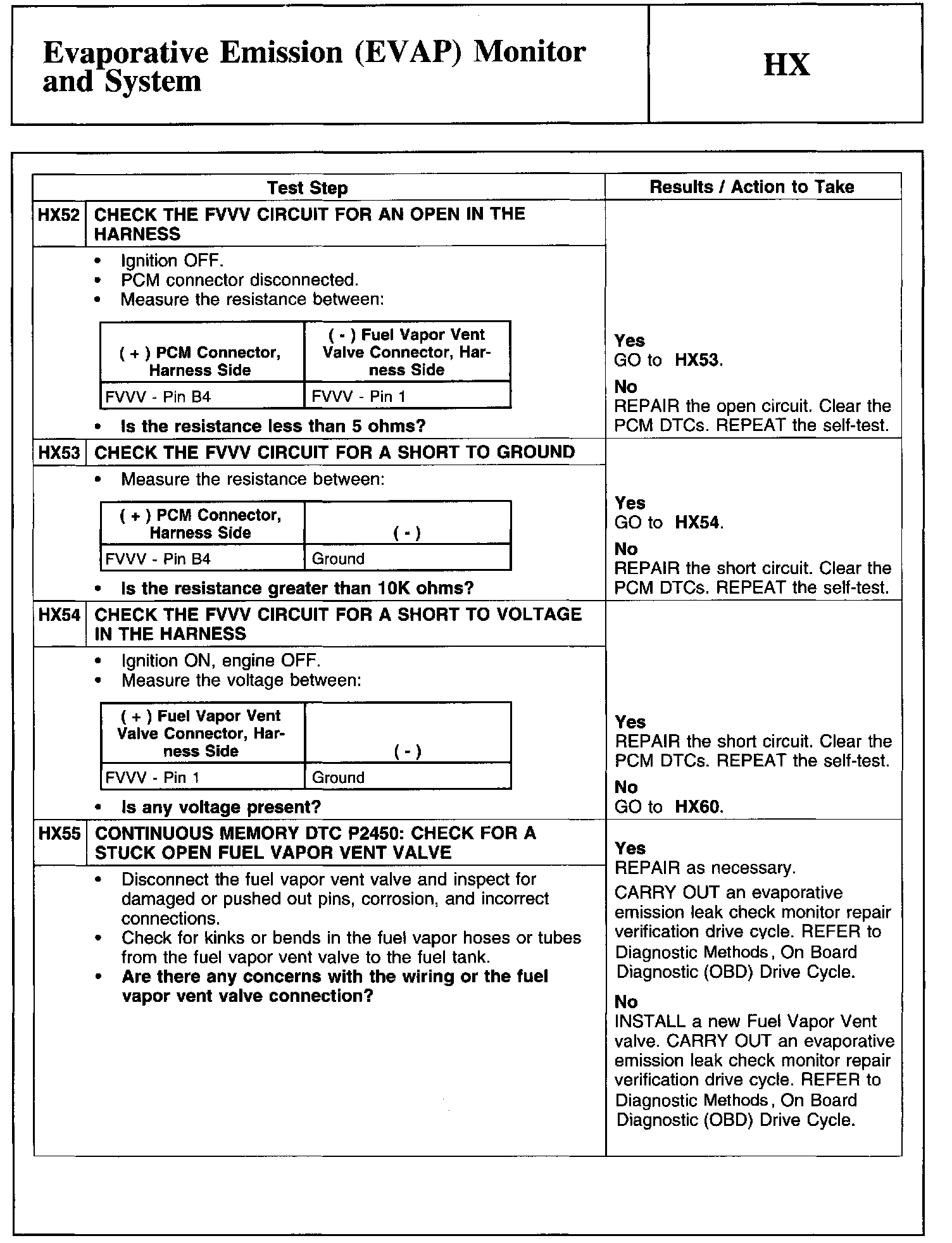

HX52-HX55:

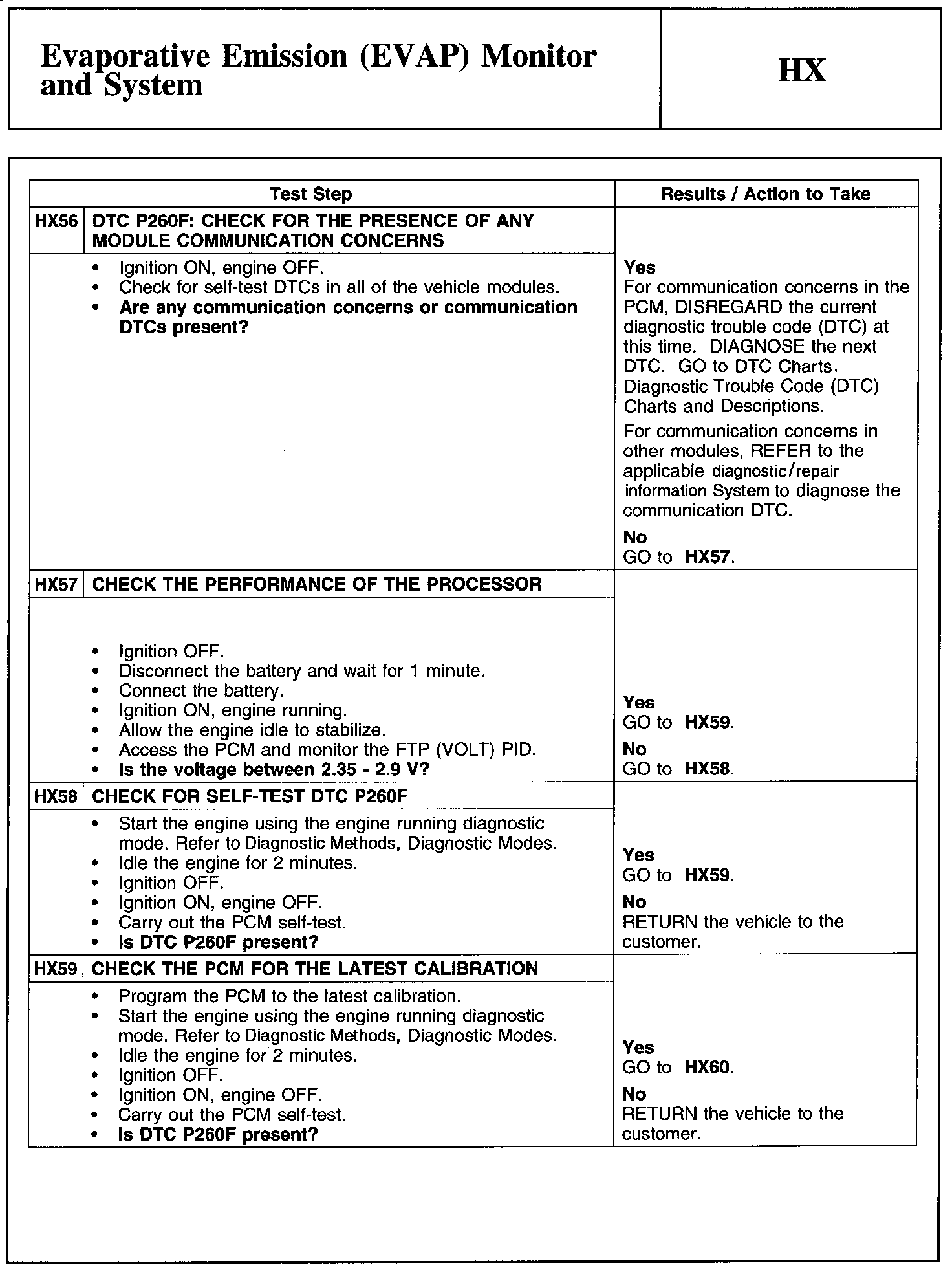

HX56-HX59:

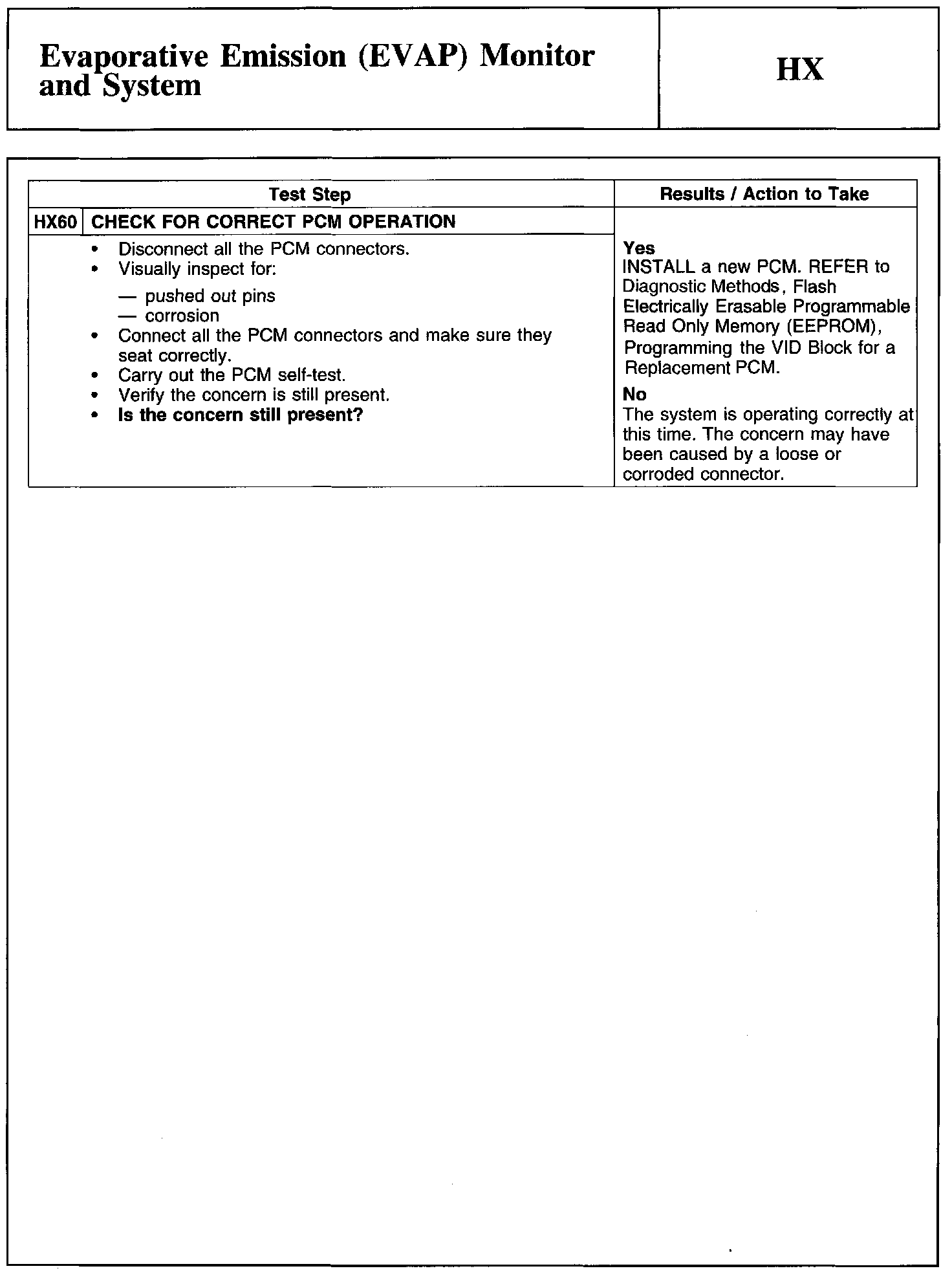

HX60:
