Test DP: Powertrain Control Module (PCM) Vehicle Speed
Test DP: Powertrain Control Module (PCM) Vehicle Speed
PINPOINT TEST DP: POWERTRAIN CONTROL MODULE (PCM) VEHICLE SPEED

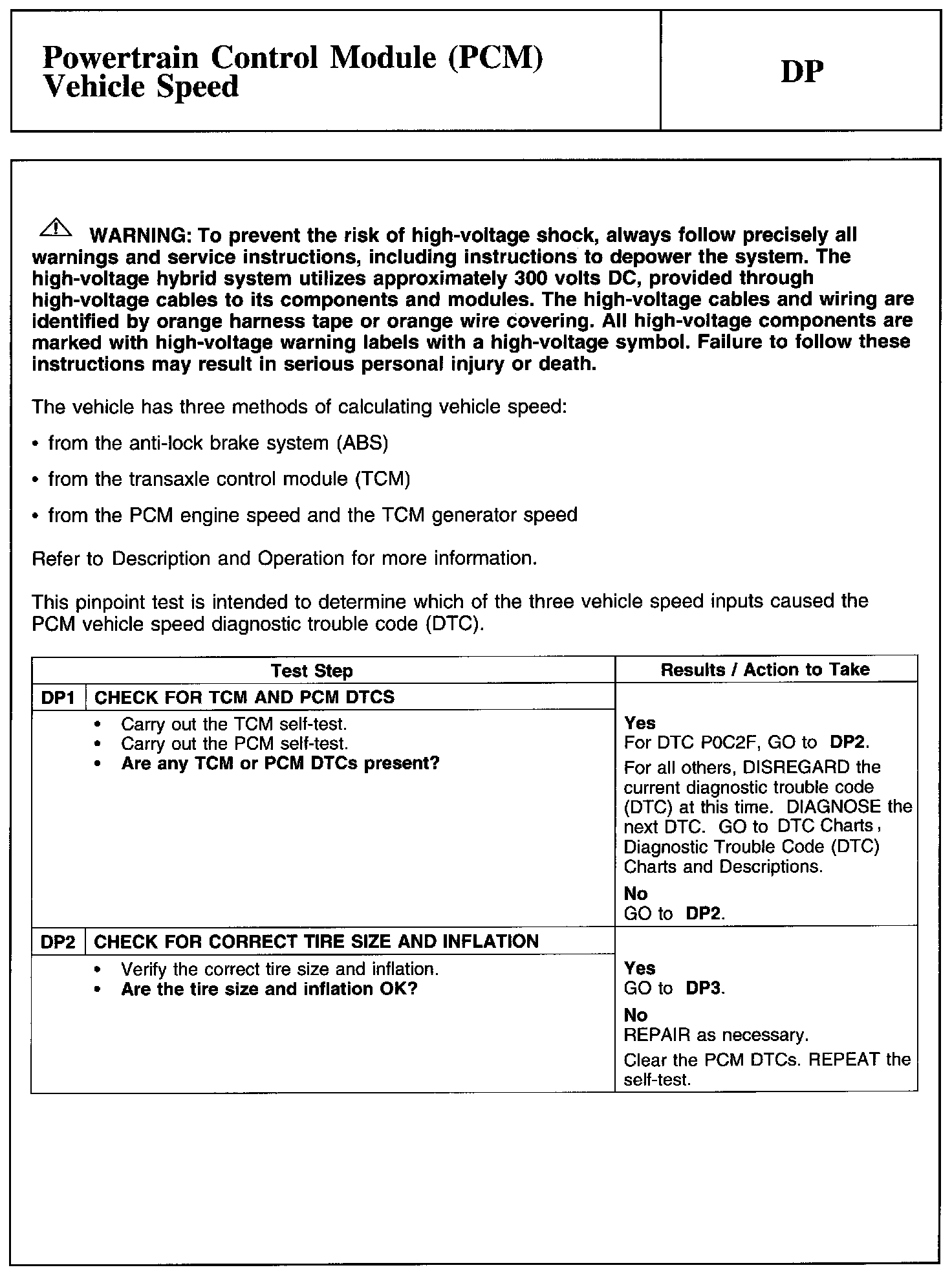

DP1-DP2:

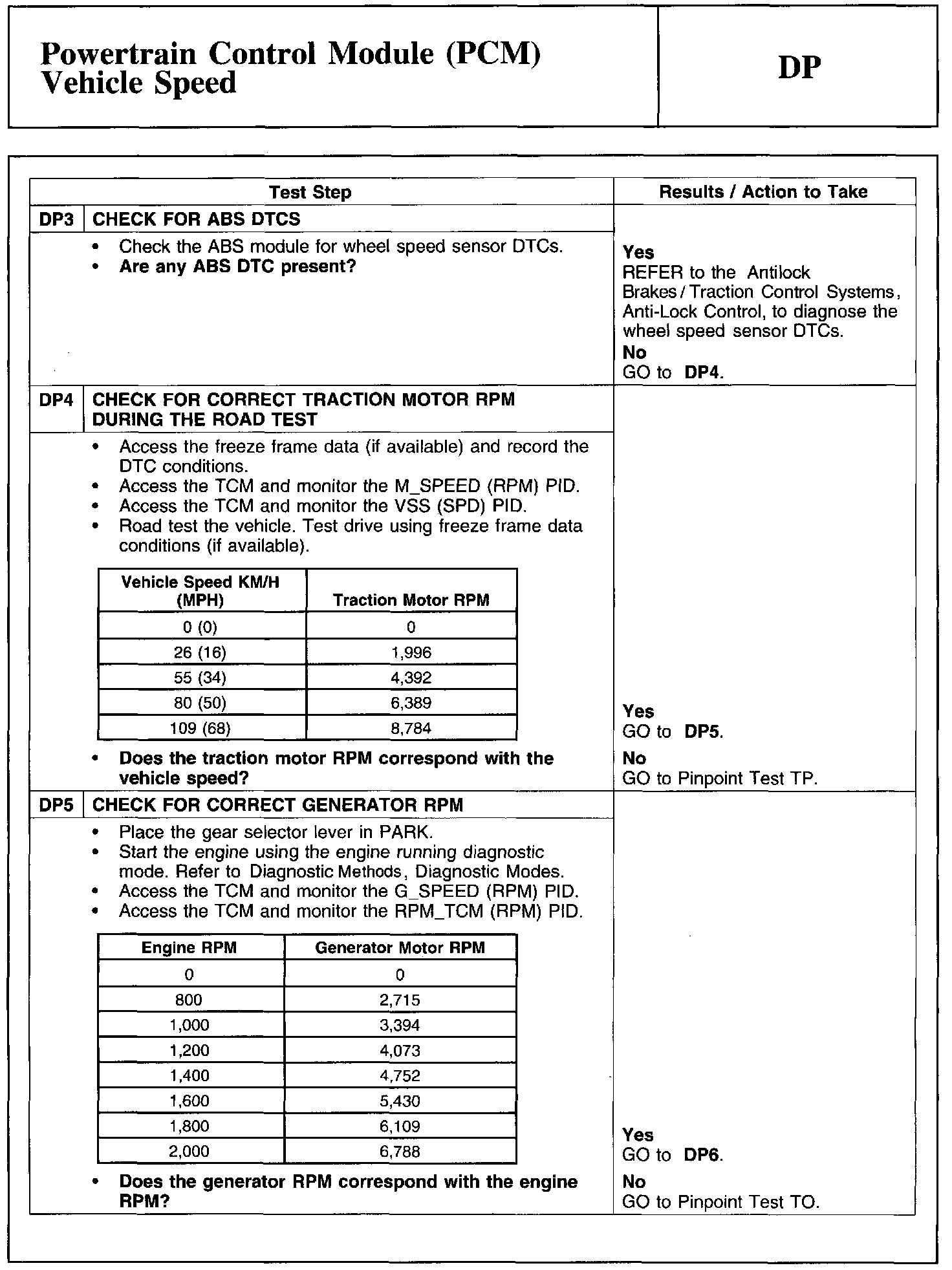

DP3-DP5:

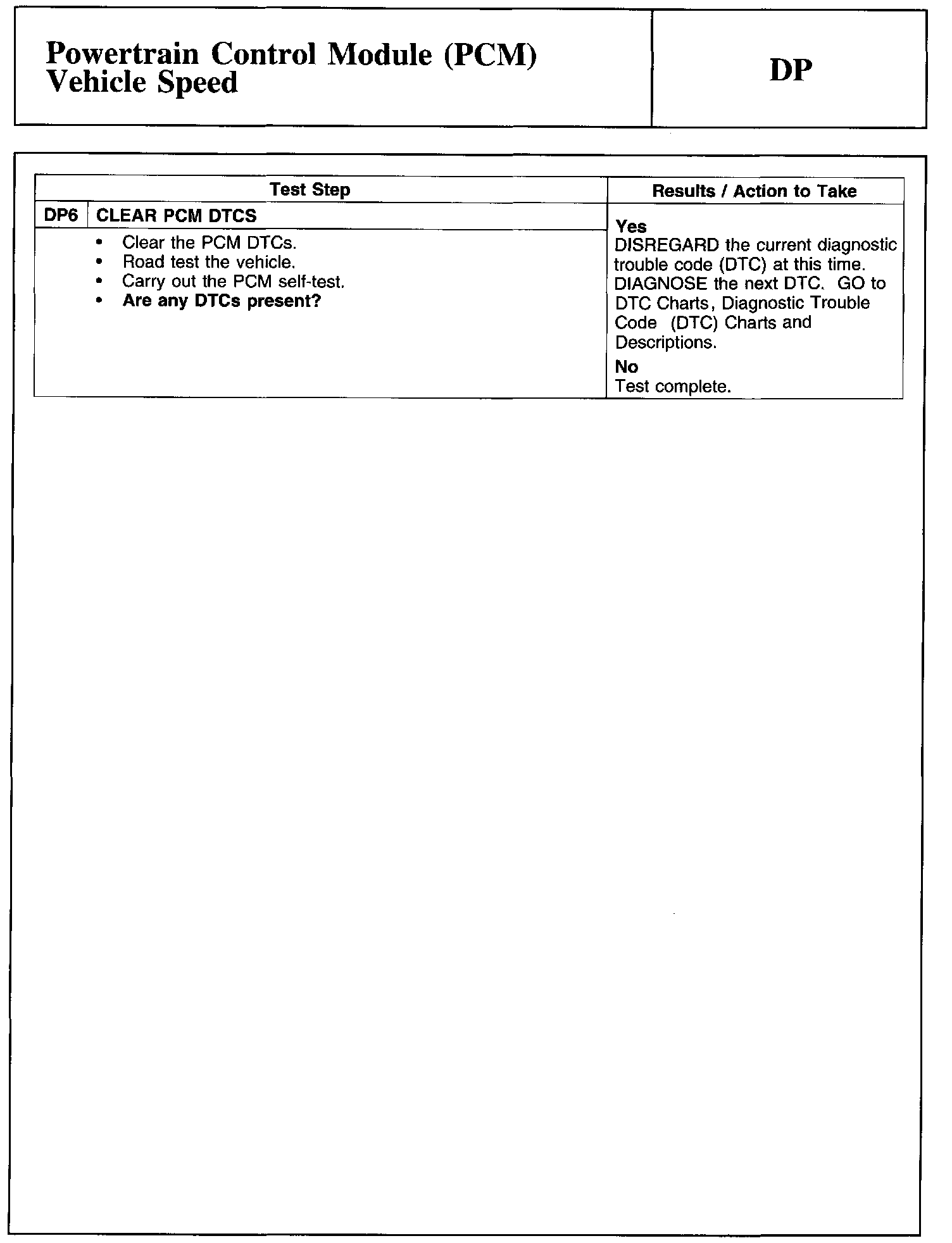

DP6:
