Test DC: Mass Air Flow (MAF) Sensor

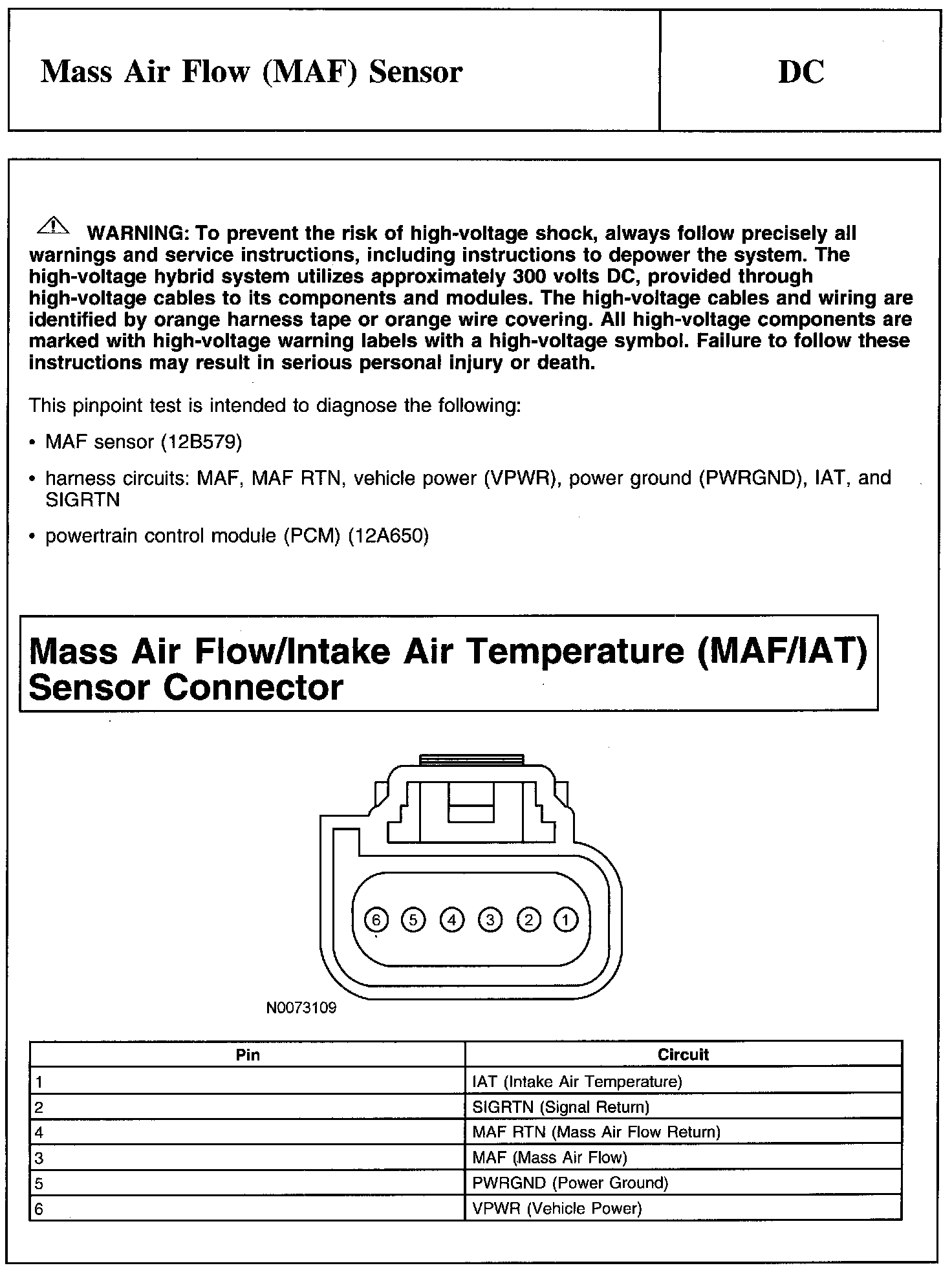

Warning And Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Connector:

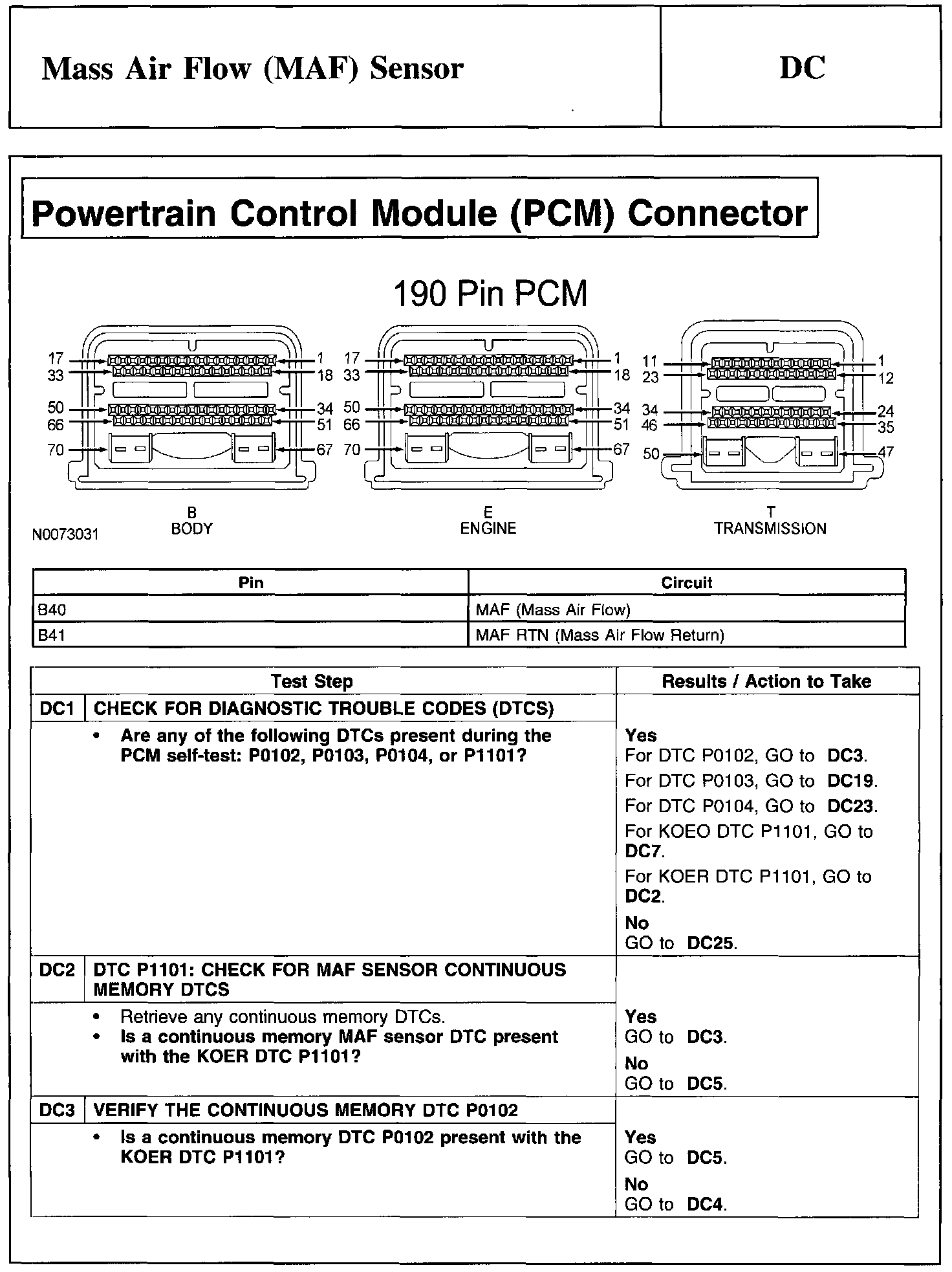

DC1-DC3:

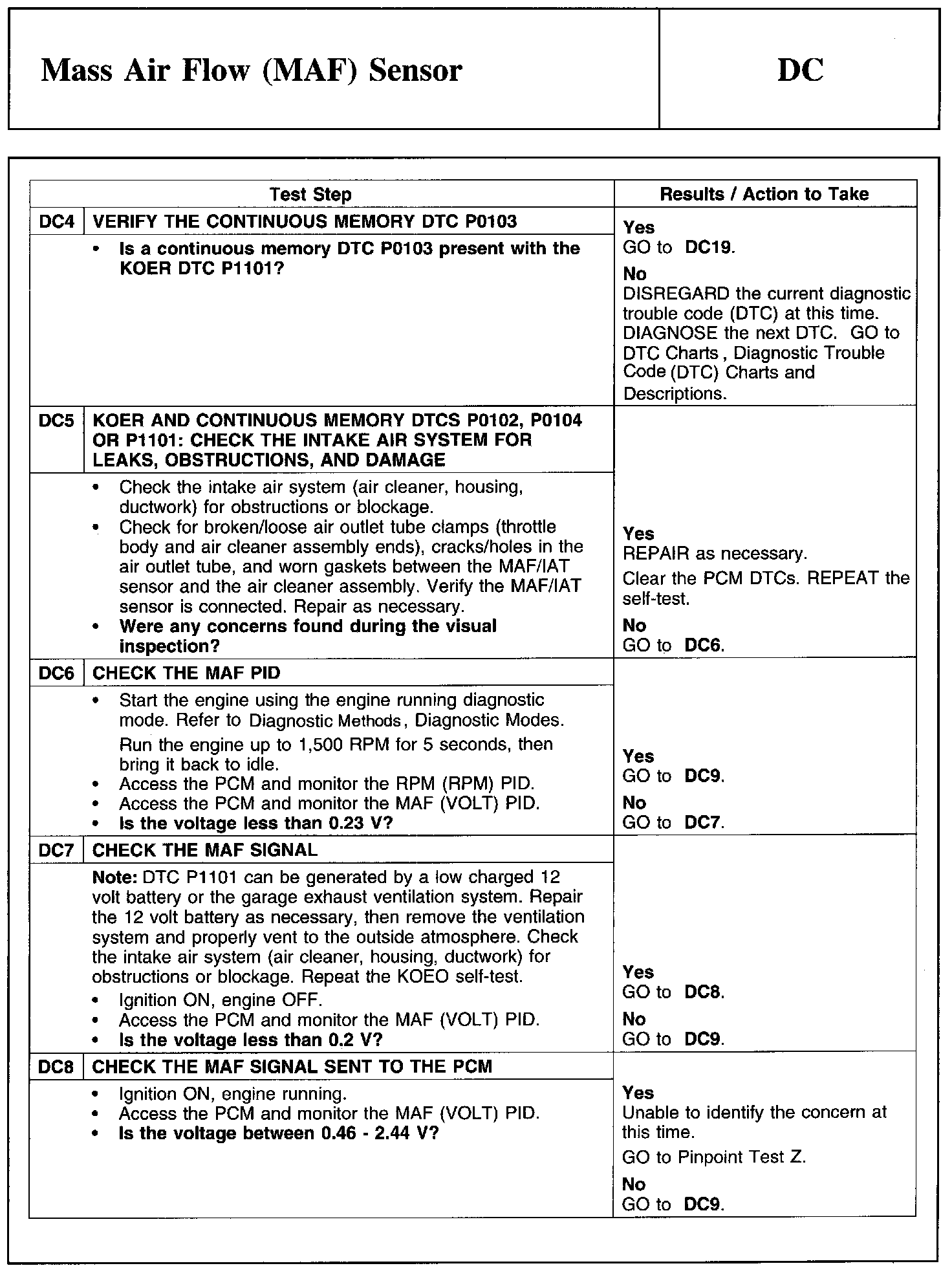

DC4-DC8:

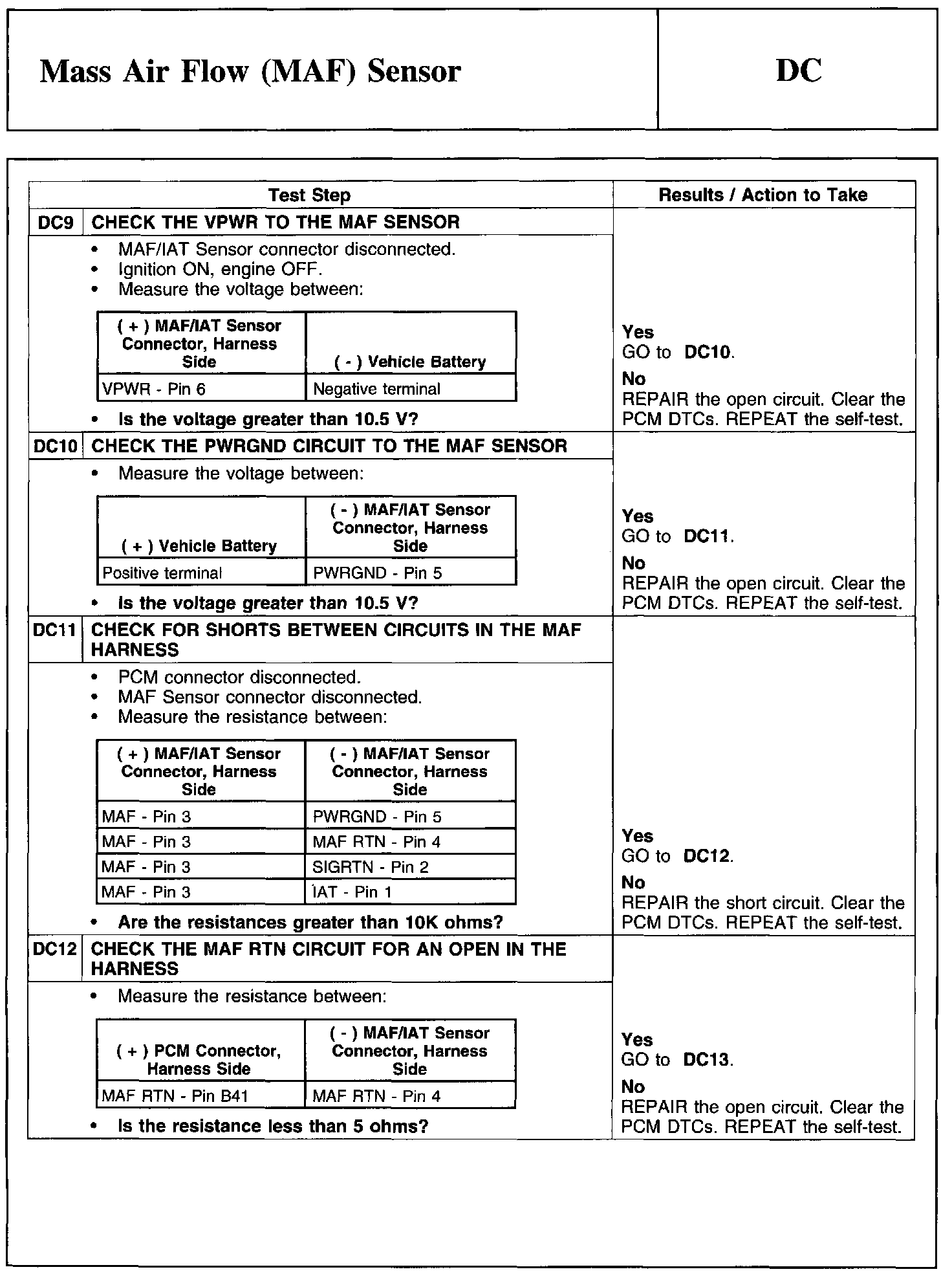

DC9-DC12:

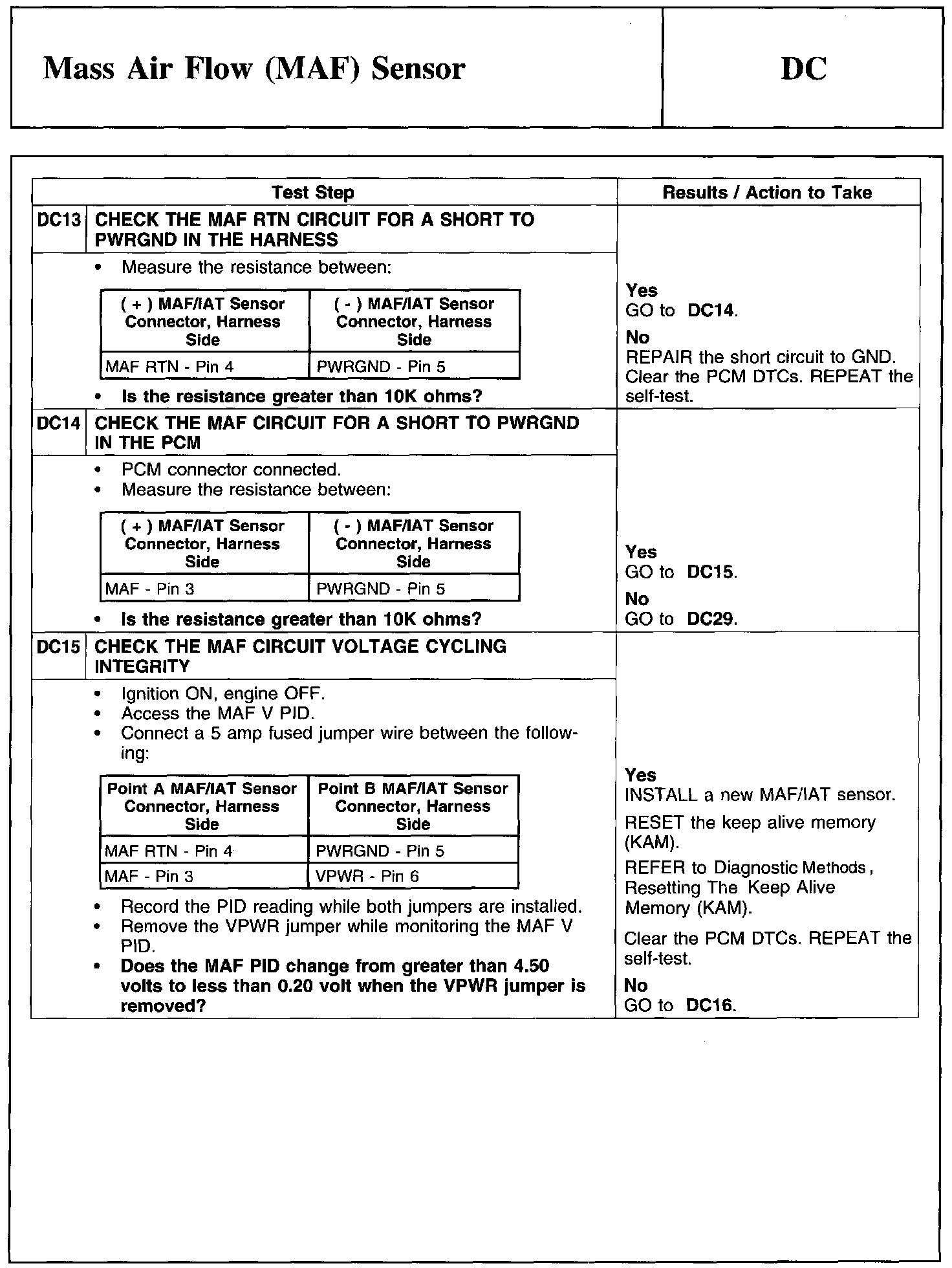

DC13-DC15:

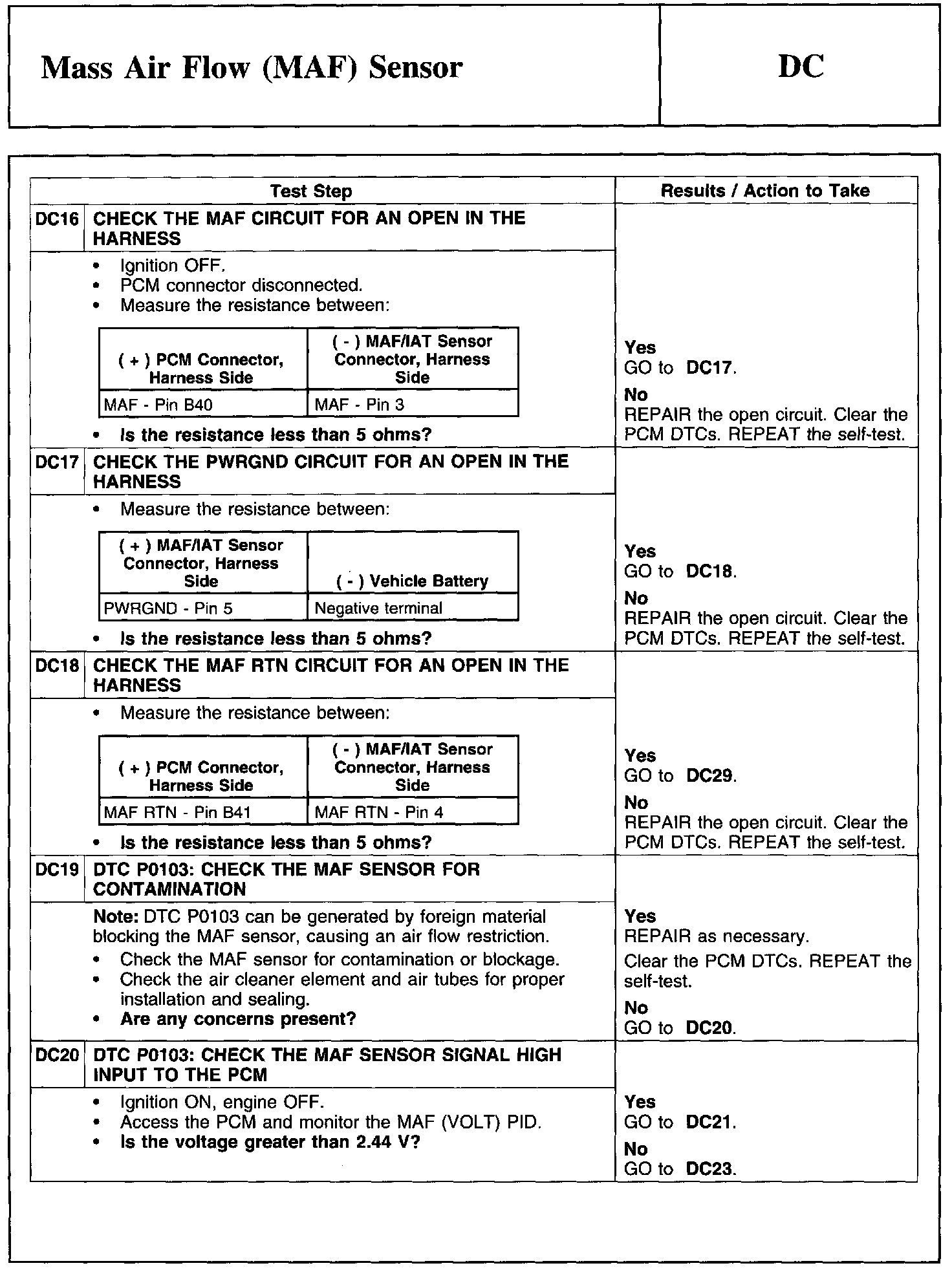

DC16-DC20:

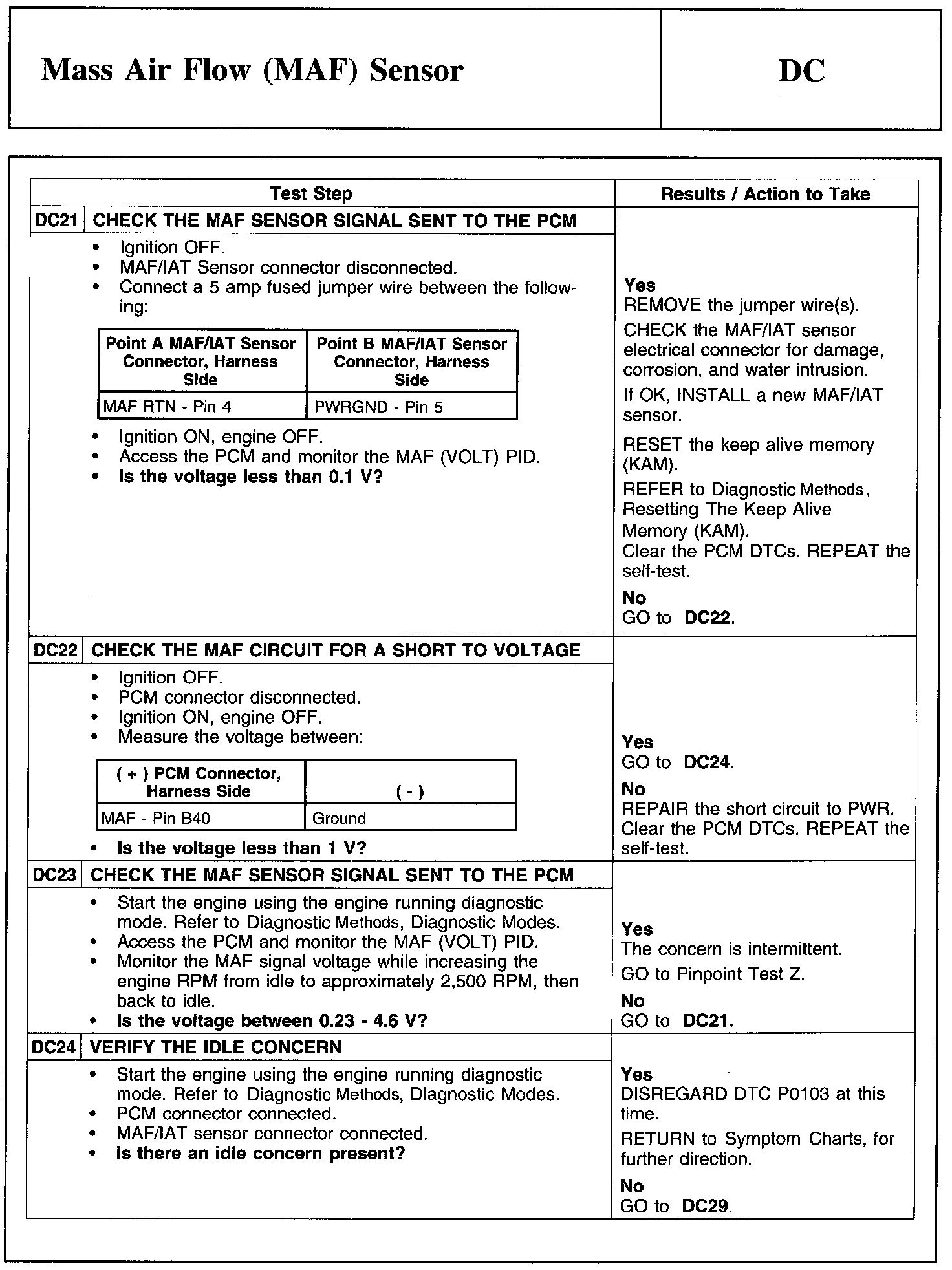

DC21-DC24:

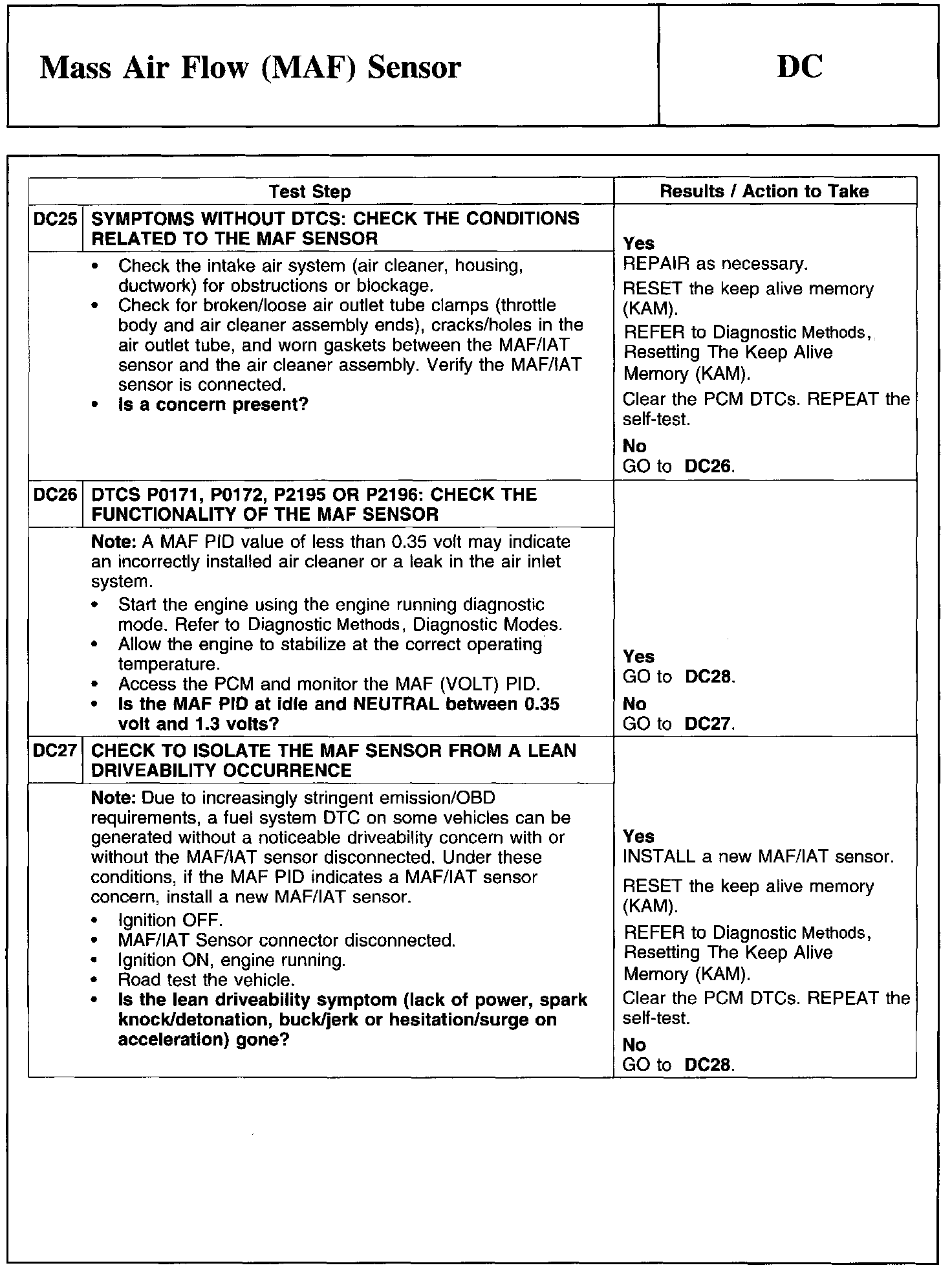

DC25-DC27:

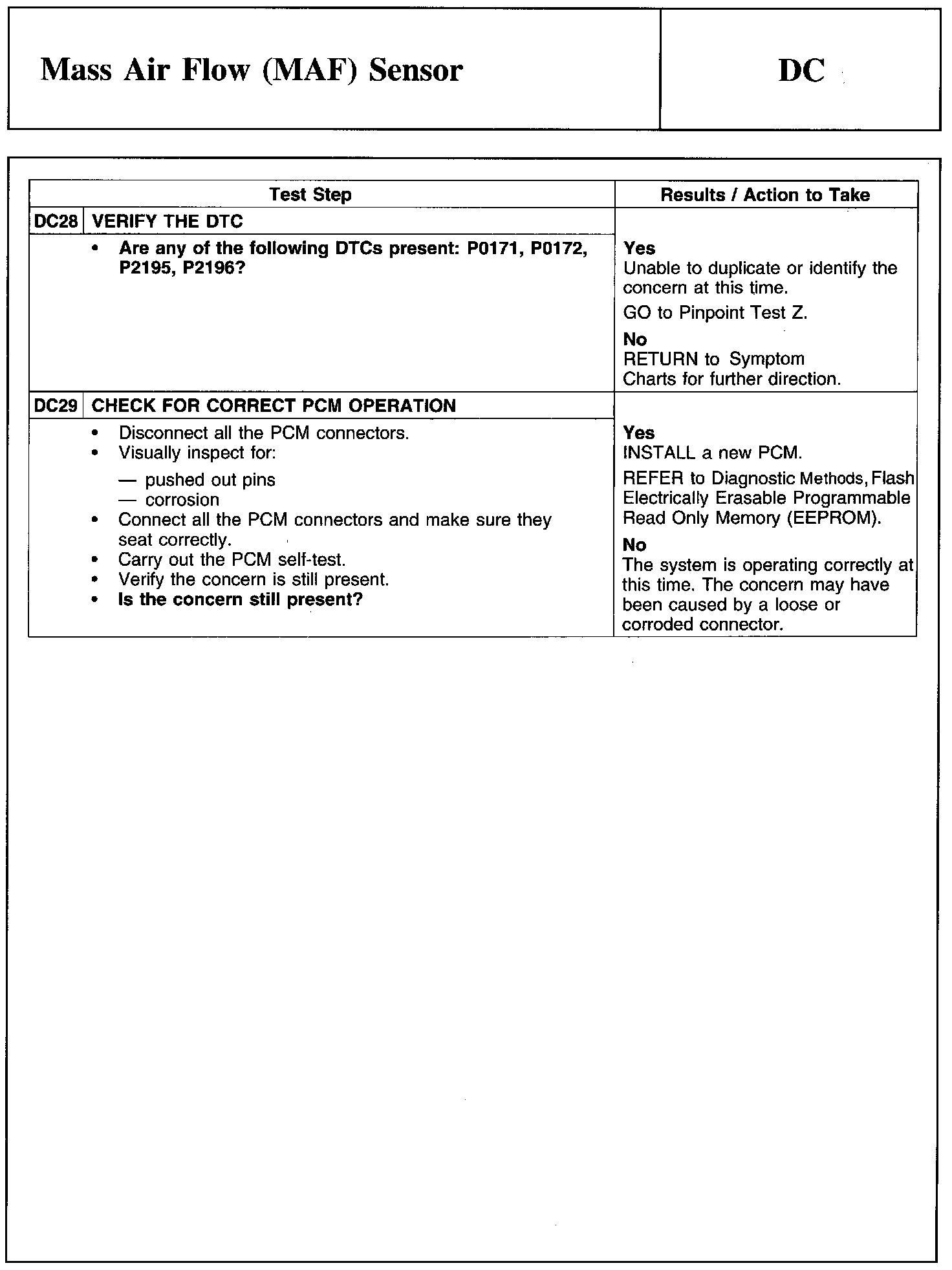

DC28-DC29:
