Test A: Engine No Start

PINPOINT TEST A: ENGINE NO START

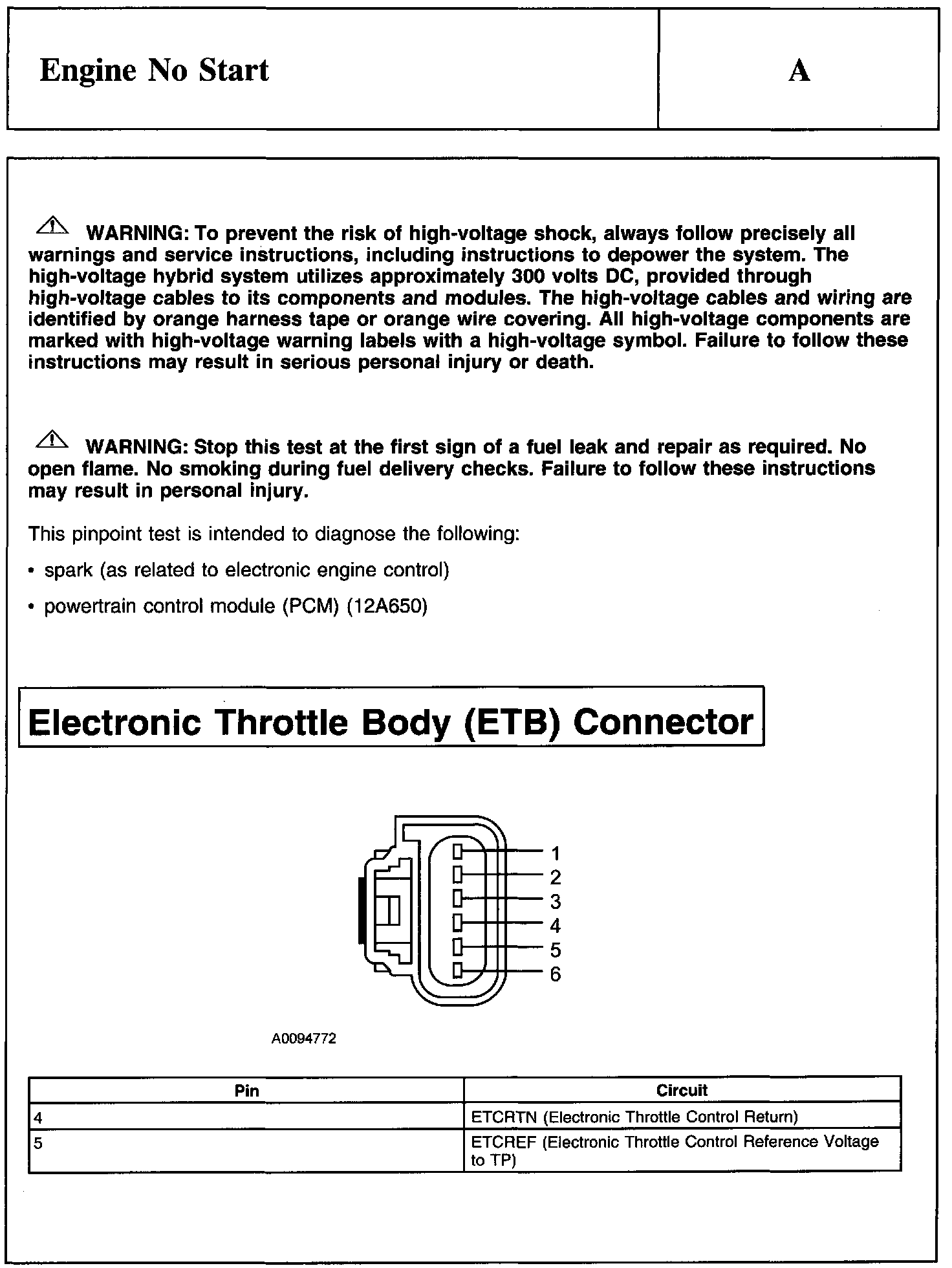

Warnings And Electronic Throttle Body (ETB) Connector:

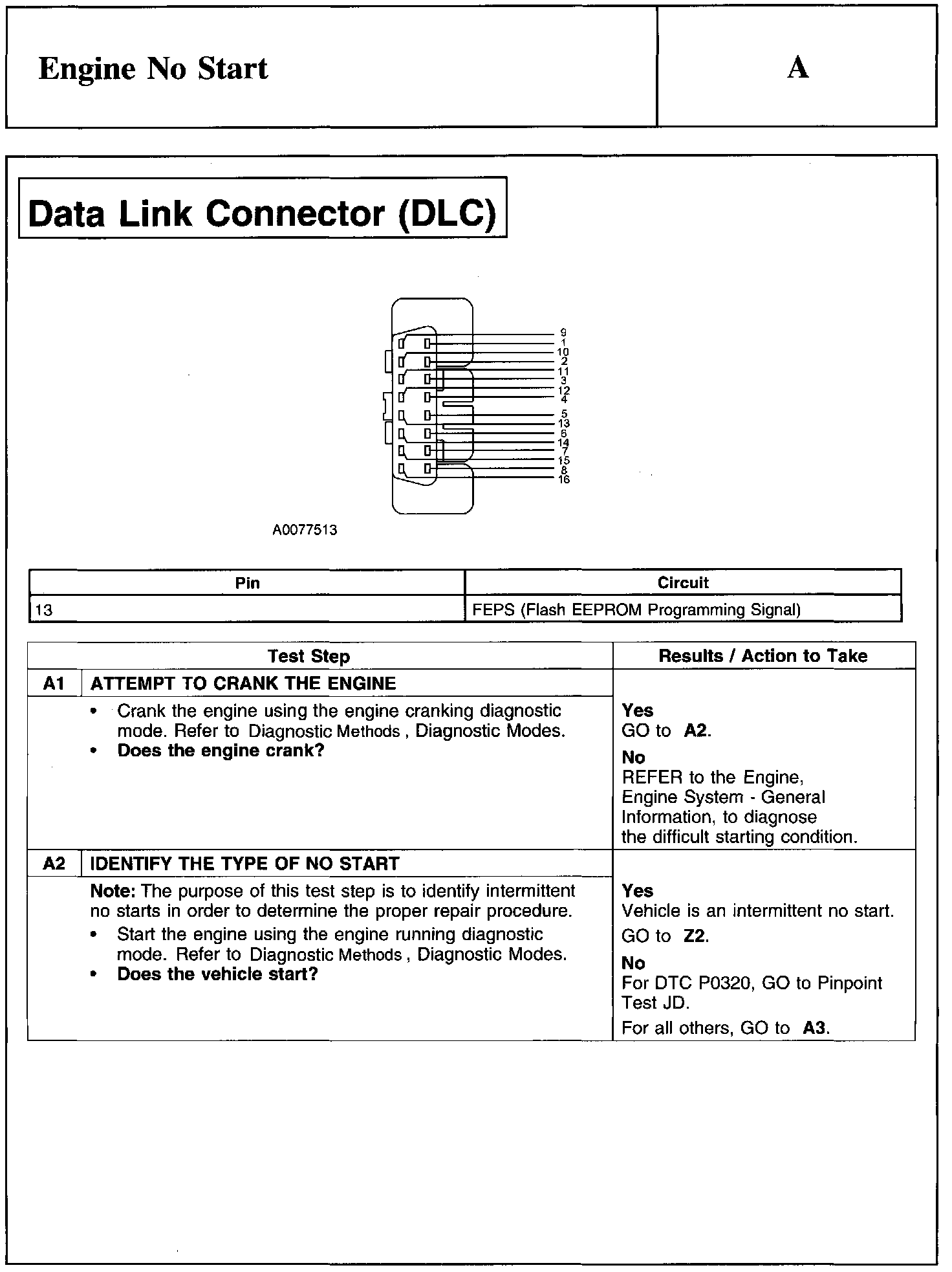

A1-A2:

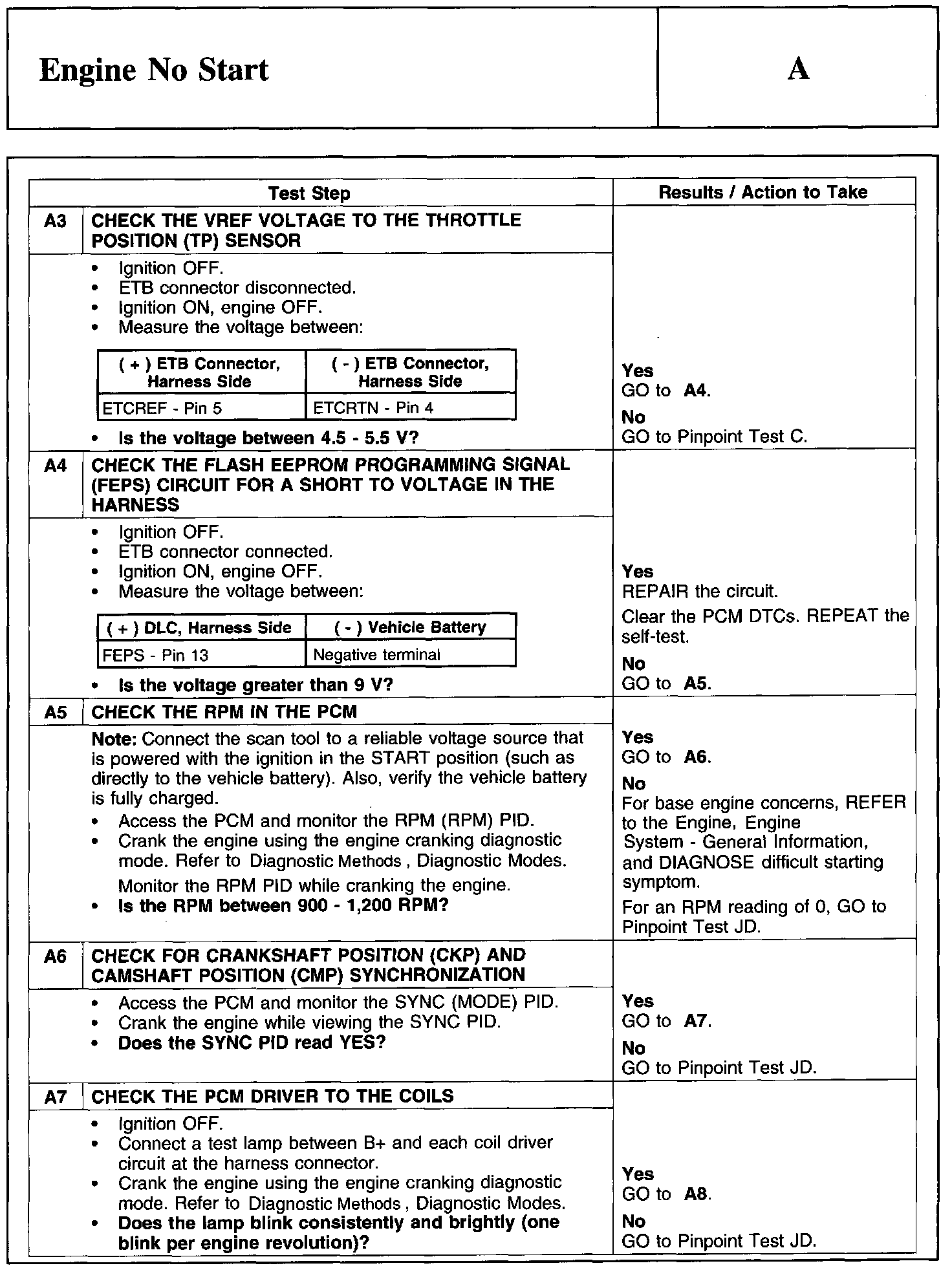

A3-A7:

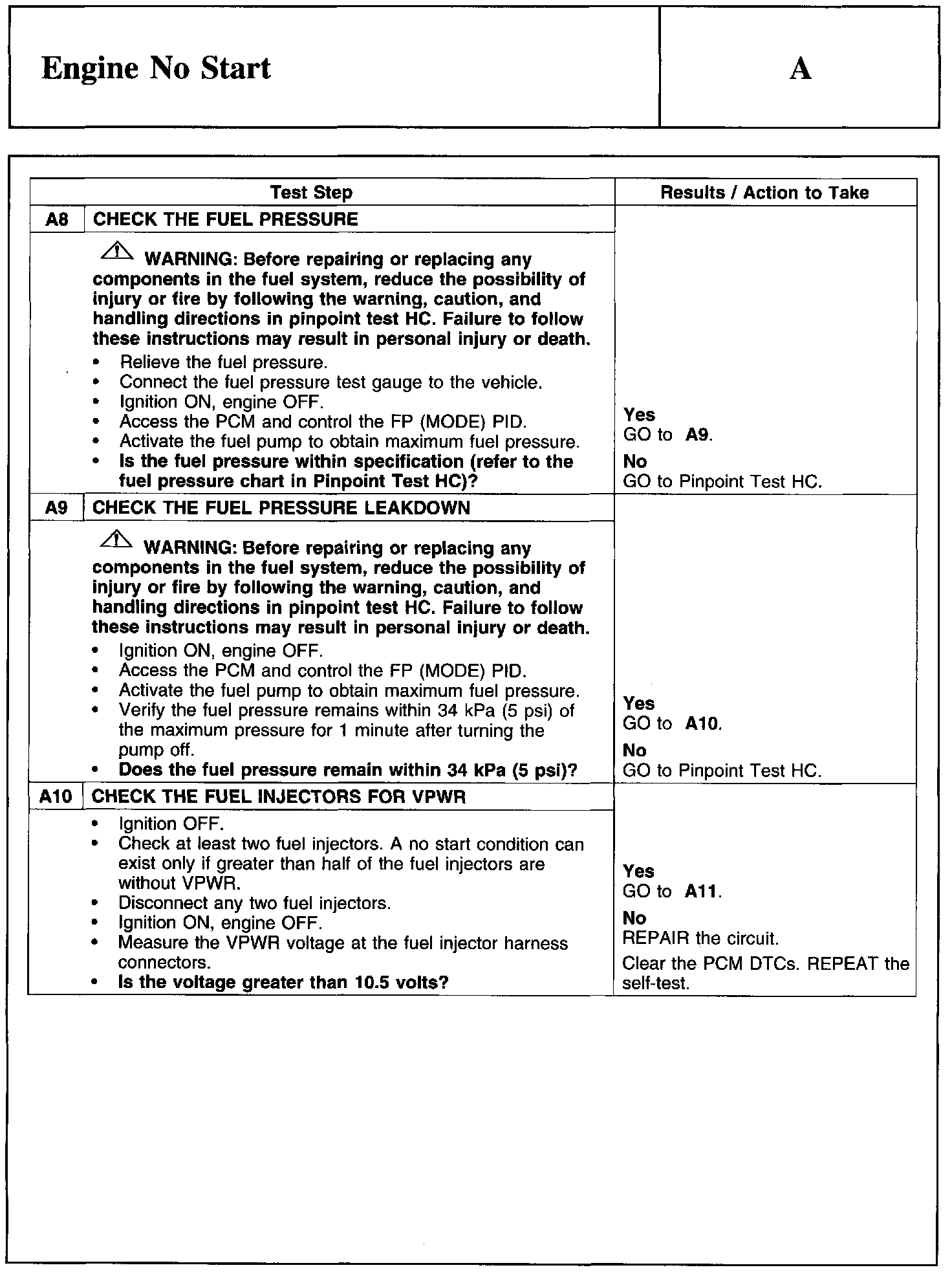

A8-A10:

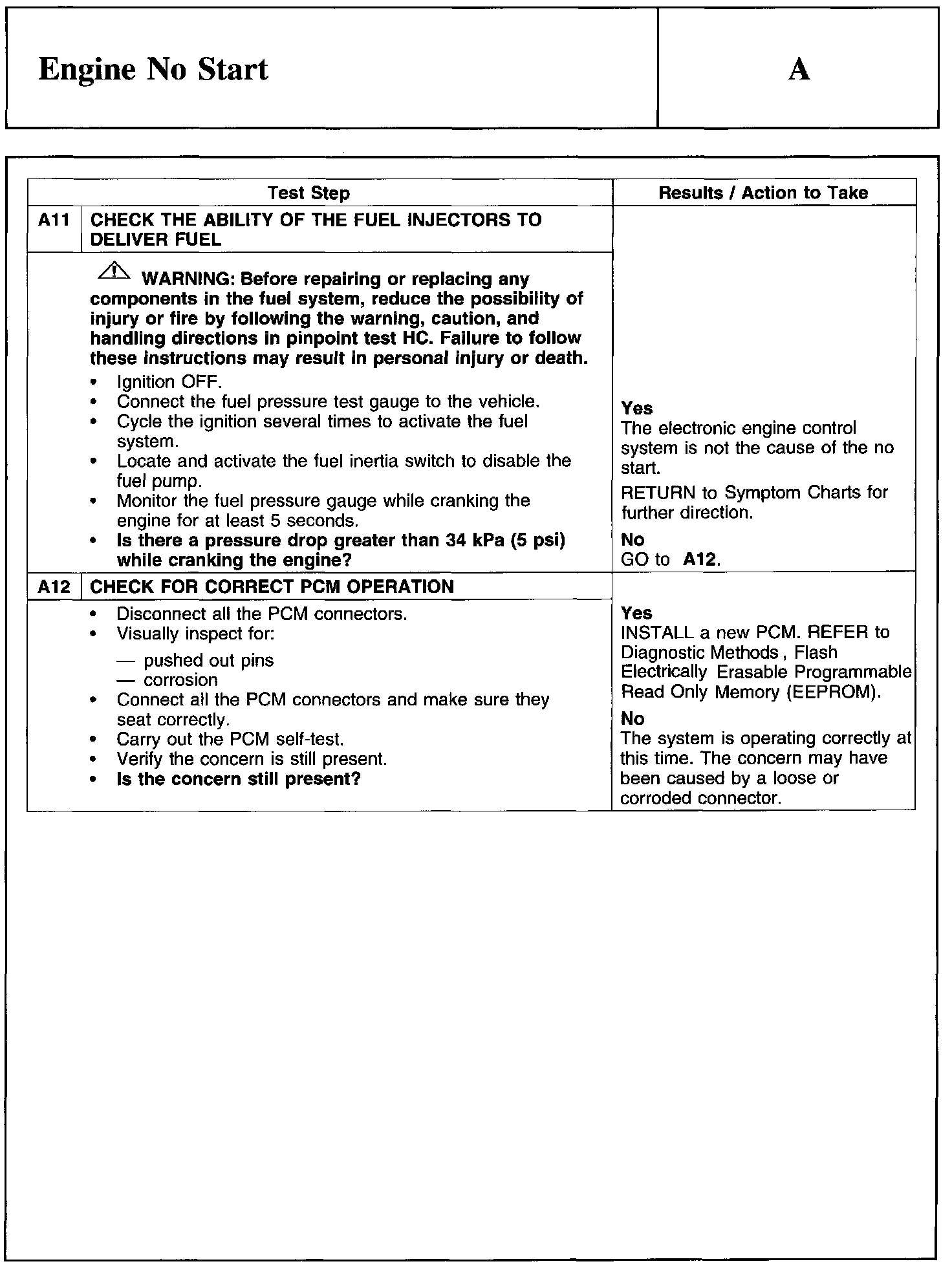

A11-A12:
