Front Controls Interface Module (FCIM) DTC Chart - Without Navigation




Information and Entertainment System

DTC Charts

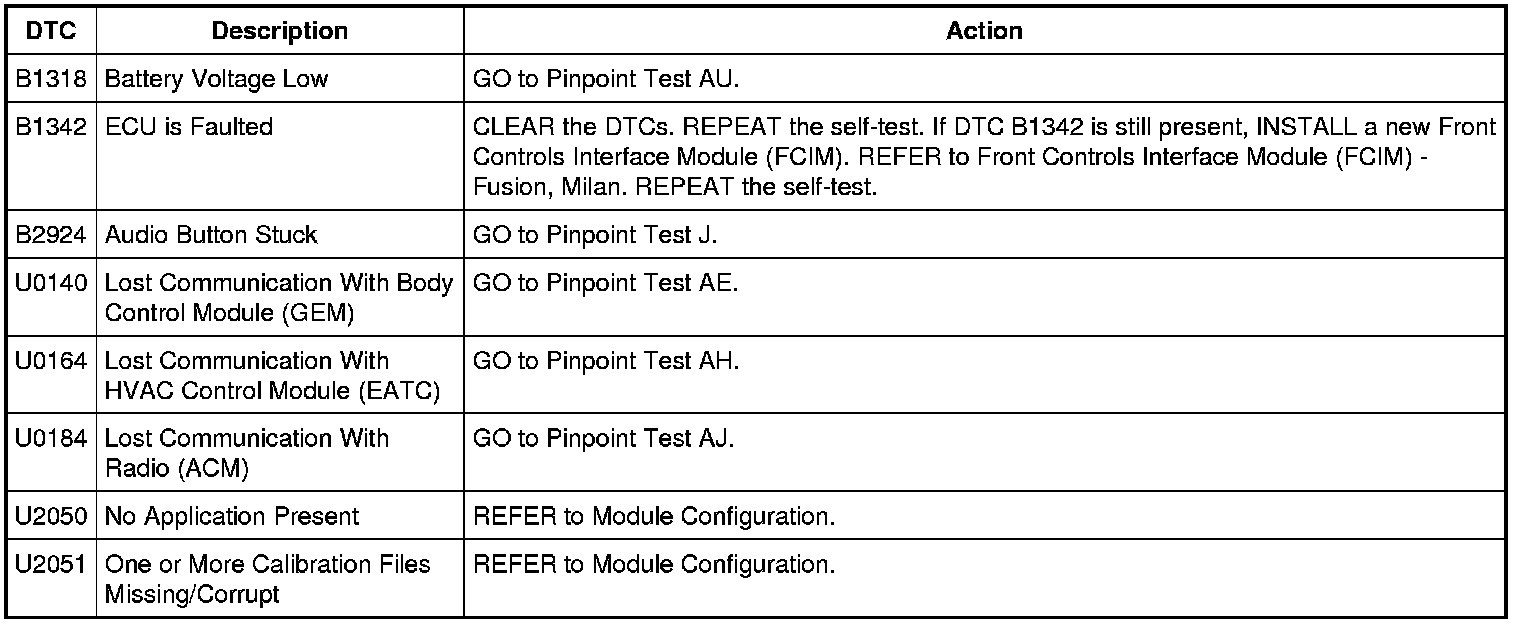

Front Controls Interface Module (FCIM) DTC Chart - Fusion, Milan Without Navigation
