Supplemental Restraint System (SRS) Lamp Fault Code (LFC) Chart




Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

The DTCs can be retrieved from the Restraints Control Module (RCM) with a scan tool via the DLC.

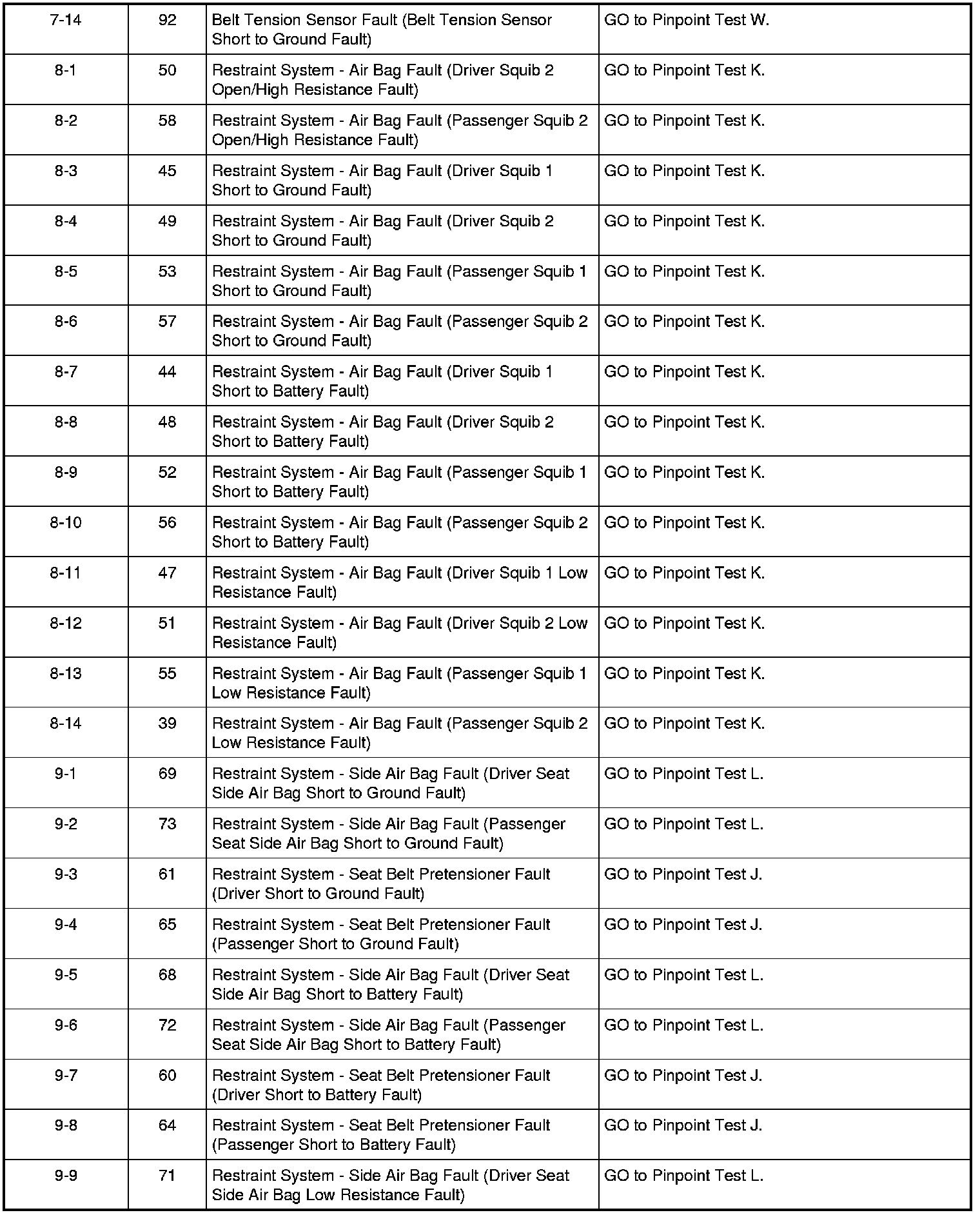

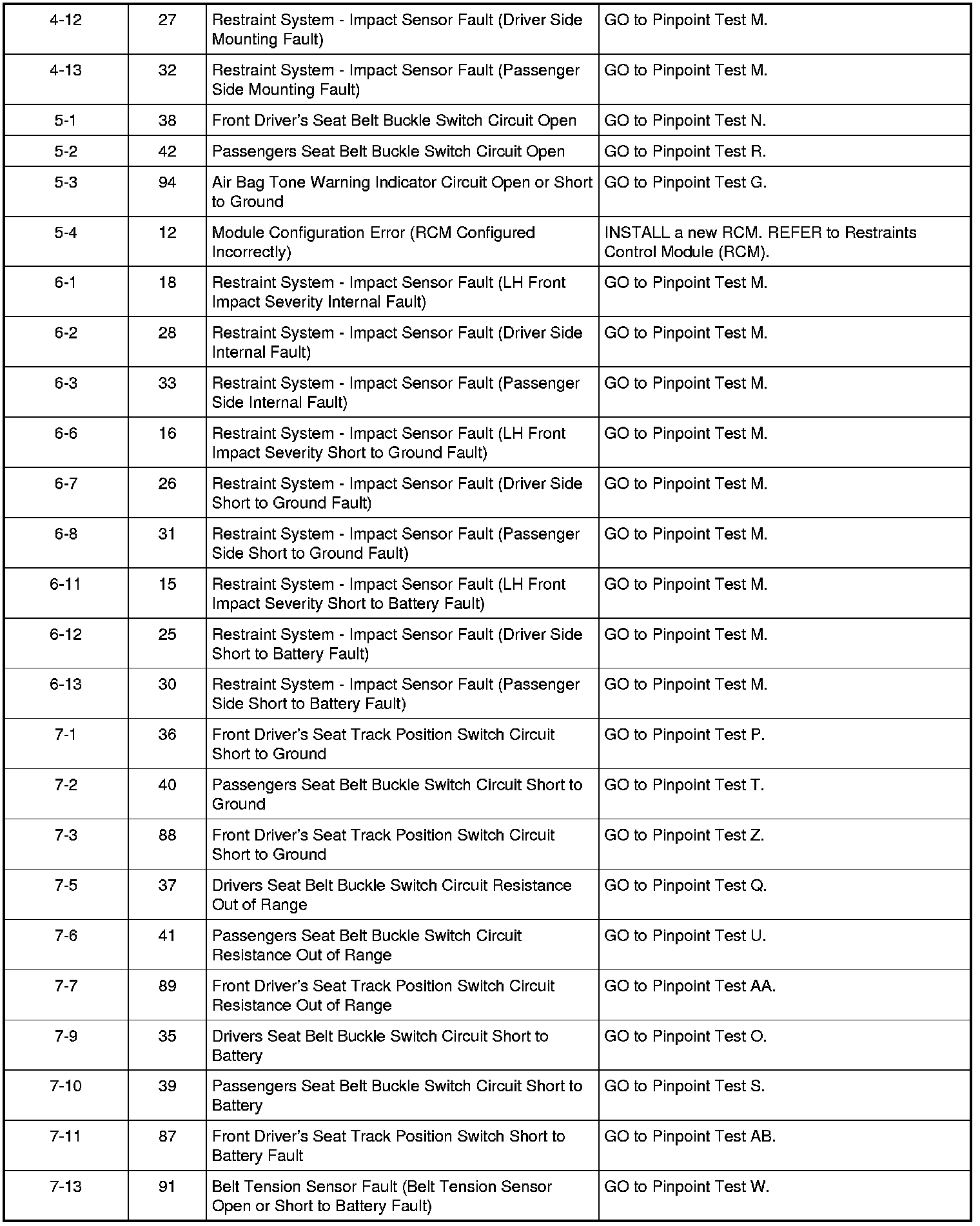

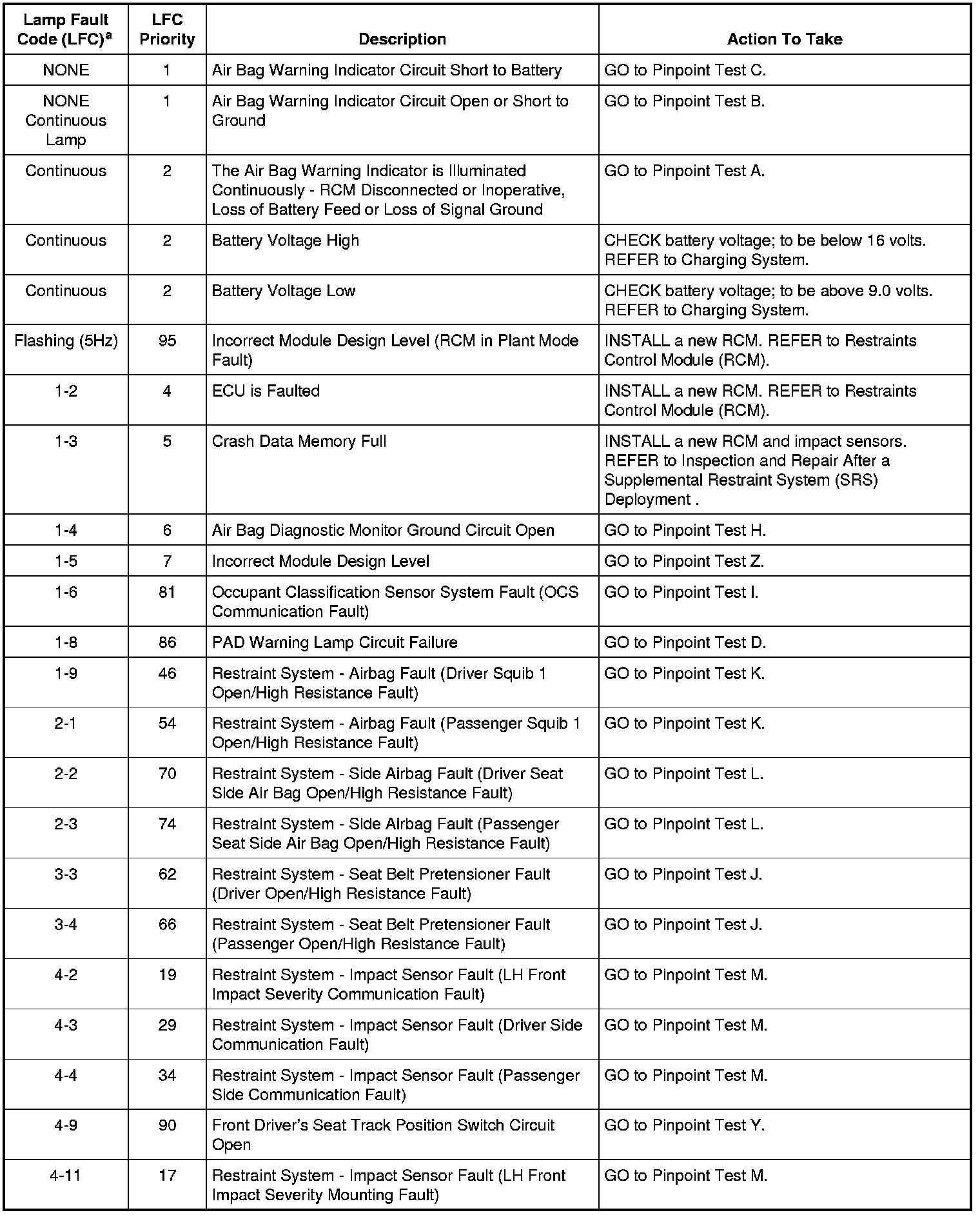

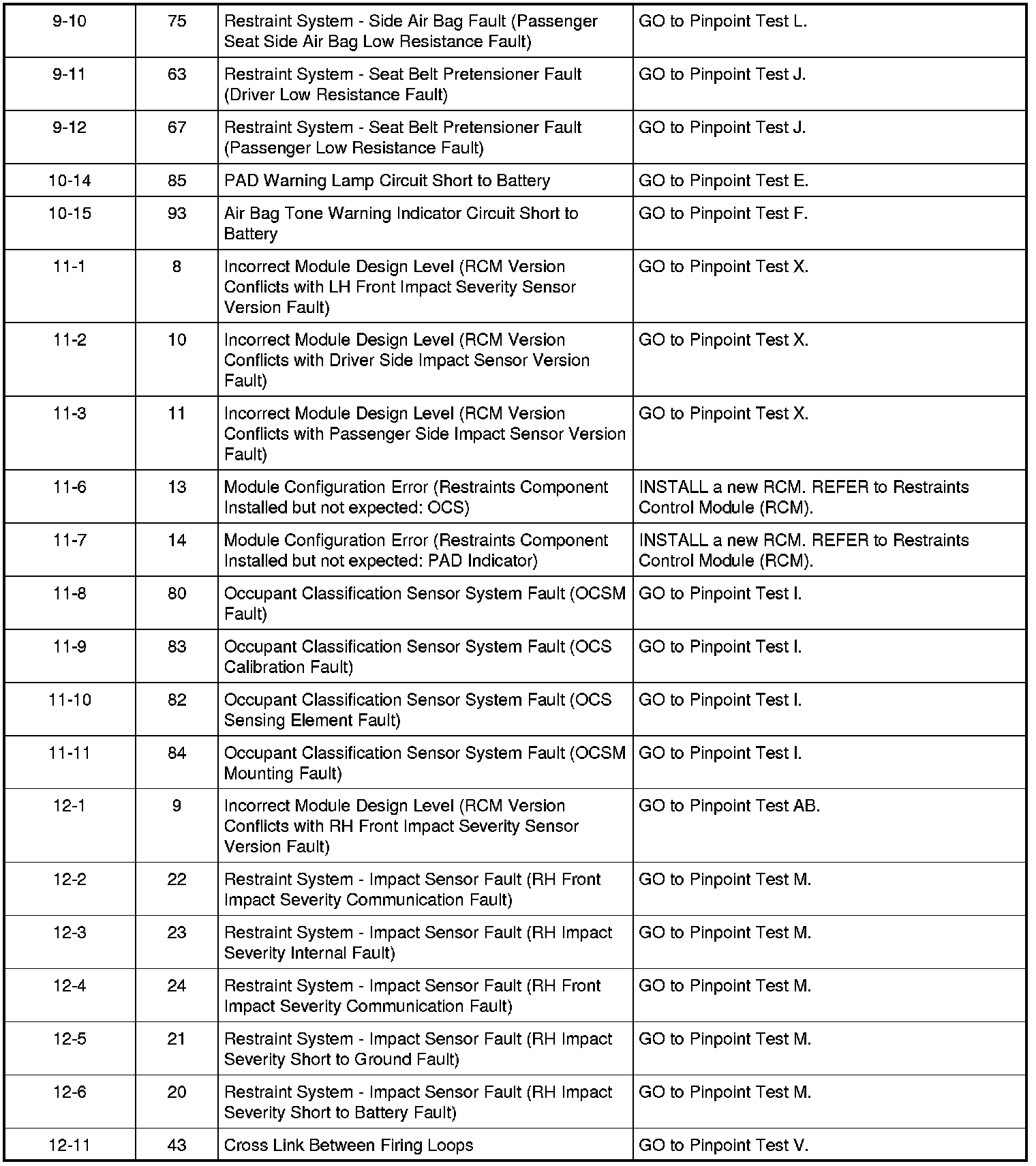

Supplemental Restraint System (SRS) Lamp Fault Code (LFC) Chart

















a LFC: Flashed on air bag warning indicator.
