Supplemental Restraint System (SRS) DTC Chart

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

The DTCs can be retrieved from the Restraints Control Module (RCM) with a scan tool via the DLC.

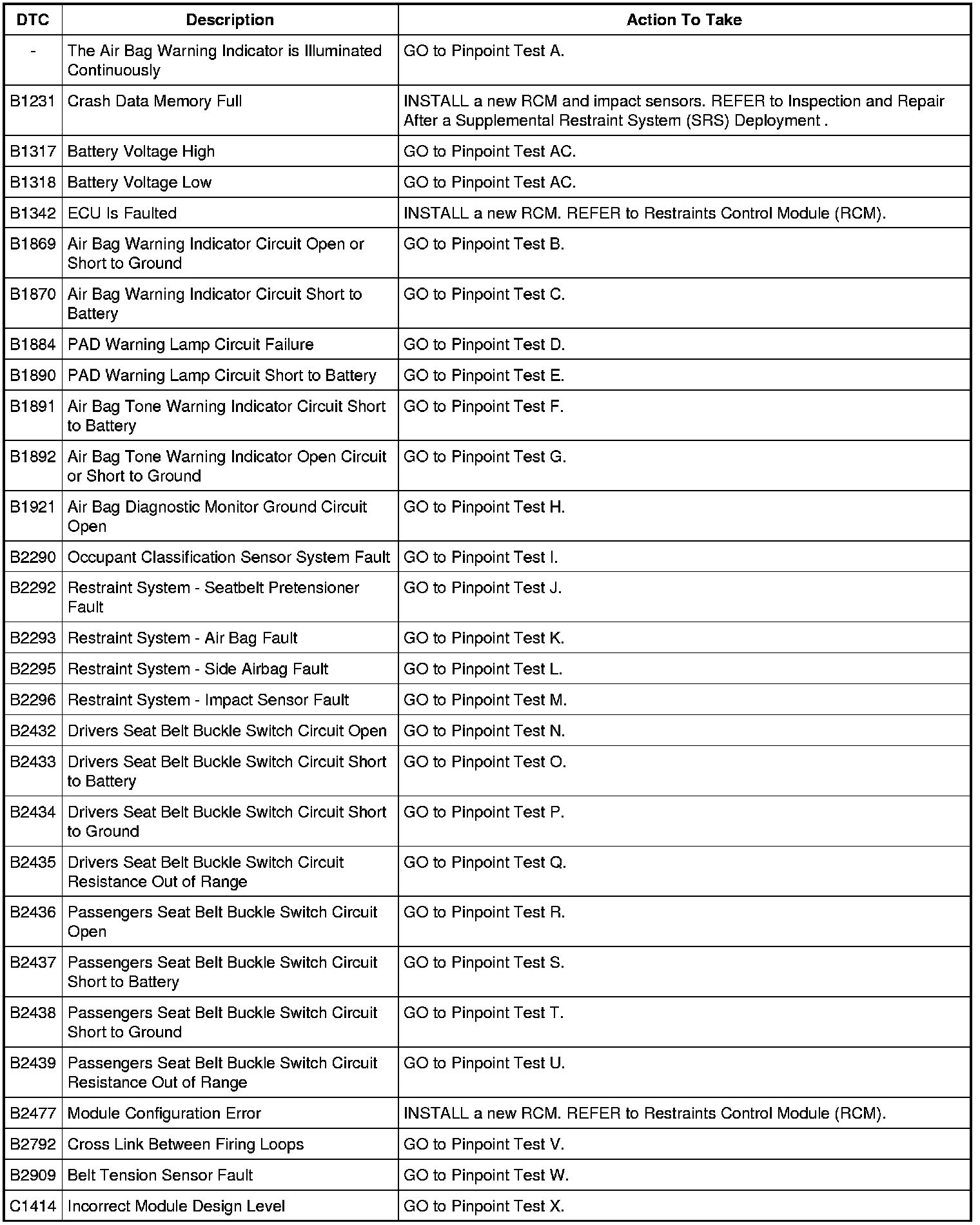

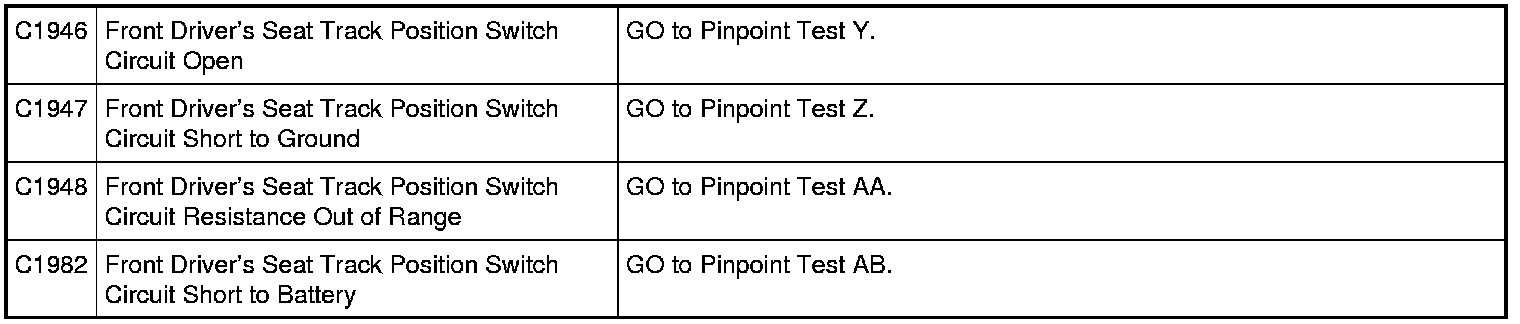

Supplemental Restraint System (SRS) DTC Chart
