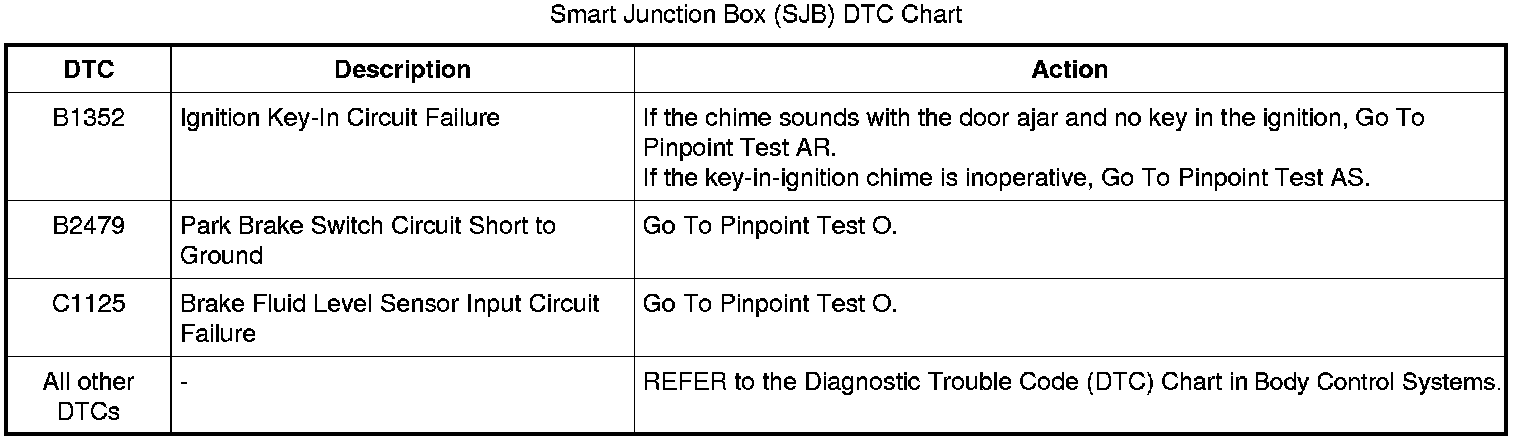

Smart Junction Box (SJB) DTC Chart
Smart Junction Box (SJB) DTC Chart
Instrumentation, Message Center and Warning Chimes
DTC Charts
B1352-B2479 / C1125:
