Global Positioning System Antenna: Service and Repair

Global Positioning System (GPS) Antenna

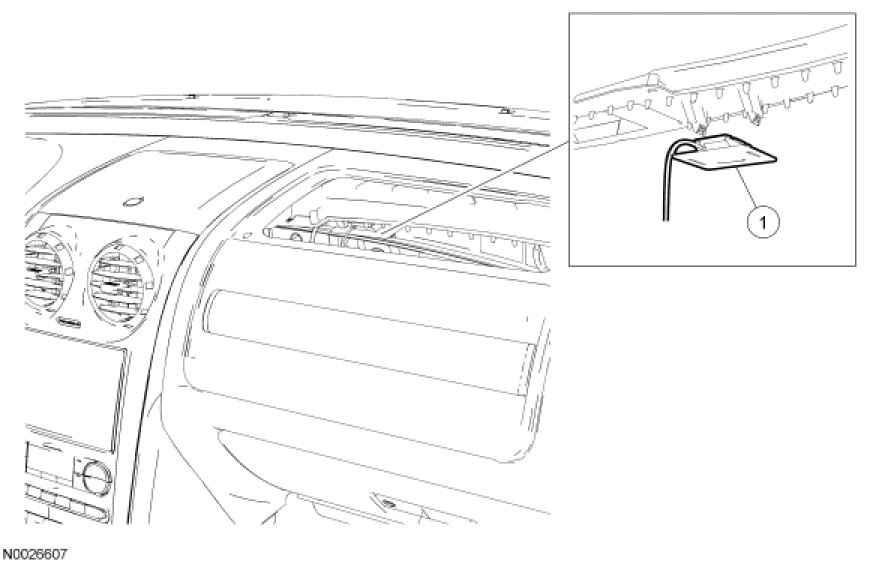

NOTE: The passenger air bag module has been removed for clarity.










Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).

2. Open and lower the glove compartment door.

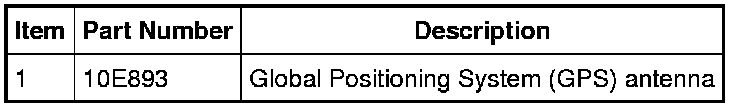

3. Release the 2 clips and remove the Global Positioning System (GPS) antenna.

4. To install, reverse the removal procedure.
