211/311, Timing Concerns - Early/Late




Diagnostic Routines

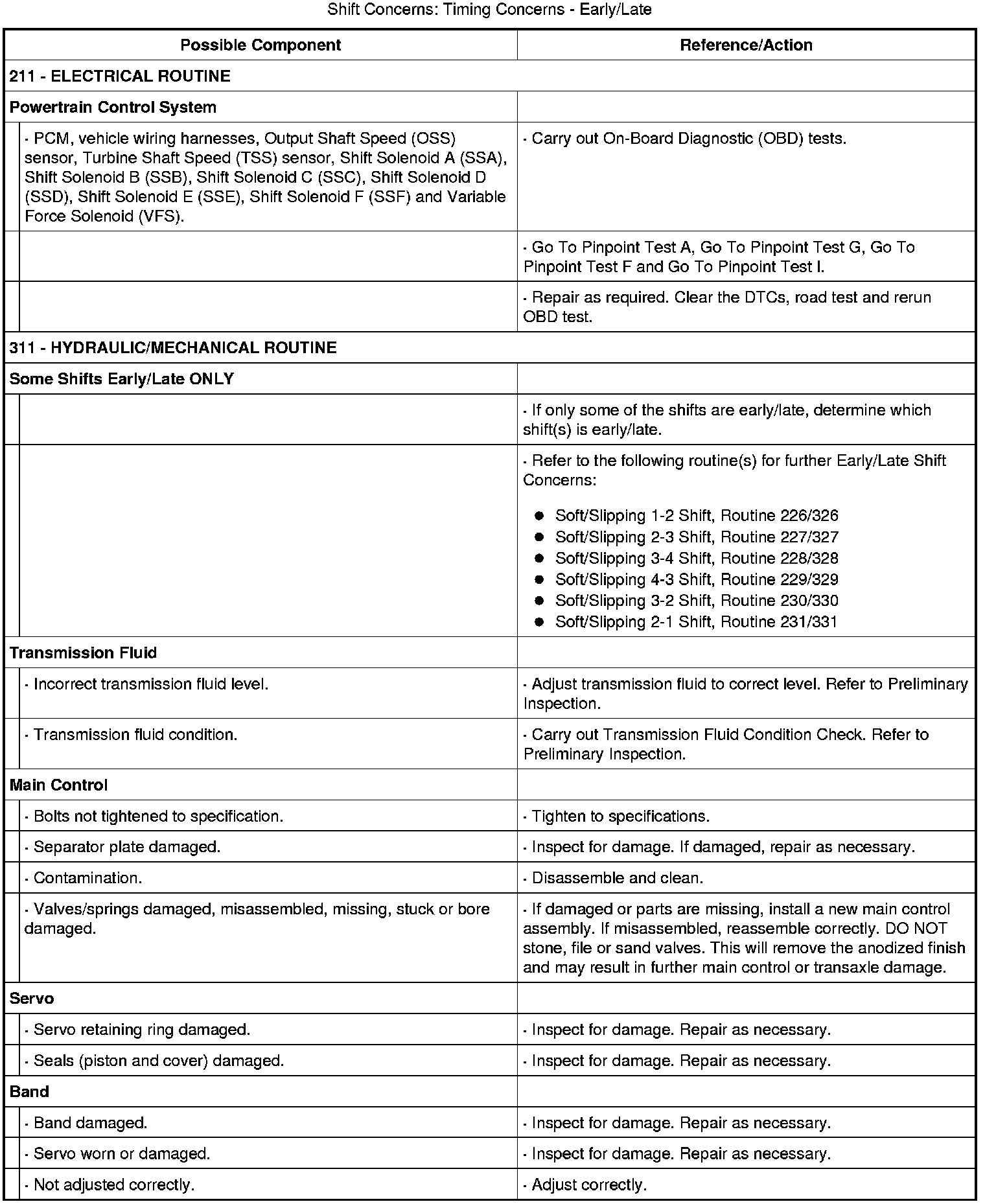

211/311, Timing Concerns - Early/Late (Part 1):





211/311, Timing Concerns - Early/Late (Part 2):
