210/310, Some/All Shifts Missing (Automatic Mode Only)




Diagnostic Routines

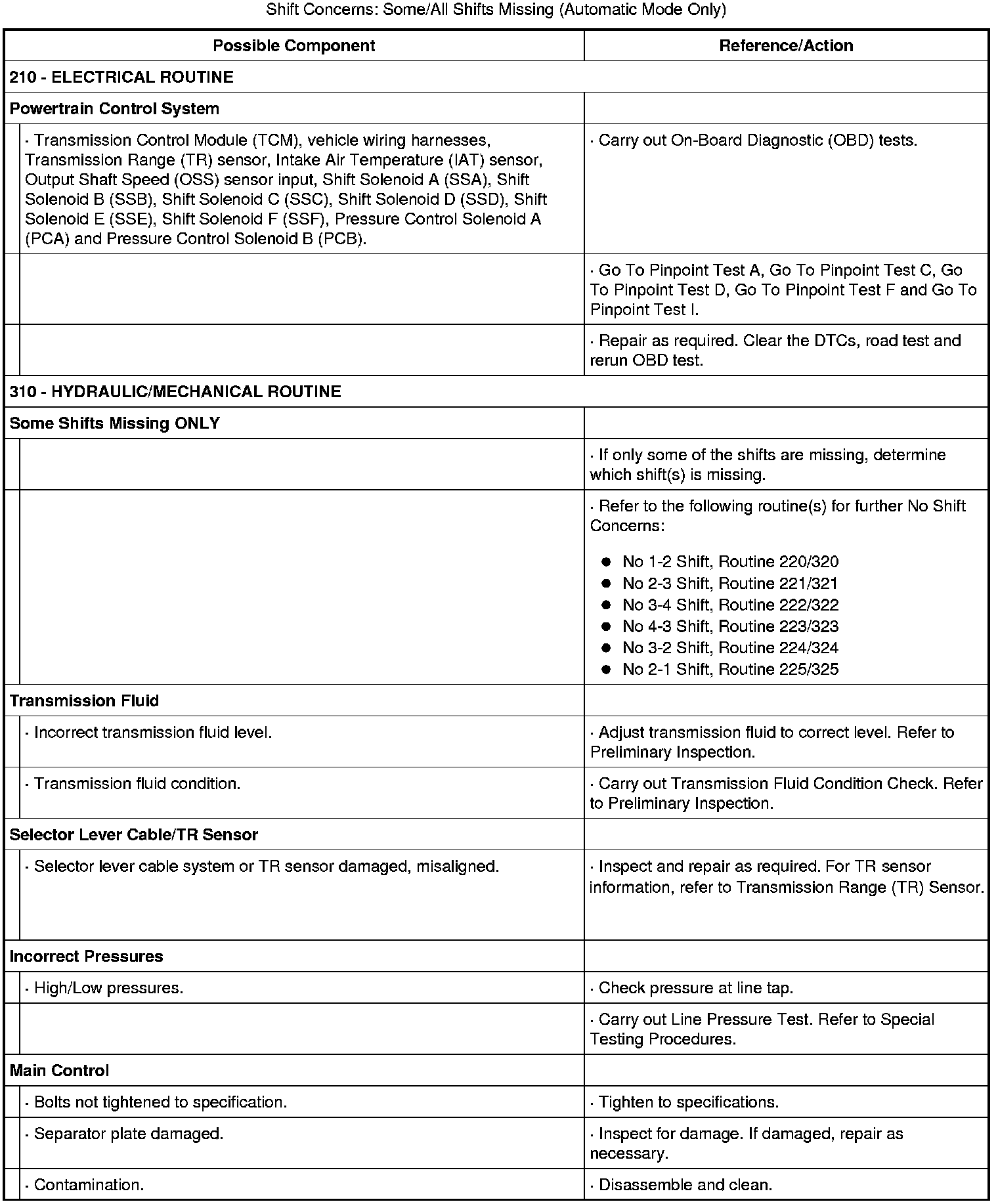

210/310, Some/All Shifts Missing (Automatic Mode Only) (Part 1):





210/310, Some/All Shifts Missing (Automatic Mode Only) (Part 2):
