Test E: The Roof Opening Panel Does Not Open Or Close In Vent Position

PINPOINT TEST E: THE ROOF OPENING PANEL DOES NOT OPEN OR CLOSE IN VENT POSITION

Normal Operation
When the roof opening panel glass is completely closed, it should be flush with the roof panel. The roof opening panel should operate smoothly while opening and closing.

This pinpoint test is intended to diagnose the following:
- Roof opening panel alignment
- Roof opening panel motor

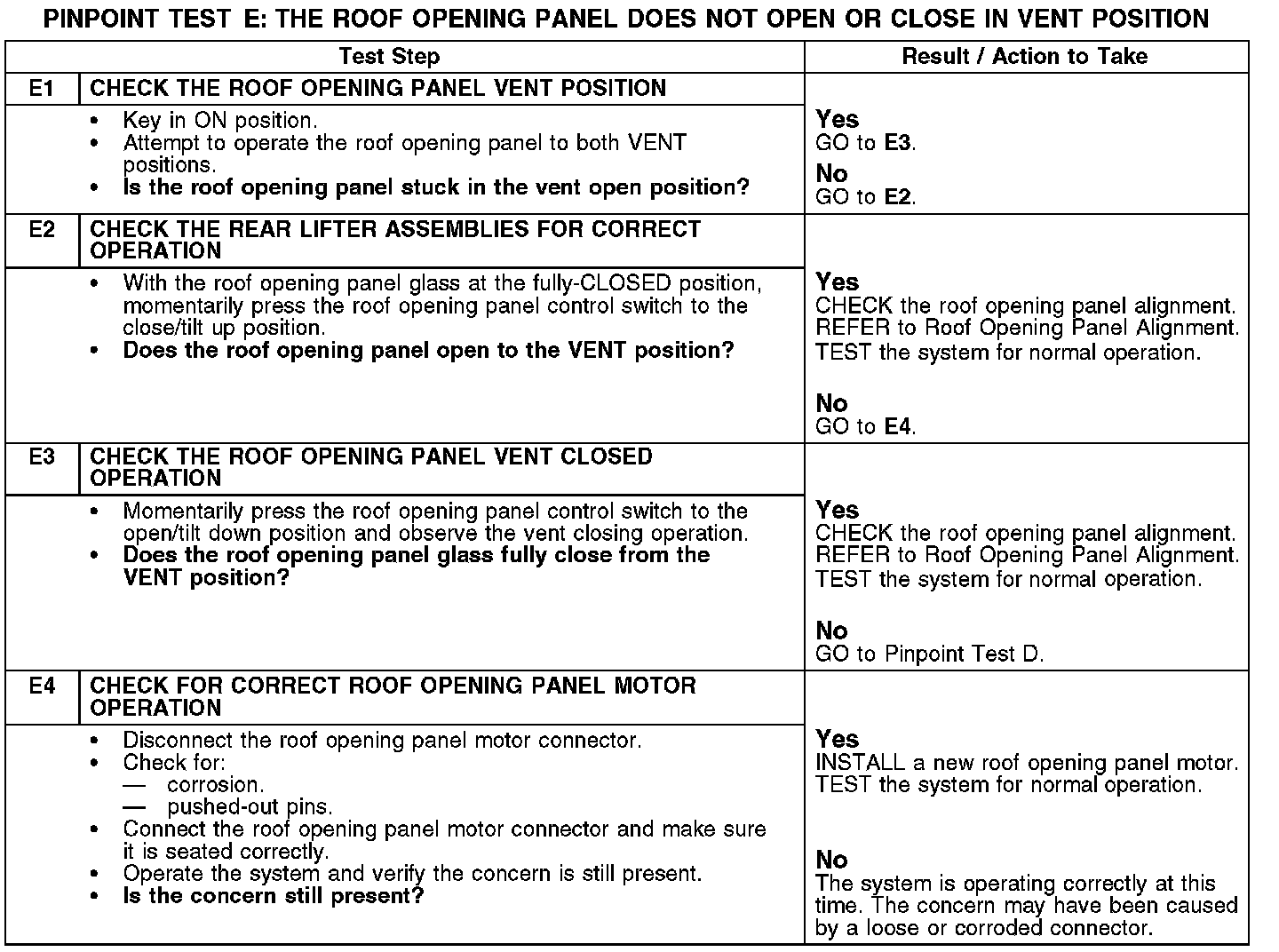

E1-E4:
