Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index

Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index

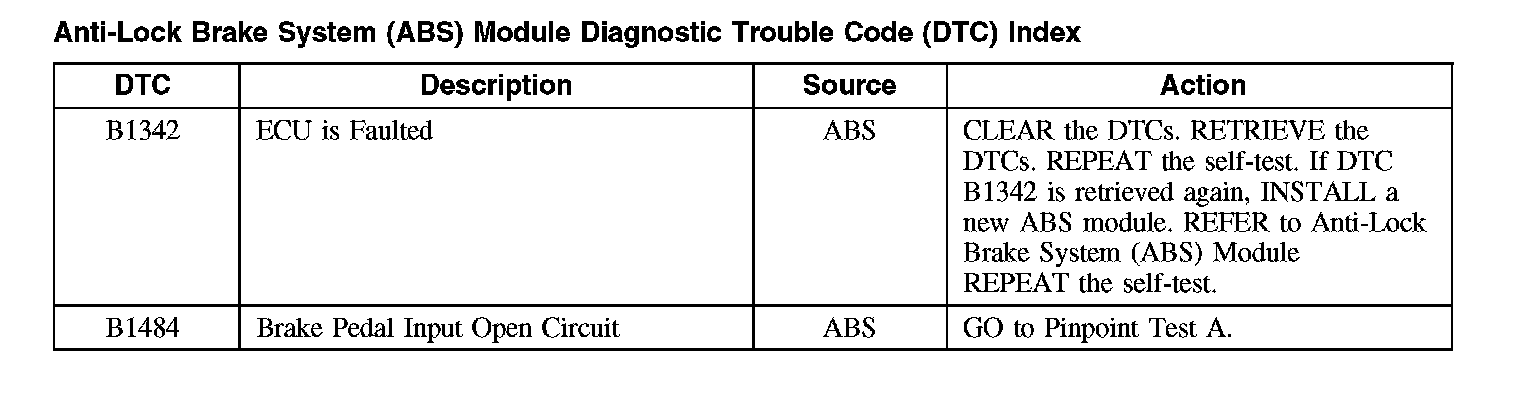

B1342-B1484:

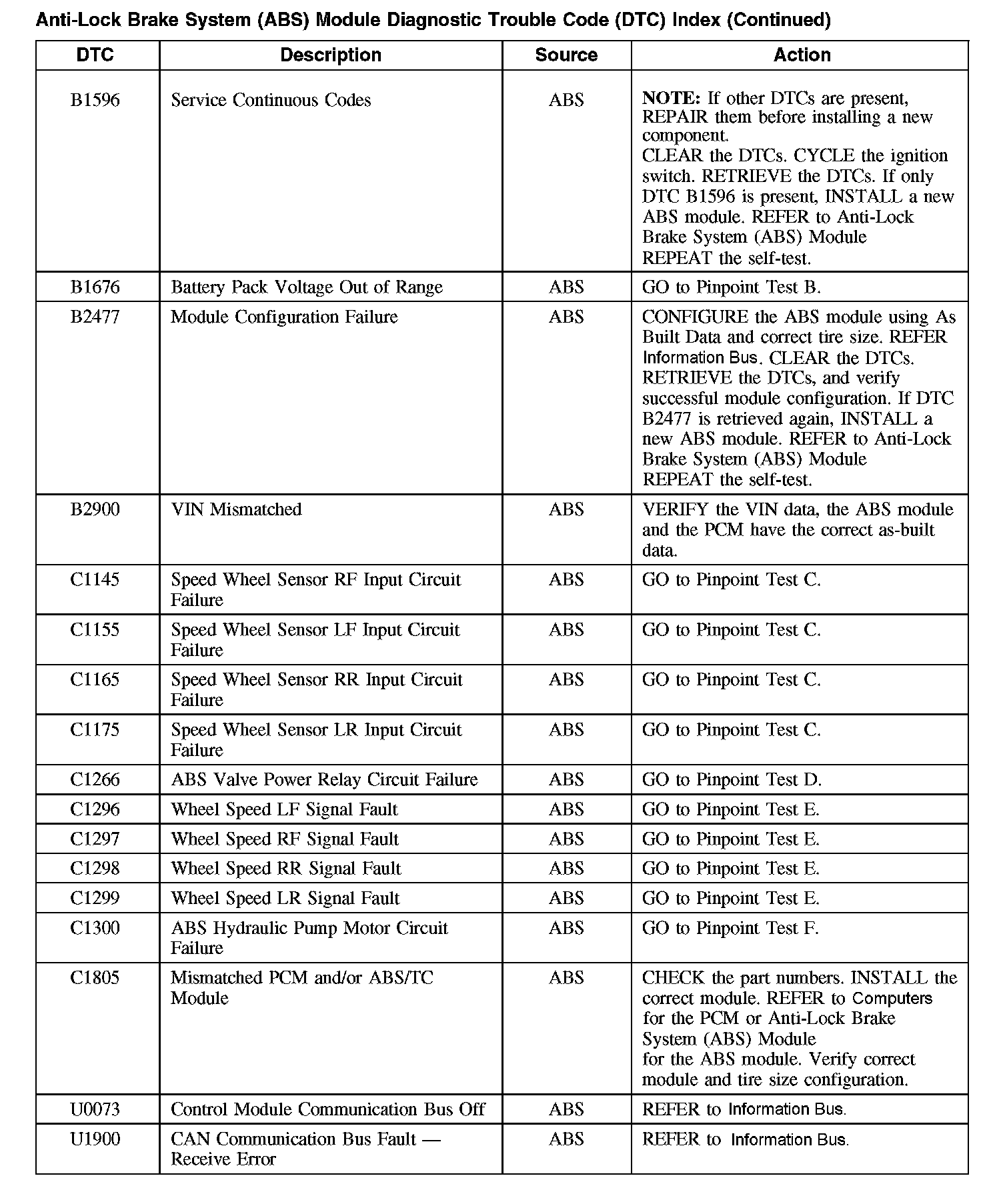

B1596-B2900 / C1145-C1805 / U0073-U1900:

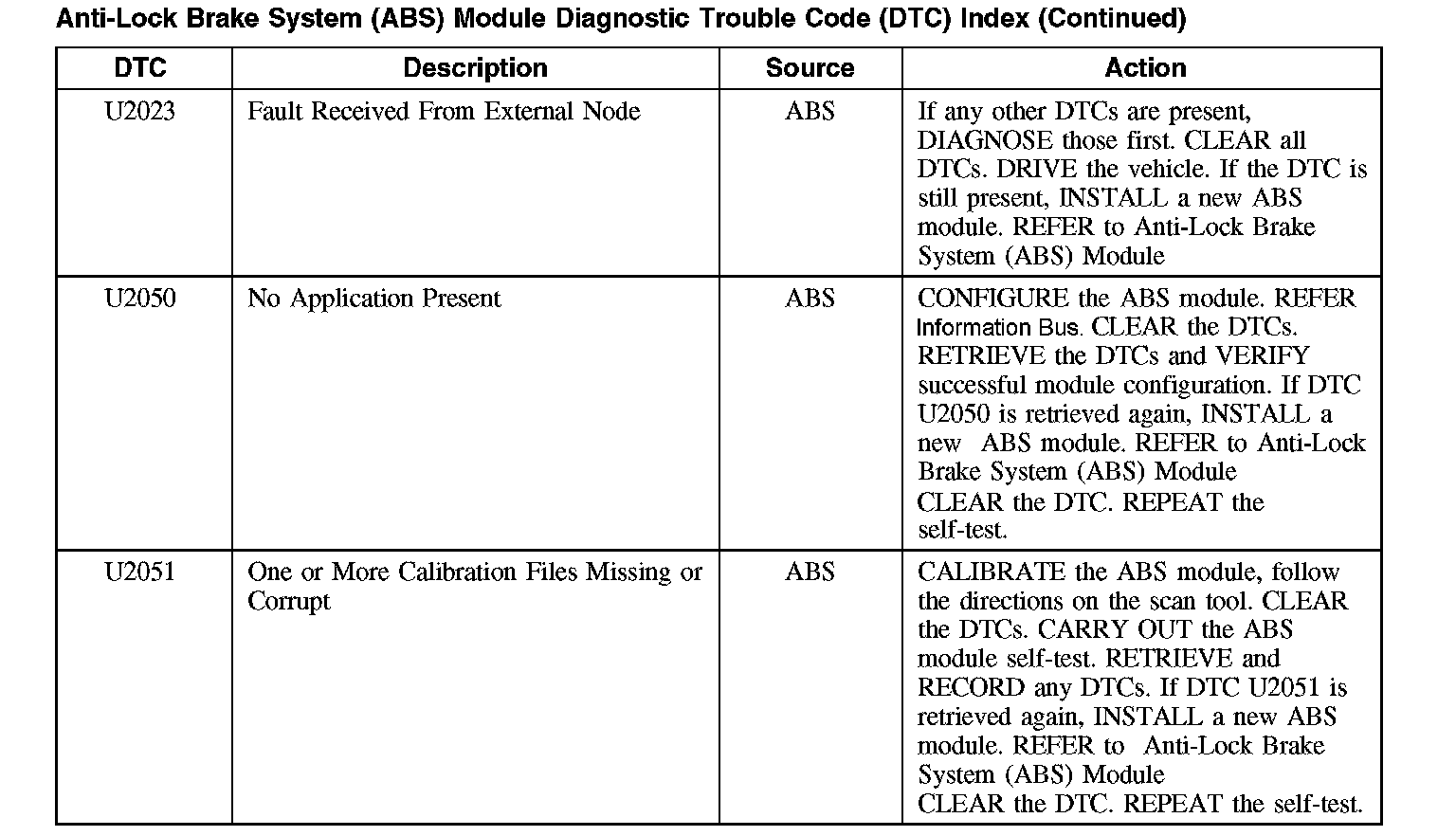

U2023-U2051:





For a complete master list of ABS DTCs, refer to Body Control Systems (Multifunction Electronic Control Module).
