Home >> Mercury >> 2007 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Restraints Control Module (RCM) >> Restraints Control Module (RCM) Diagnostic Trouble Code (DTC) Table

Restraints Control Module (RCM) Diagnostic Trouble Code (DTC) Table

RESTRAINTS CONTROL MODULE (RCM) DIAGNOSTIC TROUBLE CODE (DTC) TABLE

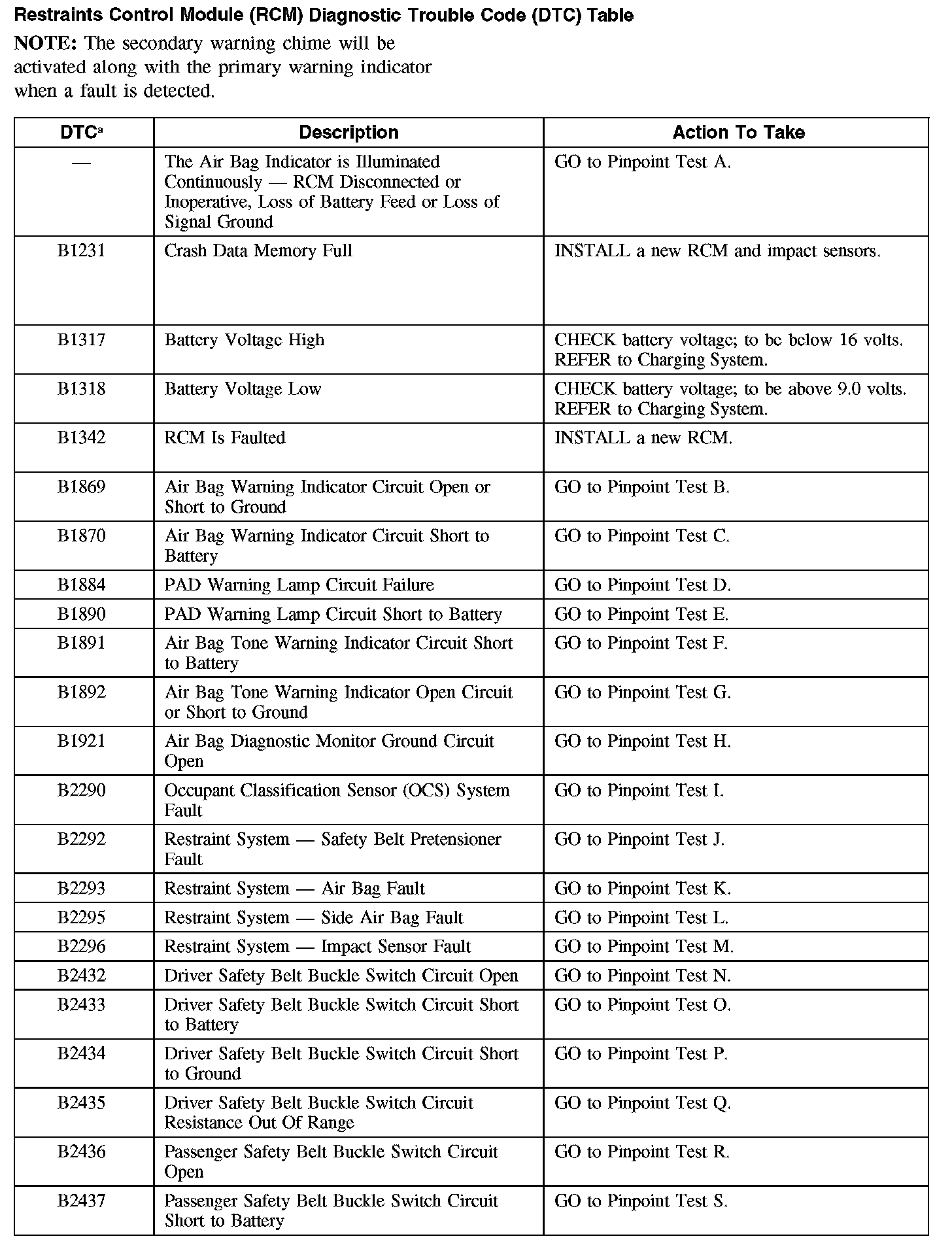

B1231-B2437:

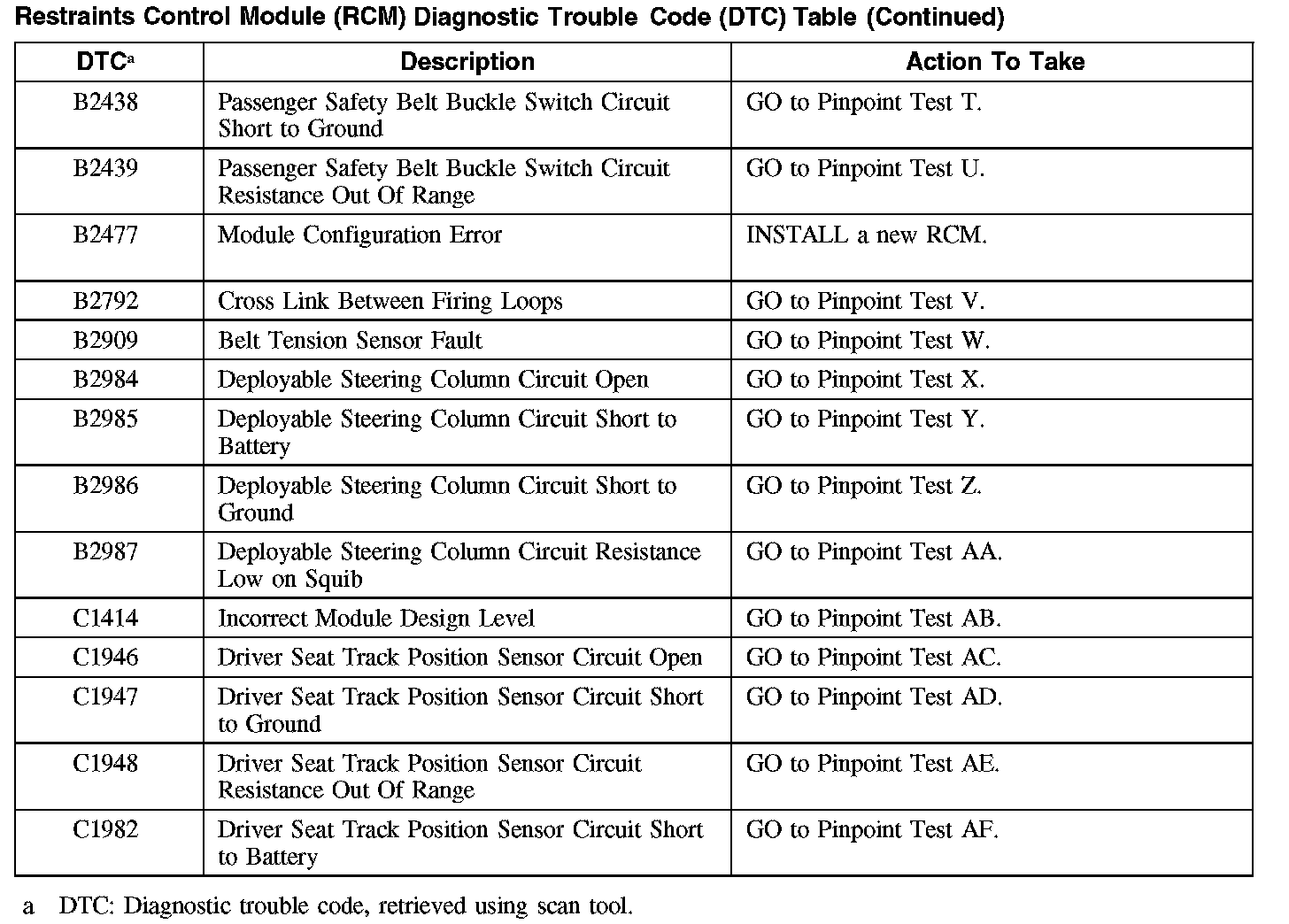

B2438-B2987 / C1414-C1982:






The DTCs can be retrieved from the restraints control module (RCM) with a scan tool via the data link connector (DLC).
