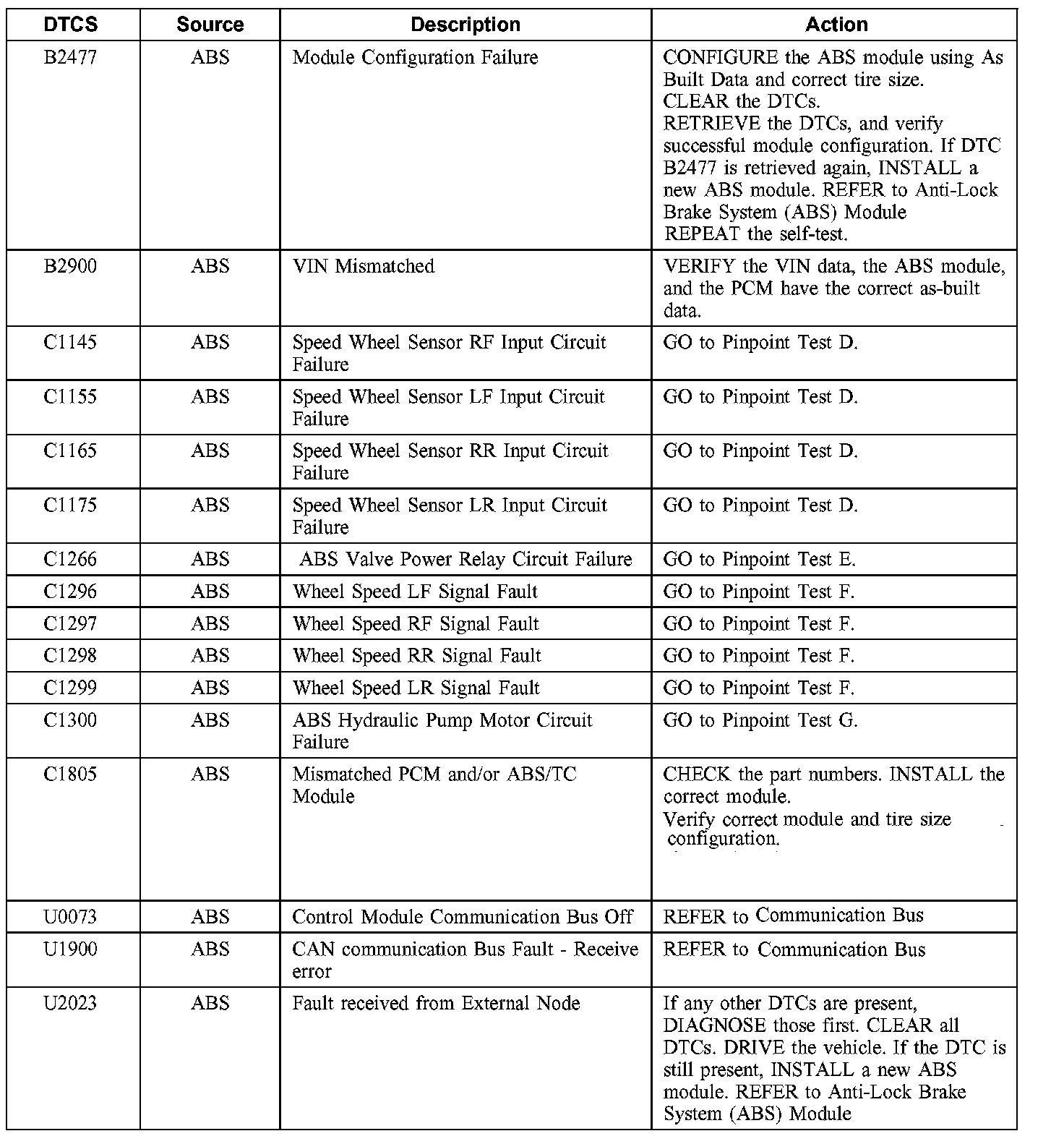

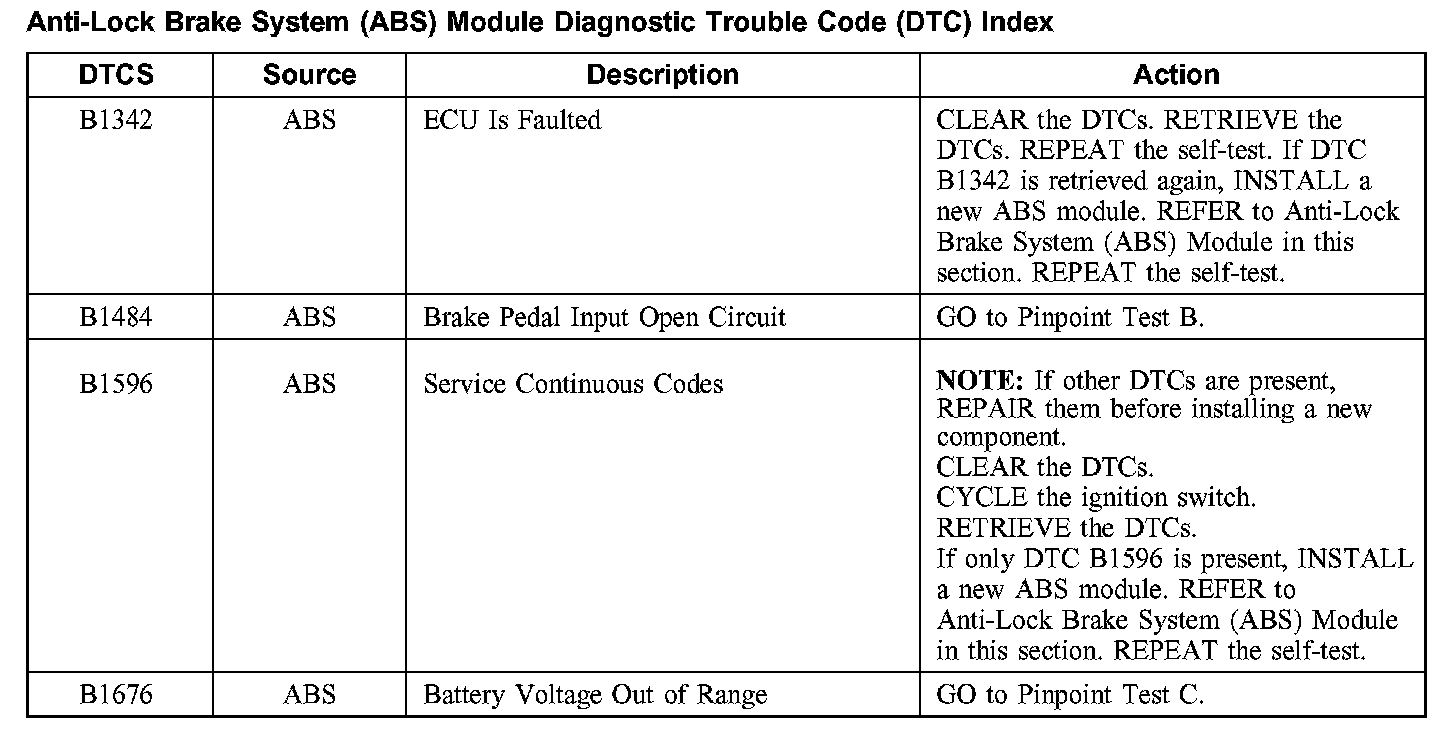

Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index
Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index
Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index
For a complete master list of ABS DTCs, refer to Body Control Systems.
