Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> General Condition Chart(s)

General Condition Chart(s)

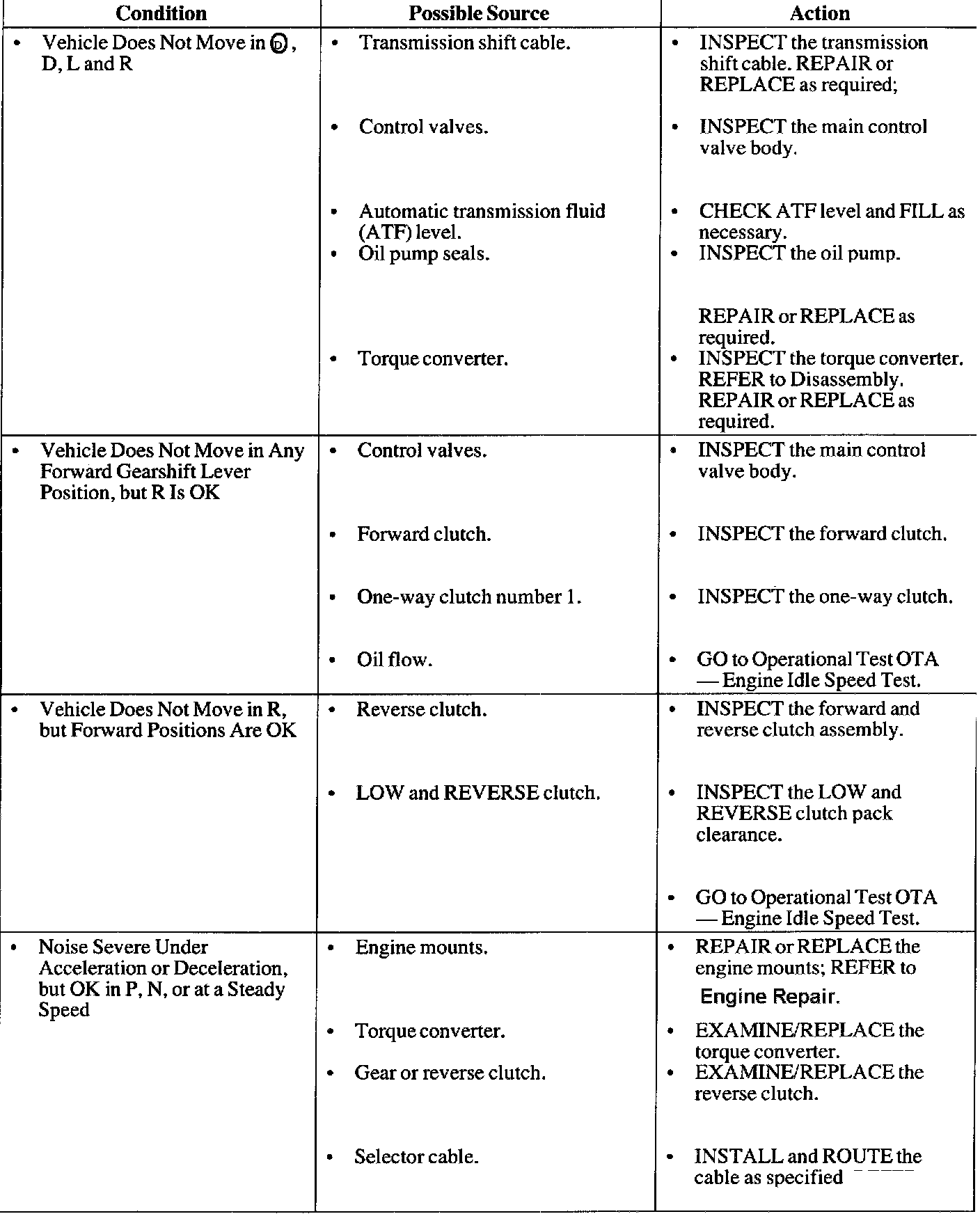

Part 1 Of 7:

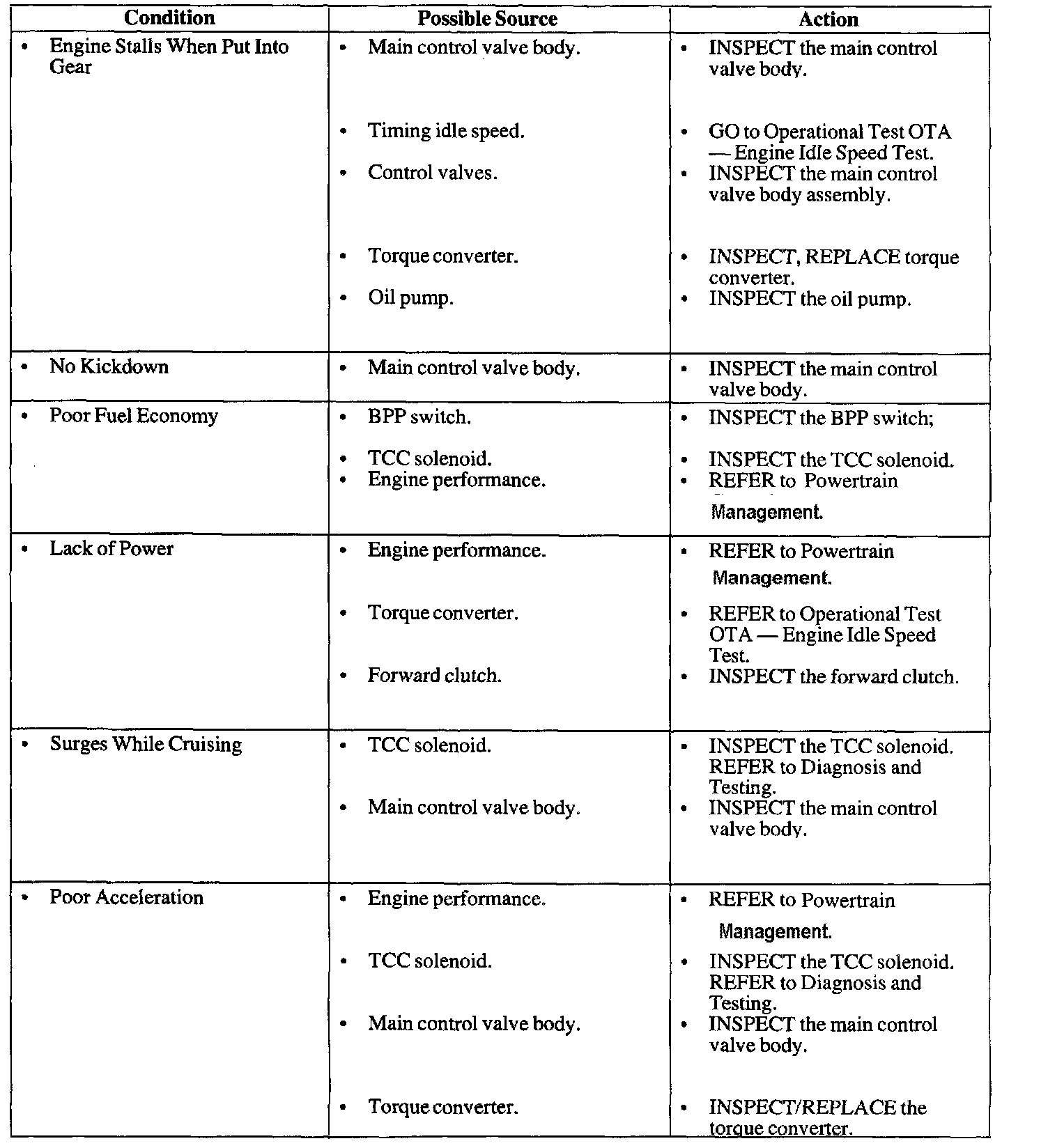

Part 2 Of 7:

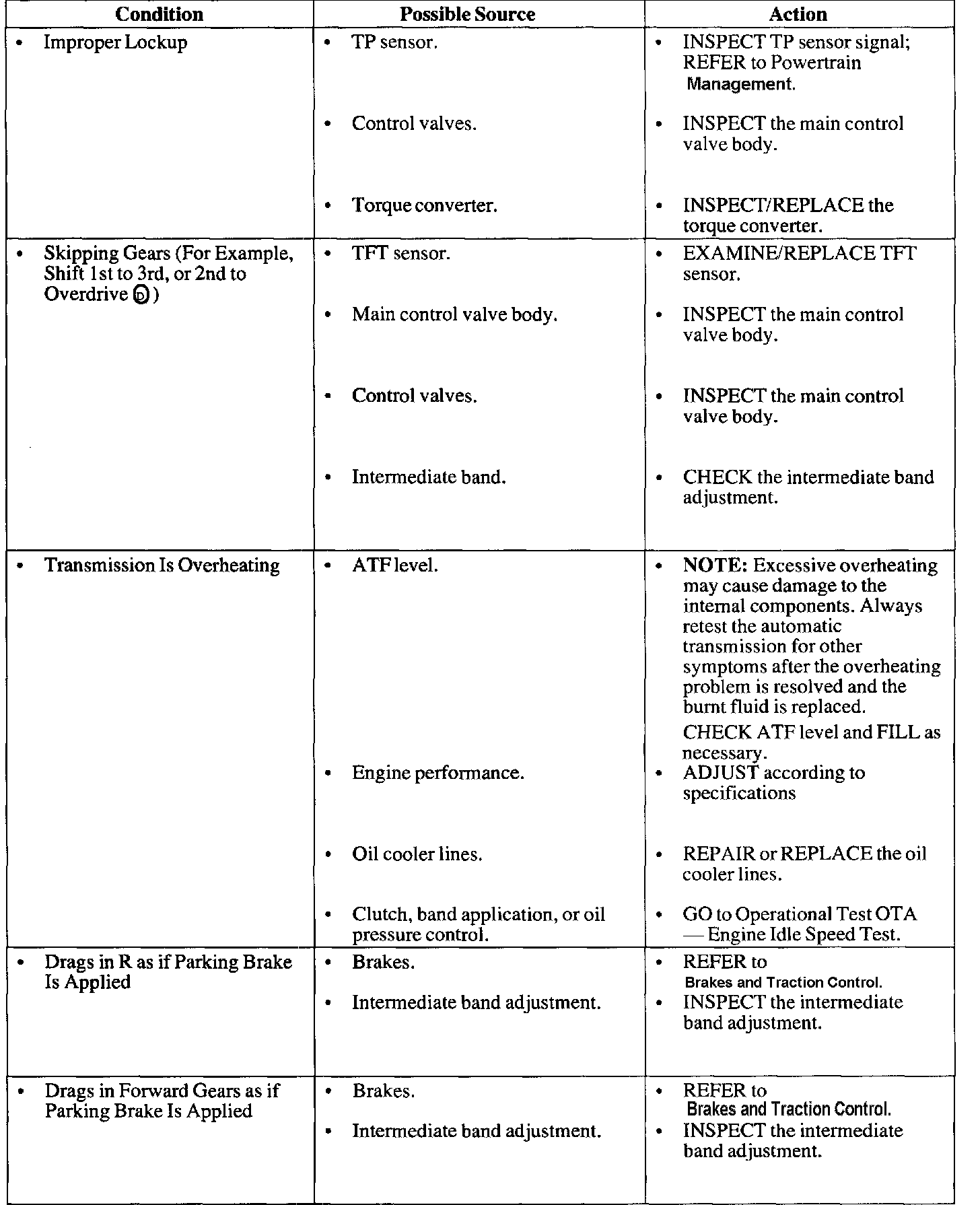

Part 3 Of 7:

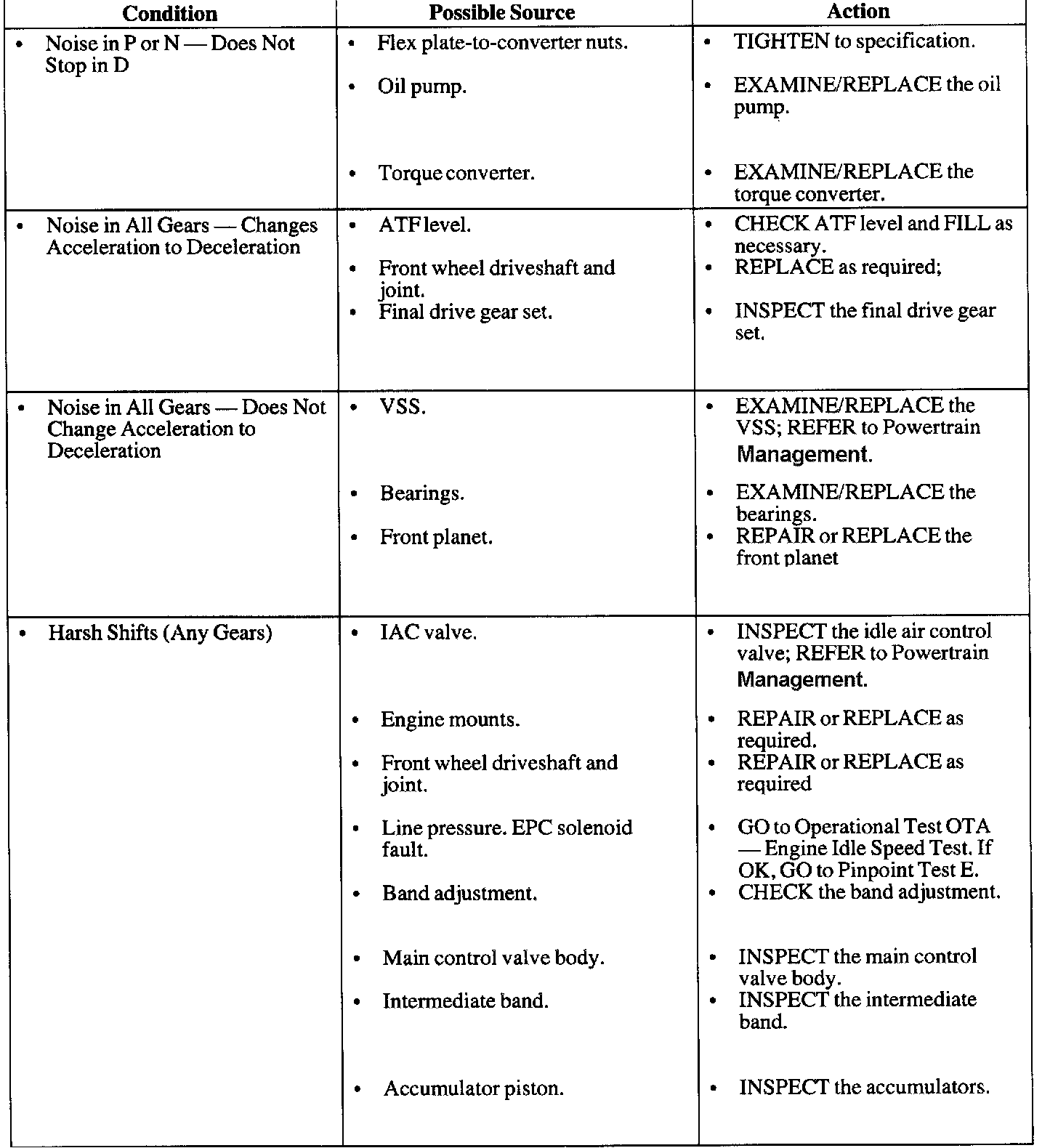

Part 4 Of 7:

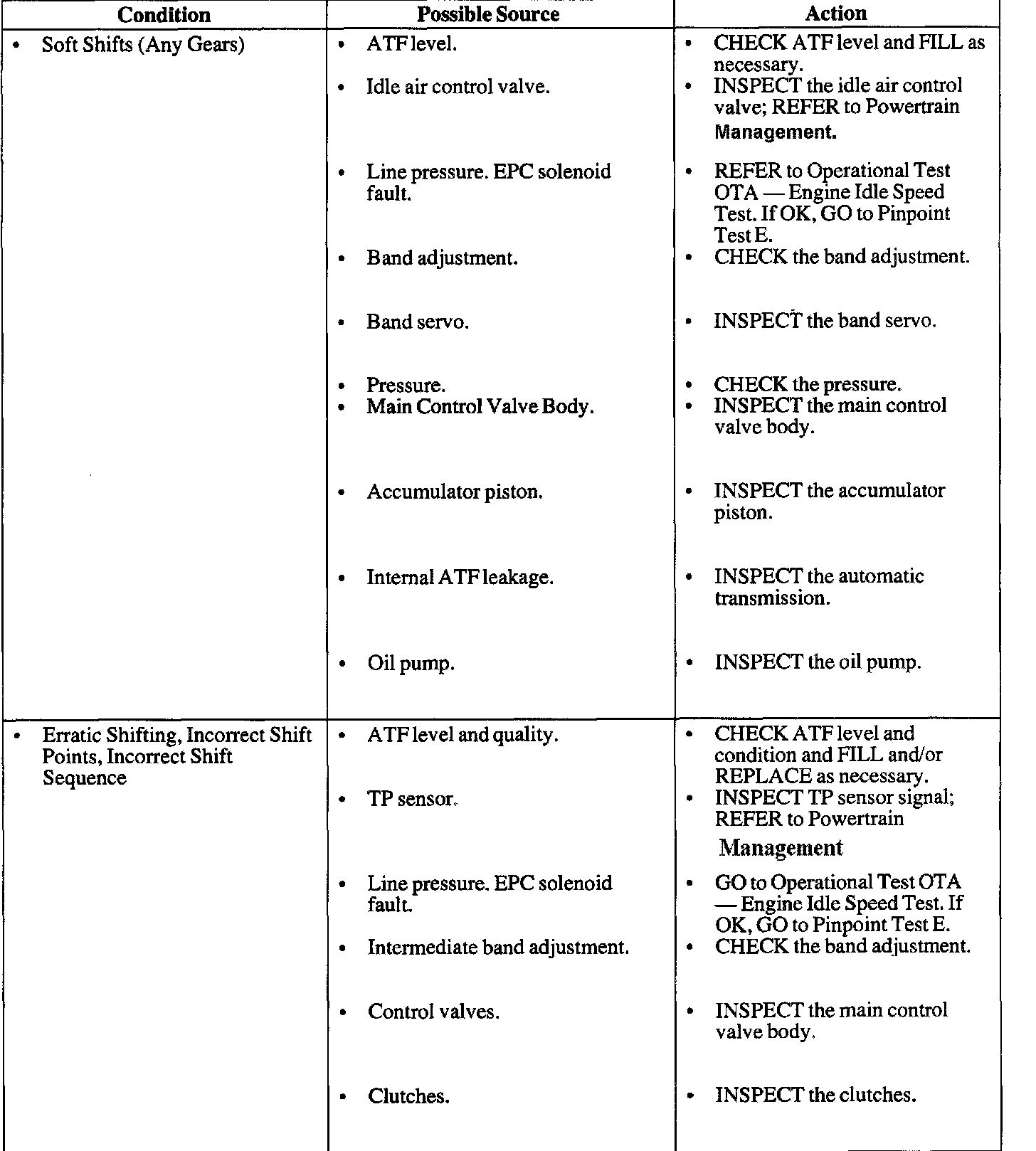

Part 5 Of 7:

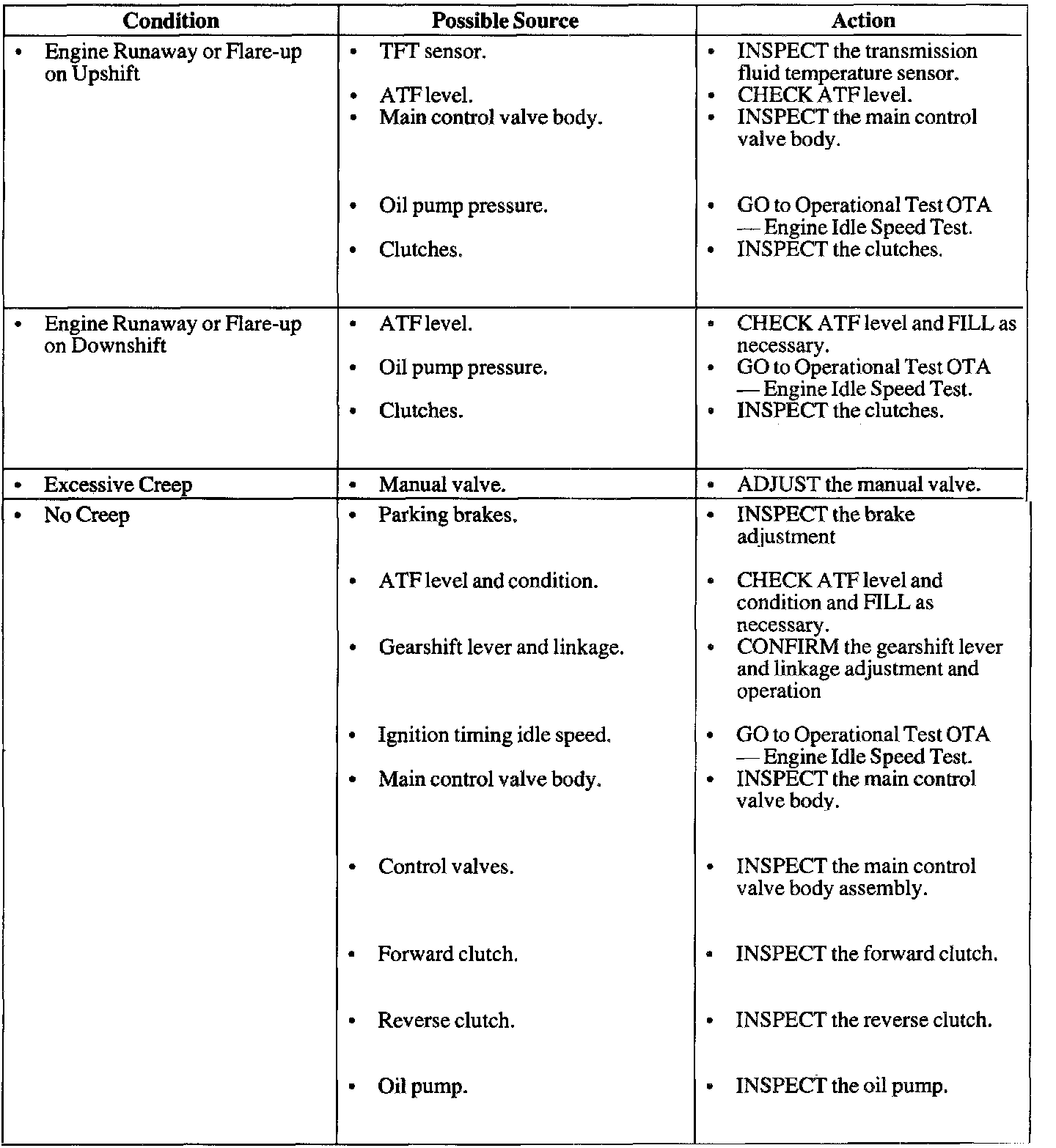

Part 6 Of 7:



Part 7 Of 7:
