Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> M Traction Control Switch Indicator is Inoperative

M Traction Control Switch Indicator is Inoperative

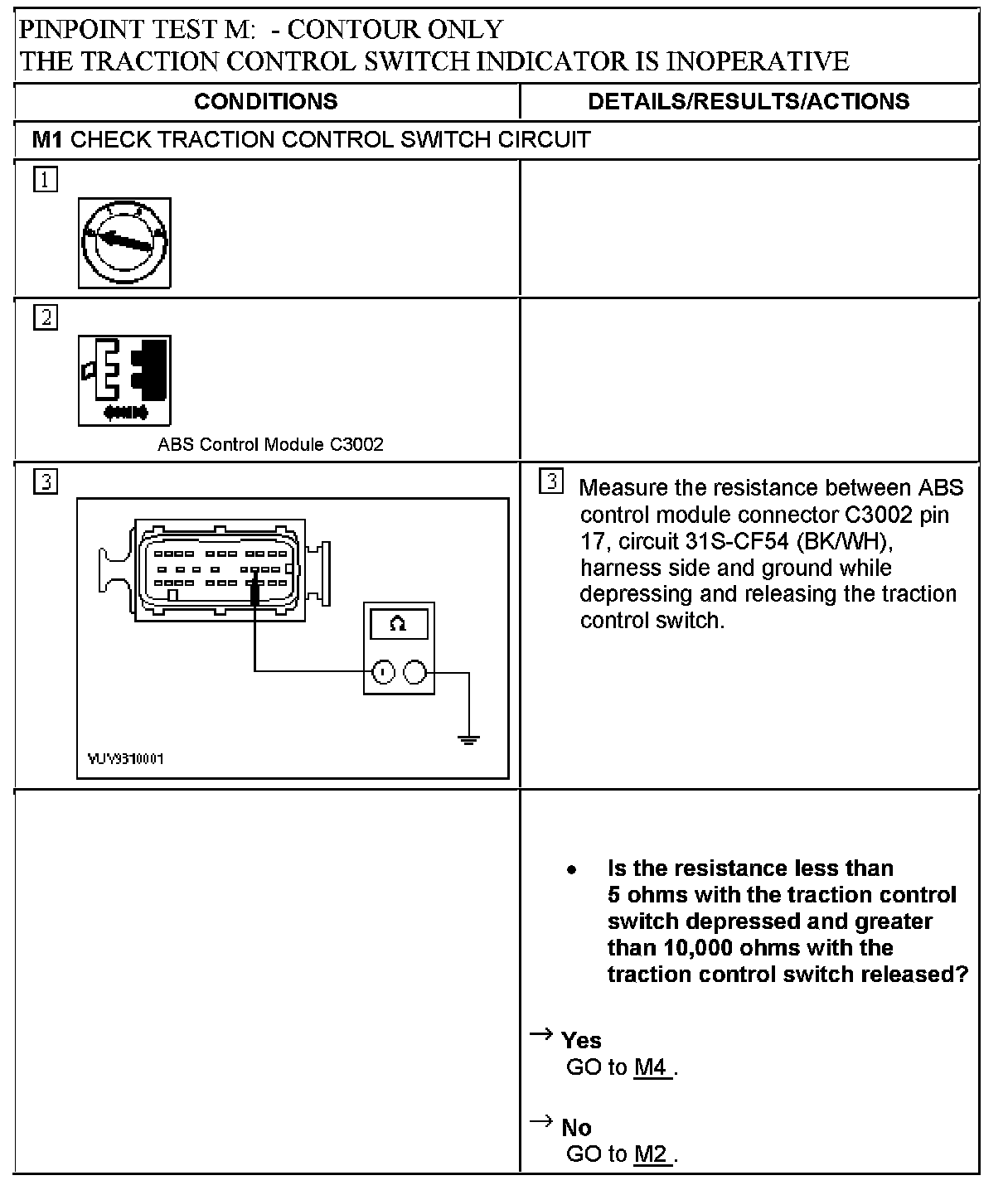

M1:





M2:

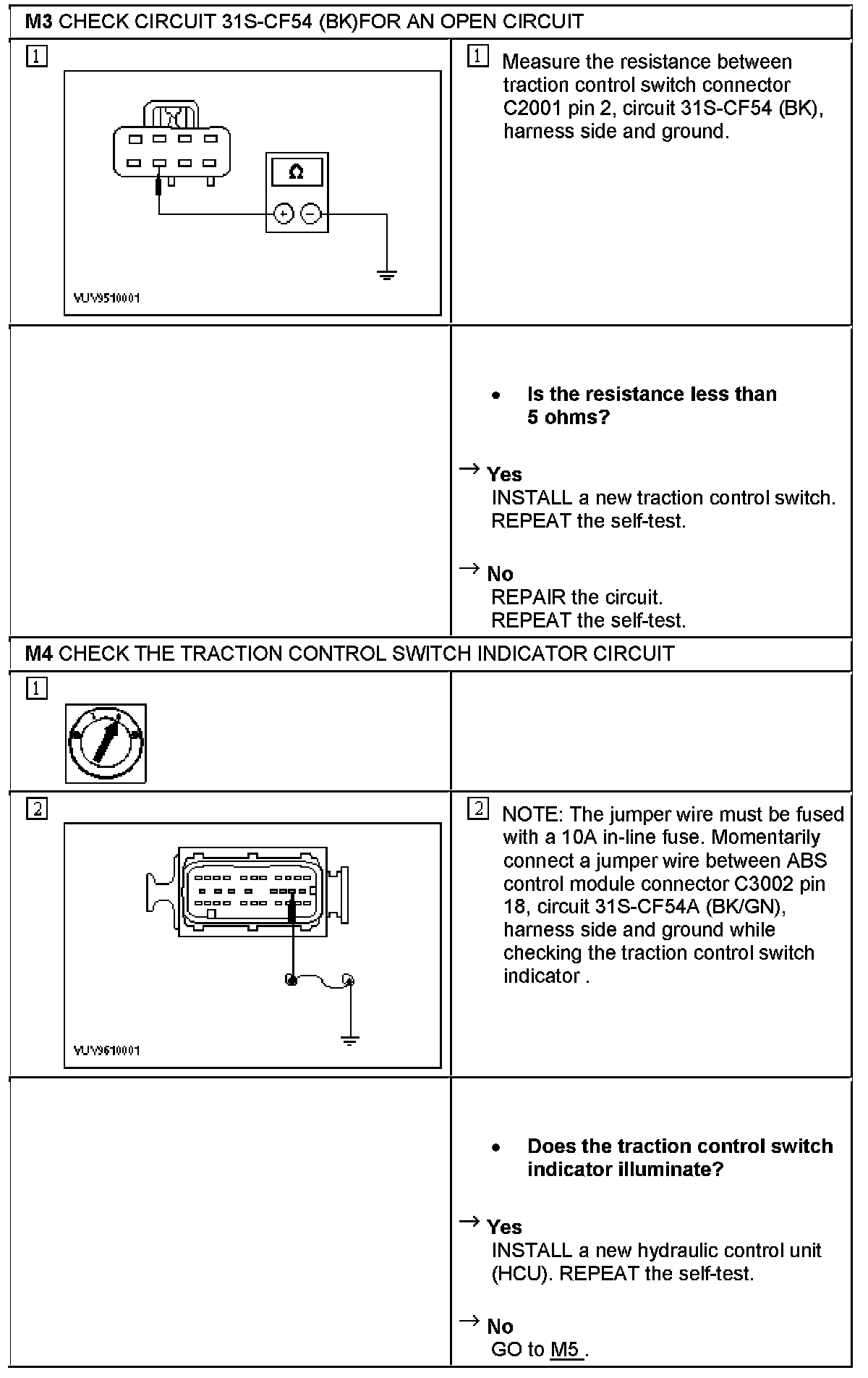

M3-M4:

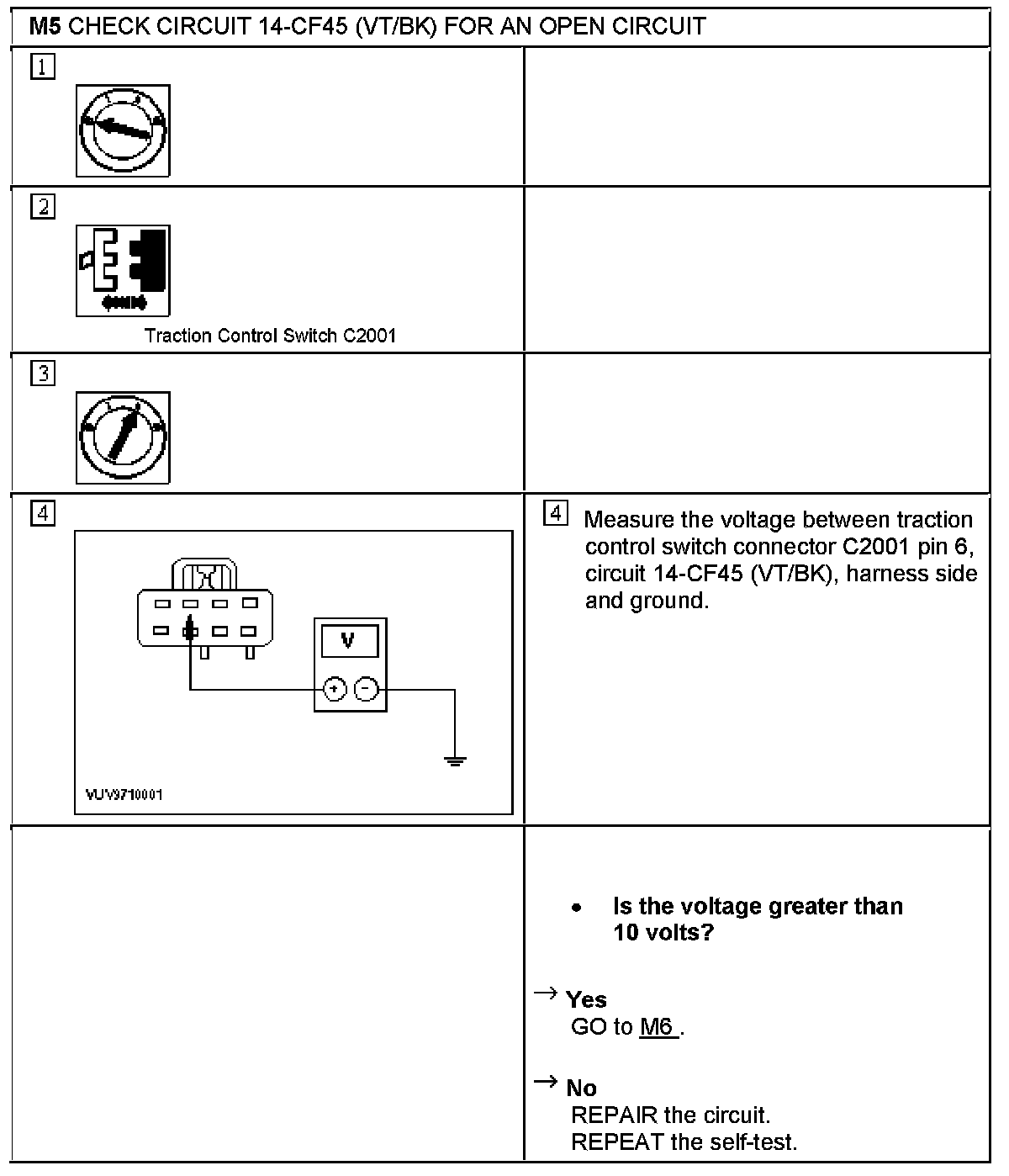

M5:

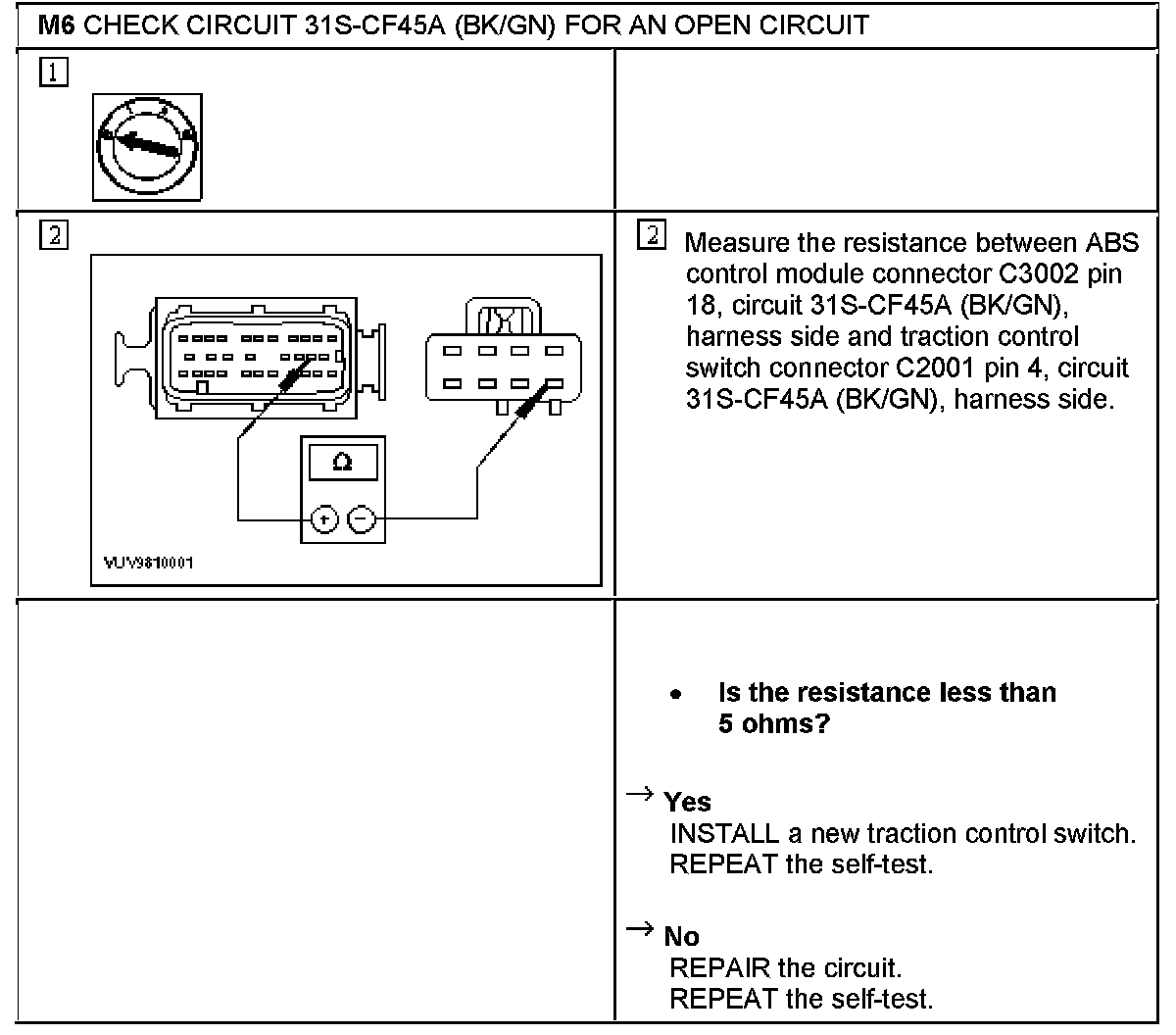

M6:
