Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> K Poor Vehicle Tracking During ABS Function >> Without Traction Control

Without Traction Control

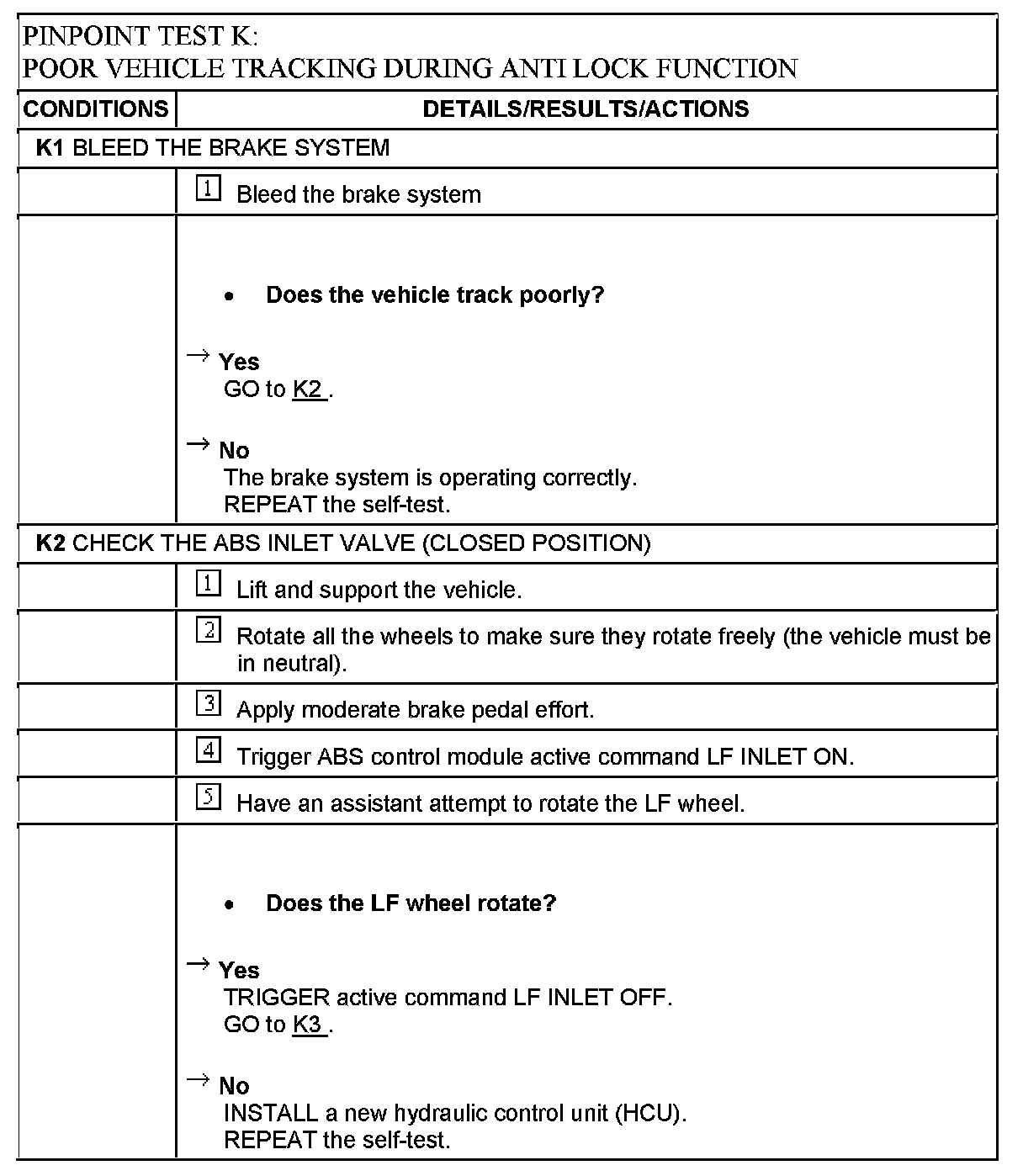

K1-K2:





K3-K4:

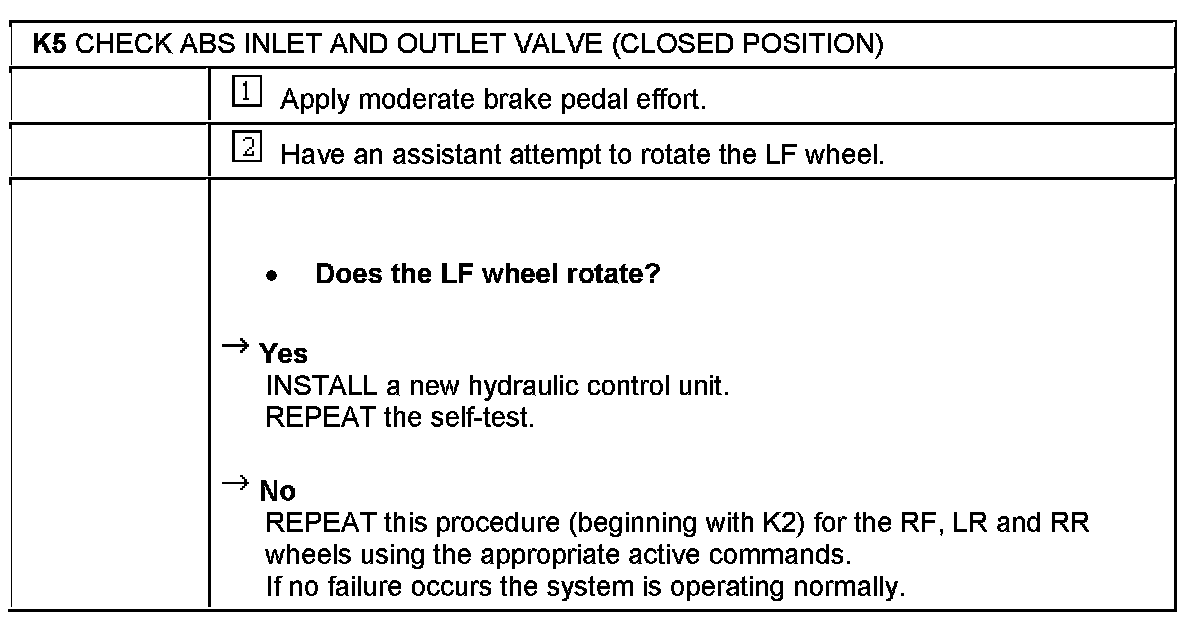

K5:
