Home >> Mercury >> 1998 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> H DTC C1233, C1234, C1235, C1236, Wheel Speed Input Signal Missing >> Without Traction Control

Without Traction Control

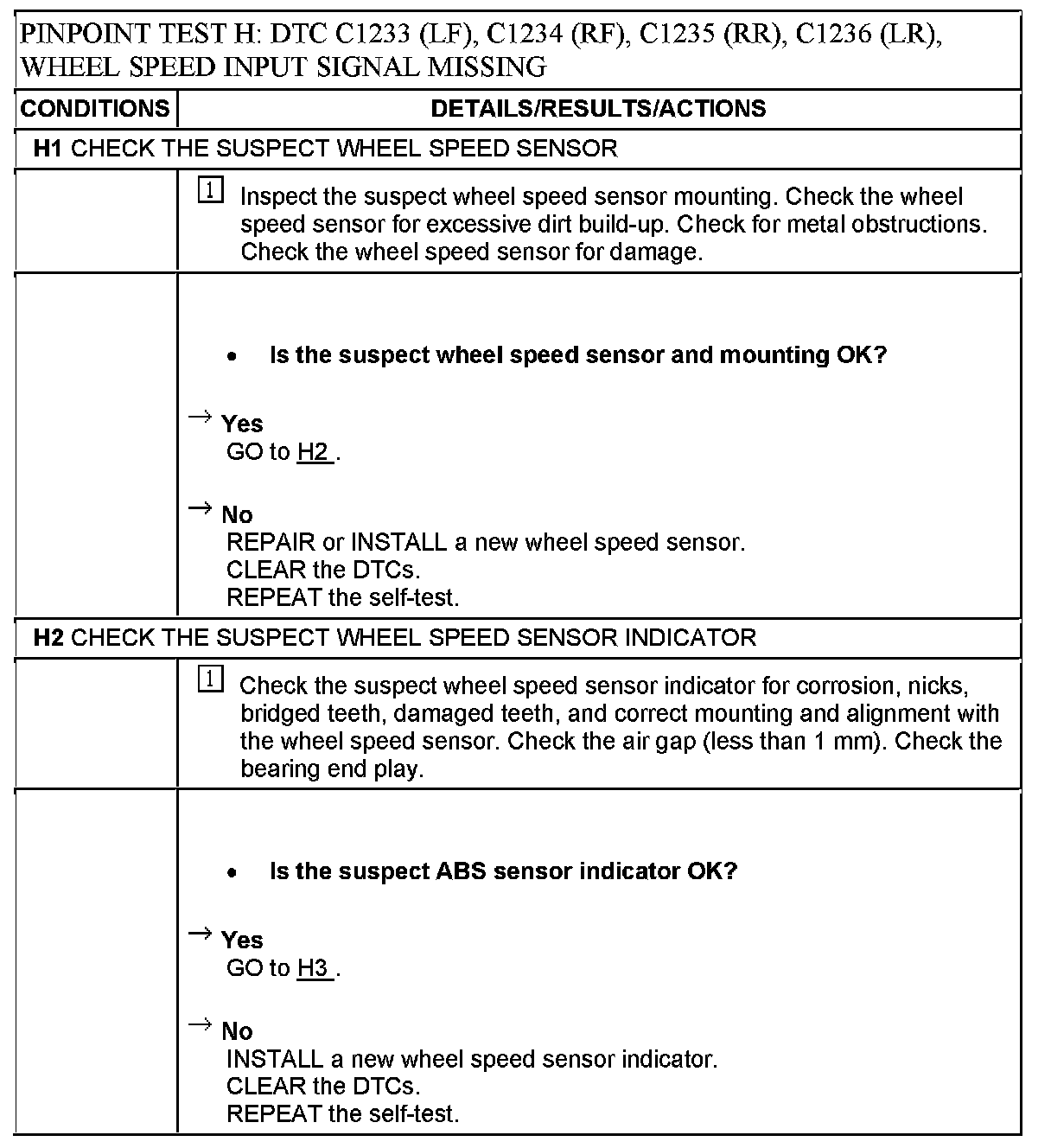

H1-H2:





H3:
