D DTC B1484 Brake Pedal Input Open Circuit
>>
With Traction Control
With Traction Control

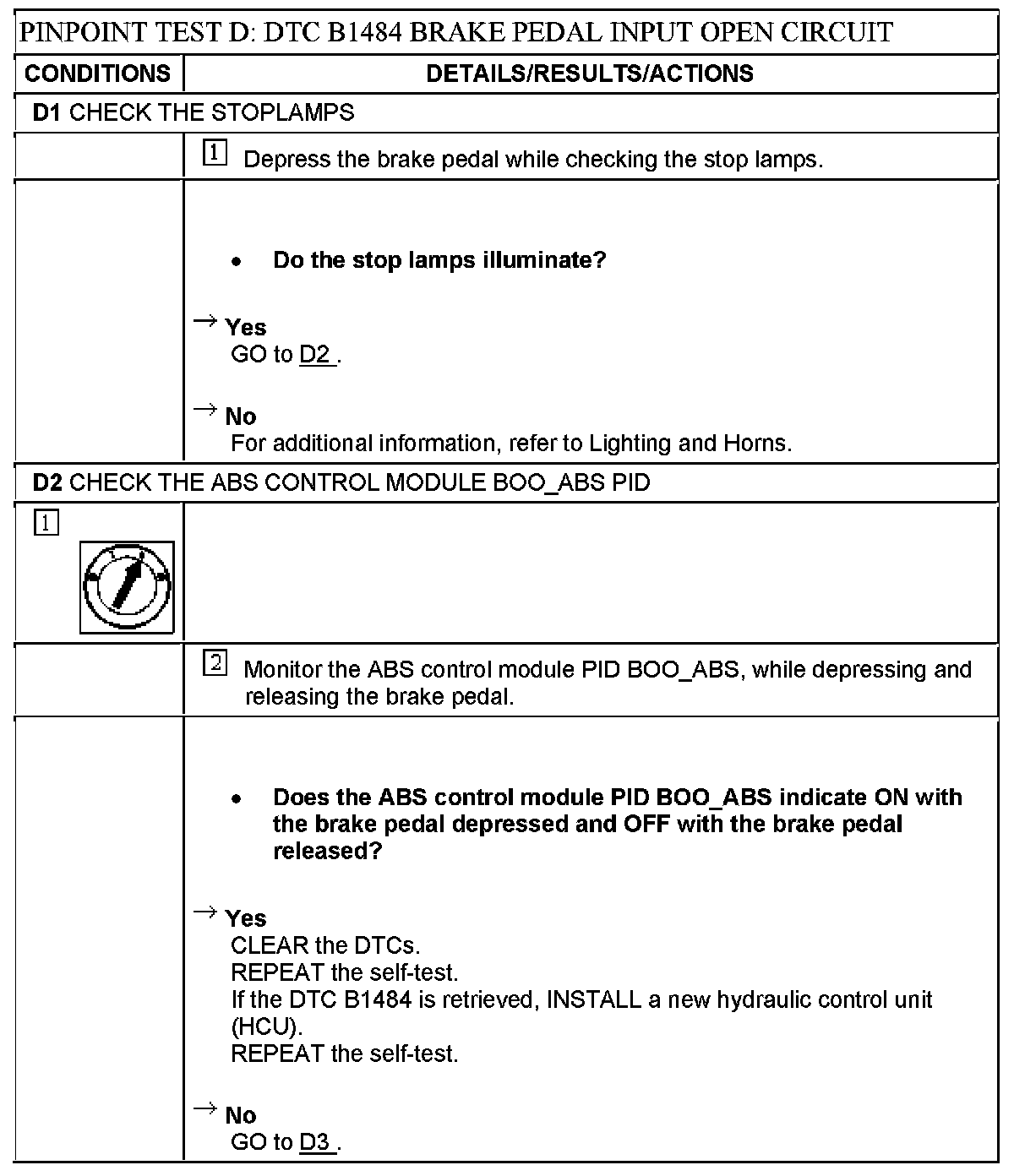

D1-D2:

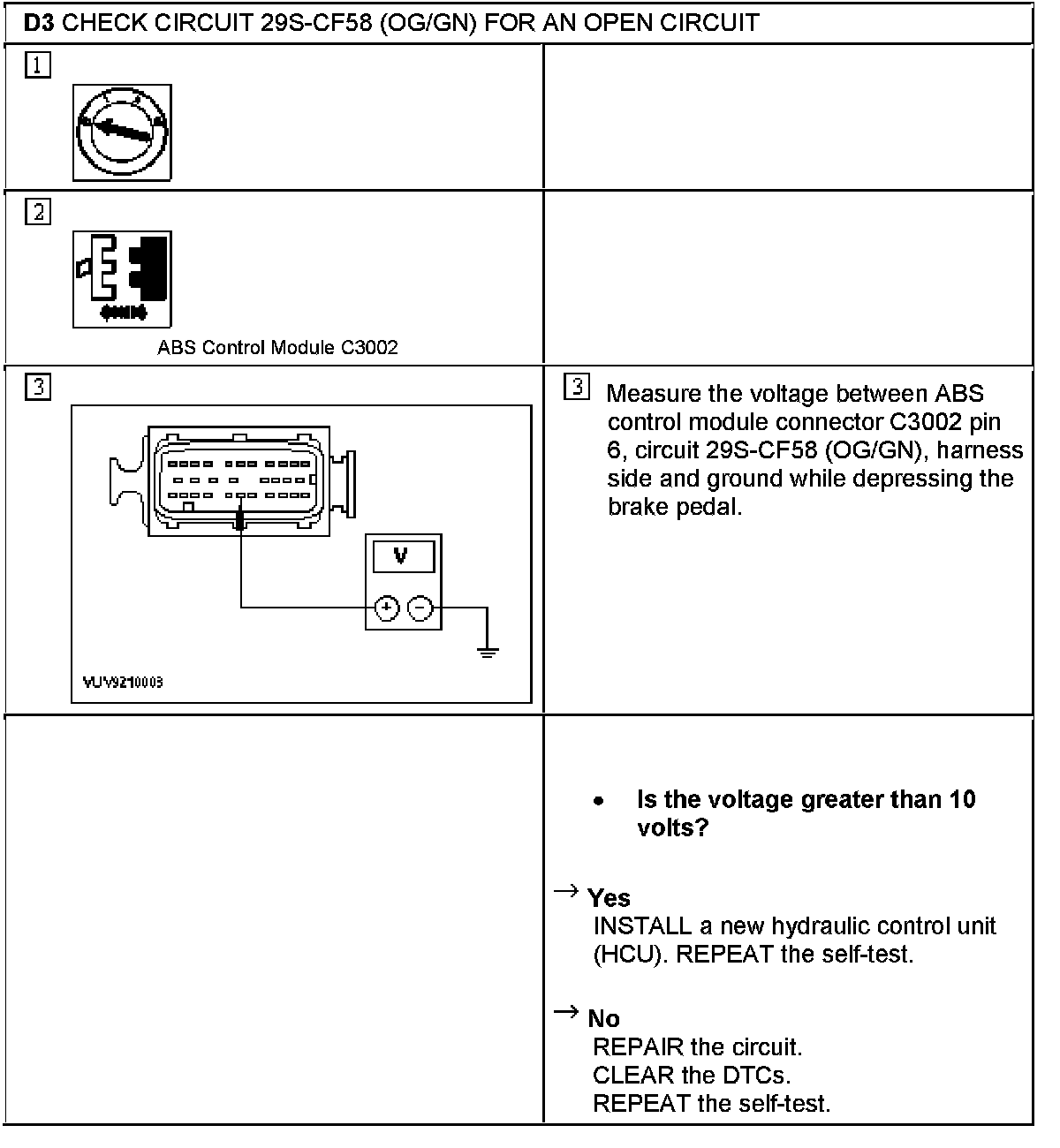

D3:
