Quick Tests

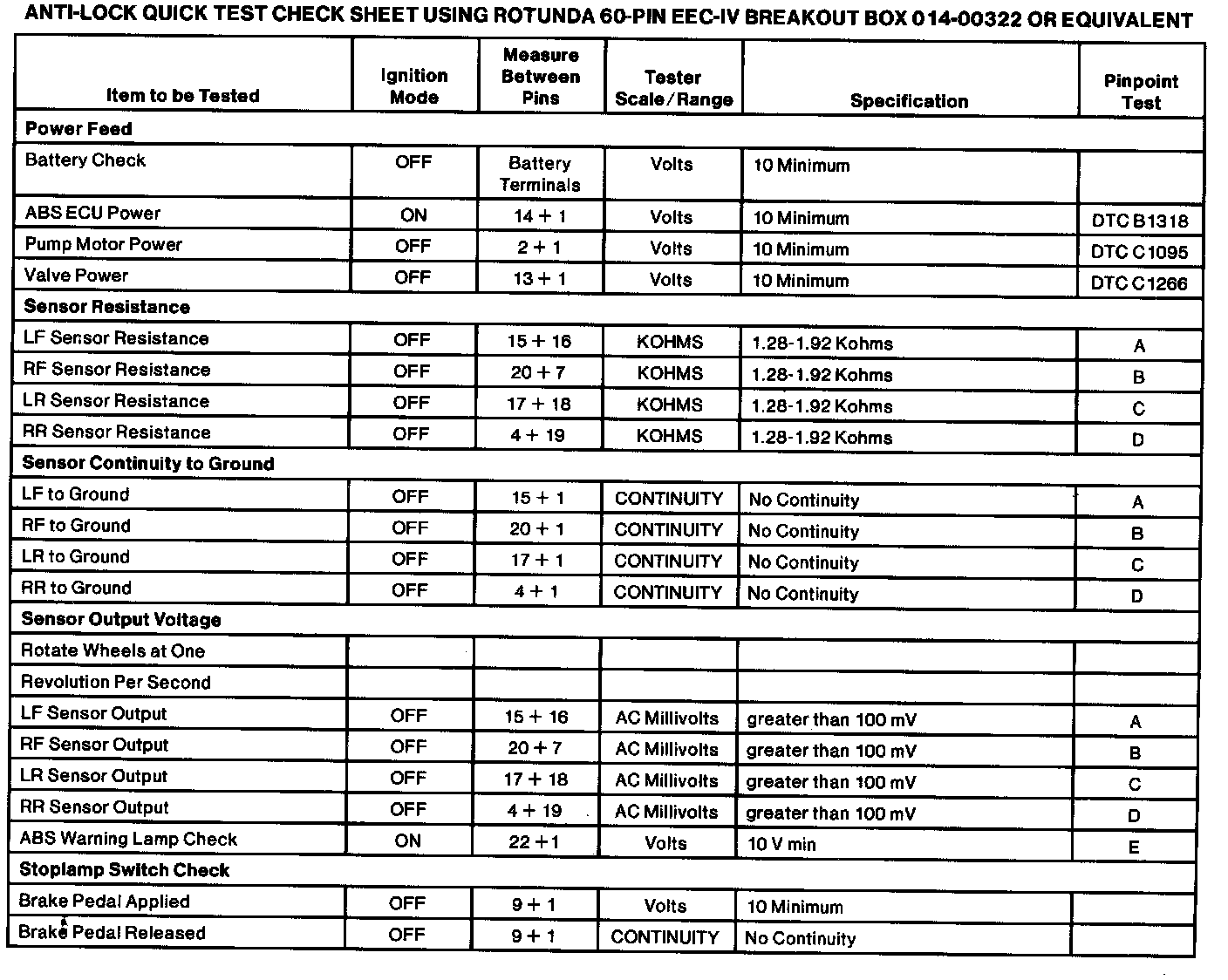

Quick Test Check Sheet:

NOTE: Use Quick Test Check Sheet for short term service only and for service when Rotunda New Generation Star (NGS) Tester 007-00500 or equivalent is not available to retrieve DTCs.

NOTE: If a fault is intermittent, the following tests will NOT find the fault. Proceed to Flow of Diagnosis - Inspection and Verification. Initial Inspection and Diagnostic Overview
