Home >> Mercury >> 1994 >> Cougar/XR7 V8-281 4.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Routines >> 20 - Fuel Odor In Engine Compartment

20 - Fuel Odor In Engine Compartment

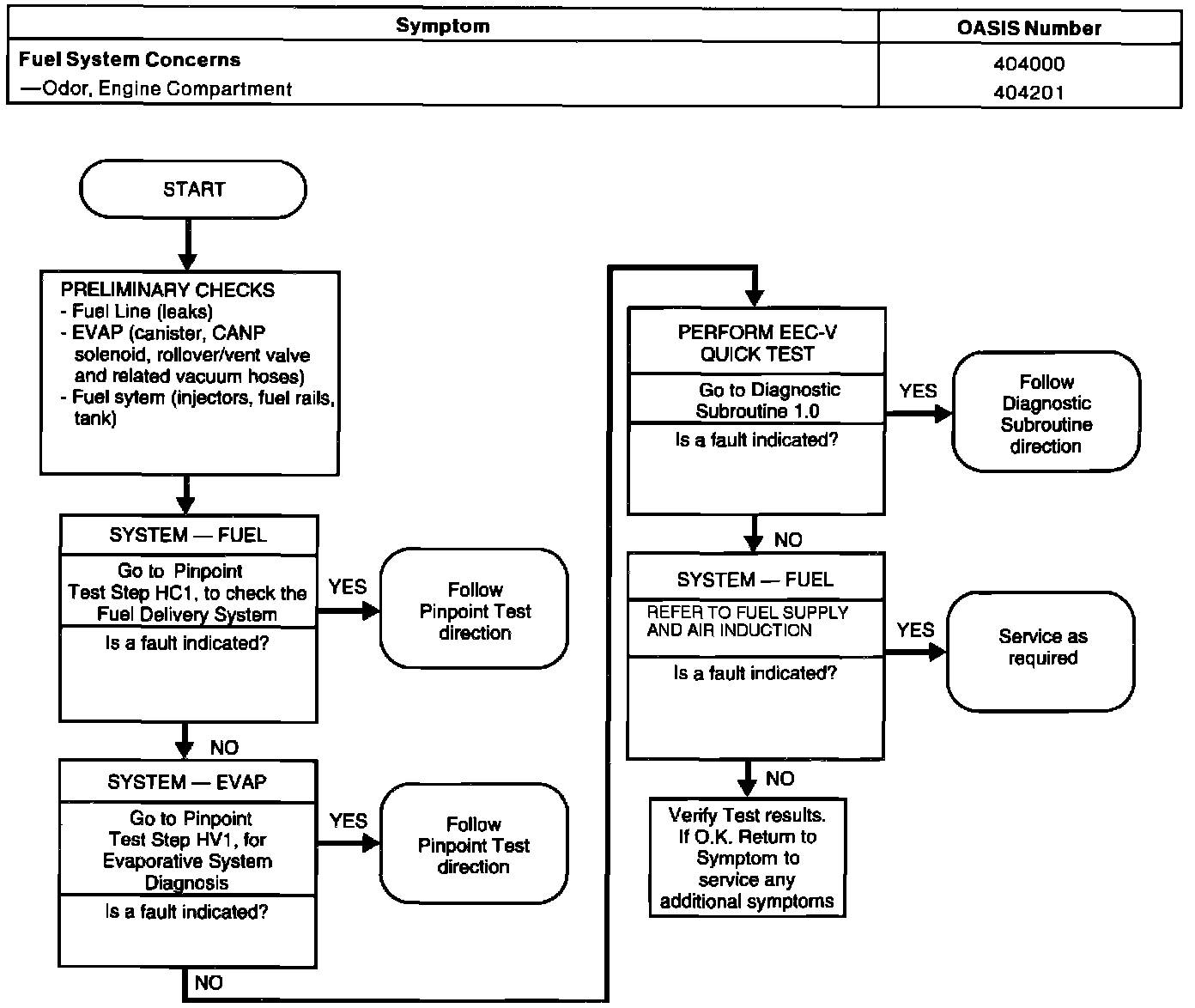

Chart 20:
