Home >> Mercury Truck >> 2009 >> Mariner 4WD L4-2.5L Hybrid >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> System Specifications >> Climate Control System >> General Specifications

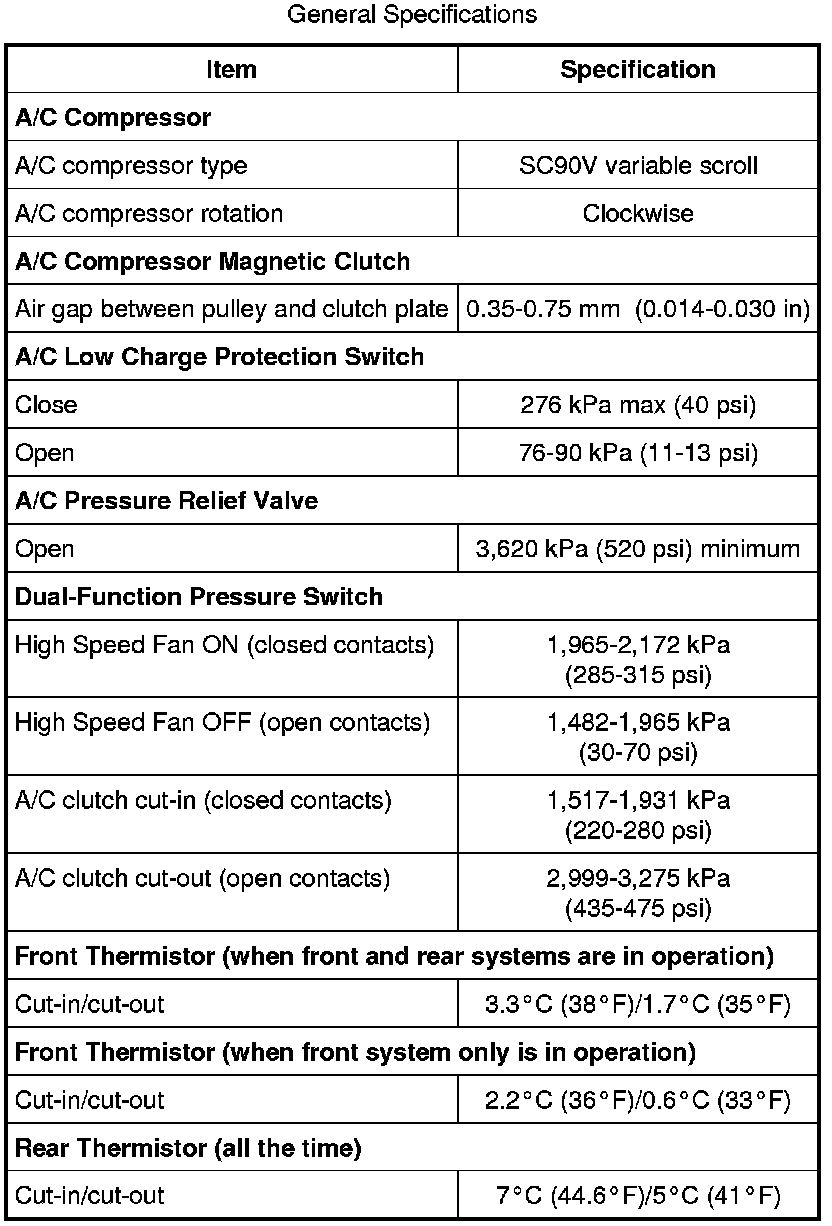

General Specifications









NOTE: The General Specifications apply to hybrid vehicles only.
