Home >> Mercury Truck >> 2007 >> Monterey V6-4.2L VIN 2 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Locations >> Power Liftgate Module

Power Liftgate Module

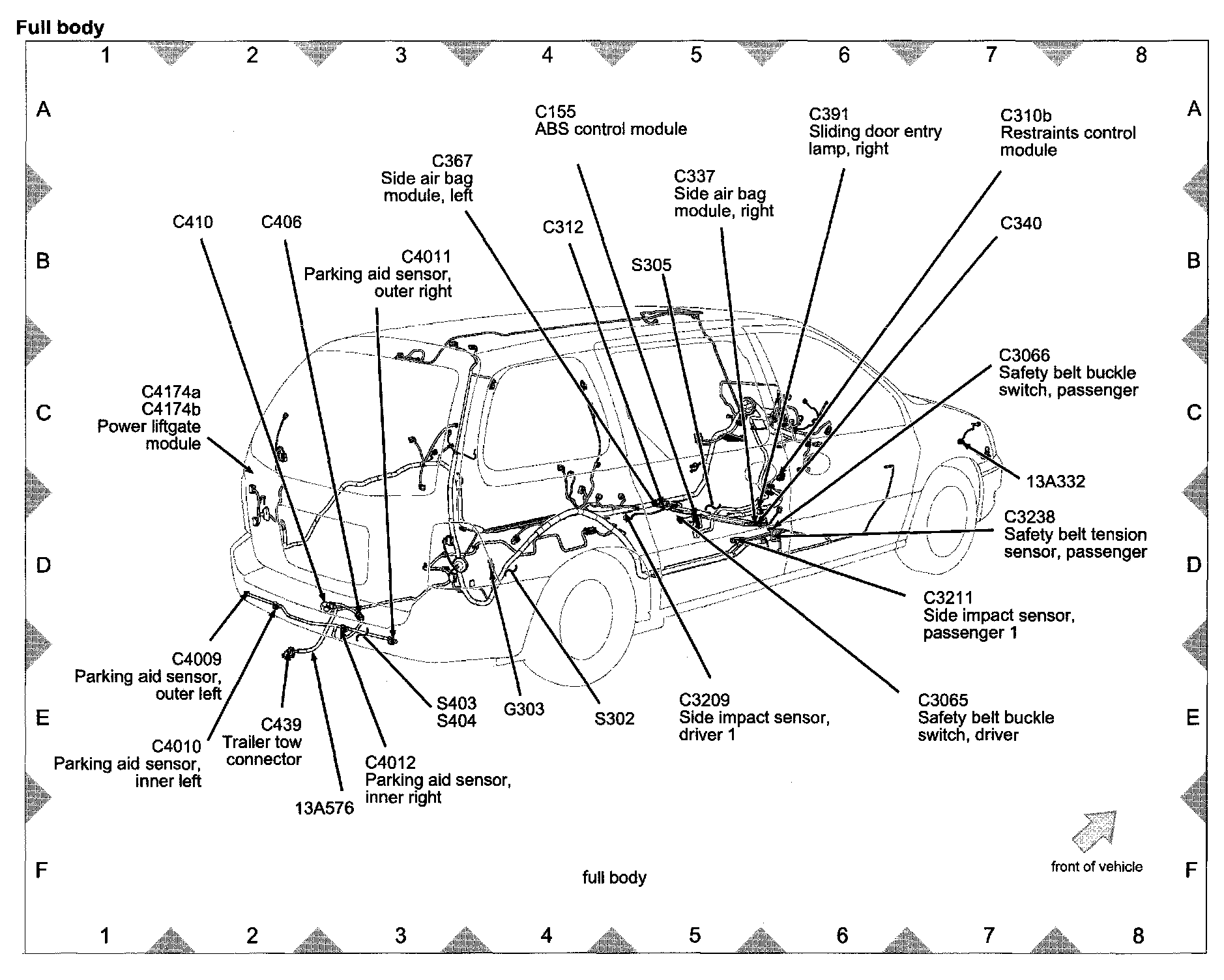

View 151-14 (Full Body):
