Home >> Mercury Truck >> 2006 >> Mariner 4WD L4-2.3L VIN Z >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Control Module >> Locations

Control Module: Locations

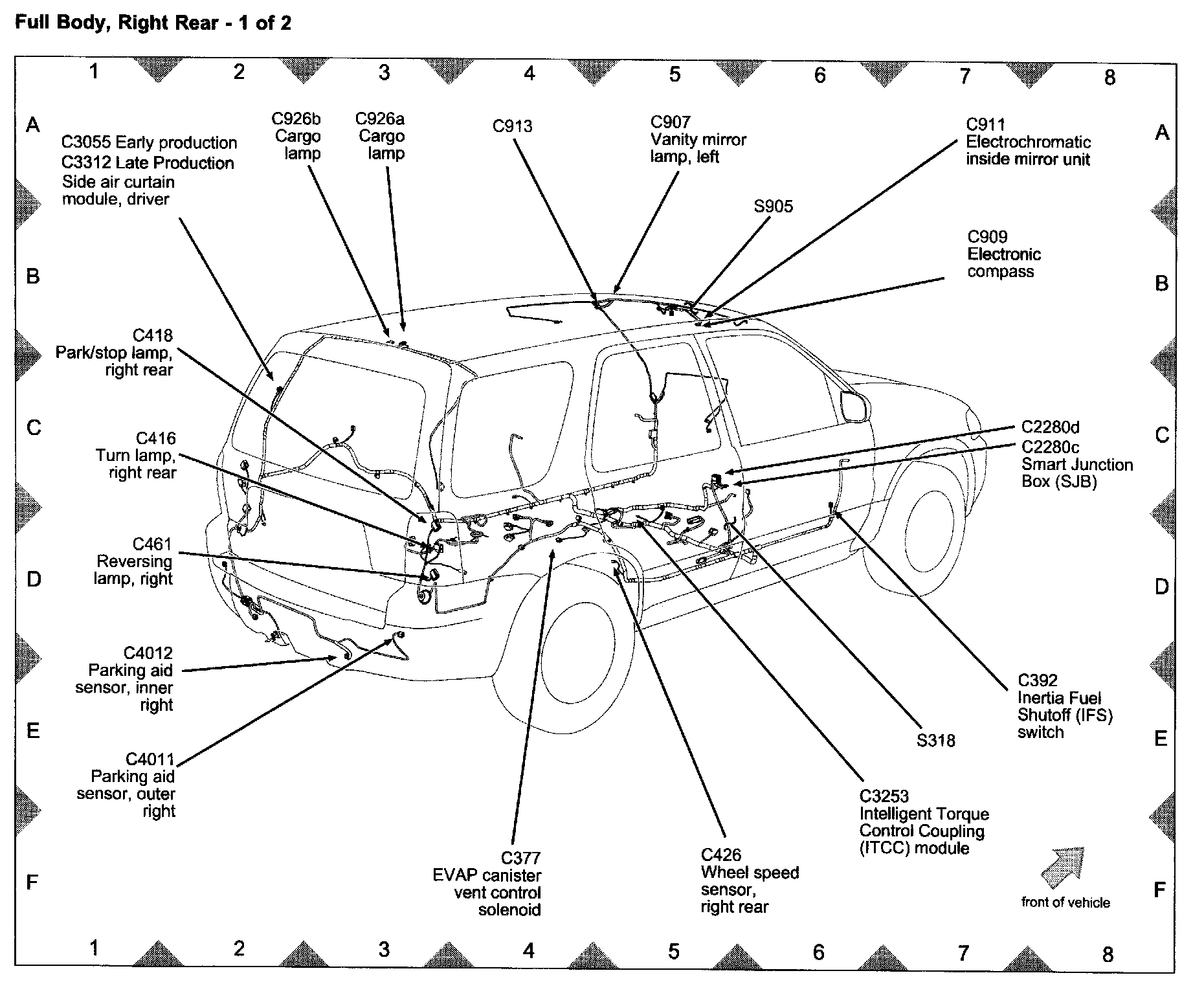

View 151-17 (Fully Body, Right Rear - 1 Of 2):
