Home >> Mercury Truck >> 2006 >> Mariner 4WD L4-2.3L VIN Z >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications

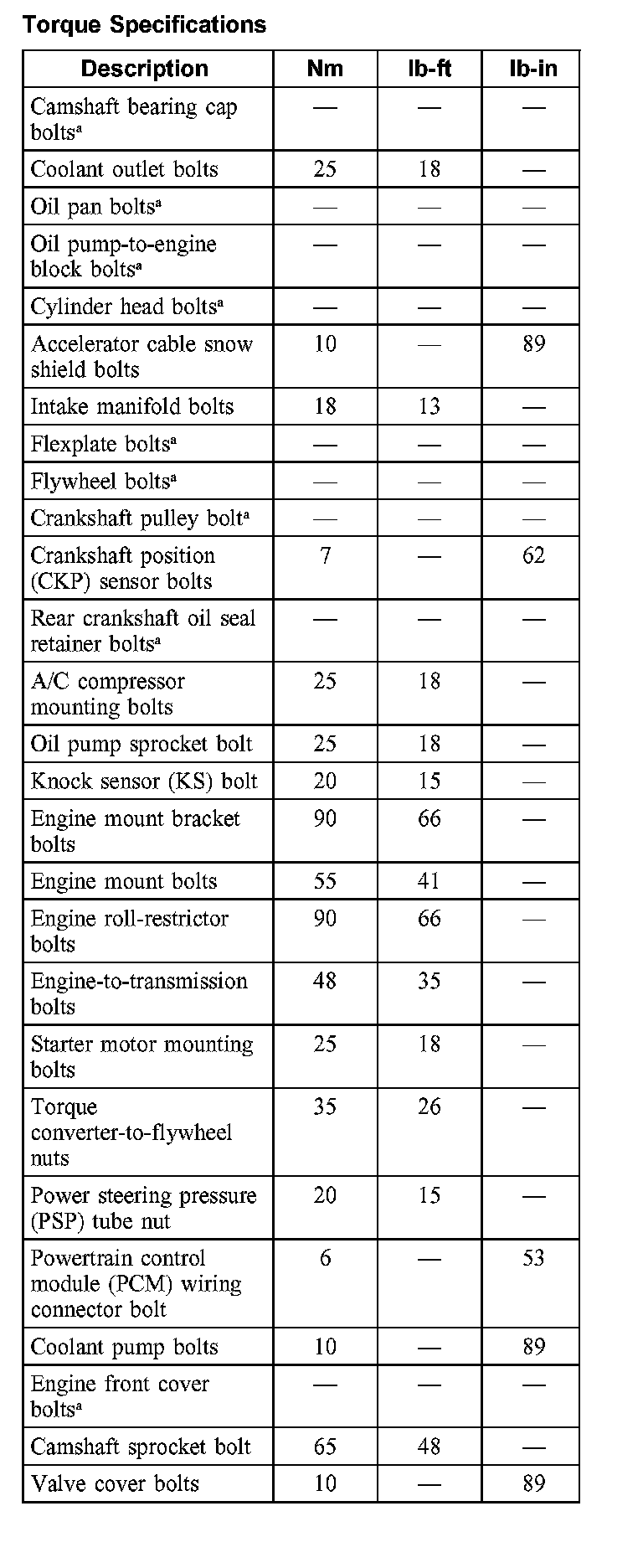

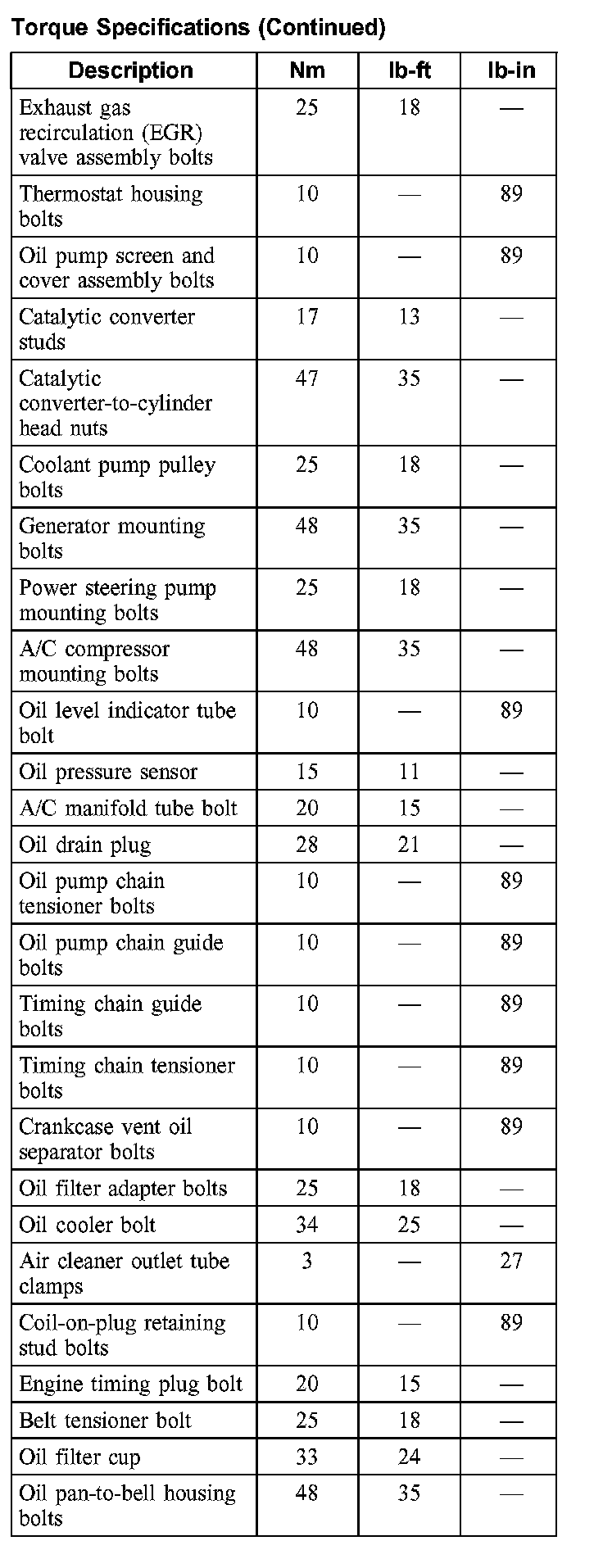

Torque Specifications

Torque Specifications:




Torque Specifications:




Torque Specifications:




Torque Specifications:









Exhaust manifold nuts 47 Nm (35 ft. lbs.)
