System Specifications

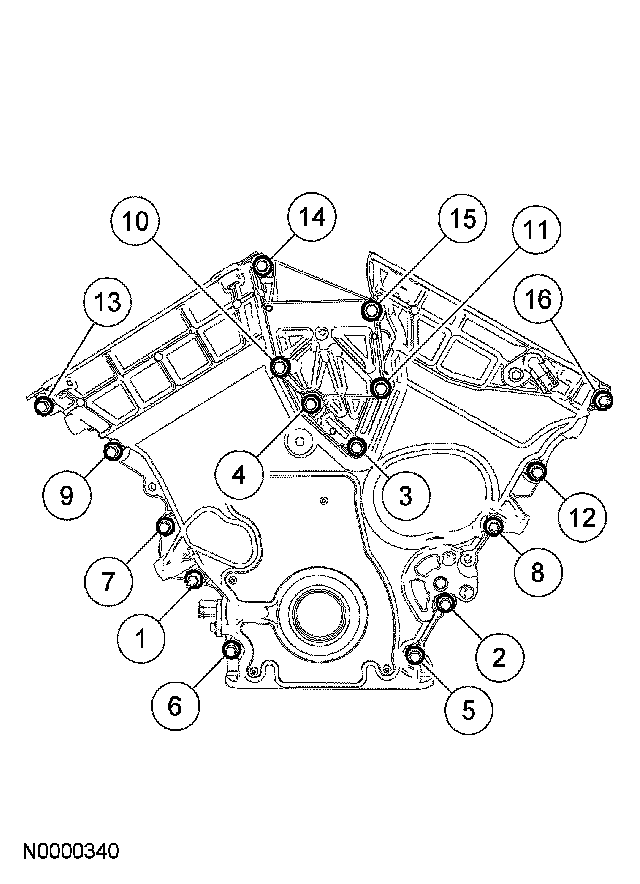

Engine front cover bolts and studs 25 Nm (18 ft. lbs.)
Crankshaft damper Bolt
Stage 1: 120 Nm (86 ft. lbs.)
Stage 2: Loosen one full turn.
Stage 3: 50 Nm (37 ft. lbs.)
Stage 4: additional 90°
