Electronic Climate Control Module

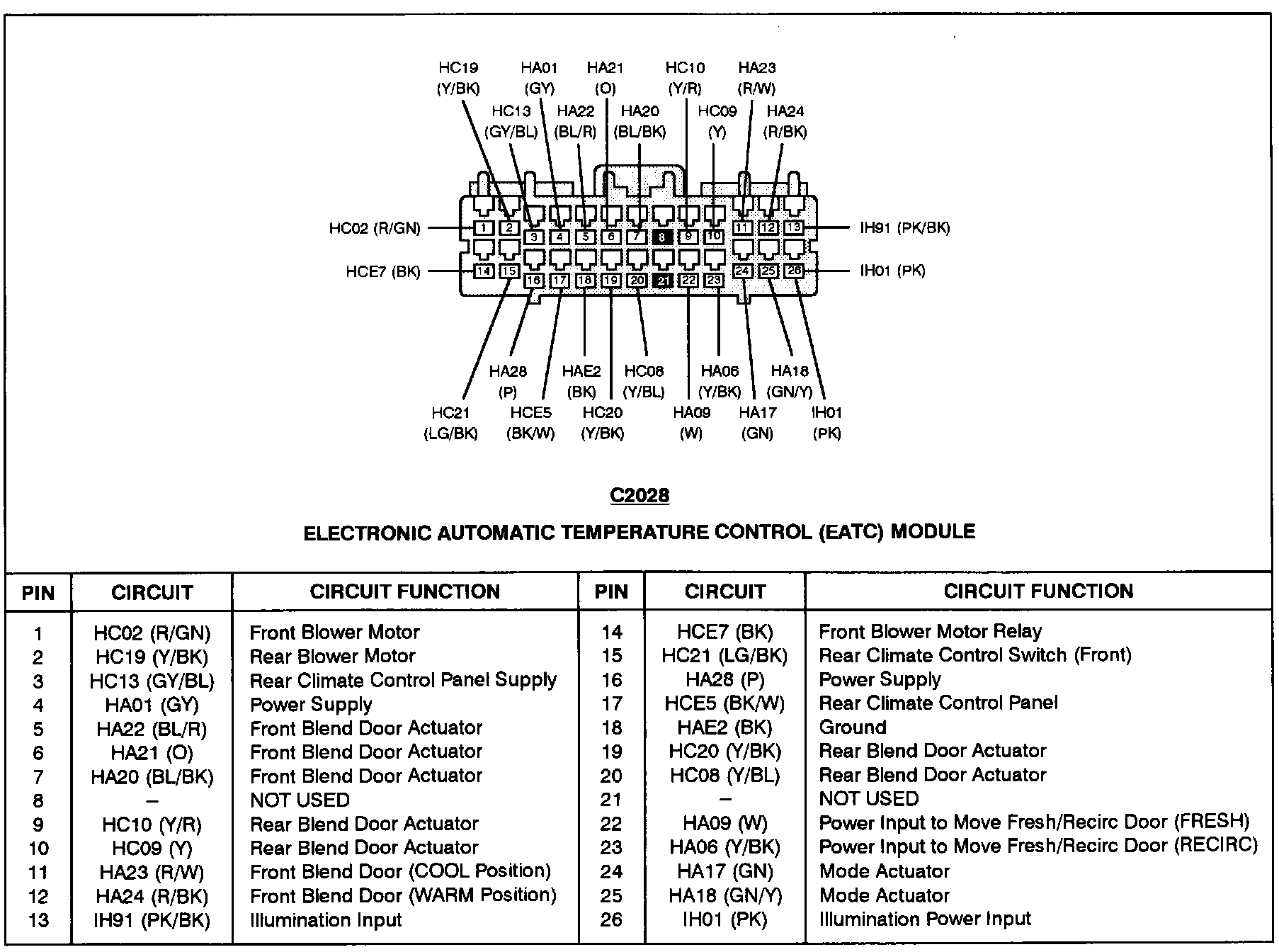

Electronic Automatic Temperature Control Module (C2028):

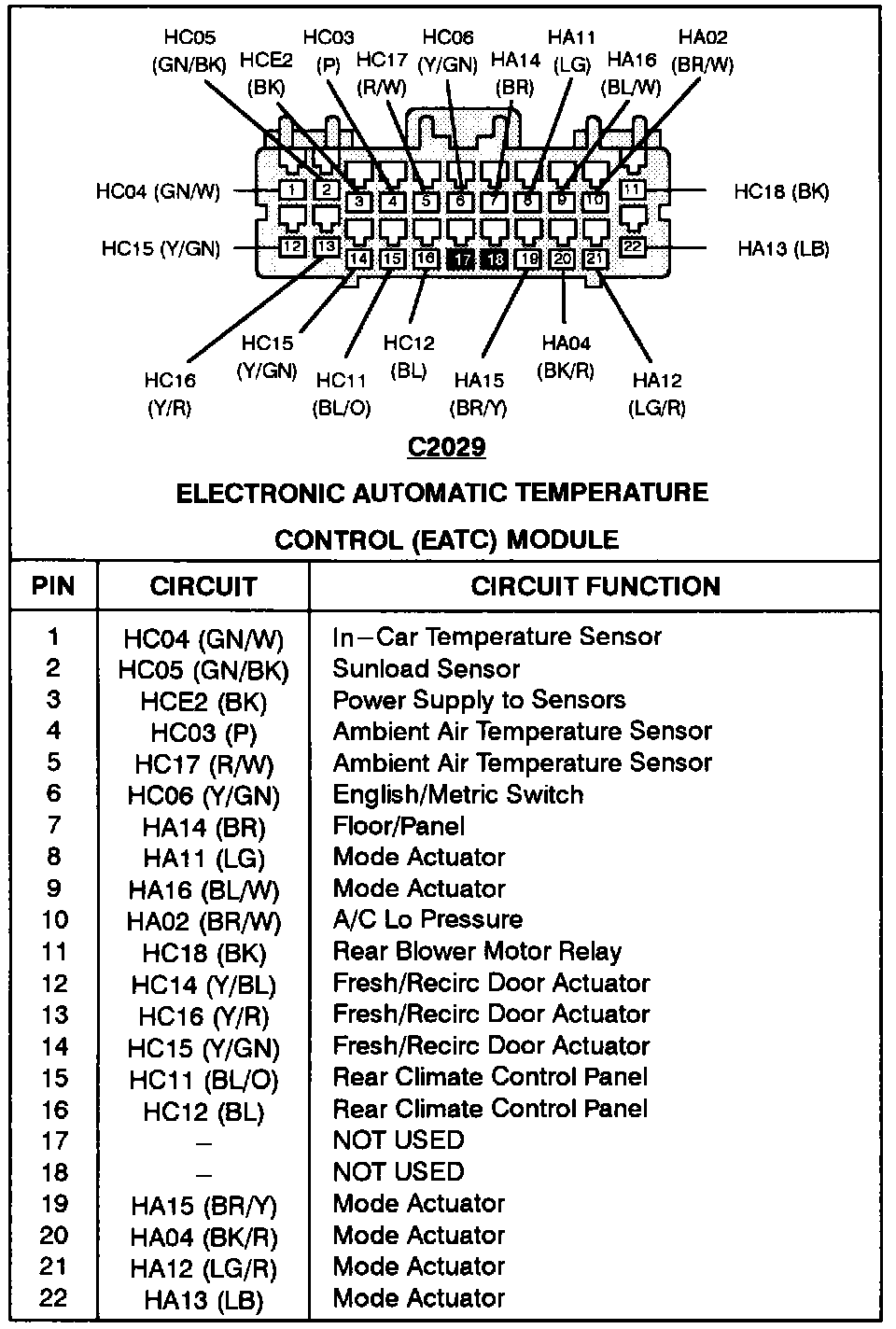

Electronic Automatic Temperature Control Module (C2029):
