AR01.40-P-8000GS Remove/Install Timing Case Cover

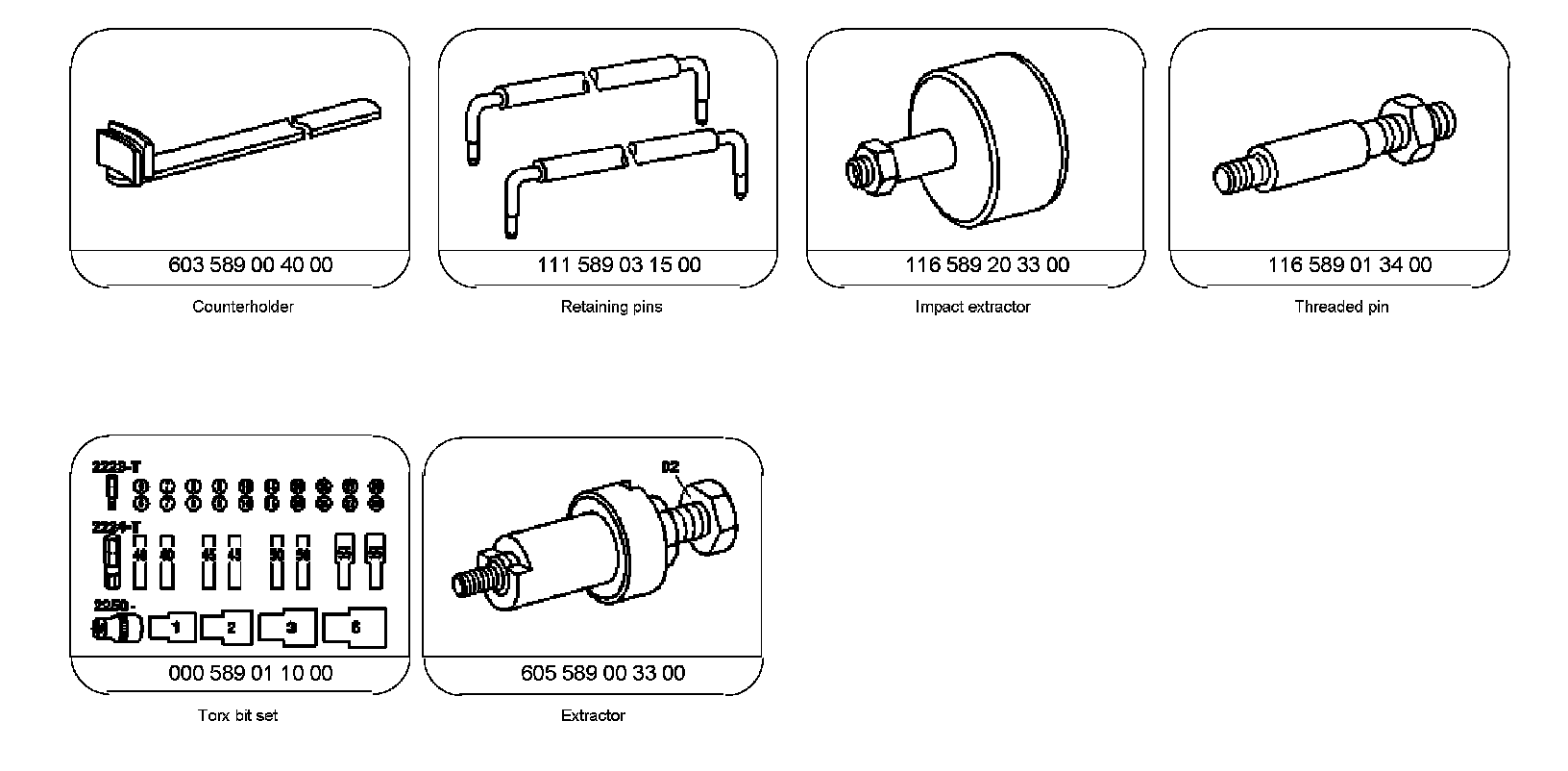

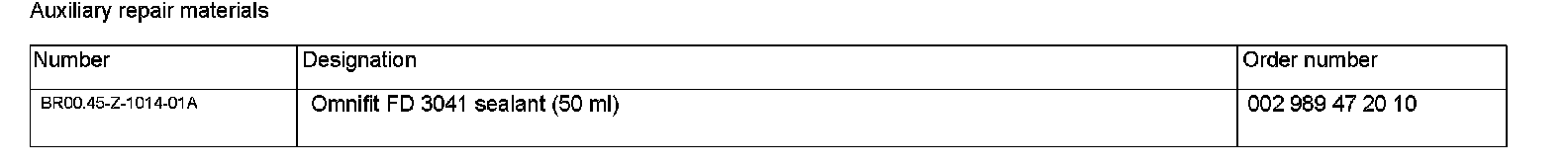

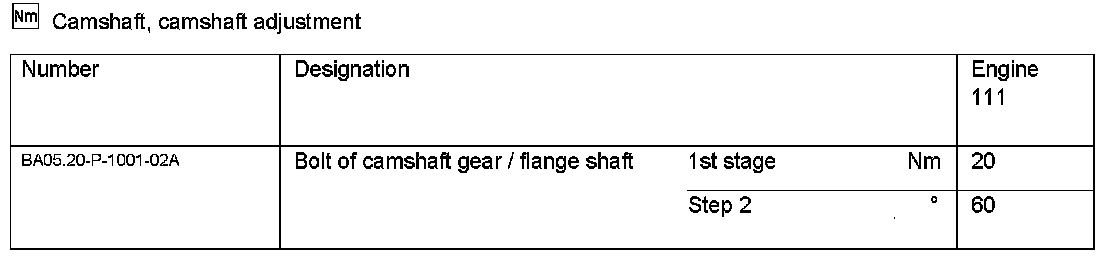

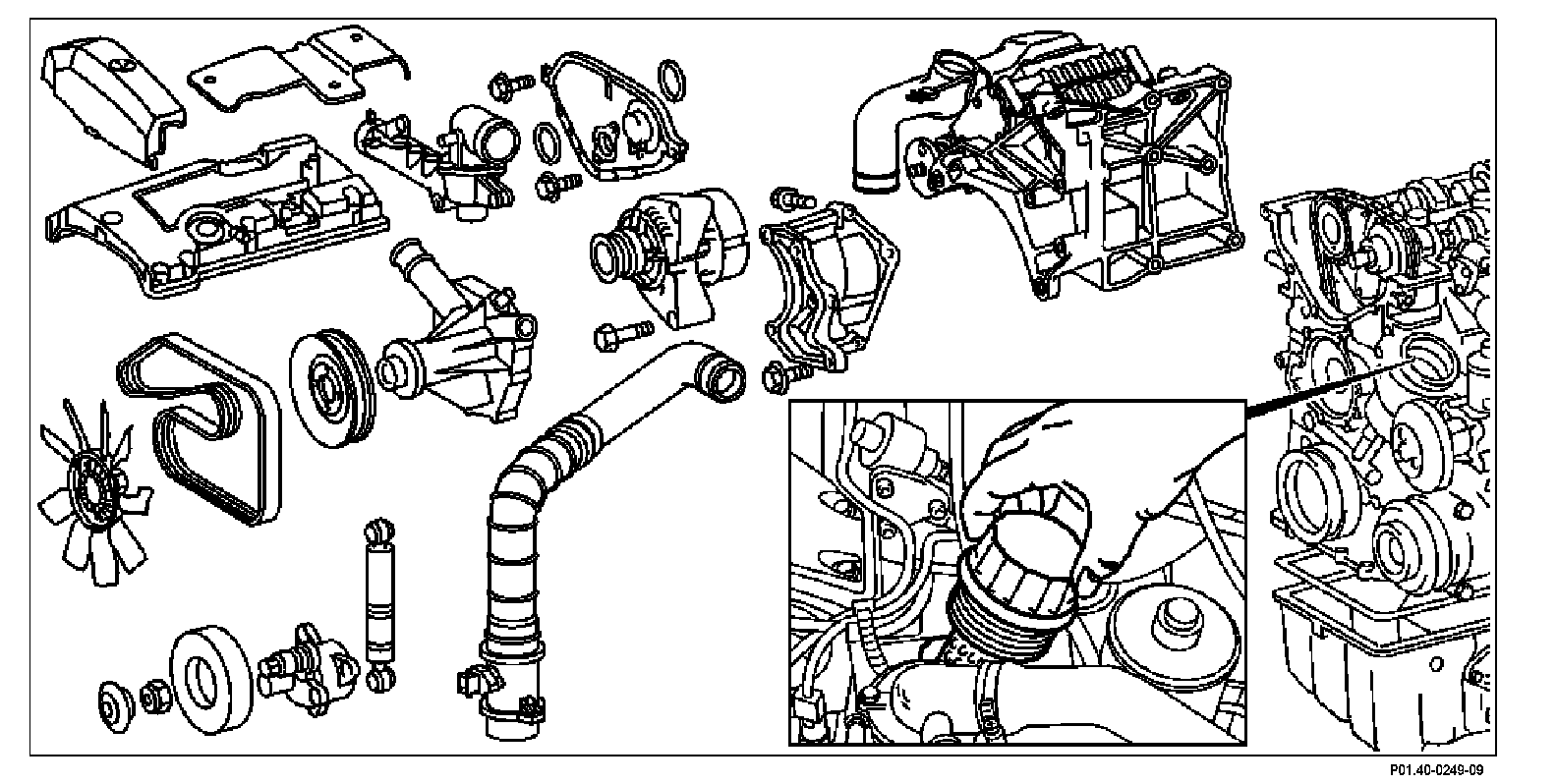

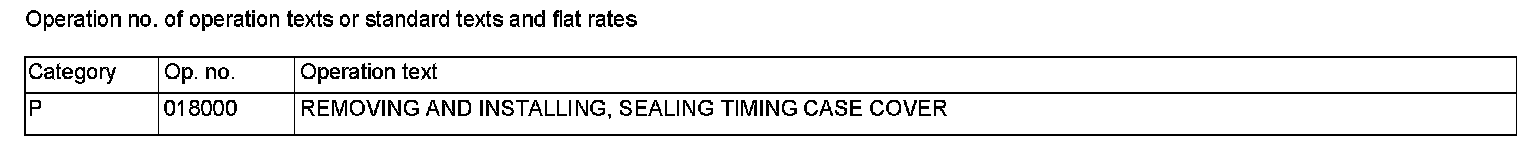

Remove/install timing case cover

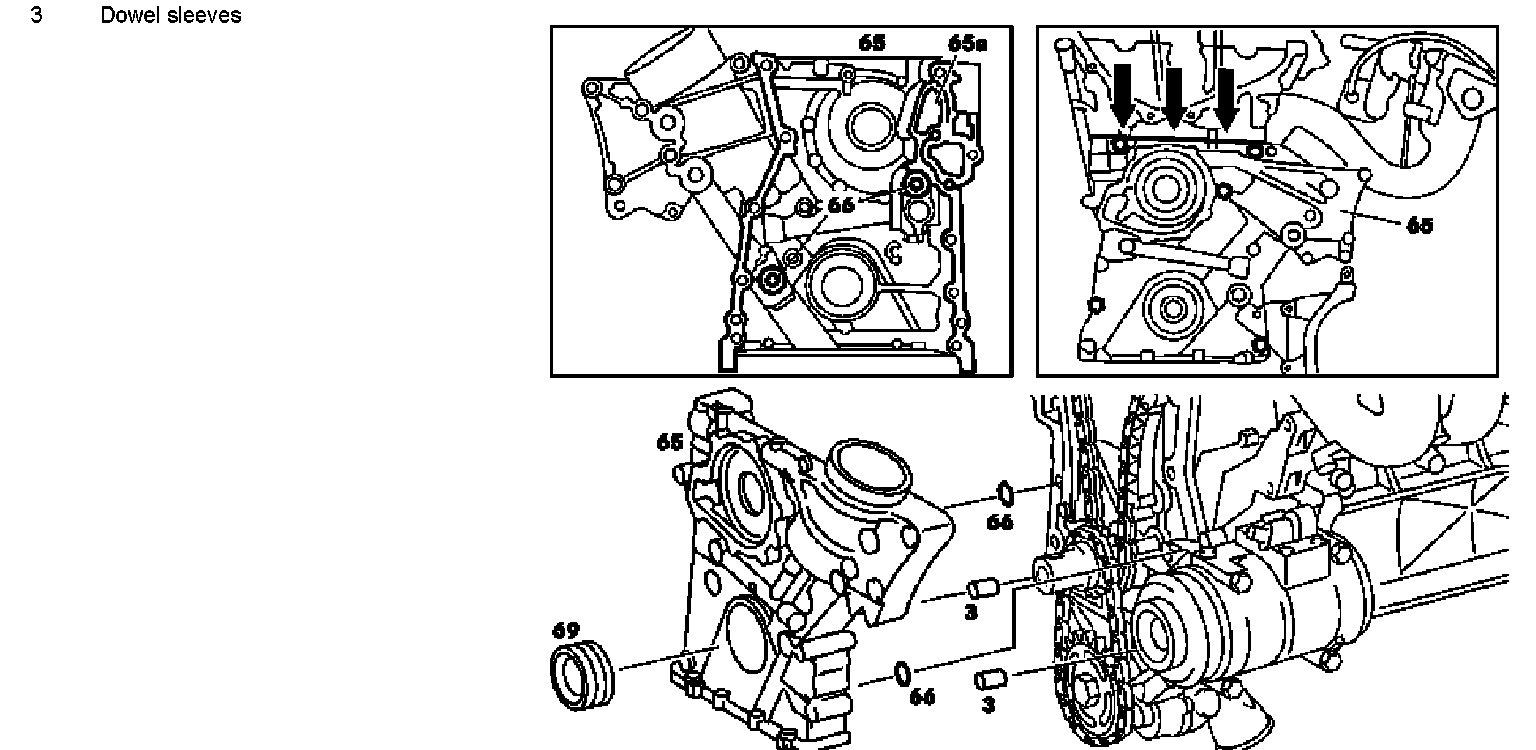

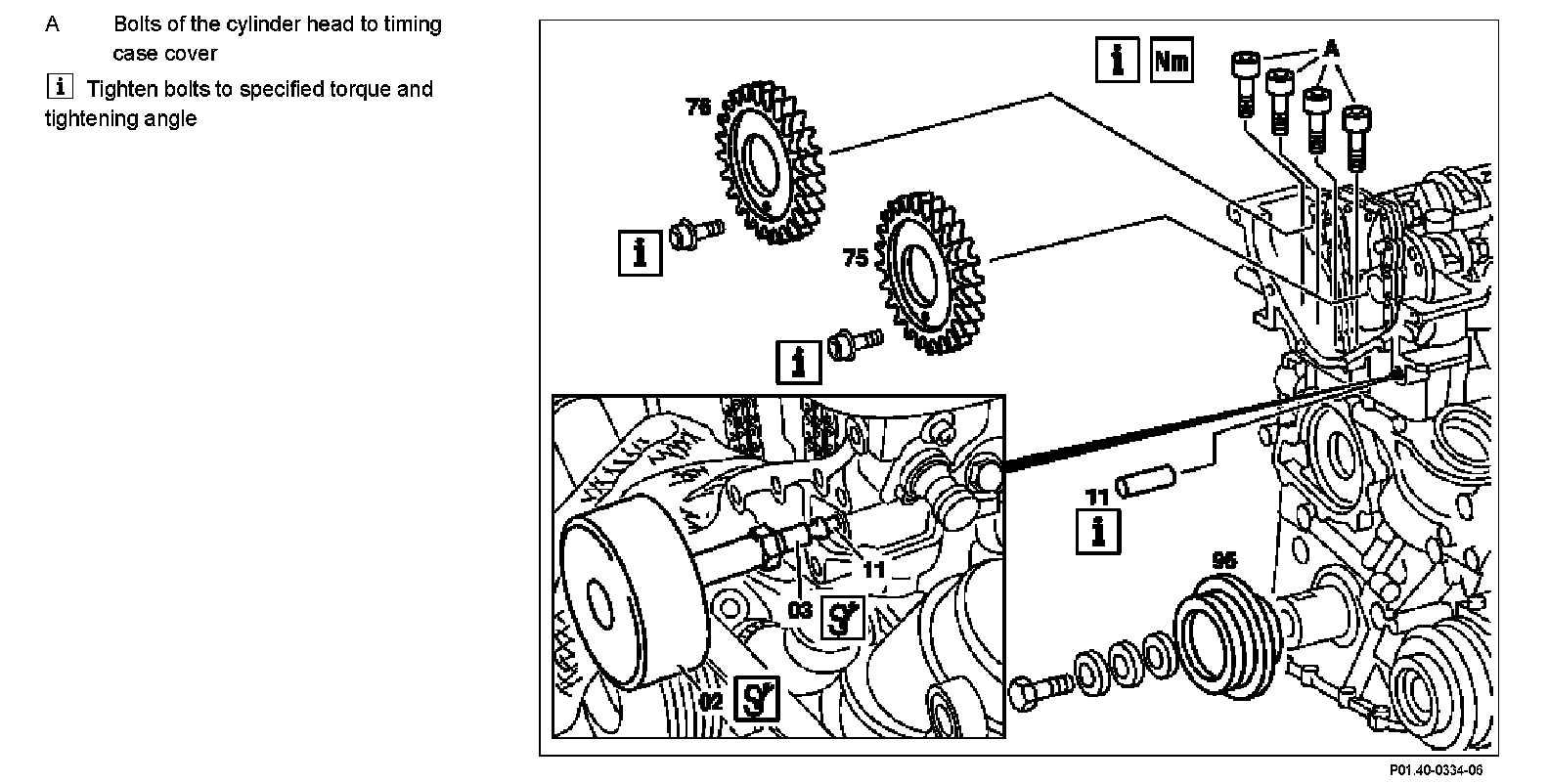

Steps 1-4:

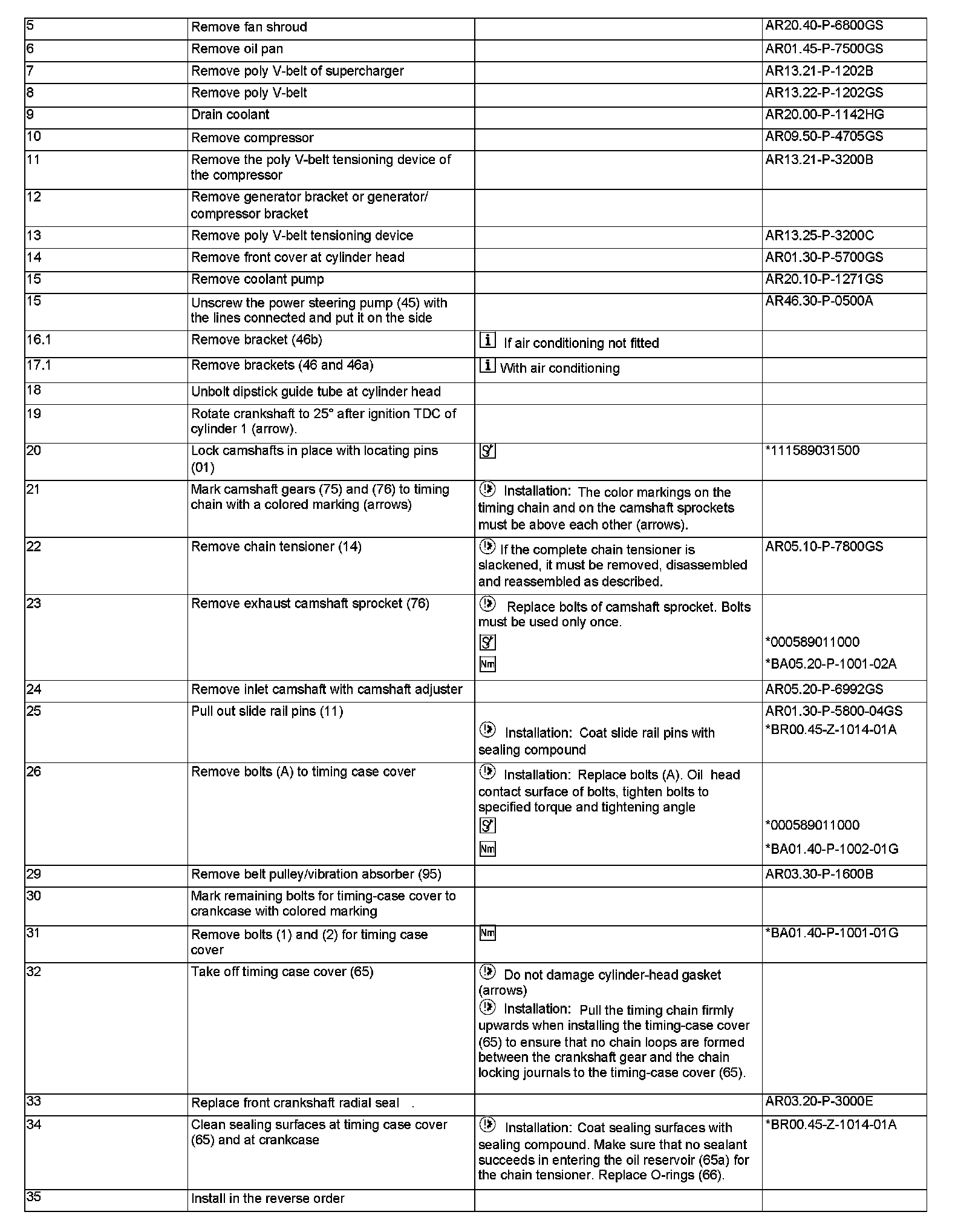

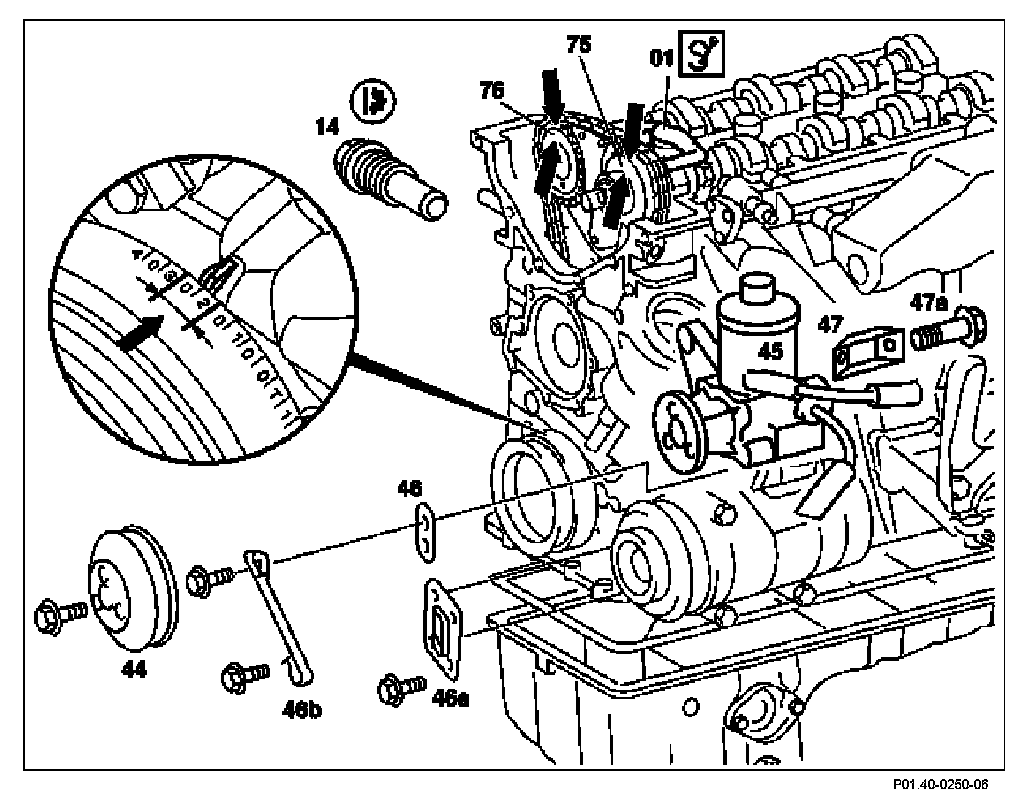

Steps 5-35:

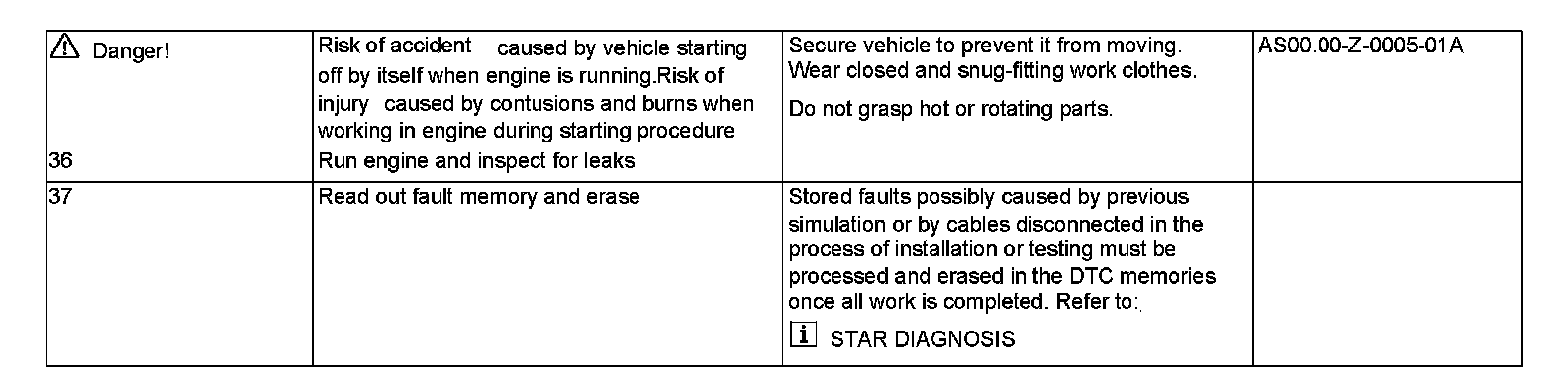

Steps 36-37:
