FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
SLK 230 (170.449) L4-2.3L SC (111.983)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Timing Components
>>
Timing Cover
>>
Service and Repair
>>
AR01.30-P-5700GS Remove/Install Front Cover on Cylinder Head
AR01.30-P-5700GS Remove/Install Front Cover on Cylinder Head
Removing, installing front cover on cylinder head

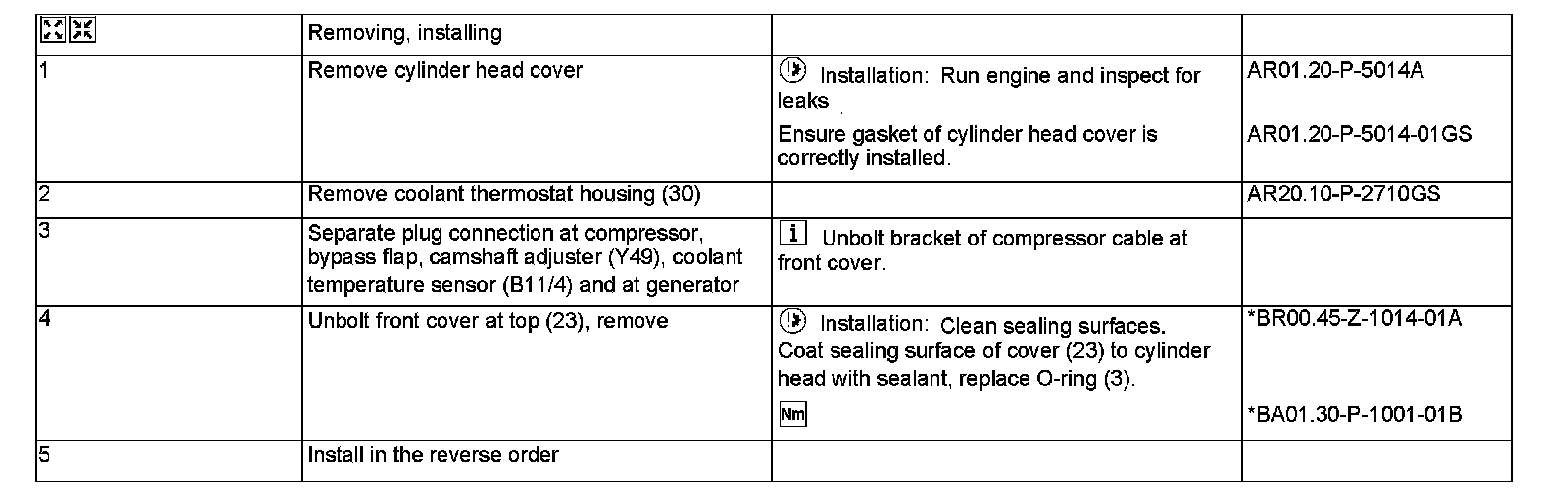

Steps 1-5:
