AR01.30-P-5800E Remove/Install Cylinder Head




Remove/install cylinder head

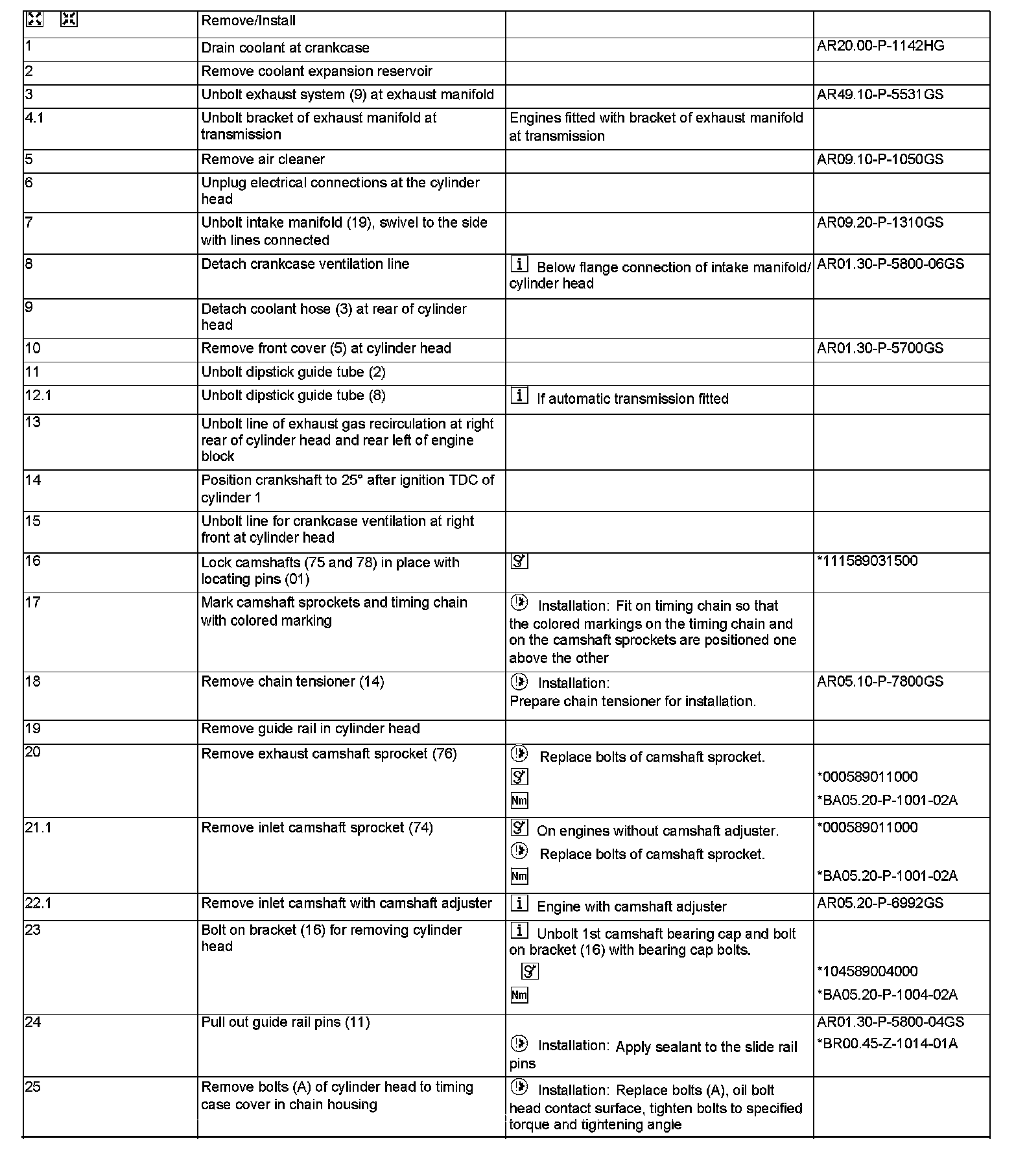

Steps 1-25:

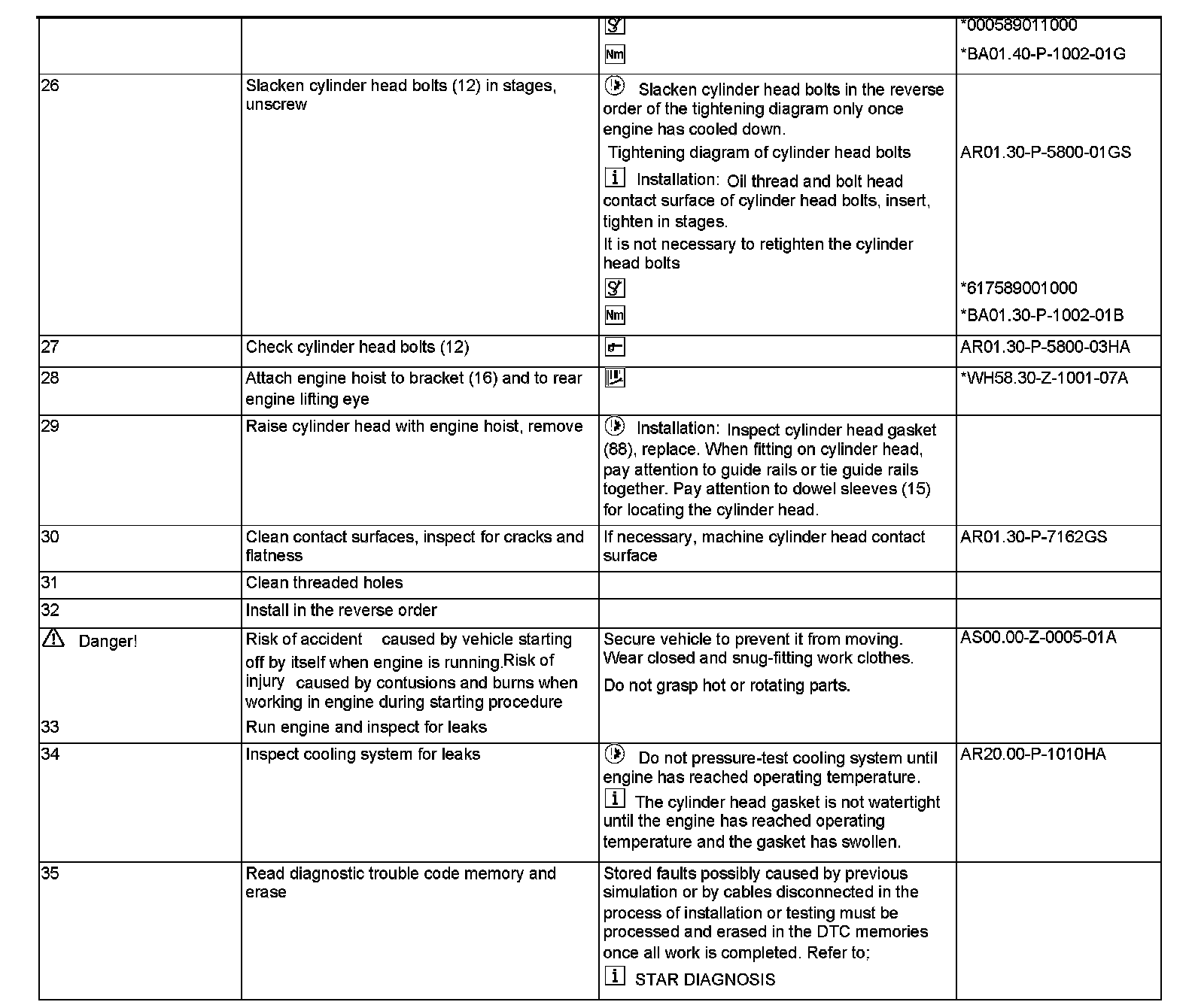

Steps 26-35:

























Part 1 Of 2:





Part 2 Of 2:
