Interior Module Keyless Go Control Module

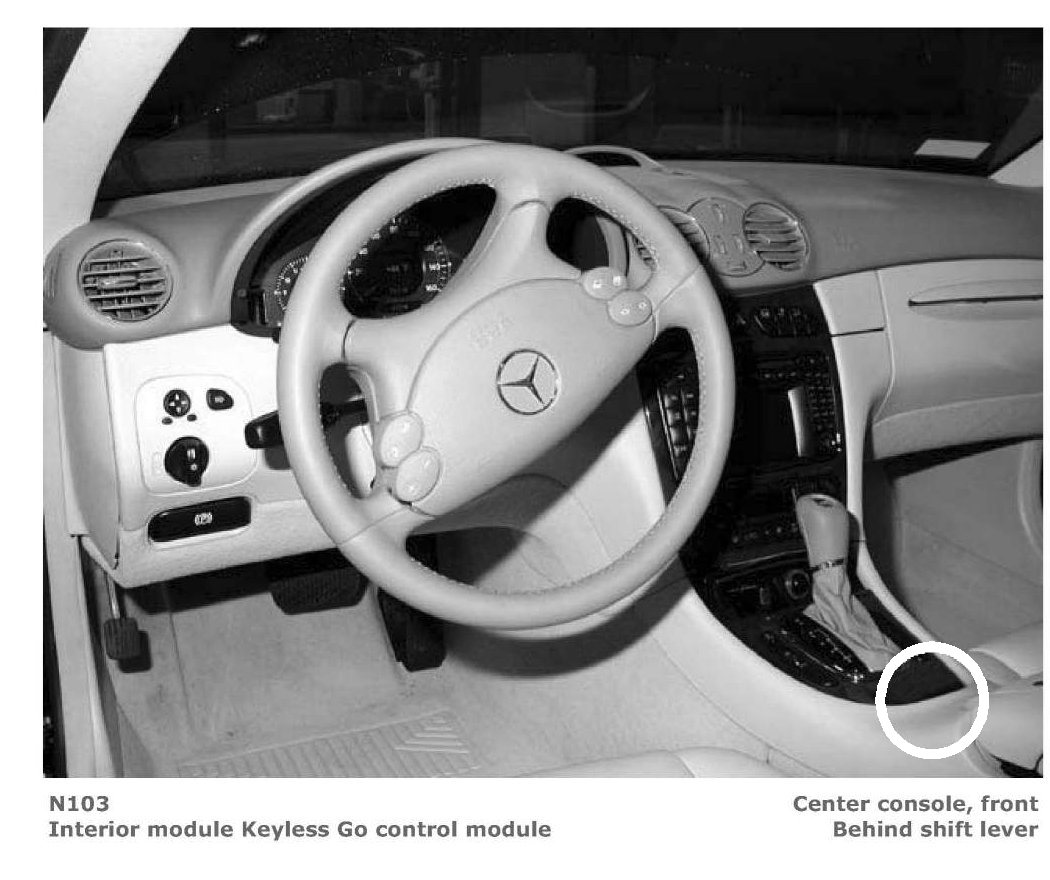

Interior Module Keyless Go Control Module (View 1):

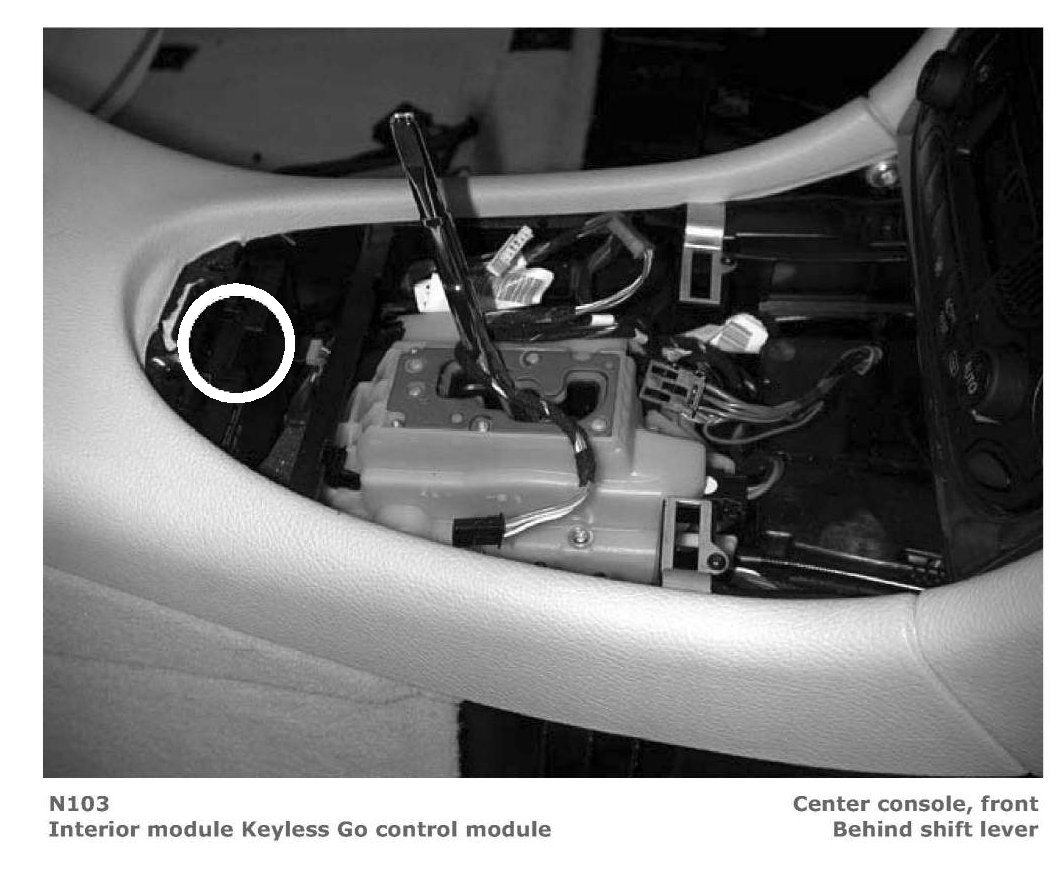

Interior Module Keyless Go Control Module (View 2):
