Ignition Control Module: Locations




Ignition Module, Position

ENGINE 137.970

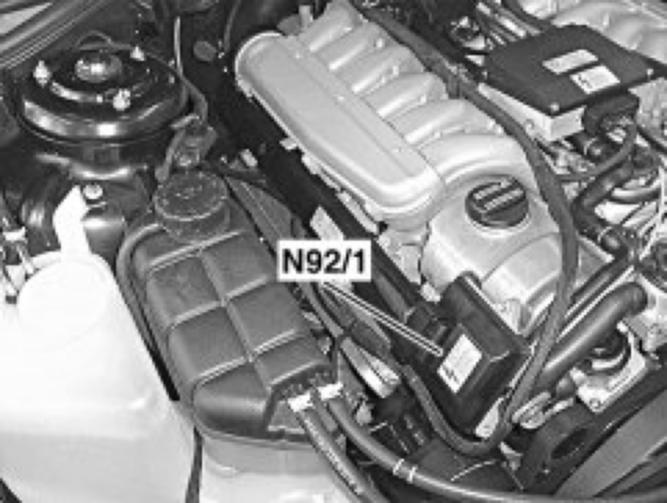

N92/1 ECI ignition module, right bank of cylinders

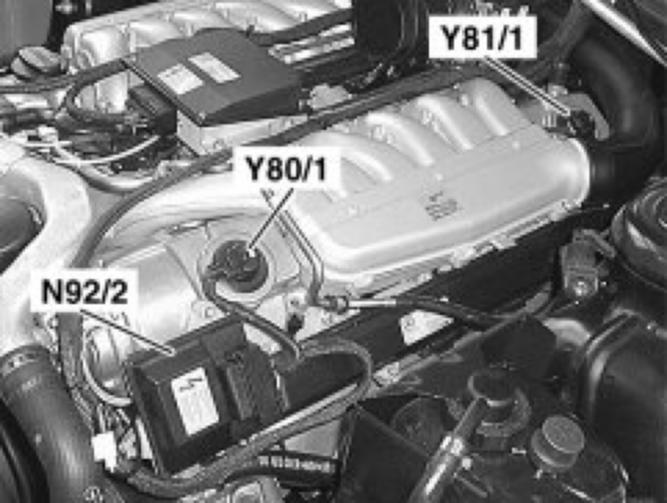

N92/2 ECI ignition module, left bank of cylinders
