Overhead Control Panel Control Module




Component Identification:

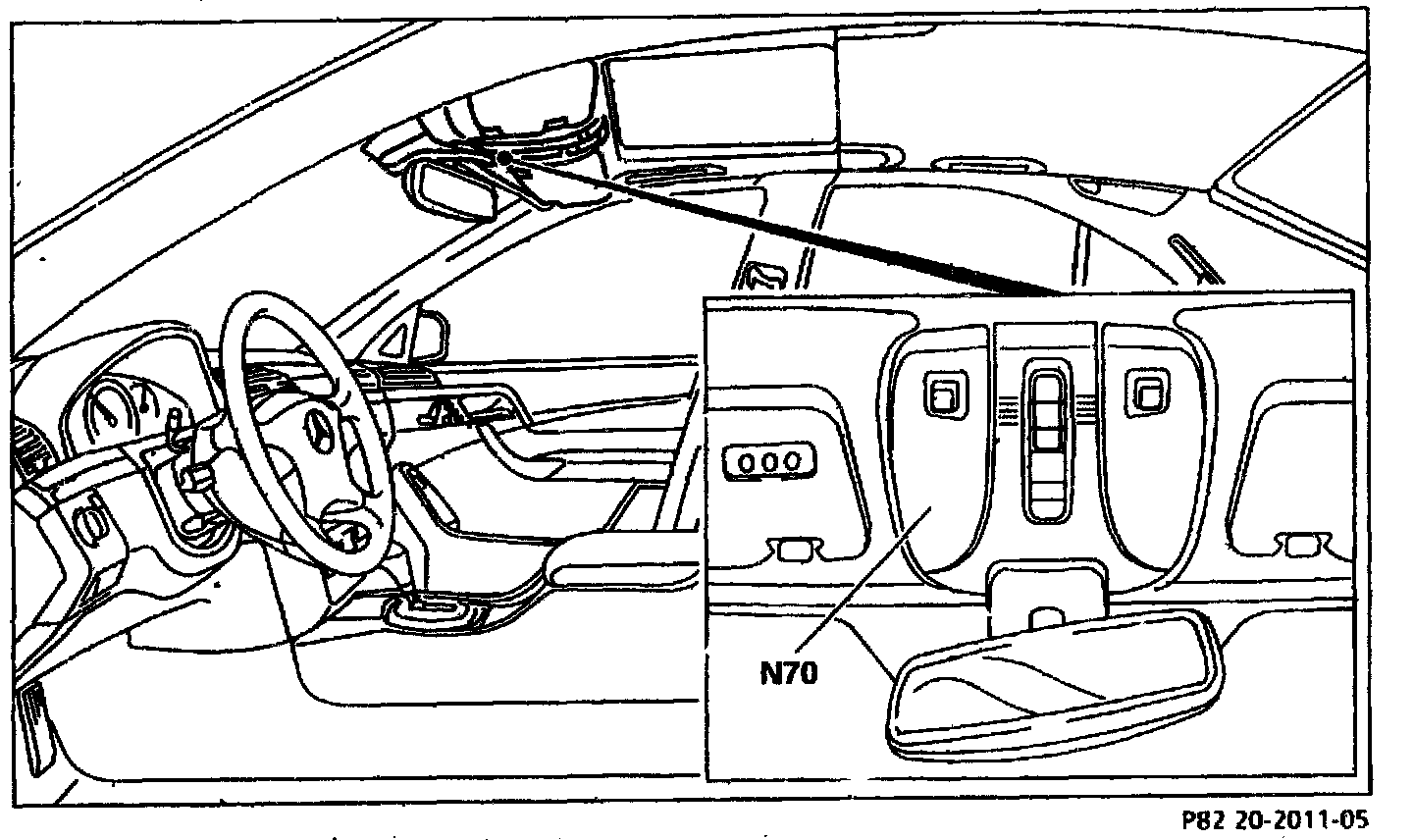

The overhead control panel control module (N70) is located in the area of the interior rearview mirror on the root.
