Air Conditioning (A/C)
Air Conditioning (A/C)
Models 202 (as of MY 1996)
Function Test [11]
Preperation for Test
1. Review 11, 12, 14, 15, 20, 21, 23, 31, 33
2. Check condition of fuses F1-4, F1-7, F1-8.
Check condition of fuse 1 circuit 15 in rear fuse box (F4-1).

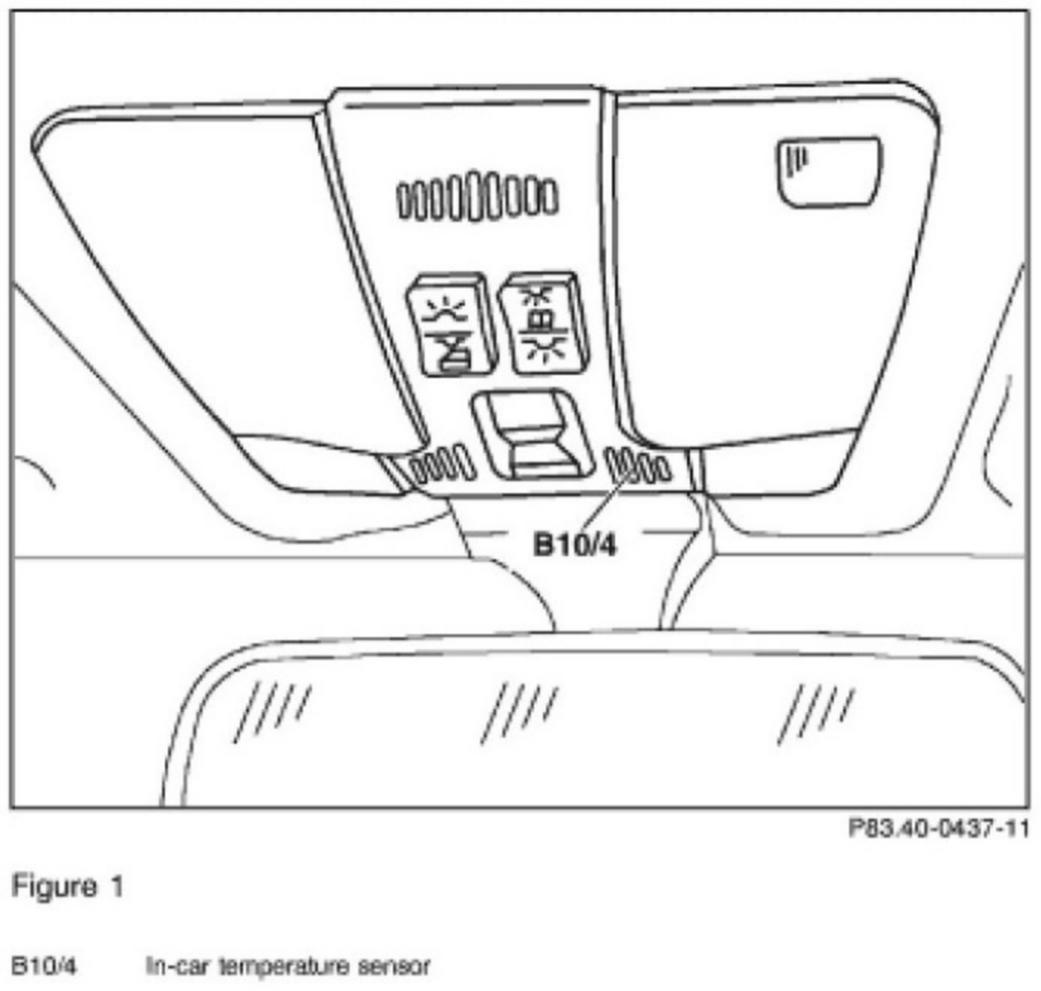

3. Check in-car temperature sensor aspirator blower by placing a small piece of paper (approx 1/2 sq.) over aspirator blower vent grille with ignition "ON" (arrow, Figure 1). If there is suffcient ventilation the paper will remain on the vent grill, If not check aspirator blower for voltage supply and function. The after-run time for the blower motor is approx. 1 minute.
4. Run engine at closed throttle and operating temperature (80°C during entire test (ensure that the shift lever is in "P" and that the parking brake in engaged).
5. Manually open the center and side air outlets.
6. Ensure that the "Recirculating Air" button is not depressed.
