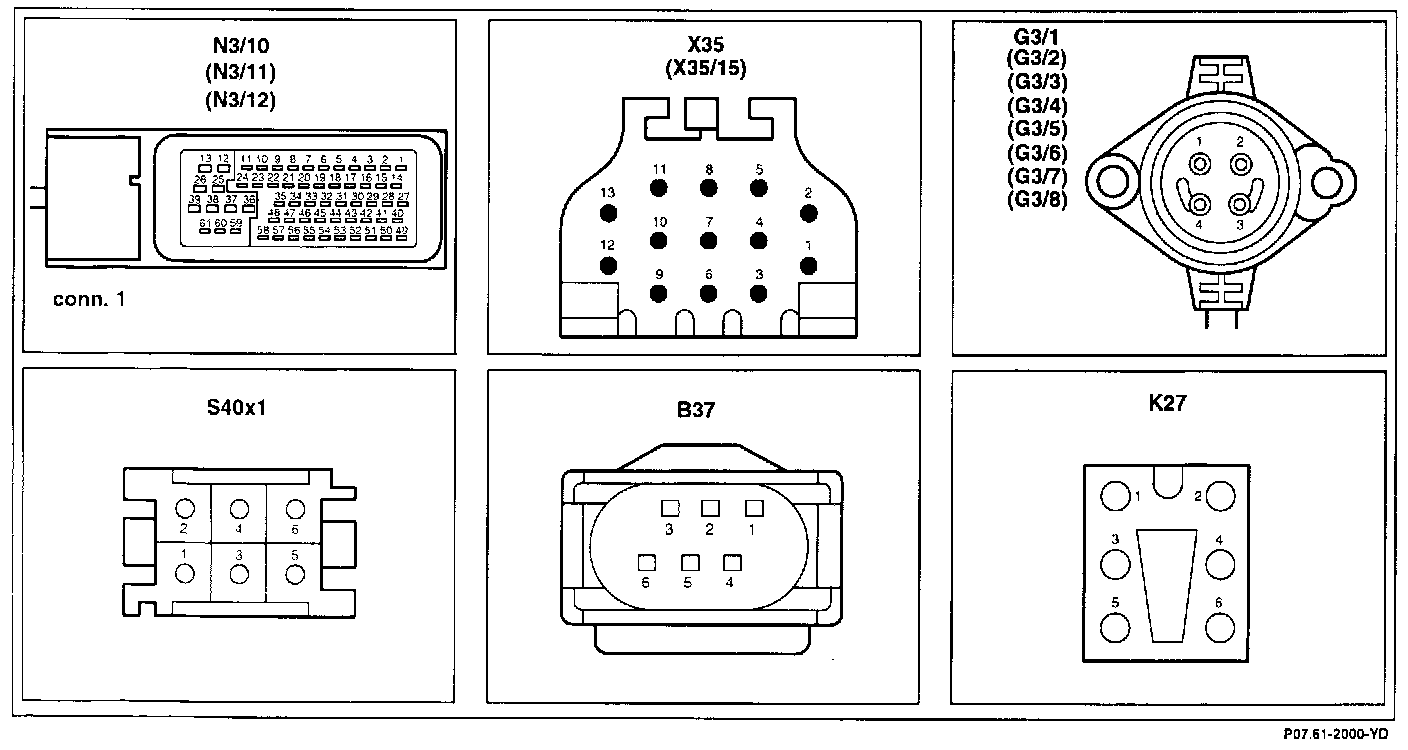

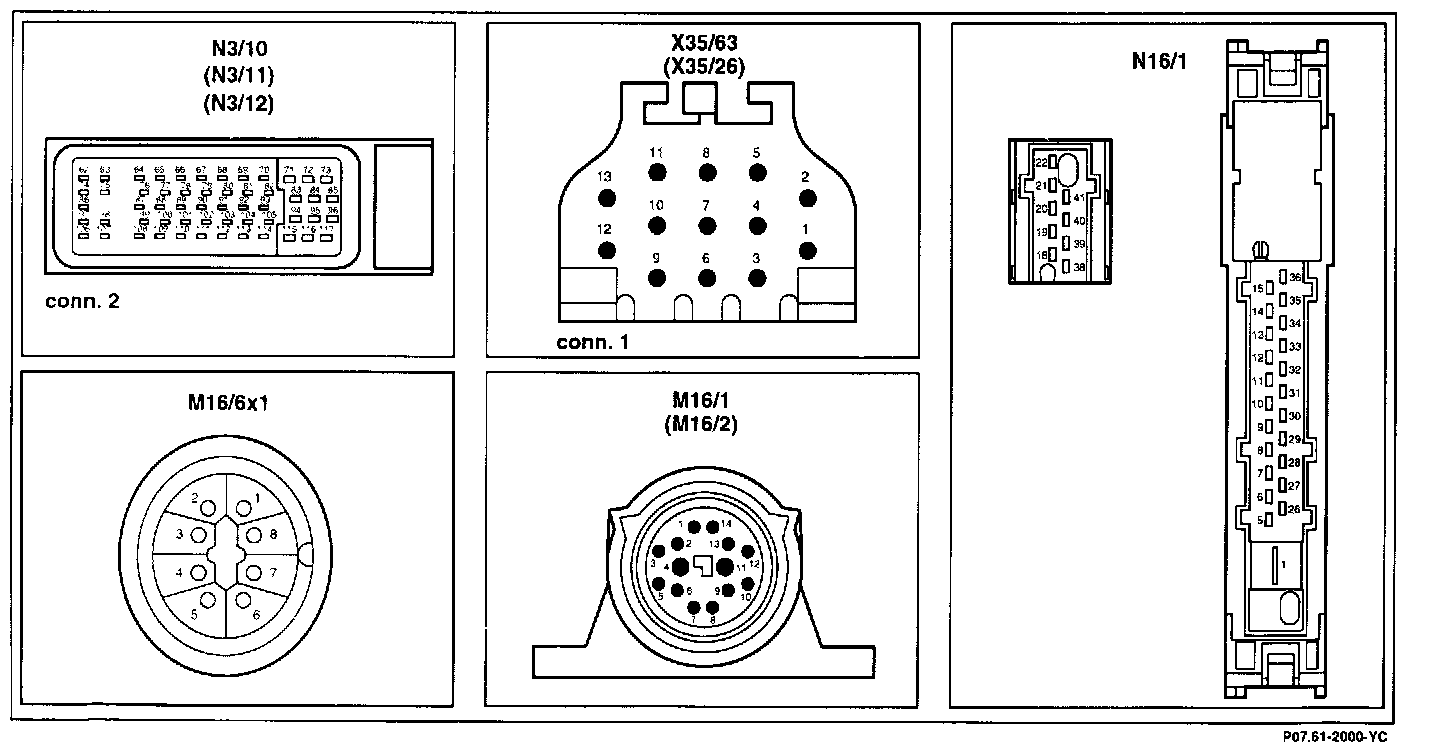

Connector Views
ME-SFI Fuel Injection and Ignition System
Connector 1
Connector Assignment:

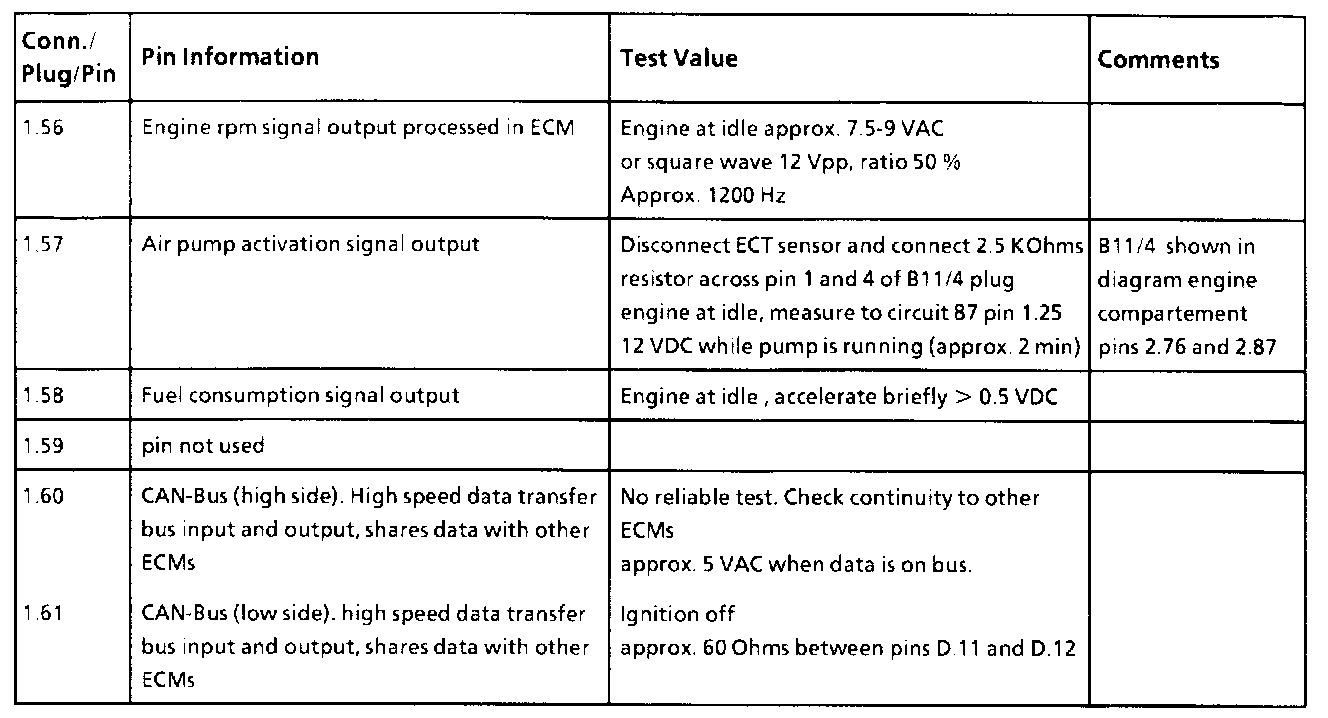

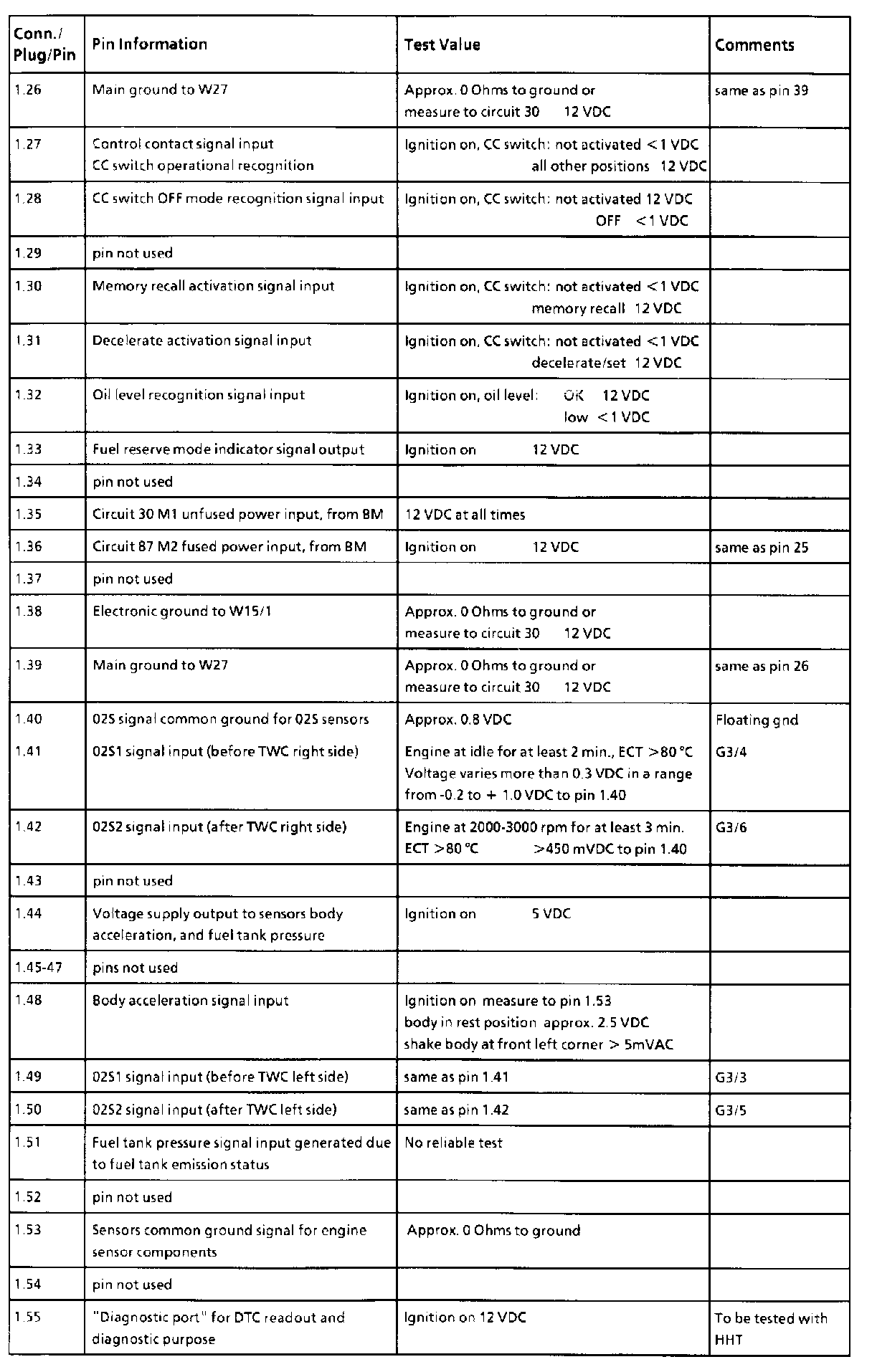

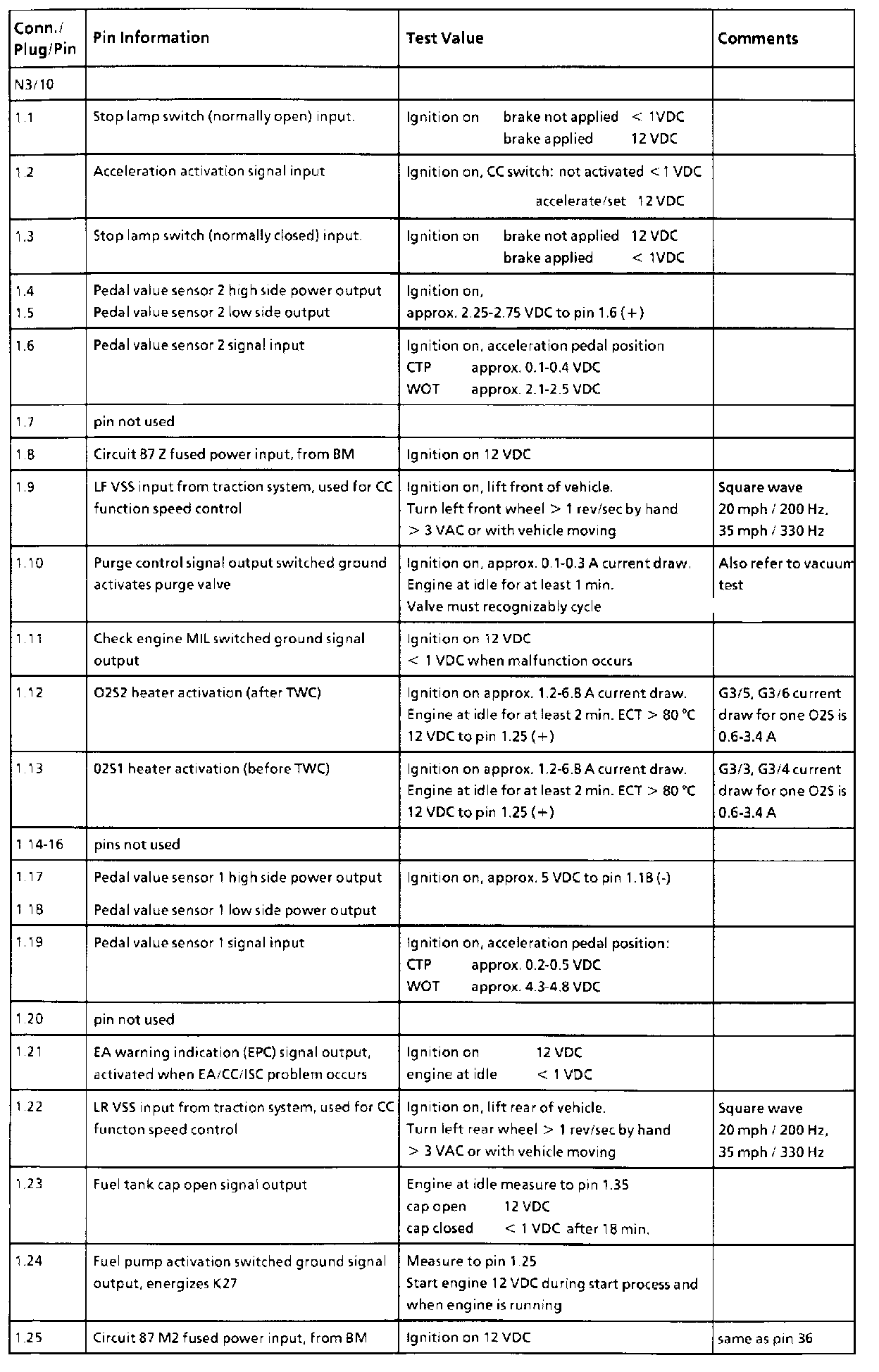

Pin Information, Part 1:
Pin Information, Part 2:
Pin Information, Part 3:
ME-SFI Fuel Injection and Ignition System
Connector 2
Connector Assignment:

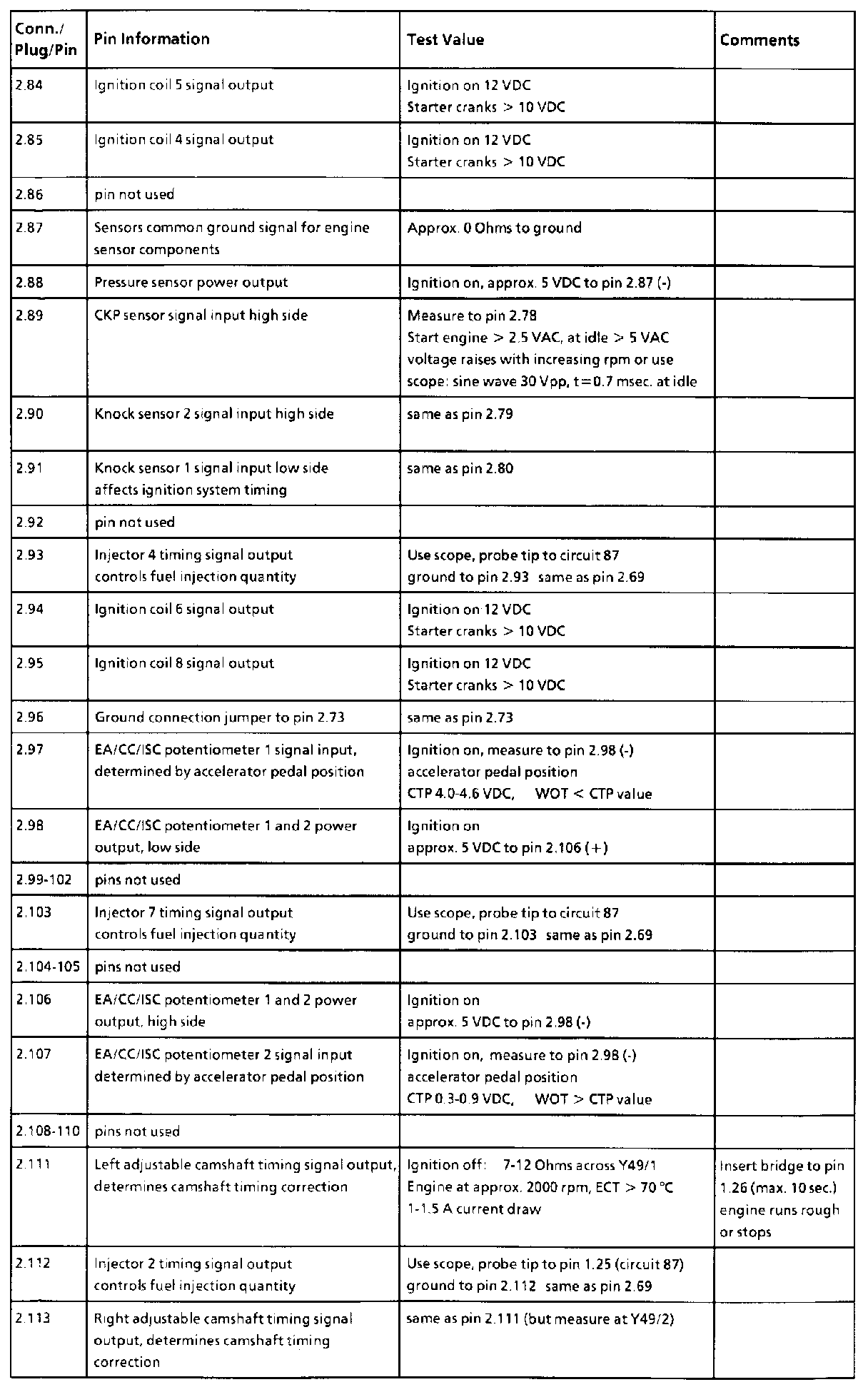

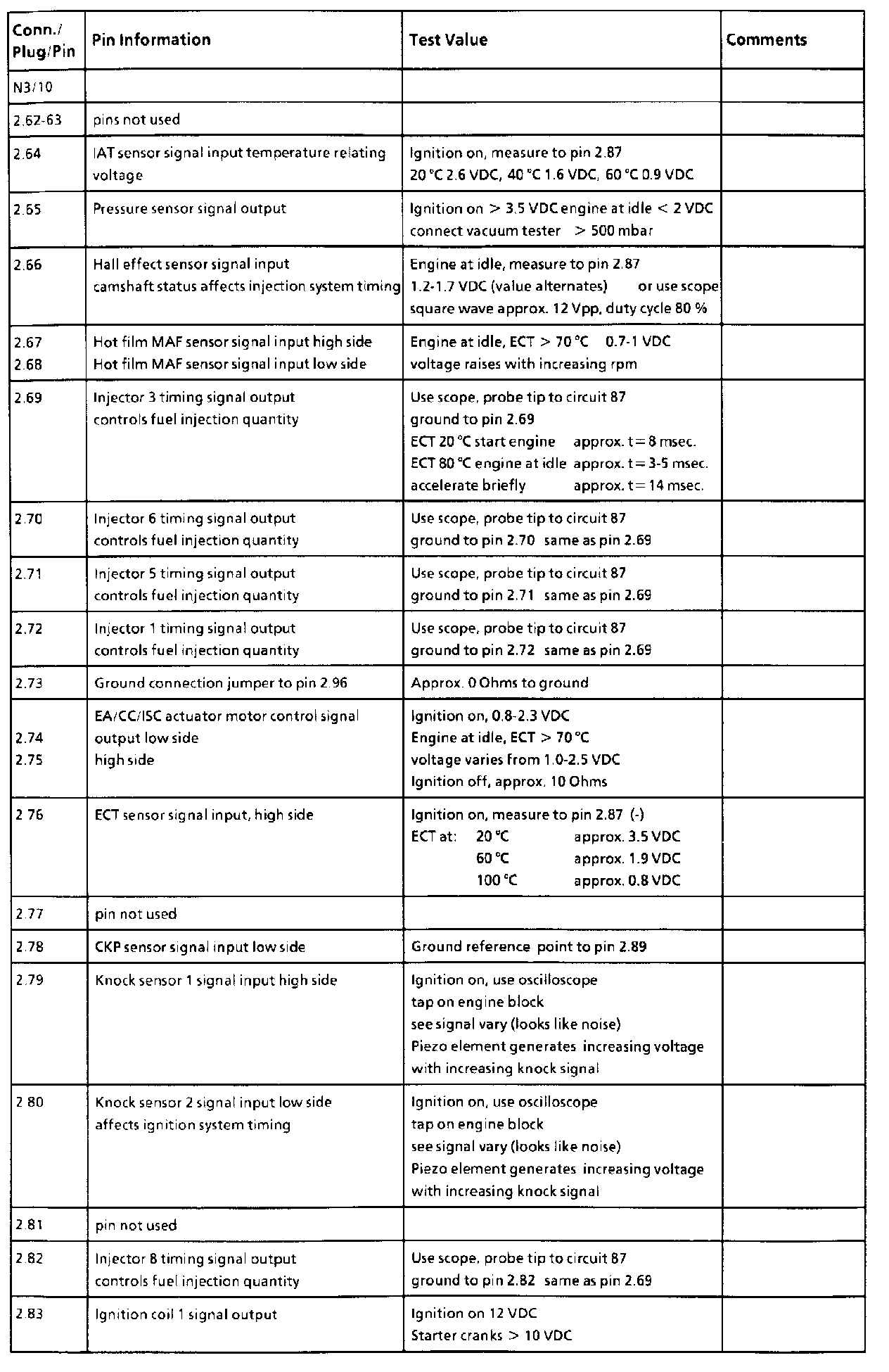

Pin Information, Part 1:
Pin Information, Part 2:
Pin Information, Part 3:
All values measure to ground unless otherwise noted
