Ignition Control Module: Locations

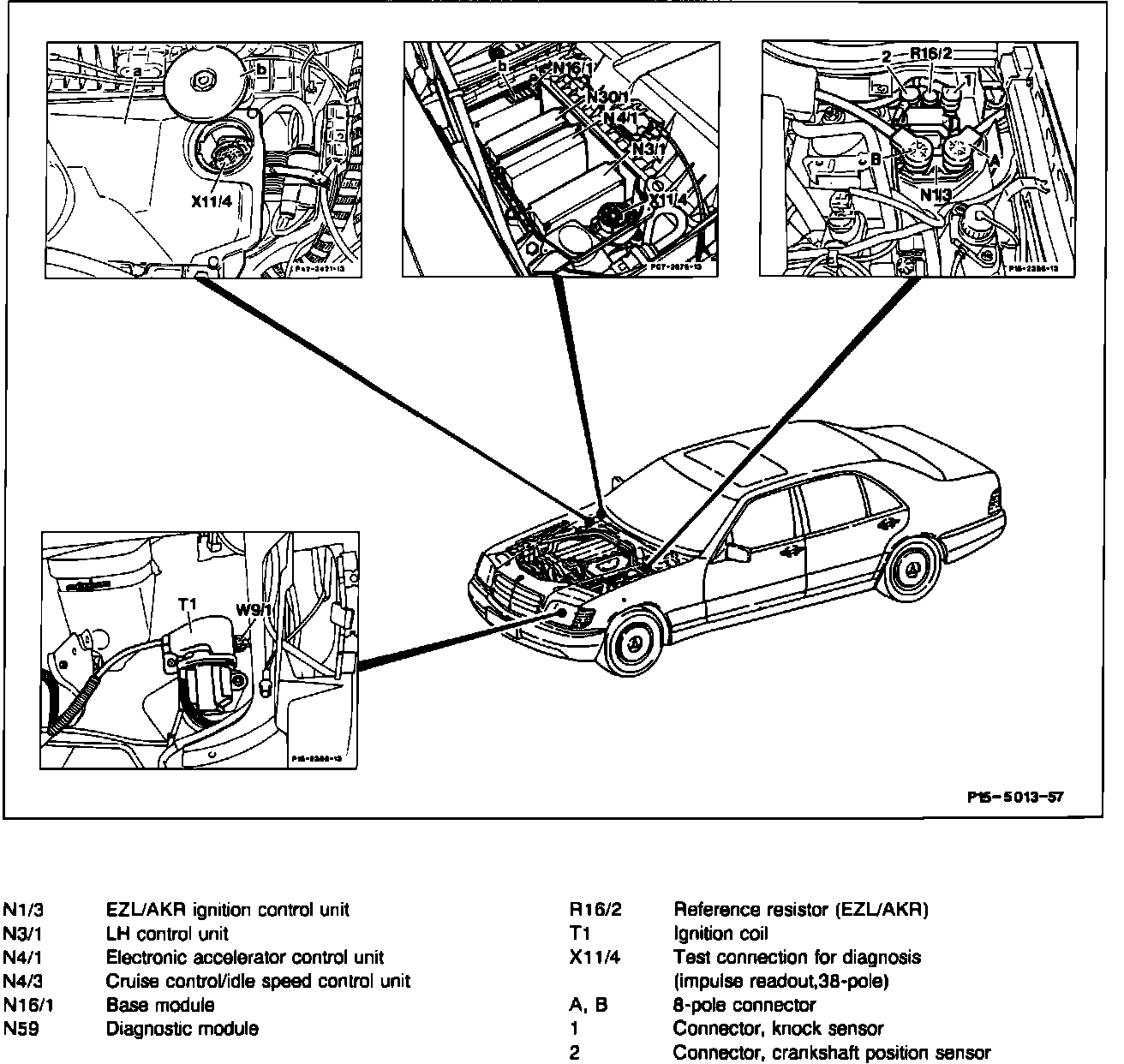

Component Locations:

EZL/AKR ignition control module N1/3
Intake manifold pressure sensor is located in the EZL/AKR ignition control module N1/3
