Control Cable Cannot Be Removed

B. Control unit cannot be removed.

Removal

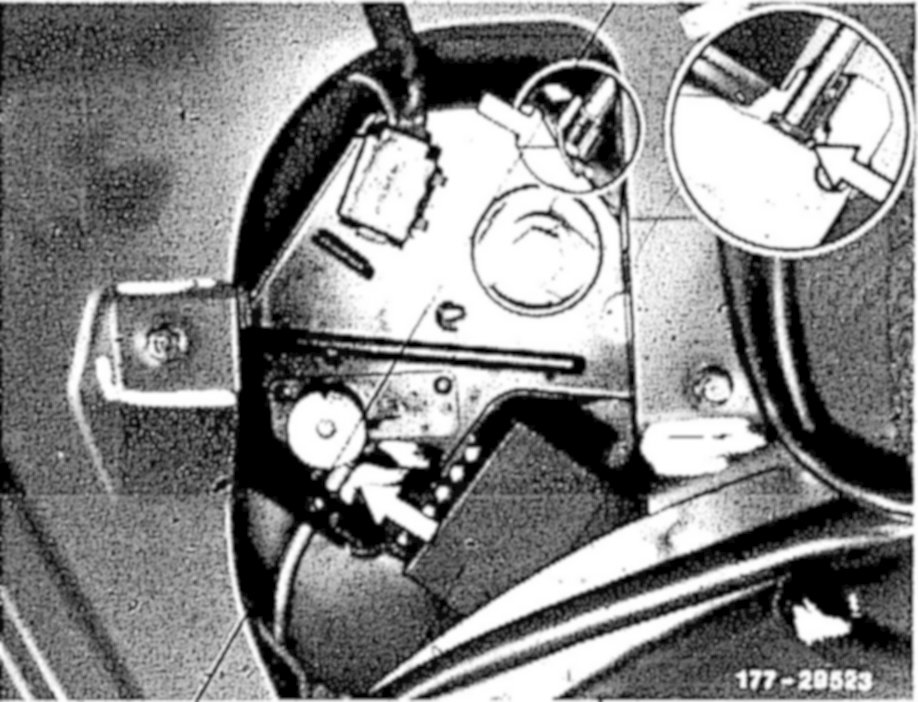

1 Remove cover in trunk left.

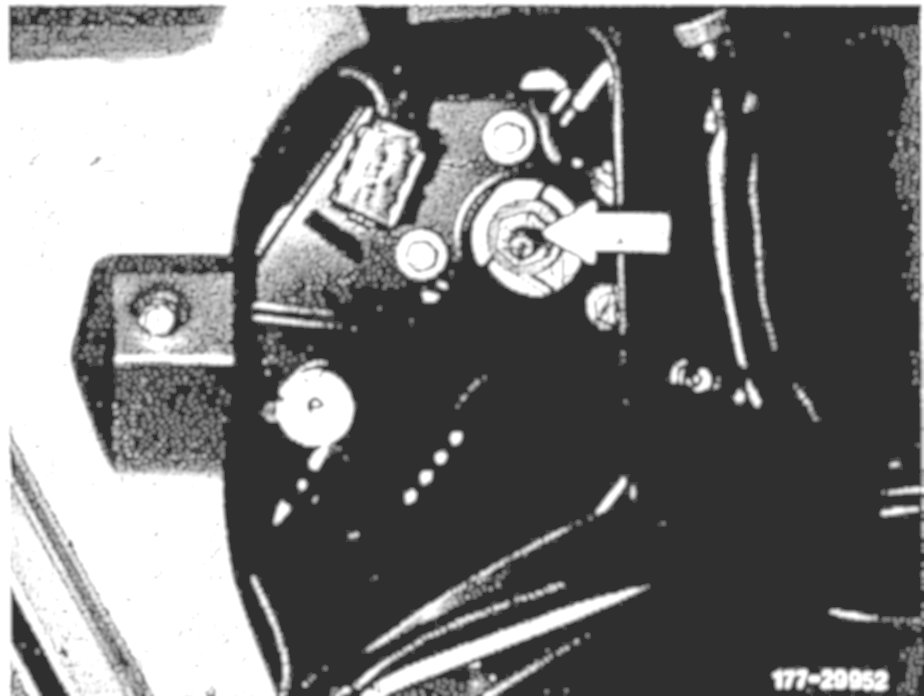

2 Force off plastic cap for emergency crank drive and unscrew the hex nut (17 mm) underneath, while holding shaft of gear unit in position by means of an open-end wrench (6 mm) at the place provided for this purpose.

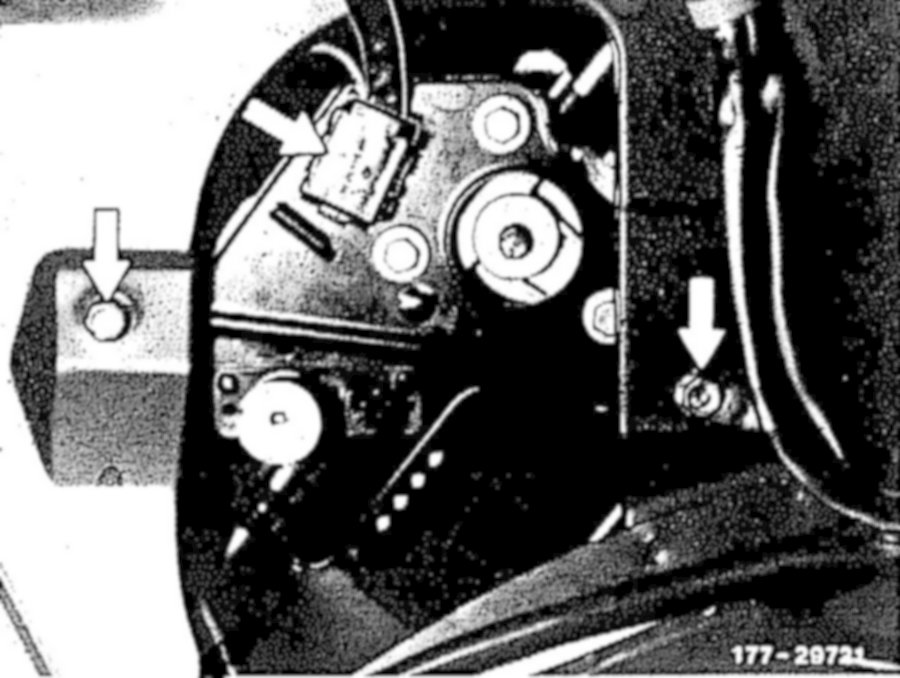

3 Unscrew fastening screws on holder and pull off electrical connection on sun roof motor.





Shown with motor removed


4 Remove plastic cover from holder.





Shown with motor removed

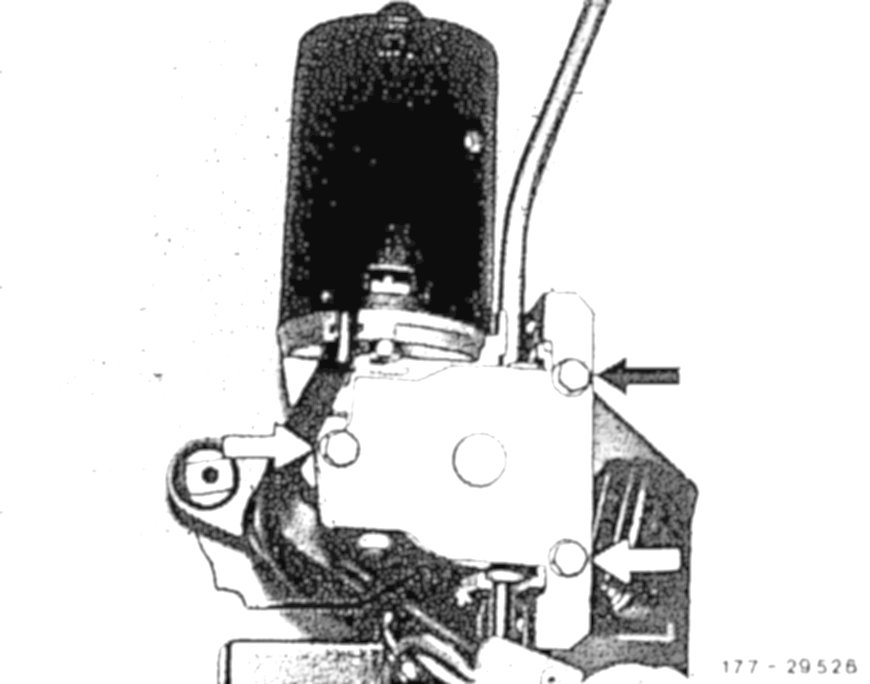

5 Slightly turn holeer with motor and unscrew gear unit housing on back.





Shown with motor removed

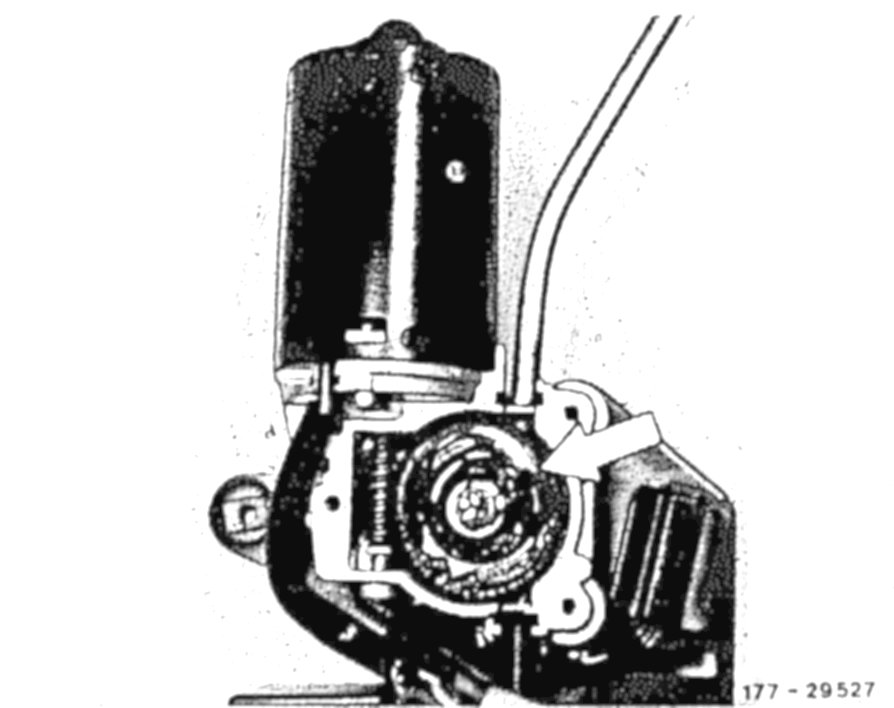

6 Remove gear unit cover, unclipping holding clamp for this purpose, and remove gearwheel.

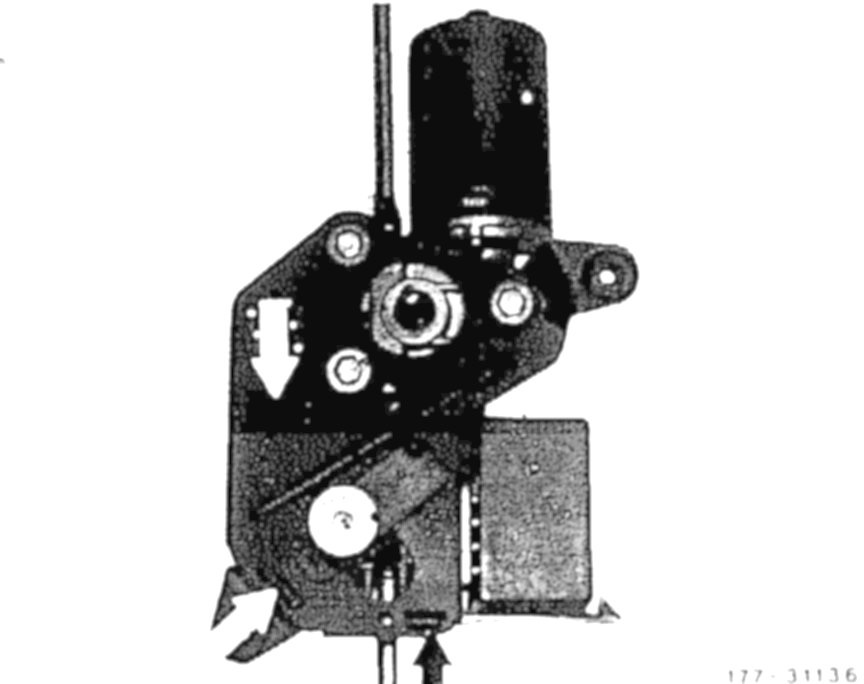

7 Remove holder with motor and gear unit.

8 Pull control cable forward out of tube.



Installation






9 Assemble gear unit.

10 Install holder with motor and gear unit.


NOTE: When fastening both tubes with clips, make sure that the bead on tube slips into groove on gear unit.


11 For further installation proceed in reverse order.

12 Adjust slip clutch on gear unit Adjustments
